Page 10
Note: Ensure that the black nylon spring clip near the top of the fibreglass
tube is pointing toward the rear of the coil.
d) Push the black nylon bolt (11) through the holes in the bracket on the
coil from the cable entry side and tighten the wing nut (12) by hand.
5.3
Completing the Shaft Assembly
a) Slide the lower shaft assembly (3) into the Aluminium upper shaft (2).
Note: The black plastic locking nut (18) may need to be loosened to
position the lower shaft assembly correctly.
b) Set the length of the shaft by locking the black nylon spring clip
into one of the holes provided, then tighten the plastic locking nut by
hand.
4
5.4
Shaft Mount
a) Position the control box so that the recess in the control box (1) is
aligned with the leading edge of the mounting clip (8). Push the
forward section of the control box upwards until the trigger 'clicks'
indicating the control box is secured.
b) Firmly wind between 17 and 20 turns of the cable around the shaft
until it reaches the control box.
Note: Leave enough slack at the bottom of the cable near the coil to
adjust the coil position without straining the coil cable.
2
8

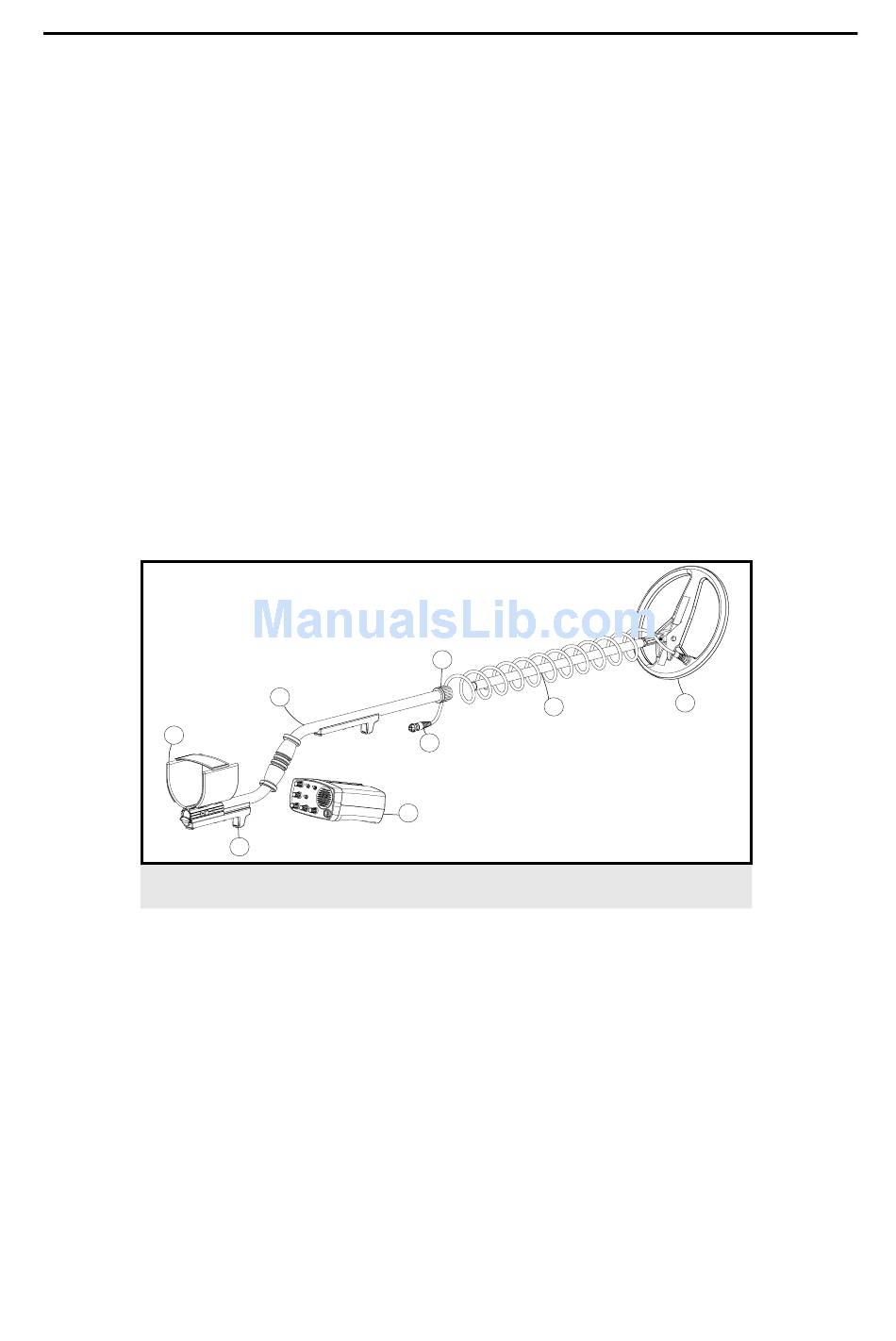

Figure 4 - Completing the shaft assembly
The Minelab Sovereign Elite
18
3
13
1
9
P0571-A
