Digital Target Indication Meter
The Digital Target meter has been designed to aid in the identification of
metal targets before their recovery. It provides a digital display of the
target ID tones produced by the Sovereign Elite detector, and connects
between the search coil and the control box without requiring any
modification to the detector's electronics.
Note: The meter has no negative effect upon the operation or overall
performance of the detector, it simply provides for easier target
recognition. It is also very useful for people with tonal hearing loss.
8.1
Installation
a) Plug the coil connector (13) into the socket (19) on the meter box,
winding the excess cable around the shaft.
b) Plug the meter cable connector (20) into the control box plug (14),
winding the excess cable around the shaft (see figure 18).
c) If hipmounting the control box, secure the meter cable to the shaft of
the detector using the Velcro
d) Loop the meter cable twice through the belt loop of the hipmount bag
before attaching it to the control box. This reduces any stresses placed
on the meter cable caused by hipmounting and reduces the
possibility of failure of the cable. The meter requires no batteries.
TM
20
19

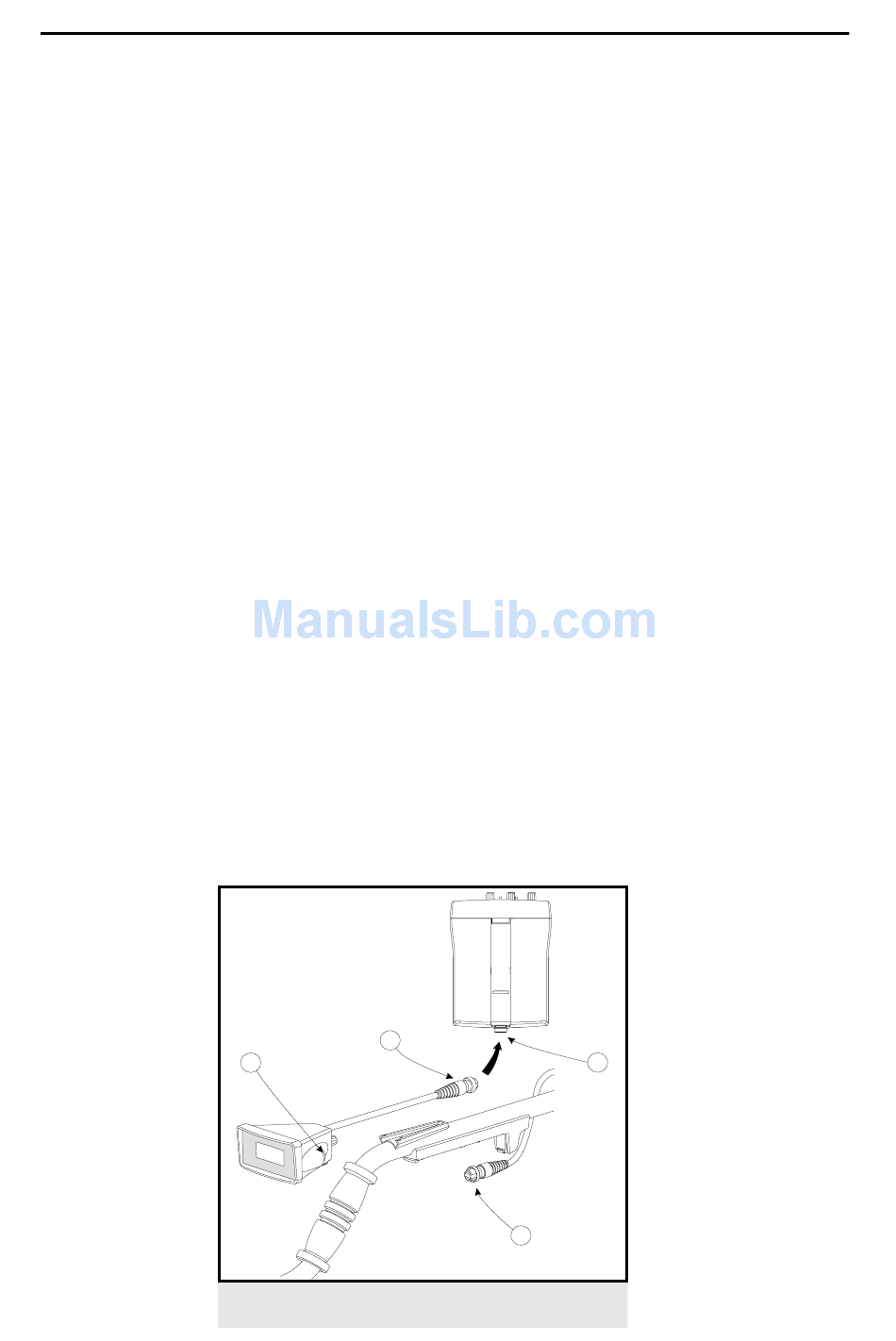

Figure 18 - Installing the meter
(available as accessory)
straps provided.
14
13
P0578-B
