Door Assemblies - GE Monogram ZDP30_ _H Technical Service Manual

To install the door:
1. Firmly grasp the door at the top sides. This is
critical.
2. Approach the range with the door angled in a
vertical position.
3. Guide the hinges into the slots.
4. Push the door in firmly while opening.
5. Once in position, open the door completely.
Push the hinge locks back in and toward the
front frame.
Note: If the door cannot be fully opened, the
hinge is not properly seated.

Door Assemblies

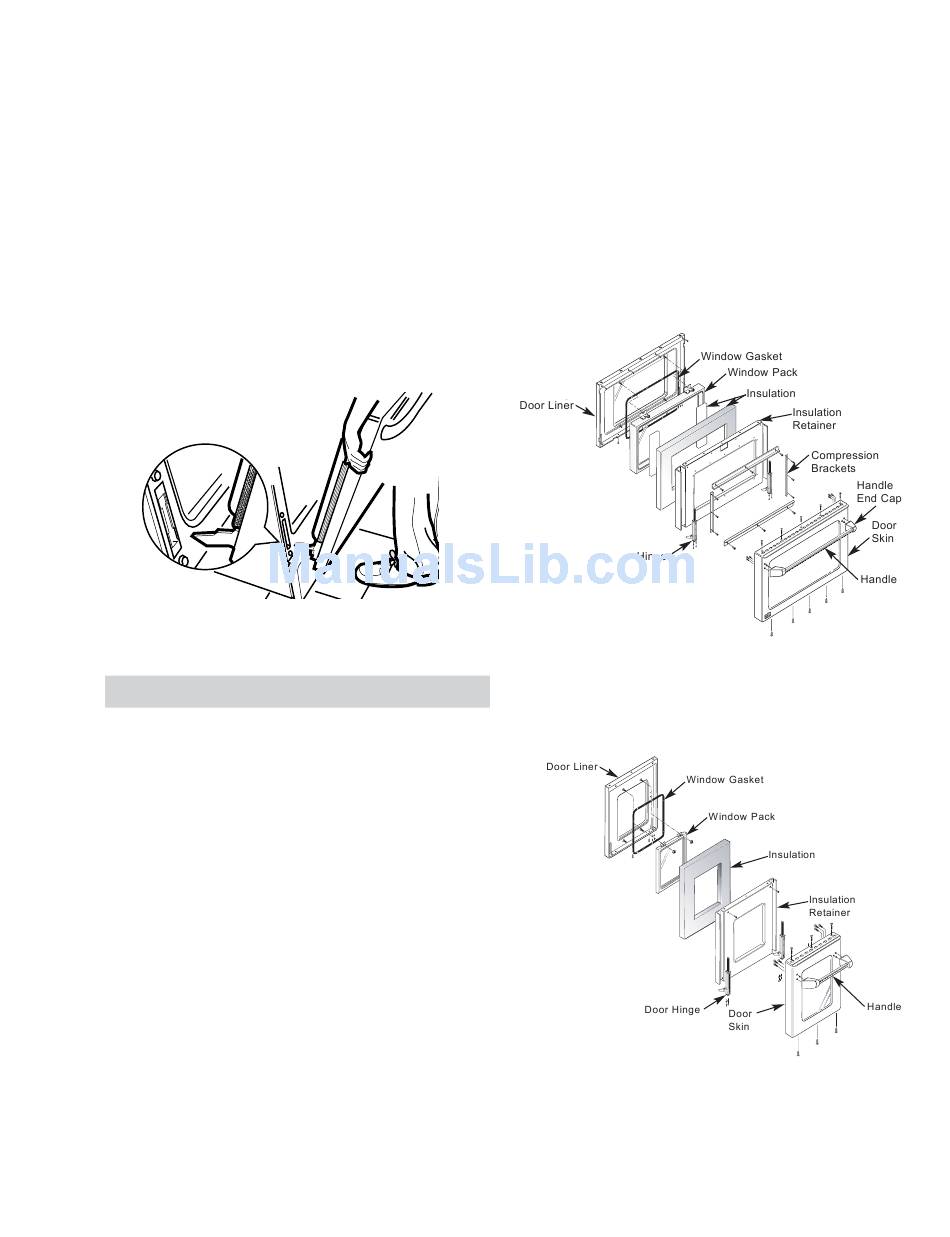

12-in. Oven Door (48-in. Range Model Only)
The oven door consists of outer and inner
assemblies. The outer assembly consists of the
outer panel and glass along with the handle and
spacers. The inner assembly consists of the
window pack, insulation guard, inner door panel
and hinges.
27-in. Oven Door (30-in., 36-in. and 48-in.
Range Models)
The oven door consists of an outer and inner
assembly. The outer assembly consists of an
outer panel and glass along with the handle and
spacers. The inner assembly is made up of the
window pack, insulation guard, inner door panel,
hinges and window pack gasket.
Door Gasket
The gasket is attached to the front frame around
the outer edge of the oven liner. A series of spring
clips mounts the gasket to the front frame. The
ends are tucked into the front frame at the bottom
of the oven liner, leaving approximately 15 inches
of opening across the bottom for air intake on self-
clean models. The gasket stops just above the
hinges on the standard oven.
12-in. Oven (48-in. Range Models Only)
– 9 –
27-in. Oven
