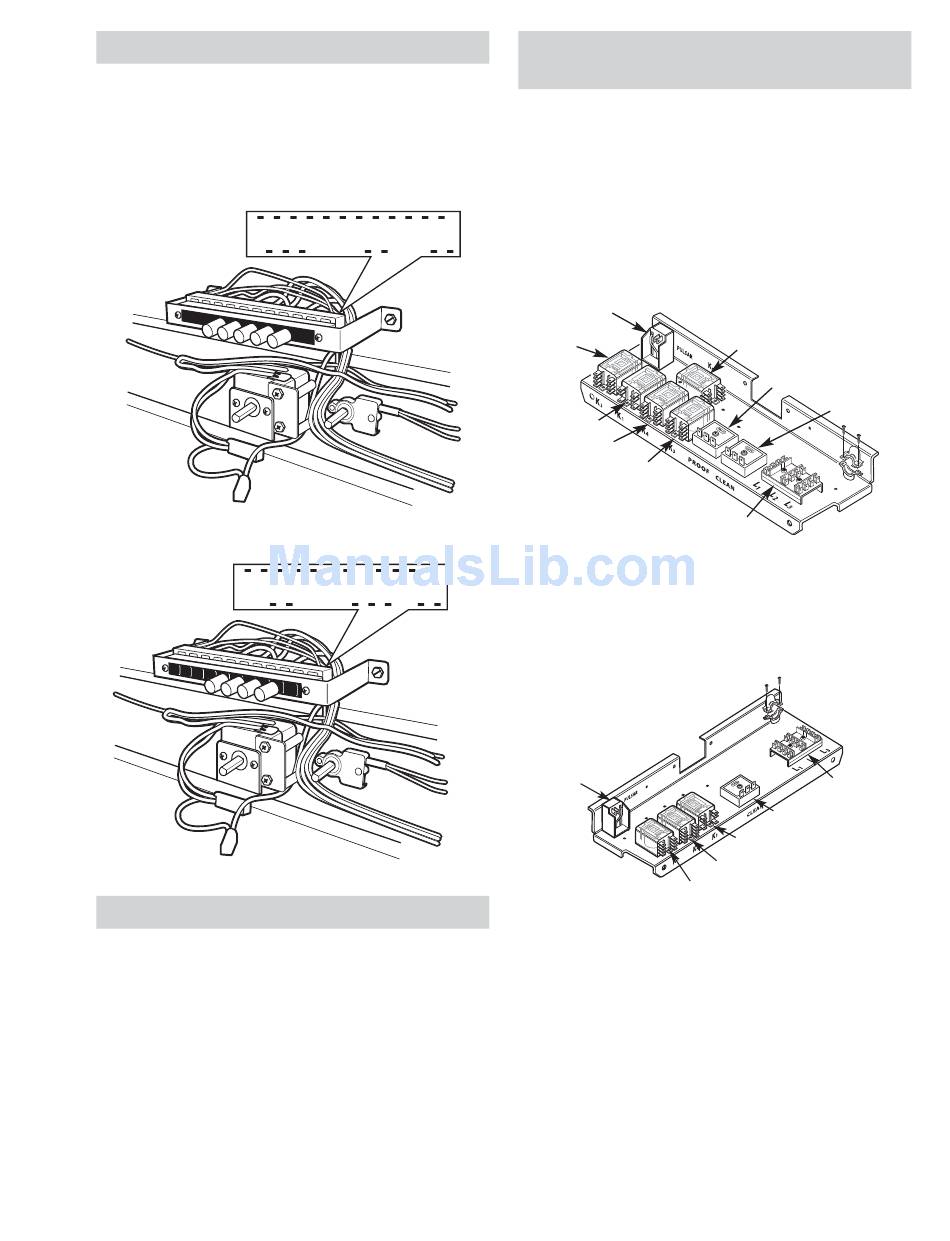

Oven Select Switches

Select switch operation can be checked with
ohmmeter and strip circuits that show what
contacts are closed in each mode of operation.
27-in. Oven
32 30 28 26 24 22 20 18 16 14 12 10
31 29 27
12-in. Oven
61 59 57 55 53 51 49
58 56

Oven Thermostat

The operation of the thermostat contacts can be
checked with an ohmmeter and strip circuits.
Contacts 1 and 2 are the cycling contacts, which
are controlled by the expansion and contraction of
the helium in the capillary. Contacts 7 and 8 will
always be in the CLOSED position, except when
in the CLEAN mode of operation. (See above
illustration.)
Relays, Convection Pulser Timers and
Main Power Connection
Electrical relays and timers are located in the
compartment below the oven.
Remove the 2 screws from the top corners of the
bottom panel and pull straight off.
19 17 11 9
K2 Relay
47 45 43 41
48 46 46 42 40
Convection Broil
Unit Pulsar
– 17 –
48-in. Range Models
Convection Broil
Unit Pulsar
K1 Relay
K4 Relay
K3 Relay
Terminal Block
30-in. and 36-in. Range Models
K1 Relay
Clean Lockout Relay
Proof Timer
Clean Timer
Terminal Block
Clean Timer
K3 Relay
K4 Relay
