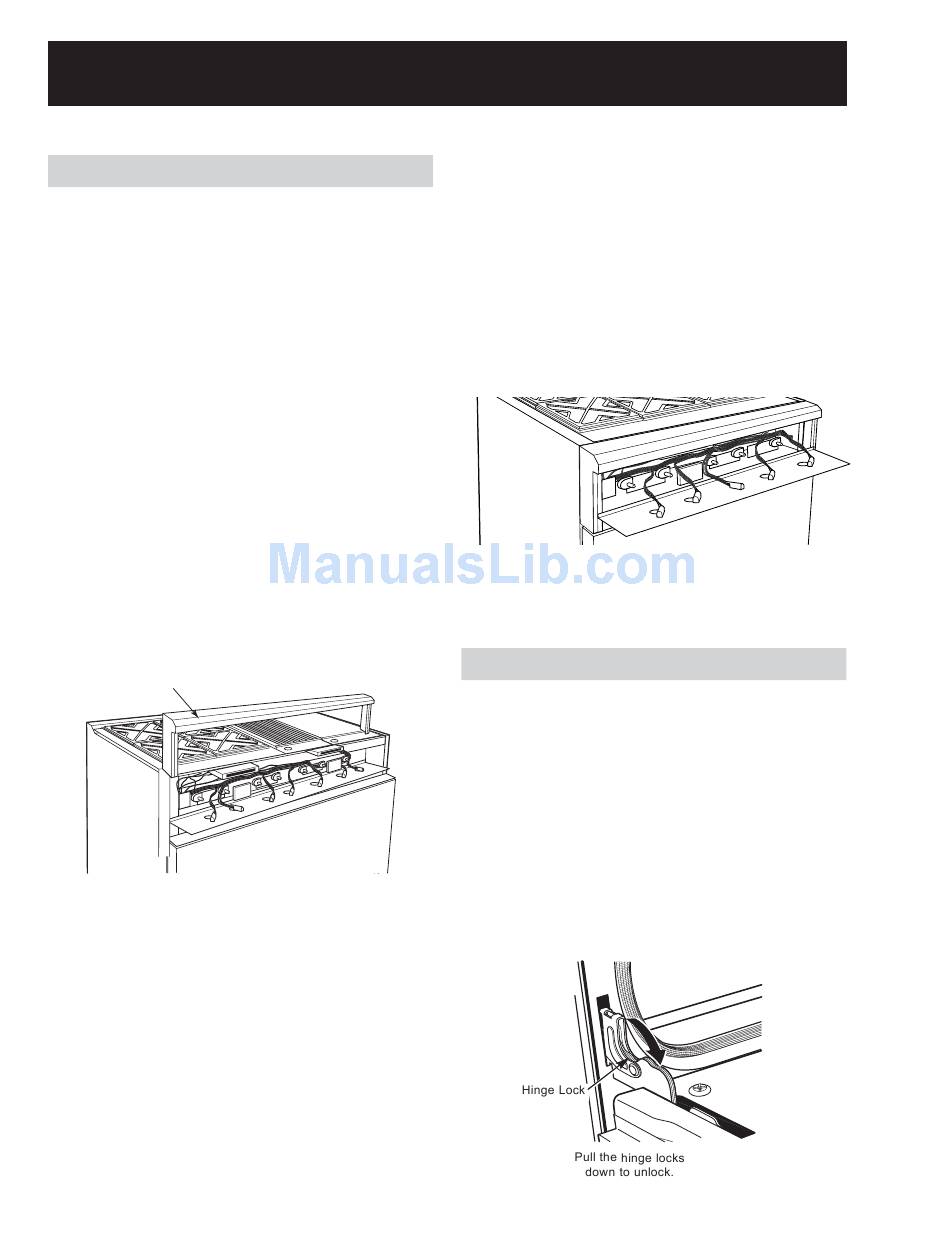

Component Access

All 36-in. and 48-in. Models
1. Remove the manifold/valve panel:
a. Remove the knobs from the control
valves.
b. Remove the 4 Torx screws located at
each corner of the manifold/valve panel.
c. Carefully pull off the panel. (Do not
scratch the panel.)
2. Remove the landing ledge:
a. Slide the right-side drip tray out (models
with a grill or griddle).
b. Remove the 4 Phillips head screws
holding the landing ledge in place, and lift
the ledge off.
48-in. Range Model Shown
Landing Ledge

Components

30-in. Range Models
1. Remove the manifold/valve panel. (See 36-in.
and 48-in. Models.)
2. Remove the landing ledge:
a. Remove the 4 Phillips head screws
holding the landing ledge in place, and lift
the ledge off.

Oven Door

To remove the door:
1. Fully open the door.
2. Each hinge has a hinge lock. Close the hinge
latches down against the door frame.
3. Firmly grasp the door at the top sides.
4. Close the door to the near-vertical position.
5. Lift the door up and pull straight out.
– 8 –
