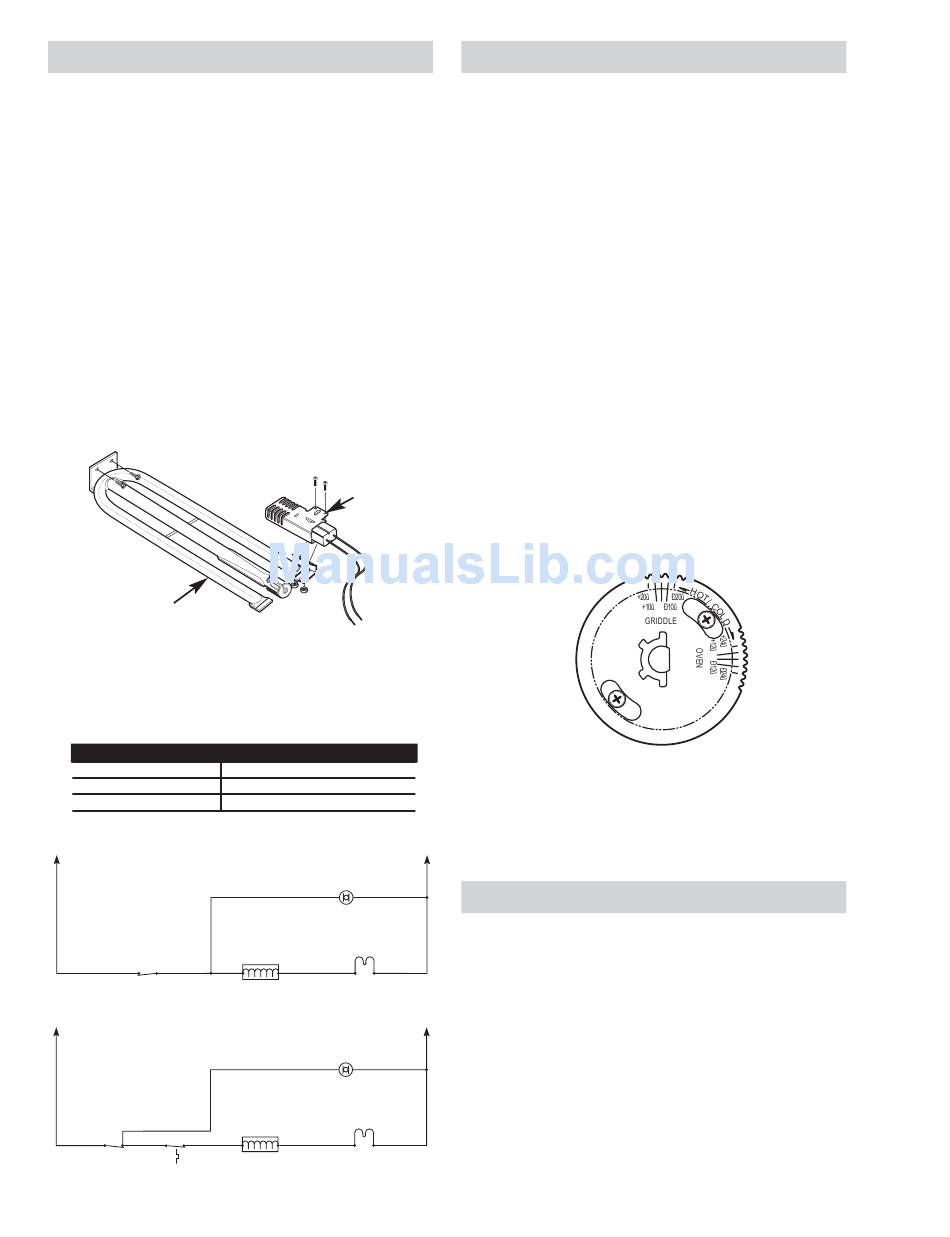

Grill or Griddle Igniter Removal

1. For the grill, remove the grill cover, grates and
grill radiant. For the griddle, remove the
griddle assembly (see
2. Remove the 2 Phillips head screws at the
rear of the burner and lift the burner out.
3. Remove the 2 flat head screws holding the
igniter to the support bracket on the burner.
4. Replace with new igniter and replace all parts.
Note: When aligned properly, the dimple on the
igniter bracket should fit into the notch on the
support bracket on the burner.
Burner
GRILL OR GRIDDLE OHMMETER TEST
COMPONENT
IGNITER
VALVE
SWITCH
GRILL
L1
GRILL
SWITCH
NC C
GRIDDLE
L1
GRIDDLE
SWITCH THERMOSTAT
NO C
.
Griddle Removal)
Igniter
OHMS
45–400 OHMS COLD
1.0 to 1.2 OHMS
0 OHMS CLOSED
HEAT
LIGHT
IGNITER
VALVE
HEAT
LIGHT
IGNITER
VALVE

Oven Thermostat Calibration

The AVERAGE center oven temperature should
be 350° ±15°F for baking at the 350°F setting.
Customers may change the average center oven
temperature by ±24°F to satisfy their own
cooking needs.
To adjust the oven thermostat:
1. Pull the oven control knob off.
2. On the back of the knob, loosen both screws,
but do not completely remove.
3. With the back of the knob facing you, hold the
outer edge of the knob with one hand and turn
the back of the knob with the other hand.
4. To raise the oven temperature, turn the back
of the knob clockwise. To lower the oven
temperature, turn the back of the knob
counterclockwise.
5. After the adjustment is made, retighten
screws so they are snug, and replace knob.
N

Blower Thermal Cutout

The thermal cutout will turn on the blower in any
mode of operation when it detects a temperature
in the control area of approximately 210°F. The
blower will cycle off when temperatures cool
below 120°F.
N
– 16 –
