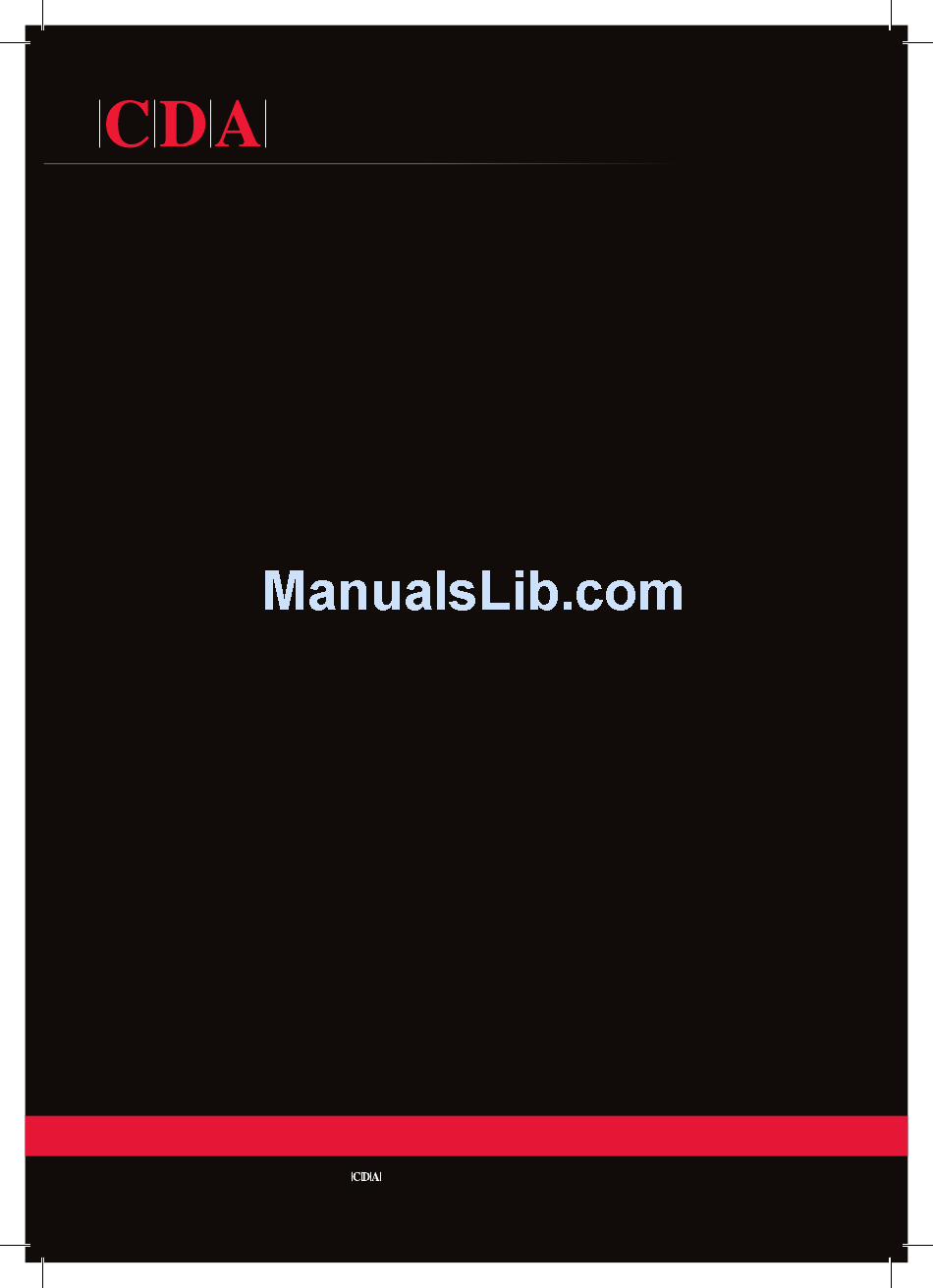

- Page 1 Induction Hob Manual for Installation, Use and Maintenance Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : service@cda.eu W : www.cda.eu...
- Page 2 Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model...
- Page 3 2004/108/EC. Parts intended to come into contact with food conform to 89/109/EC. IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC. At the end of its working life, the product must be taken to a special local authority waste collection centre or to a dealer providing appliance recycling services.
- Page 4 To avoid interference between your hob and a pacemaker, your pacemaker must be designed and programmed in compliance with the regulations that apply to it. As such, CDA guarantee only that our product is compliant. With regard to the compliance of the pacemaker or any potential incompatibility, you should obtain information from the manufacturer or your attending physician.
- Page 5 Important • Do not use the hob if the glass surface is cracked or damaged to prevent the risk of electric shock. Disconnect it from the power supply. • Ensure that the power cable of a connected electrical appliance near the hob is not in contact with the cooking zones.
- Page 6 Cooking on Induction The principle of induction cooking is based on magnetic effect. When you put your cookware on an induction zone and switch it on, the electronic boards in the hob produce induced currents in the base of the cookware and instantly raise its temperature. This heat is then transferred to the food inside the cookware.
-
Page 7: Using Your Hob

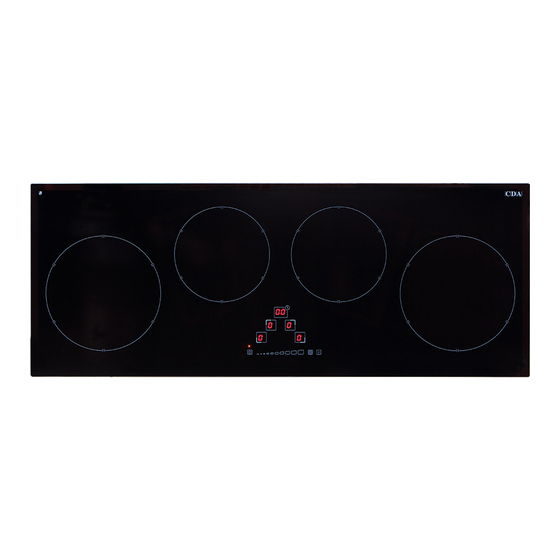

Using Your Hob Control panel: 1. Front left 2.3-3kW 200mm 2 Centre left 1.4kW 160mm 3. Centre right 1.4kW 160mm 4. Front right 2.3-3kW 200mm 5. Power key 6. Slider control 7. Booster key 8. Pause/restart key 9. Timer key/display 10. - Page 8 Using Your Hob To switch the hob on • To switch the power on, touch and hold for approximately two seconds. The hob will beep and all four zone displays will show “0”. Please note: If a power level is not set within twenty seconds, the hob will switch off automatically.
- Page 9 Booster • The hob is equipped with a booster function on the front left and front right zones, allowing a higher power level than the maximum for approximately five minutes. To turn on the booster function, touch the zone display for the required zone then touch .
-
Page 10: Timer/Minute Minder
Timer/Minute Minder The hob is equipped with a timer that allows a finish time to be set for the end of cooking on any zone, between a minimum of one minute and a maximum of 99 minutes. This timer can be used separately for each zone, and an LED will indicate the zone positions for each of the active timers. - Page 11 Please note: the power level can be adjusted during the countdown using the slider control To cancel the timer • Touch the zone display for the required zone, and then the timer display. The timer display will show “0-” and the LED will flash for approximately ten seconds, then the timer will switch off.
-
Page 12: Safety Key Lock
Safety key lock To prevent accidental use, the hob has a safety key lock which switches off the slider control temporarily or completely. To switch on the lock, turn on the hob, touch the front right zone display and simultaneously, then touch the front right zone display again. -
Page 13: Efficient Use Of Your Hob
Efficient Use of your Hob The hob is equipped with zones of different sizes, designed to accommodate most shapes and sizes of pan. For best results, only use pans with flat bottoms and choose an appropriate zone depending on the size of the pan. The most efficient use of the hob is shown below, where the pan and zone are correctly chosen. -
Page 14: Care And Maintenance
Care and Maintenance Always disconnect the appliance from the power supply before undertaking any cleaning or maintenance. Important: • Steam cleaners must not be used when cleaning this appliance. • You should use a non-abrasive cleaner to clean the hob top. Any abrasive cleaner (including Cif) will scratch the surface and could erase the control panel markings. - Page 15 2. Check that the mains supply has not been switched off. 3. Check that the fuse in the spur has not blown. In the event of a fault with the hob, please advise CDA Customer Care of any fault code shown on the display...
-
Page 16: Troubleshooting
The hob is not working and the The electronics display shows a non-standard are not functioning Call CDA Customer Care graphic correctly The hob is not working and the The safety key lock Switch off the safety key... - Page 17 Working normally Should any error code other than those listed above show on the zone displays, contact CDA Customer Care for assistance IMPORTANT - PLEASE NOTE: In the event of any breakage, crack or cracking – even minimal – of the vitroceramic glass, immediately disconnect your appliance to prevent a risk of electric shock and contact CDA Customer Care.
-
Page 18: Fitting The Hob
Fitting the Hob Unpacking the hob: Take care not to lose or mishandle any Ⓐ parts. Fitting position of the hob: This appliance must be installed a minimum of 50mm from any back wall and a minimum of 180mm away from any adjacent vertical surfaces, e.g. - Page 19 If fitting a cooker hood above the hob: If a cooker hood is to be installed above the hob, the height of the hood above the hob must be at least 600mm (650mm is recommended) (Fig.6). If the instructions supplied with the hood dictate that the hood must be installed at a height greater than 600mm, then that height is the minimum required.
-
Page 20: How To Install The Hob
Notes: • The hob is equipped with an anti-overheating safety device that can be activated if the hob is installed over an oven that is not sufficiently ventilated. In the event that this occurs, the control panel will show E2, ER21 or ER40. We recommend that you increase the ventilation of the hob by creating an opening in the side of the cabinet (8 cm x 5 cm). - Page 21 from the wall to the cut-out edge. The distance from the hob, when fitted, to the back wall is 50mm. If a splashback/worktop upstand is to be fitted, take this into account when cutting the hole. The minimum distance that the hob should be positioned away Fig.6 from the rear wall or splashback is 50mm.
-
Page 22: Mains Electricity Connection
Mains Electricity Connection Warning! this appliance must be earthed We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C. and who will comply with the I.E.T. and local regulations. Fig.8 This appliance is intended to be connected to fixed wiring and is not suitable for connection to a 13A plug or 13A supply. - Page 23 2.5mm 2 , HO5RR-F). • This appliance is intended to be connected to the mains supply with a cable of cross section area 2.5mm 2 . A larger cable will not fit the terminal connections. • The current rating of the fuse or circuit breaker protecting this appliance should be marked on the socket outlet.
