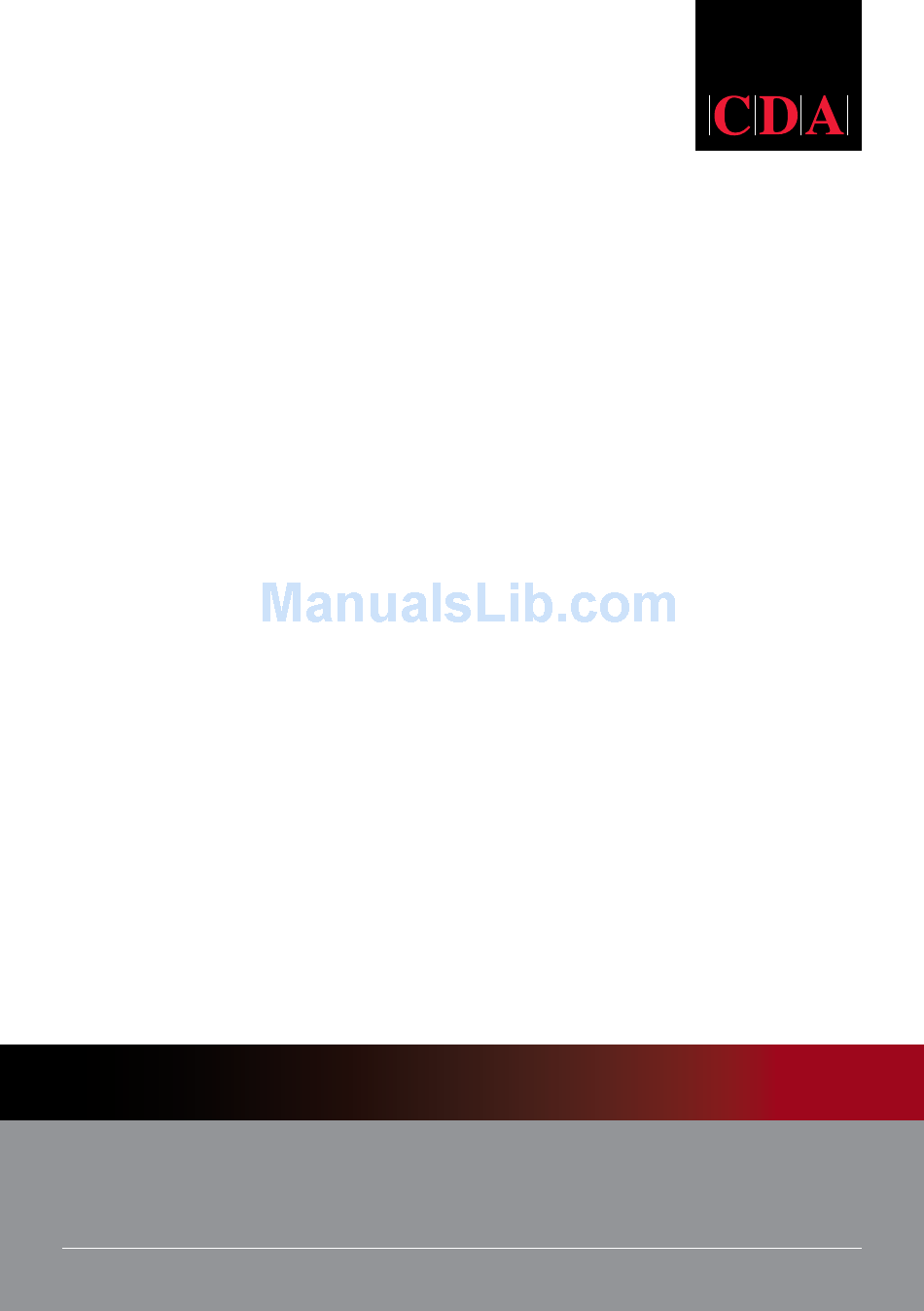

- Page 1 Induction Hob Installation, Use and Maintenance Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu W : www.cda.eu www.cda.eu...
- Page 2 Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model...
- Page 3 (EMC) 2014/30/EU. Parts intended to come into contact with food conform to 1935/2004/EC. IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EU. At the end of its working life, the product must be taken to a special local authority waste collection centre or to a dealer providing appliance recycling services.
- Page 4 To avoid interference between your hob and a pacemaker, your pacemaker must be designed and programmed in compliance with the regulations that apply to it. As such, CDA guarantee only that our product is compliant. With regard to the compliance of the pacemaker or any potential incompatibility, you should obtain information from the manufacturer or your attending physician.
- Page 5 Important • Do not use the hob if the glass surface is cracked or damaged to prevent the risk of electric shock. Disconnect it from the power supply. • Ensure that the power cable of a connected electrical appliance near the hob is not in contact with the cooking zones.
- Page 6 Cooking on Induction The principle of induction cooking is based on magnetic effect. When you put your cookware on an induction zone and switch it on, the electronic boards in the hob produce induced currents in the base of the cookware and instantly raise its temperature. This heat is then transferred to the food inside the cookware.
-
Page 7: Using Your Hob
Using your hob Zones: 1. Rear left 2.1 - 3.7kW 4. Front left 2.1 - 3.7kW 2. Rear middle 2.1 - 3.7kW 5. Front middle 2.1 - 3.7kW 3. Rear right 2.1 - 3.7kW 6. Front right 2.1 - 3.7kW fig. - Page 8 Using Your Hob To switch the hob on • To switch the power on, touch and hold the on/off sensor (9) approximately one second. The hob will beep and all cooking zone indicators will show ‘0’. The inductor modules will click faintly when turning the hob on (and off).
-
Page 9: Booster Function
Booster function The hob is equipped with a booster function on all zones, allowing a higher power level than the maximum for approximately ten minutes. To activate the booster on a zone • Set the desired heat setting using the heat setting slider sensor (12), if not already active, and then touch the booster function sensor (11) for that zone. - Page 10 nominal power. The booster function will be available again once the internal components have been cooled sufficiently. It is normal for a high pitched whirring noise to begin whilst the booster function is in use. This is the cooling fan inside the hob keeping the internal components as cool as possible.
-
Page 11: Timer/Minute Minder
Timer/Minute Minder The hob is equipped with a timer that allows a finish time to be set for the end of cooking on any zone, between a minimum of 1 minute and a maximum of 119 minutes. This timer can be used separately for each zone, and the timer activity indicator (3) will illuminate faintly on each zone for which it is set and remain brightest on the first zone to end. - Page 12 zone the subsequent timer adjustment will affect. • Next, use the timer plus setting sensor (7) and the timer minus setting sensor (5) to set the desired timer duration. The timer is increased in 1 minute increments per each press of the + or - sensors.
- Page 13 minus and plus setting sensors (5 & 7) repeatedly to cycle through the zones until the timer activity indicator for the desired zone is illuminated brightly. • Reduce the time on the timer display (6) to 0.00 using the timer minus setting selector (5).
-
Page 14: Pause Function
Pause Function The hob is equipped with a pause function that allows the user to suspend the hob's operation for a brief period of time and to easily continue cooking when convenient from the previously assigned settings. This is particularly useful when your attention is drawn from the hob, i.e. -
Page 15: Keep Warm Function
available for approximately 7 seconds after the hob has been switched off. Once power has been restored the pause function LED will flash to indicate that the previous settings can still be restored. Keep Warm Function Each zone is equipped with a keep warm function that is designed to keep food at a stable temperature. -
Page 16: Bridge Function
Please note: The keep warm setting indicators will display the ( symbol when the 42°C heating level is active, the ( ) symbol will be displayed when the 70°C heating level is active and the ( ) symbol will be displayed when the 94°C heating level is active. The cooking zone indicator will display a To deactivate the keep warm function •... -
Page 17: Safety Key Lock
To cancel the bridge Simply touch the same two sliders that were used to activate the bridge function. If the bridge has been successfully cancelled then the two zone indicators that were bridged will each display a ‘0’. The zones will now be individually operational. Please note: Pans placed on bridged zones must always cover the vertical markings (II) on the zones;... -
Page 18: Residual Heat Indicator
The hob should beep and the LED above the sensor should illuminate. The hob will now be significantly more protected from inadvertent use. The On/off sensor (9) can still be used to switch the hob off but when it is turned back on the lock will still be active. To deactivate the safety key lock To switch off the lock, switch on the hob if necessary and then touch and hold the safety key lock sensor (10) for approximately 1... - Page 19 Auto-heat Function Every zone is equipped with an auto-heat function, which reduces the warming up time for the zone. To activate the auto-heat function on a zone • Simply set the desired power level using the heat setting slider sensor (12). Hold your finger in the same position on the slider sensor for approximately three seconds, until the letter ' A ' appears.
-
Page 20: Efficient Use Of Your Hob
Efficient Use of Your Hob The hob is equipped with zones designed to accommodate most shapes and sizes of pan. For best results, only use pans with flat bottoms. The most efficient use of the hob is shown below, where the pan and zone are correctly chosen. -
Page 21: Care And Maintenance
It is very important that the pans used on the hob are made of a suitable material and have the correct type of base. The base of the pan and the hob top must be clean before use to prevent any scratches on the hob top. - Page 22 2. Check that the mains supply has not been switched off. 3. Check that the fuse in the spur has not blown. In the event of a fault with the hob please advise CDA Customer Care. Contact CDA Customer Care...
-
Page 23: Troubleshooting
The hob is not working and the The electronics touched too briefly (less again and for longer display shows a non-standard are not functioning Call CDA Customer Care than a second) graphic correctly Sensor fields do not The hob is not working and the... - Page 24 Should any error code show on the zone displays, or the above steps not resolve an issue, please contact CDA Customer Care for assistance. Contact details are on page 22. IMPORTANT - PLEASE NOTE: In the event of any breakage, crack or cracking –...
-
Page 25: Fitting The Hob
Fitting the Hob Unpacking the hob: Installation above a cupboard unit Take care not to lose, drop or mishandle any parts. Fitting position of the hob: This appliance must be installed a minimum of 50mm from any back wall and a minimum of 55mm away from any adjacent vertical surfaces, e.g. - Page 26 If fitting a cooker hood above the hob: If a cooker hood is to be installed above the hob, the height of the hood above the hob must be at least 600mm (650mm is recommended) (Fig.6). If the instructions supplied with the hood dictate that the hood must be installed at a height greater than 600mm, then that height is the minimum required.
-
Page 27: How To Install The Hob
Important notes: • Never place perishable foods, cleaning products or flammable items in the cupboard below the appliance. • If an oven is to be installed below the hob, the thermal safety system on the hob may not allow the hob to be used at the same time as a pyrolytic programme on the oven. - Page 28 If a splashback/worktop upstand is to be fitted, take this into account when cutting the hole. The minimum distance that the hob should be positioned away from the rear wall or splashback is 50mm. 2. Make sure that the worktop is clean and dust free and insert the hob 1 - Worktop into the cut-out opening.
-
Page 29: Mains Electricity Connection
Mains Electricity Connection Warning! This appliance must be earthed. We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C. and who will comply with the I.E.T. and local regulations. Live L: BN - brown Neutral N: BU - blue Earth PE: GNYE -green/yellow This appliance is intended to be... - Page 30 • This appliance is intended to be connected to the mains supply with a cable of cross sectional area 4mm 2 . • The current rating of the fuse or circuit breaker protecting this appliance should be marked on the socket outlet. •...
- Page 31 Energy E ciency Information Attribute Symbol Value Units CDA model HN9841FR Type of hob Built in Number of cooking zones and/or areas Heating technology (induction cooking Induction zones and cooking areas, radiant cooking zones cooking zones, solid plates) For circular cooking zones or area: Ø...
