Owner's manual
J - 4 0 0 ™ C o l l e c t i o n
J - 415
J - 425
J - 460
J - 465
J - 470
J - 480
J - 495
2530-442Y rev. B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the J - 415 and is the answer not in the manual?

Questions and answers

marilyn j salter
May 25, 2025

how to change filters

0
1 comments:
Mr. Anderson
May 26, 2025

To change filters in a Jacuzzi J-415, follow these steps:

1. Turn off power to the hot tub.
2. Remove the skimmer (A) or filter bag cover (B).
3. Rotate the polishing bag lid (B) counterclockwise about 5 degrees to unlatch and remove it.
4. Pull upward on the blue filter ring to remove the polishing bag.
5. Below the bag, remove the ProClear filter by rotating it counterclockwise.
6. Remove the ProClear skimmer assembly (A) by lifting it upward.
7. Remove the ProClarity™ filter cartridge by rotating it counterclockwise.

To reinstall:
1. Clean or replace filters as needed.
2. Reinstall the ProClear filter, then the polishing bag.
3. Install the filter lid by rotating clockwise until it latches—do not force it; finger-tight only.

This answer is automatically generated

0

Related Manuals for Jacuzzi J - 415

Summary of Contents for Jacuzzi J - 415

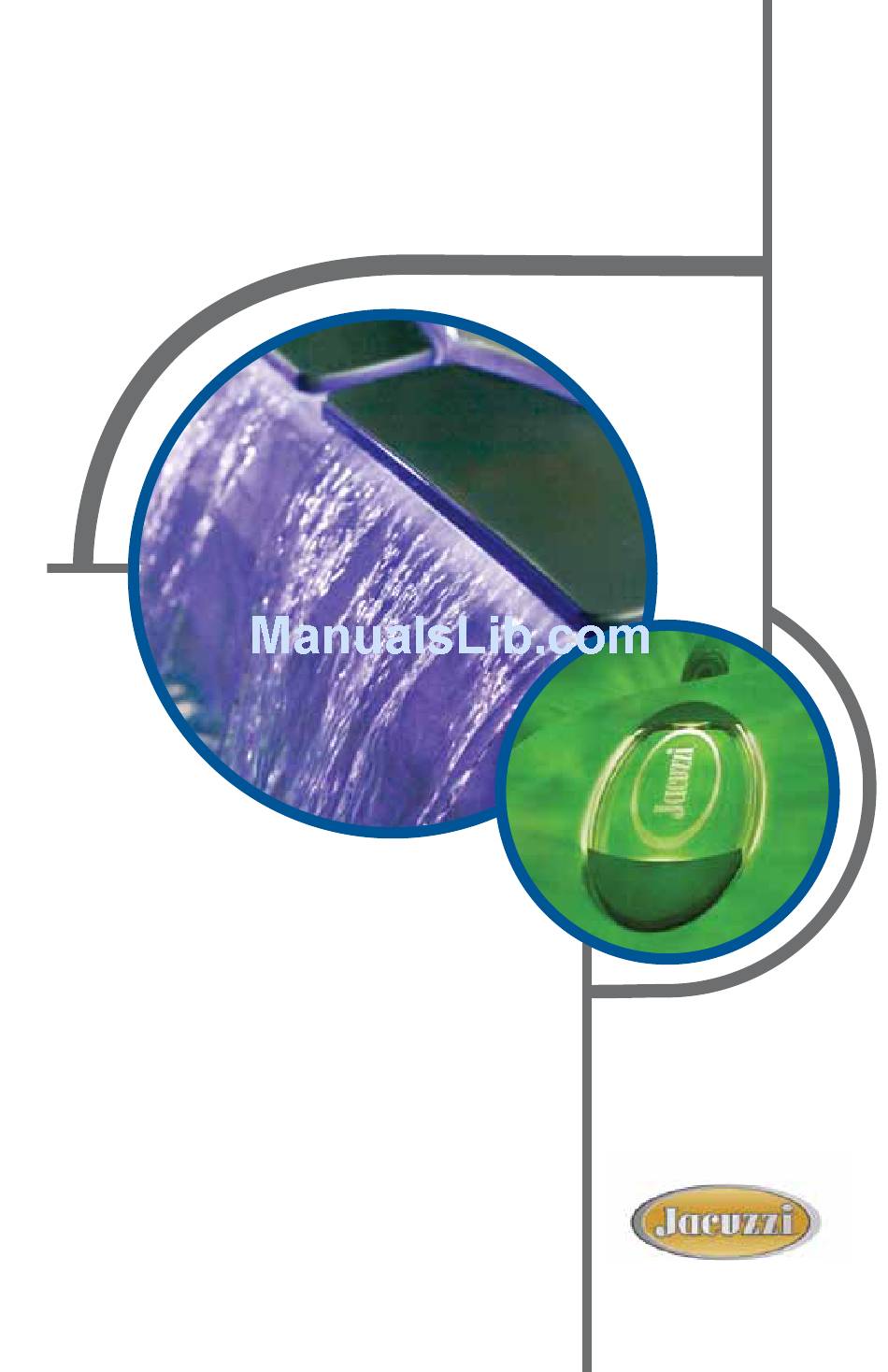

  • Page 1 Owner’s manual J - 4 0 0 ™ C o l l e c t i o n J - 415 J - 425 J - 460 J - 465 J - 470 J - 480 J - 495 2530-442Y rev. B...
  • Page 2 Attention New Spa Owner! Congratulations on the purchase of your new Jacuzzi® spa! The following is a list of automated functions performed by your spa. These functions are listed below in an attempt to suppress any operational concerns you may have during...

  • Page 3: Table Of Contents

    J-415 Air Controls Diagram ..............43 10.0 Control Panel Main Menu ..............44 10.1 Control Panel ................... 44 10.2 Main Menu Features................45 10.3 Menu Flowchart ..................47 10.4 Entertainment Menu Display ..............48 ©Jacuzzi Hot Tubs, Inc. All Rights Reserved...
  • Page 4 J-400 10.5 iPod®/AUX Submenu ................50 10.6 AUX Submenu ..................51 10.7 USB Submenu ..................52 10.8 NAND Submenu ..................54 10.9 FM Radio Submenu................. 55 10.10 AM Radio Submenu ................57 10.11 CD Submenu ................... 59 11.0 Operating Instructions ................60 11.1 J-1000™...
  • Page 5 19.0 Typical Spa Wiring Diagrams ............... 98 19.1 Wiring diagram for North American 60 Hz Models Only ......98 20.0 Optional Jacuzzi J-1000™ Audio System Stereo System Features ..................99 20.1 J-1000 Audio System Sound System Controls ........99 20.2 J-1000 Audio System Sound System Operation ........
  • Page 6 J-400...

  • Page 7: Important Spa Owner Information

    We recommend that you always keep the spa full of water when it is exposed to direct sunlight and that you keep the Jacuzzi insulating cover in place at all times when the spa is not in use. Read and carefully follow the requirements for your spa’s support base found in the...

  • Page 8: Important Safety Instructions For All Spa Owners

    J-400 Important Safety Instructions for all Spa Owners READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY! This spa was manufactured to meet the standards and specifications outlined in the “Virginia Graeme Baker Pool and Spa Safety Act” (VGB Safety Act). When installing and using this spa, basic safety precautions should always be followed, including: DANGER: RISK OF SEVERE INJURY OR DROWNING!
  • Page 9 J-400 to the wire connector on the grounding lug, inside the equipment compartment on the equipment box. • A grounding wire connector is provided on this unit to connect a minimum No. 8 AWG (8.4 mm²) solid copper conductor between this unit and any metal equipment, metal enclosures of electrical equipment, metal water pipe, or conduit within 5 feet (1.5m) of the unit.
  • Page 10 J-400 WARNING: RISK OF SEVERE INJURY OR DEATH! • Since excessive water temperatures have a high potential for causing fetal damage during the early months of pregnancy, if pregnant or possibly pregnant, consult your physician before using a spa. • Pregnant or possibly pregnant women should limit spa water temperatures to 100°F (38°C).
  • Page 11 J-400 WARNING: In addition to maintenance of filters and water chemistry, proper ventilation is recommended to reduce the risk of contracting a waterborne illness (e.g. an infection, bacteria or virus) and/or respiratory ailments that could be present in the air or water. Consult a licensed architect or building contractor to determine your specific needs if installing your hot tub indoors.

  • Page 12: Entrapment Risk

    J-400 Entrapment Risk The Consumer Products Safety Commission/USA has reported that users of pools and spas have become entrapped (stuck) to drain and/or suction fittings causing death, drowning, or serious injury (see diagram below). This spa was manufactured to meet the standards and specifica- tions outlined in the “Virginia Graeme Baker Pool and Spa Safety Act”...

  • Page 13: Hyperthermia

    A Warning Sign is provided in your warranty packet. Please install at a location near your spa, where it is visible to users of the spa. For additional or replacement Warning Signs please contact your local Jacuzzi dealer and reference item number #6530-082. Page 7...

  • Page 14: Important Csa Safety Instructions (Canada Only)

    J-400 Important CSA safety instructions (Canada only) When using this electrical equipment, basic safety precautions should always be followed, including the following: 1. READ AND FOLLOW ALL INSTRUCTIONS. 2. A green colored terminal or a terminal marked G, Gr, Ground, Grounding or the symbol* is located inside the supply terminal box or compartment.

  • Page 15: Outdoor Location

    J-400 The spa must be installed in such a manner as to provide drainage away from it. Placing the spa in a depression without provisions for proper drainage could allow rain, overflow and other casual water to flood the equipment and create a wet condition in which it would sit in. For spas which will be recessed into a floor or deck, install so as to permit access to the equipment, either from above or below, for servicing.

  • Page 16: Indoor Location

    J-400 Indoor Location For indoor installations many factors need to be considered before installing a spa indoors. WARNING: In addition to maintenance of filters and water chemistry, proper ventilation is recommended to reduce the risk of contracting a waterborne illness (e.g. an infection, bac- teria or virus) and/or respiratory ailments that could be pres- ent in the air or water.

  • Page 17: General Electrical Safety Instructions

    Please contact your local Jacuzzi dealer or local building department should you have any questions regarding your installation. Proper grounding is extremely important. Jacuzzi spas are equipped with a current collector system. A pressure wire connector is provided on the...
  • Page 18 J-400 4. The electrical supply for this product must include a suitably rated switch or circuit breaker to open all ungrounded supply conductors to comply with Section 422-20 of the National Electrical Code/USA, ANSI/NFPA 70. The disconnecting means must be readily accessible to the spa’s occupant but installed at least 5 feet (1.5m) from spa water.
  • Page 19 J-400 Figure b 60 hz terminal block Connection 1. Main Terminal Block 2. Bonding Lug/Grounding Terminal 3. Power wires Entrance (Electrical fitting and conduit must be installed) Figure C Terminal Connection (North American 240 VAC Connection Shown) Main Terminal Block Main Terminal Block Lift white lever by hand to pry...
  • Page 20 J-400 Figure D 50hz terminal block Connection 1. Main Terminal Block 2. Heater Terminal Block 3. Bonding Lug/Grounding Terminal 4. Power wires Entrance (Electrical fitting and conduit must be installed) Figure E Terminal Connection (Export 230 VAC 50 Hz Connection Shown) Heater Main Heater Terminal Block...
  • Page 21 J-400 Figure F 1. Remove the access door on the controller. 2. Locate the gray Terminal, towards the top of the controller, Figure 1. Figure 1 3. Grab one of the white levers. Push the lever upward to the open position, Figure 2.

  • Page 22: Power Requirements

    J-400 Power Requirements Jacuzzi ® spas are designed to provide optimum performance and flexibility of use when connected to their maximum electrical service. They are configured at the factory. The most common electrical connections are listed below: • All North American 60 Hz Models only: These models come set for 50A logic.
  • Page 23 J-400 North American J-415 Models (60 Hz) Voltage: 240 VAC 240 VAC Max. Current Draw: Frequency: 60 Hz 60 Hz Number of Wires: Circuit Breaker (2-Pole): 30A* 50A** In 30A configuration, the heater will not operate while the jets pump is running.

  • Page 24: Spa Fill Up Procedure

    Clear all debris from the spa. (Although the spa shell has been polished at the factory, you may want to treat it with a specially formulated spa cleaner.) Consult your authorized Jacuzzi dealer for additional information prior to filling spa.
  • Page 25 (see Section 11.2, page 60 to activate jets). 5. Add Start-Up Chemicals Add the spa water chemicals as recommended by your authorized Jacuzzi spa dealer. See Section titled “Water Quality Maintenance” (page 87) for general guidance. WARNING: RISK OF POISONING OR DEATH.
  • Page 26 J-400 Important Heater Details: • The maximum temperature for which the spa can be set is 104°F (40°C) and the minimum is 80°F (27°C). • For North American spas: With a 50 amp service, turn off one of the jet pumps to operate heater. With a 30 amp service, turn off both jet pumps to operate heater.
  • Page 27 J-400 Water Fill Volume by Model Average Sodium Model Fill Volume* Dichlor J415 ........202 Gal (765 L) ........5.0 oz J425 .........292 Gal (1,105 L) ......... 7.5 oz J-460........350 Gal (1,325 L) ......... 9.0 oz J-465........380 Gal (1,438 L) ......... 9.5 oz J-470........415 Gal (1,571 L) ........
  • Page 28 J-400 5. Consult your authorized Jacuzzi dealer for chemical recommendations, then add chemicals to hot tub water to achieve a constant sanitizer reading within the levels recommended on the inside cover of this manual. 6. Turn on all jet pumps when adding chemicals to ensure proper...

  • Page 29: Spa Features

    J-400 Spa Features J-495 Spa Features 11. NX2 Jets (4 ea.) 1. J-1000™ Control Panel 12. RX Back Jets (6 ea.) 2. Lighted Mass Aspiration Jet Flow 13. Underwater Light Control Valve 14. Footwell Filter Suction Covers (6 ea.) 3. Air Control Valves (5 ea.) Introduce Air 15.

  • Page 30: Massage/Waterfall Selector Diagram

    J-400 J-495 Massage/Waterfall Selector Diagram Massage Selector (1) • Massage selector 1 diverts jets pump Nº 2 output between jets groups 1a-1b. Massage Selector (2) • Massage selector 2 diverts jets pump Nº 1 output between jets groups 2a-2b. Waterfall Selector (5) • Waterfall selector (5) controls circulation pump output to waterfall. Jets Without Massage Selector Controls (4) • Jets (4) are always on when jets pump 3 is running. Mass Aspiration Jet Flow Control Valve (3) • Valve (3) controls output to footwell IX Jet when jets pump Nº 3 is running. Spa operation subject to change without notice Page 24...

  • Page 31: Air Controls Diagram

    J-400 J-495 Air Controls Diagram Air Controls Operation • Rotate air controls 1-5 to add air to designated jet groups. • Center footwell IX Jet (6) draws air at all times when jets pump Nº 3 is running. This jet has no air control. Spa operation subject to change without notice Page 25...

  • Page 32: Spa Features

    J-400 J-480 Spa Features 4:05 PM 1. J-1000™ Control Panel 13. FX2S Jets (6 ea.) 2. Waterfall Control Valve 14. NX2 Jets (4 ea.) 3. Air Control Valves (4 ea.) Introduce Air 15. RX Back Jets (6 ea.) to Specified Jet Groups 4.

  • Page 33: Massage/Waterfall Selector Diagram

    J-400 J-480 Massage/Waterfall Selector Diagram 4:05 PM Massage Selectors (1-2) • Massage selector 1 diverts jets pump Nº 2 output between jet groups 1a-1b. • Massage selector 2 diverts output jets pump Nº 1 between jet groups 2a-2b. Waterfall Selector (3) • Waterfall selector 3 controls circulation pump output to waterfalls. Mass Aspiration Jet Flow Control Valve (4) • Valve (4) controls output to footwell IX Jet. Jets Without Massage Selector Controls (5) • Jets (5) are always on when jets pump Nº 1 is running. Spa operation subject to change without notice Page 27...

  • Page 34: Air Controls Diagram

    J-400 J-480 Air Controls Diagram 4:05 PM Air Controls Operation • Rotate air controls 1-4 to add air to designated jet groups. • Center footwell IX Jet (5) draws air at all times when jets pump is running. This jet has no air control. Spa operation subject to change without notice Page 28...

  • Page 35: Spa Features

    J-400 J-470 Spa Features 4:05 PM 1. J-1000 Control Panel 12. MX2 Jets (3 ea.) 2. Waterfall Control Valve 13. FX2S Jets (5 ea.) 3. Air Control Valves (4 ea.) Introduce Air 14. NX2 Jets (2 ea.) to Specified Jet Groups 4.

  • Page 36: Massage/Waterfall Selector Diagram

    J-400 J-470 Massage/Waterfall Selector Diagram 4:05 PM Massage Selectors (1-2) • Massage selector 1 diverts jets pump Nº 1 output between jet groups 1a-1b. • Massage selector 2 diverts jets pump Nº 2 output between jet groups 2a-2b. Waterfall Selector (3) • Waterfall selector 3 controls circulation pump output to waterfalls. Mass Aspiration Jet Flow Control Valve (4) • Valve (4) controls output to footwell IX Jet. Jets Without Massage Selector Controls (5) • Jets (5) are always on when jets pump Nº 1 is running. Spa operation subject to change without notice Page 30...

  • Page 37: Air Controls Diagram

    J-400 J-470 Air Controls Diagram 4:05 PM Air Controls Operation • Rotate air controls 1-4 to add air to designated jet groups. • Center footwell IX Jet (5) draws air at all times when jets pump is running. This jet has no air control. Spa operation subject to change without notice Page 31...

  • Page 38: Spa Features

    J-400 9.10 J-465 Spa Features 4:05 PM 1. J-1000 Control Panel 12. Footwell Filter Suction Covers (4 ea.) 2. Waterfall Control Valve 13. NX Jets (4 ea.) 3. Air Control Valves (3 ea.) Introduce Air 14. FX2S Jets (7 ea.) to Specified Jet Groups 15.

  • Page 39: Massage/Waterfall Selector Diagram

    J-400 9.11 J-465 Massage/Waterfall Selector Diagram 4:05 PM Massage Selectors (1) • Massage selector 1 diverts jets pump Nº 1 output between jet groups 1a-1b. Mass Aspiration Jet Flow Control Valve (2) • Valve (2) controls output to footwell IX Jet. Waterfall Selector (3) • Waterfall selector (3) controls circulation pump output to waterfall. Jets Without Massage Selector Controls (4) • Jets (4) are always on when jets pump Nº 2 is running. Spa operation subject to change without notice Page 33...

  • Page 40: Air Controls Diagram

    J-400 9.12 J-465 Air Controls Diagram 4:05 PM Air Controls Operation • Rotate air controls 1-3 to add air to designated jet groups. • Center footwell IX Jet (4) draws air at all times when jets pump is running. This jet has no air control. Spa operation subject to change without notice Page 34...

  • Page 41: Spa Features

    J-400 9.13 J-460 Spa Features 1. J-1000 Control Panel 12. ProClear Floating Skimmer and Filter 2. Waterfall Control Valve Cartridge with Integrated Chemical 3. Air Control Valves (4 ea.) Introduce Air Dispenser. to Specified Jet Groups 13. SX2 Jets (4 ea.) 4.

  • Page 42: Massage/Waterfall Selector Diagram

    J-400 9.14 J-460 Massage/Waterfall Selector Diagram Massage Selector (1) • Massage selector 1 diverts jets pump Nº 2 output between jet groups 1a-1b. Mass Aspiration Jet Flow Control Valve (2) • Valve (2) controls output to footwell IX Jet. Waterfall Selector (3) • Waterfall selector (3) controls circulation pump output to waterfall. Jets Without Massage Selector Controls (4) • Jets (4) are always on when jets pump Nº 1 is running. Spa operation subject to change without notice Page 36...

  • Page 43: Air Controls Diagram

    J-400 9.15 J-460 Air Controls Diagram Air Controls Operation • Rotate air controls 1-4 to add air to designated jet groups. • Center footwell IX Jet (5) draws air at all times when jets pump is running. This jet has no air control. Spa operation subject to change without notice Page 37...

  • Page 44: Spa Features

    J-400 9.16 J-425 Spa Features 1. J-1000 Control Panel 12. FX2S Jets (5 ea.) 2. Waterfall Control Valve 13. Filter/Skimmer Grill 3. Optional Audio System Speakers 14. Underwater Light (4 ea.) 15. Footwell Filter Suction Covers (4 ea.) 4. Adjustable Pillows (4 ea.) 16.

  • Page 45: Massage/Waterfall Selector Diagram

    J-400 9.17 J-425 Massage/Waterfall Selector Diagram Massage Selector (1) • Massage selector 1 diverts jets pump Nº 1 output between jet groups 1a-1b. Waterfall Selector (3) • Waterfall selector (3) controls circulation pump output to waterfall. Mass Aspiration Jet Flow Control Valve (2) • Valve (2) controls output to footwell IX Jet. Jets Without Massage Selector Controls (4) • Jets (4) are always on when jets pump Nº 2 is running. Spa operation subject to change without notice Page 39...

  • Page 46: Air Controls Diagram

    J-400 9.18 J-425 Air Controls Diagram Air Controls Operation • Rotate air controls 1-4 to add air to designated jet groups. • Center footwell IX Jet (5) draws air at all times when jets pump is running. This jet has no air control. Spa operation subject to change without notice Page 40...

  • Page 47: Spa Features

    J-400 9.19 J-415 Spa Features 1. J-1000 Control Panel 10. Waterfall Control Valve 2. FX Jets (13 ea.) 11. Waterfall 3. Air Control Valves (2 ea.) Introduce Air 12. Filter/Skimmer Grill to Specified Jet Groups 13. Footwell Filter Suction Covers (2 ea.) 4.

  • Page 48: Massage/Waterfall Selector Diagram

    J-400 9.20 J-415 Massage/Waterfall Selector Diagram Massage Selector (1) • Massage selector 1 diverts output between jet groups 1a-1b. Waterfall Selector (2) • Waterfall selector 2 controls circulation pump output to waterfall. Spa operation subject to change without notice Page 42...

  • Page 49: Air Controls Diagram

    J-400 9.21 J-415 Air Controls Diagram Air Controls Operation • Rotate air controls 1-2 to add air to designated jet groups. Spa operation subject to change without notice Page 43...

  • Page 50: Control Panel Main Menu

    10.1 Control Panel Your Jacuzzi Spa is equipped with a state-of-the-art control panel. You will be able to access sets of multi-level menus. Familiarize yourself with the following information, so you can gain the full benefits of your spa. By learning the key features of the control panel, you will navigate through the menus and programming with ease.

  • Page 51: Main Menu Features

    J-400 10.2 Main Menu Features From the Main Menu you can access the main component menus to operate your Jacuzzi Spa. Listed below is a list of the Main Menu icons. A. Menu Control buttons 4:05 PM Temp. Dec 22, 2011 = Temperature control: Indicates that by using the Quad Temp.
  • Page 52 J-400 = button D: Press this button to access the corresponding menu located to the left side of it. = Entertainment Menu Icon: Press button A to access the menu to operate the J-1000 Audio System powered by JBL (page 48). = Jets Menu icon: Press button B to access the menu to operate the jets pump (page 60).

  • Page 53: Menu Flowchart

    J-400 10.3 Menu Flowchart The flowchart below is included to help you understand the spa’s navigational screens. By pressing the buttons located next to each corner icon, you will enter additional menus and submenus. Each menu is covered in detail in the sections to follow. Note: If your spa is not equipped with an audio system.

  • Page 54: Entertainment Menu Display

    J-400 10.4 Entertainment Menu Display Jacuzzi models equipped with the optional J-1000 Audio System pow- ered by JBL, offer an enhanced spa experience. These models include an integrated AM/FM/CD/MP3 Player receiver, four high fidelity spa engineered speakers for unsurpassed sound quality and long-life, and an integrated subwoofer for an enhanced acoustical experience.
  • Page 55 J-400 = Radio/CD Menu icon: Press button C to access the radio or CD device submenus (page 55). Note: When you enter the submenu, the system will default to the last device that was used. If the Radio was used, it will also default to the last broadcast band used (AM/FM).

  • Page 56: Ipod®/Aux Submenu

    J-400 10.5 iPod®/AUX Submenu While in the Entertainment menu, press button A to access the for iPod/ AUX submenu. You can scroll through the tracks, control the volume, and pause/play the device, for the iPod device only. WARNING: RISK OF ELECTRICAL SHOCK HAZARD EXISTS AND EQUIPMENT DAMAGE! Never install or remove iPod while hands are wet or while sitting partially immersed or fully immersed in spa!

  • Page 57: Aux Submenu

    J-400 = button C: Press this button to access the Radio/CD submenus (page 55). Note: The Radio/CD submenu will always default to the last device used. If the radio was used, it will also default to the last broadcast band used (AM/FM).

  • Page 58: Usb Submenu

    J-400 submenu (page 52). = button C: Press this button to access the Radio/CD submenus (page 55). Note: The Radio/CD submenu will always default to the last device used. If Radio was used, it will also default to the last broadcast band used (AM/FM).
  • Page 59 J-400 iPod “Displays Audio Vol. Information” NAND Press play or pause Figure A “Displays Audio = Audio information: Displays the track number, artist, song, Information” and time elapsed (if available). The arrows on either side indicate that the Quad Keypad can be used to scroll through the tracks.

  • Page 60: Nand Submenu

    J-400 10.8 NAND Submenu The NAND (internal memory) submenu lets you access files copied onto the hardware (Section 20.5, page 104). You can control the folder selec- tion, track selection, volume, and pause/play of the device. Note: The USB/NAND submenu will always default to the last device used.

  • Page 61: Fm Radio Submenu

    J-400 10.9 FM Radio Submenu The FM radio submenu gives you access to your preset stations and local FM radio stations. A. Listening to Preset stations PRESET 1 iPod 106.7 Vol. Press NAND radio tuning mode 106.7 = Preset number: Indicates which preset station is currently playing.
  • Page 62 J-400 B. Listening to local FM radio stations RADIO 97.7 Vol. Press AM PRESETS 97.7 = Station number: Indicates the station that is currently playing. The arrows on the either side of the station number indicate that the Quad Keypad can be used to scroll through the local stations.

  • Page 63: Am Radio Submenu

    J-400 10.10 AM Radio Submenu The AM radio submenu gives you access to your preset stations and local AM radio stations. A. Listening to Preset stations PRESET 1 iPod Vol. Press NAND radio tuning mode = Preset number: Indicates which preset station is currently playing.
  • Page 64 J-400 B. Listening to local AM radio stations RADIO V ol. Press FM PRESETS = Station number: Indicates the station that is currently playing. The arrows on the either side of the station number indicate that the Quad Keypad can be used to scroll through the local stations.

  • Page 65: Cd Submenu

    J-400 10.11 CD Submenu The CD submenu gives you access select a track, adjust the volume level and pause or play. CD PLAYER iPod “Displays Audio Vol. Information” Press NAND play or pause “Displays Audio = Audio Information: Displays the track number, artist, song, Information”...

  • Page 66: Operating Instructions

    (pages 23-43). These controls let you operate many of the special functions of your Jacuzzi spa. When you press button B from the Main Menu, you will enter the Jets Pump Submenu (Figure A).

  • Page 67: Activate Lights

    J-400 6. Press button C to turn pump #2 off. 7. Press again to activate pump #2. The pumps will move from an “ON” ( ) state into an “OFF” state. Auto Turn Off — Anytime a pump has been manually turned on, it will automatically turn off after approximately 20 minutes. If at this time you desire more jet operation you may simply turn the pump(s) back on. 11.3 Activate Lights From the Main Menu (page 45), press button C to enter the Lights submenus.
  • Page 68 J-400 A. To Access the Interior Solid Color Mode: 1. Press button A to activate the solid color mode. Note: The default color and intensity will always be the last color and intensity used. 2. Press again to turn off. 3.

  • Page 69: Adjusting Individual Jet Flow

    J-400 3. To increase or decrease light intensity, use the Quad Keypad as follows: • Press the Up button to increase the intensity in 25% increments. • Press the Down button to decrease the intensity in 25% increments. Note: The intensity range is from 25% to 100%, in increments of 25%.As the intensity is increased the bulb will darken to reflect the effect (Figure D, page 62).

  • Page 70: Selecting The Desired Massage Action

    J-400 11.9 Selecting the Desired Massage Action Your Jacuzzi spa is equipped to allow you to customize the massage action you desire. Each model incorporates a massage selector that allow you to customize the massage and performance by diverting water between various jet systems.

  • Page 71: Programming Instructions For Settings 1 Menus

    J-400 12.0 Programming Instructions for Settings 1 Menus Your Jacuzzi spa is equipped with three settings menus that allow you to program and activate different components of the spa. In the “Settings 1” menu you can program the Heating, the CLEARRAY™ Water Purification System (UV), and the check/clean filter reminder.

  • Page 72: Programming The Eco-Mode Heating Mode

    J-400 12.1 Programming the Eco-Mode Heating Mode Eco-Mode is an energy saving heating program. By heating the spa in the non-peak hours, you conserve electricity. While in Eco-Mode the spa is programmed to heat during the hours of 5:00 PM to 7:00 AM on a daily basis.

  • Page 73: Programmable Heating Mode

    J-400 4. If you have programmed the Auto- SETTINGS 1 Heating cycle you will see the Thermometer with wavy lines icon Heating next to word Heating on the display UV Light 0 Days (Figure F). Filter Press set filter or UV timer Figure F 12.3 Programmable Heating Mode...
  • Page 74 J-400 4. Press the Splash button once to save settings. 5. Press button D to return to the submenu (Figure I) to continue programming the start time and duration. 6. Press the Down button on the Quad PROGRAM A keypad to select “Start Time” (Figure Day Settings K).
  • Page 75 J-400 3. When you enter the submenu PROGRAM B (Figure O), you can choose the Monday day(s) you would like “Program B” to Tuesday run for a heating cycle. Press the Up Wednesday Select Thursday or Down button (on the Quad Friday Saturday Keypad) to scroll through and...

  • Page 76: Clean-Up "Blow-Out" Cycle

    J-400 12.4 Clean-up “blow-out” Cycle The clean-up cycle occurs once per day in all Heating modes at 12:00 (noon) for two minutes. This is not user programmable. Each jets pump activates for one minute to circulate any water in the plumbing unless a pump has just finished a 20 minute time out, it will not automatically activate for the clean-up cycle.

  • Page 77: Programming Instructions For Settings 2 Menus

    J-400 3. Press the Splash button to confirm and save your selection. 4. When the set time period expires, the “Please check filter!” message will appear on the Main Menu display (page 95). The reminder must be reset when the time allotted expires. Note: The time range is from 10 to 365 days in increments of 10 days or you can elect to turn the feature “OFF.”...

  • Page 78: Programming The Primary Filter Cycle

    J-400 = Settings 3 Menu Icon: Press button B to access the “Settings 3” Submenus. = Previous Icon : Press button D to go to the previous menu. 13.1 Programming the Primary Filter Cycle 1. To program the Primary Filter cycle PRIMARY press button A.

  • Page 79: Programming The Secondary Filter Cycle

    J-400 13.2 Programming the Secondary Filter Cycle SETTINGS 2 1. To program the Secondary Filter cycle, press button C (Figure B, pg. Primary 71). This cycle will activate the Secondary main jet pump to run for additional filtration when programmed (Figure E).

  • Page 80: Programming Instructions For Settings 3 Menus

    J-400 7. Now you will need to adjust the filter SECONDARY cycle “Duration” (Figure I). The Day Settings duration range is from 0 (OFF) to 120 Start Time minutes. Press the Left or Right Select button on the Quad Keypad to make Duration Duration your adjustments in increments of 15...

  • Page 81: Choosing The Language

    J-400 = Date Icon : Press button C to access the Date and Time submenus. Note: The Date and Time submenu will default to the last submenu accessed. = Lock/Unlock Icon : Press button B to lock and unlock the control panel.

  • Page 82: Setting The Time

    J-400 3. With the “Set Day” selected DATE (Figure F), press the Left or Right Year button on the Quad Keypad to scroll Month through selection. Once the correct Select Set Day day is displayed, press the Splash button to save your changes. Press Press to Save button D to return to the “Settings 3”...

  • Page 83: Locking And Unlocking The Topside

    J-400 14.4 Locking and Unlocking the Topside 1. From the “Settings 3” Menu (Figure J), press button B to access the Lock feature. The Lock Menu opens up to a padlock (Figure K). This feature accepts a three digit code to lock and unlock the panel from unauthorized use.

  • Page 84: Spa Maintenance

    J-400 15.0 Spa Maintenance Proper and regular maintenance of your spa will help it retain its beauty and performance. Your authorized Jacuzzi dealer can supply you with all the information, supplies, and accessory products you will need to accomplish this.
  • Page 85 J-400 a programmed filter cycle. These pumps draw water from footwell suction fitting and through a secondary water polishing bag filter and additional filter. The exclusive footwell “sweeper” suction fitting enhances filtration in the footwell area by creating a “swirling” water motion to maximize particle agitation and pickup.
  • Page 86 Continue, one section at a time until you have cleaned all debris from the filter pleats. Replacement filter cartridges may be purchased from your authorized Jacuzzi dealer. C. For the J415, J425, and J495: DANGER:...
  • Page 87 J-400 Cartridge 1 Remove filter pin If used, remove the Lift unthreaded filter order to separate the chemical feeder as cartridge from skimmer ProClarity filter and instructed prior to rinsing well. canister. the filter cartridge. Rinse debris from filter pleats using a garden hose and high-pressure nozzle.
  • Page 88 J-400 Trapped Bubbles Debris Submerge both filter Install clean debris bag Place each cartridge back onto the filter cover cartridges in spa. Tilt back into skimmer clips as shown (you can threaded end upward well, then rotated flip the filter skimmer to remove trapped air each cartridge handle and use the back side to...

  • Page 89: Draining And Refilling

    J-400 15.2 Draining and Refilling About every 3 to 6 months, you will want to replace the spa’s water. The frequency depends on a number of variables including the amount of use, number of users, attention paid to water quality maintenance, etc. You will know it is time for a change when you cannot control sudsing and/or you can no longer get the normal feel or sparkle to the water even though the key water balance measurements are all within the proper...

  • Page 90: Cleaning The Spa Interior

    If you are not certain as to the suitability of a particular cleanser, consult your authorized Jacuzzi dealer. Regardless of the cleanser used, use extreme care to assure that no soap residue is left on the surface.

  • Page 91: Cleaning The Control Panel

    15.7 Vinyl Cover Care and Maintenance Your Jacuzzi cover has a vinyl encasement. This vinyl encasement is attractive and durable. Monthly cleaning and conditioning is strongly recommended to maintain and increase the longevity of your cover.

  • Page 92: Winterizing

    J-400 15.8 Winterizing Your Jacuzzi spa is designed to automatically protect itself against freezing when operating properly. During periods of severe freezing temperatures, you should check periodically to be certain that the electrical supply to the spa has not been interrupted. Constantly check the indicator light to make sure is it white, page 64.

  • Page 93: Restarting Your Spa In Cold Weather

    10. Re-install cabinet side panels and cover spa so that no casual moisture can enter into it. Consult your Jacuzzi dealer if you have any questions regarding winter use or winterizing. 15.9...

  • Page 94: Ph Control

    Your authorized Jacuzzi dealer can advise you on the use of these additives. When adding spa shock (chlorine or non-chlorine) or pH balancing chemicals activate the jet pump(s) and leave the spa cover open for a minimum of 20 minutes.

  • Page 95: Clearray™ (Ultraviolet) Water Purification System

    J-400 16.4 CLEARRAY™ (Ultraviolet) Water Purification System CLEARRAY Water Purification System is exclusive technology utilizing natural ultraviolet technology to WARNING! DO NOT LOOK AT LIT BULB eliminate waterborne bacteria, viruses, and algae in SEVERE EYE DAMAGE OR BLINDNESS CAN OCCUR portable spas.
  • Page 96 J-400 DANGER: turn the sPa breaker to the oFF POSITION! WARNING: ALLOW LAMP TO COOL DOWN PRIOR TO reMoving FroM QuartZ tube. DANGER: never look at the lit bulb. this Can Cause severe eye DaMage or blinDness. UV lamp replacement and quartz tube maintenance: Note Location of CLEARRAY System and connection may vary by model.
  • Page 97 J-400 WARNING: Do not use abrasive cleaners as they can scratch the quartz tube surface. 9. Rinse the quartz tube with clean water to completely remove any cleaning products that were used in step 4. 10. Replacing quartz tube: You will notice that the new quartz tube does not have a black cushion on the domed end as the old quartz tube does.

  • Page 98: Error/Display Messages

    17.0 Error/Display Messages There are a number of unique functions designed into your Jacuzzi spa to protect it from damage and/or to aid in troubleshooting. When an error occurs the spa will notify you by showing the screen below and an error code next to it. Also the indicator light located on the front cabinet panel of the spa is an early detection system that will notify you when the spa needs immediate attention.
  • Page 99 J-400 1. Overheat protection: (Heater is deactivated, filter/circulation pump is activated). Water temperature is above acceptable limits. DO NOT ENTER THE WATER! Remove spa cover to speed cooling. See “Water Is Too Hot” on page 97. If condition persists, contact your authorized dealer or authorized service center.
  • Page 100 J-400 6. Emergency shutdown: Water temperature is above acceptable limits. DO NOT ENTER SPA! (spa is deactivated) A problem has been detected which could cause damage to the spa or its components. Contact your authorized dealer or service organization. WARNING: RISK OF HYPERTHERMIA (OVER-HEAT- ing) Causing severe inJury, burns, or welts.
  • Page 101 J-400 16. Extended Temperature Activated: The spa is set to go up to 6:45 PM 104°F (40°C), but it can be set to reach 106°F T emp. (41°C). To access the Extended Temperature extended temperature Activated Figure A you must press the “Up” (on the Quad Keypad) button and the button D at the same time for 2 seconds.

  • Page 102: Troubleshooting Procedures

    J-400 18.0 Troubleshooting Procedures In the unlikely event your spa is not working the way you believe it should, please first review all the installation and operating instructions in this manual and check the message on the panel display; second, if you are still not satisfied it is working properly, please follow the appropriate troubleshooting instructions.
  • Page 103 Your input as a Jacuzzi spa owner is a cherished part of this process. If you have any comments or suggestions, or if you wish to be informed on any new products for your spa, please write to us.

  • Page 104: Typical Spa Wiring Diagrams

    J-400 19.0 Typical Spa Wiring Diagrams 19.1 Wiring diagram for North American 60 Hz Models Only 2-Pole Circuit Breaker with 2-Wire Grounded Load Connection (3 Wires to Hot Tub, 2-Hot (L1-L2), 1-Ground) 240 VAC Ground/Bonding Lug** White (N) Black (L1) 2-Pole GFCI Red (L2)

  • Page 105: Optional Jacuzzi J-1000™ Audio System Stereo System Features

    J-400 20.0 Optional Jacuzzi J-1000™ Audio System Stereo System Features 20.1 J-1000 Audio System Sound System Controls 1. Power On/Off Button 11. AUX Input Jack 2. Tune/Seek Up/Down Button 12. iPod Docking Station 3. Volume Up/Down Button 13. Disc Eject Button 4.

  • Page 106: J-1000 Audio System Sound System Operation

    J-400 20.2 J-1000 Audio System Sound System Operation 1. Power On and Off Press power button (1) once to turn on stereo system. Press a second time to turn off. 2. Adjusting Volume Press VOL Up/Down button (3) to increase or decrease volume. Current volume setting is briefly displayed (0 to 45).
  • Page 107 J-400 8. Adjusting Fader Level Press EQ button (5) repeatedly until display reads “FADER.” Press VOL Up/Down button (3) to choose desired setting. A display of “FADER F-R” indicates center, R01 to 15 indicates rear fade, F01 to 15 indicates front fade. Note: Unit returns to volume mode if volume control is not operated for 3 seconds.

  • Page 108: J-1000 Audio System Radio Operation

    J-400 12. Open/Close Front Panel Press firmly on the release button (15), then open front panel (16) by gently lifting upward on bottom edge. To close front panel, gently flip panel down, then press firmly on panel directly above release button (15) until you hear an audible “click.”...

  • Page 109: J-1000 Audio System Cd Player Operation

    J-400 4. Preset Scan Function Press AS/PS button (6) once to enter scan mode. Each preset station in the current band will play for 5 seconds while the preset number is flashes on the display (17). At the desired station, press AS/PS button (6) a second time.

  • Page 110: J-1000 Audio System Usb & Nand Operation

    J-400 4. Searching File or Folder in MP3/WMA CD • To Search File in CDP (MP3/WMA) mode: Press AS/PS button (6) to enter track searching mode. Then press the VOL Up/Down button (3) to scroll through available tracks. At desired track, press ENT button (9) to confirm selection.

  • Page 111: J-1000 Audio System Ipod Operation

    J-400 button (3) to choose ONE or ALL. Press ENT button (9) to confirm selection. • If ONE COPY is selected: The record percent “DOWN LOAD xx%” will display on the LCD (17). After copying is finished, the next track will automatically begin playback.

  • Page 112: Docking Your Ipod Music Player

    J-400 2. Searching Folders in iPod Mode • To select folder in iPod mode: Press AS/PS button (6) to display music and then play list. Press VOL Up/Down button (3) to select between Play list, Artist, Albums, Genres, Songs and Composer (the scroll sequence depends on the iPod that is used).

  • Page 113: Generic Mp3 Player Operation

    J-400 WARNING: RISK OF ELECTRICAL SHOCK HAZARD EXISTS AND EQUIPMENT DAMAGE! Never install or remove iPod while hands are wet or while sitting partially immersed or fully immersed in spa! CAUTION: Never leave iPod in Docking Station when spa is not is use to prevent damage from outdoor elements! Never spray Docking Station with pressurized water hose for any reason! Damage to iPod or spa stereo system caused by...

  • Page 114: J-1000 Audio System Stereo Troubleshooting

    J-400 20.9 J-1000 Audio System Stereo Troubleshooting 1. Unit will not turn-on Make sure spa power is turned on, then check both harness fuses on side of unit making sure they are the proper ratings: • Yellow memory B+ line (10A fuse). •...

  • Page 115: Optional J-1000 Wireless Remote

    J-400 20.11 Optional J-1000 Wireless Remote A. The Optional J-1000 Remote (Included with models equipped with the Jbl audio System) Most spa functions can be controlled with the U S B remote (Figure A). The sleek modern design and iPod easy navigation make this remote a great addition to your spa enjoyment.
  • Page 116 J-400 = Jet 1 icon: Allows you to turn on/off the jets pump 1. = Jet 2 icon: Allows you to turn on/off the jets pump 2. = Jet 3 icon: Allows you to turn on/off the jets pump 3. U S B iPod = low battery icon: Notifies you when...

  • Page 117: Main Menu

    J-400 U S B iPod Remote display for spas Remote display for spas with the stereo option without the stereo option 1. bonding the remote and spa When you first use the remote, it will need to be bonded to the spa for opera- REMOTE CONTROL CONNECTION Press the keys below...

  • Page 118: Activating The Jets

    J-400 3. Adjusting the Temperature When the temperature icon is selected, all other icons on the display screen will disappear. The only two items shown are the thermometer icon and the digit temperature in °C or °F. Using the Navigational Keypad you can: •...
  • Page 119 J-400 7. Lock Reminder If you press any key to activate the remote and the lock icon is the only thing showing, then the spa has been locked. You must first unlock the spa from the main control panel to be able to use the remote. B.
  • Page 120 J-400 3. CD Operation You can scan through the track numbers and adjust the volume with the remote. When you are in the CD mode the screen will appear like Figure D; then it will change to the track duration screen for the track. Using the Navigational Keypad you can: Figure D •...
  • Page 121 J-400 6. NAND Folder Operation To access the NAND menu, select the USB feature and then press the Up button. You can scan through the folders, track numbers and adjust the volume with the remote. Using the Navigational Keypad you can: •...

  • Page 122: J-1000 Wireless Remote Battery Replacement

    J-400 WARNING: RISK OF ELECTRICAL SHOCK HAZARD EXISTS AND EQUIPMENT DAMAGE! Never install or remove iPod while hands are wet or while sitting partially immersed or fully immersed in spa! 9. Error has occurred If the remote senses an error that needs attention, it will dis- play the words “Spa”...

This manual is also suitable for:

J-425J-480J-495J-460J-465J-470

Table of Contents
