Summary of Contents for Savoy House 52-840-5CN-196

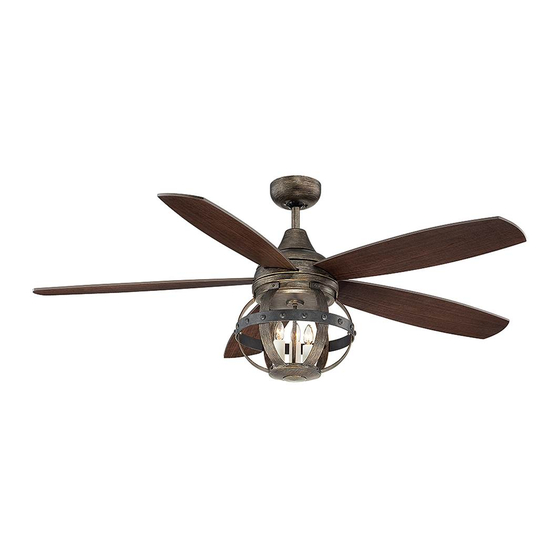

- Page 1 CEILING FAN OWNER'S MANUAL READ AND SAVE THESE INSTRUCTIONS MODEL: 52-840-5CN-196 FAN RATING AC 120V. 60Hz CUL LISTED MODEL: AC-552DL...
-
Page 2: Tools And Materials Required
1. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items; a. Blade set (5) b. Blade support plates (5) c. -
Page 3: Safety Rules
3. SAFETY RULES 1. To reduce the risk of electric shock, ensure Avoid placing objects in the path of the electricity has been turned off at the circuit blades. breaker or fuse box before beginning. To avoid personal injury or damage to the 2. -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing cUL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building Outlet box structure. Use appropriate fasteners and building materials. -
Page 5: Hanging The Fan
5. HANGING THE FAN Hanger REMEMBER to turn off the power. Follow the bracket steps below to hang your fan properly: Ceiling Step 1. Remove the decorative canopy canopy bottom cover from the canopy by turning the cover counter clockwise. (Fig. 5) Canopy cover Step 2. -
Page 6: Installation Of Safety Support
6. INSTALLATION OF SAFETY SUPPORT An additional safety support is provided to Hanger bracket Safety cable prevent the fan from falling. Secure the safety cable to the ceiling joist with screw and washer, as illustrated in Figure 9. Figure 9 7. -
Page 7: Finishing The Installation
Step 3. (Figure 12) Receiver to House Supply Wires Electrical Connections: Connect the Outlet box black (hot) wire from the ceiling to the black wire marked "AC in L" from the receiver. White (neutral) Black (hot) Connect the white (neutral) wire from the Green or bare ceiling to the white wire marked "AC in N"... -
Page 8: Attaching The Fan Blades
9. ATTACHING THE FAN BLADES Caution: Remove 5 rubber packing mounts and discard before installation. Step 1 Insert the blade through the slot on the motor housing. Align holes and fasten the blade to the motor with provided screws and blade support plates washers. (Fig. - Page 9 11. INSTALLING THE LIGHT BULBS & GLASS SHADE / FRAME ASSEMBLY NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box. Turning power off using the fan switch is not sufficient to prevent electric shock.
-
Page 10: Installing The Battery
12. INSTALLING THE BATTERY Insert the 23A/12V battery (included) and make sure they are seated correctly in recess. (Fig. 17) Figure 17 13. OPERATING INSTRUCTIONS Restore power to ceiling fan and test for proper operation. , and buttons: These three buttons are used to set the fan speed as follows: = high speed = medium speed... -
Page 11: Care Of Your Fan
The Reverse switch is located on the motor housing. Slide the switch to the Left for warm weather operation. Slide the switch to the Right for cool weather operation. Speed settings for warm or cool weather depend on factors such as the room size, ceiling height and number of fans. -
Page 12: Troubleshooting
15. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off. 3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
