Summary of Contents for Savoy House 52-ECM-5RV-13WG

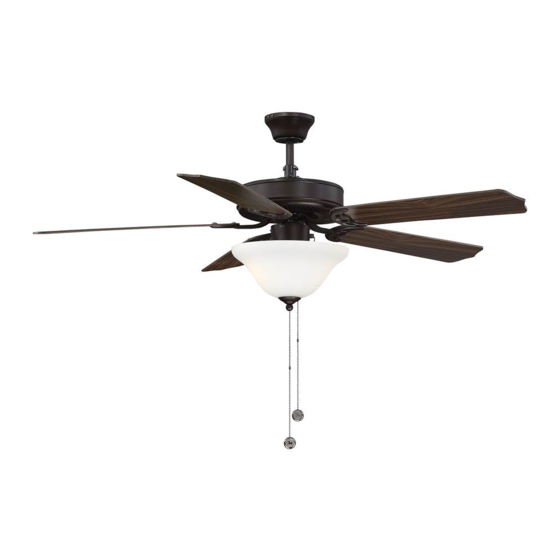

- Page 1 CEILING FAN OWNER'S MANUAL READ AND SAVE THESE INSTRUCTIONS MODELS: 52-ECM-5RV-13 52-ECM-5RV-WH 52-ECM-5RV-SN 52-ECM-5RV-13WG 52-ECM-589-89 FAN RATING AC 120V. 60Hz UL LISTED MODEL: AC-552...
-
Page 2: Tools And Materials Required
1. TOOLS AND MATERIALS REQUIRED Philips screwdriver Blade screwdriver 11 mm wrench Step ladder Wire cutter 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items; a. Set of blades assembly (5) b. Hanger bracket c. -
Page 3: Safety Rules
3. SAFETY RULES 1. To reduce the risk of electric shock, insure Avoid placing objects in the path of the electricity has been turned off at the circuit blades. breaker or fuse box before beginning. 9. To avoid personal injury or damage to the 2. -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing UL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the Outlet box building structure. appropriate fasteners and building materials. -
Page 5: Hanging The Fan
5. HANGING THE FAN REMEMBER to turn off the power. Follow the steps below to hang your fan properly. UL Listed electrical box NOTE: This ceiling fan is supplied with two Hanger types of hanging assemblies; the standard bracket ceiling installation using the downrod with ball and socket mounting and the Mounting screws "close-to-ceiling"... - Page 6 CLOSE-TO-CEILING INSTALLATION 1. Pass the 120-volt supply wires through Canopy the center hole in the ceiling hanger bracket as shown in Fig. 5. Decorative canopy cover Figure 8 2. Remove the decorative canopy cover from the canopy. (Fig. 8) 3. Secure the hanger bracket to the ceiling Screw and lockwasher (3 of 6 places) outlet box with the screws and washers...
-
Page 7: Make The Electric Connections
POWER LINES 120V correct wire connections.) GREEN GROUND NOTE: LIGHT KITS ARE AVAILABLE AT YOU WIRING LIGHT SAVOY HOUSE RETAILER. THE FAN IS GROUND TO ALREADY WIRED TO SUPPORT THE LIGHT MOUNTING BRACKET KIT OPTION. OR DOWNROD WARNING: TO REDUCE THE RISK OF FIRE,... -
Page 8: Finishing The Installation
7. FINISHING THE INSTALLATION Outlet box Screws Hanger STANDARD CEILING INSTALLATION bracket Slide canopy up to the ceiling as shown in Figure 14. Make sure you place the wires Ceiling canopy safely into the outlet box. Secure the Canopy ring canopy to the hanger bracket with the four screws with your fan. -
Page 9: Attaching The Fan Blades
8. ATTACHING THE FAN BLADES Caution: Remove 5 rubber packing mounts and discard before installation. Step 1. Attach the blade to the blade bracket using the screws and fiber washers as shown in Figure 16. Start screw into bracket. Repeat for the two remaining screws. -
Page 10: Installing The Light Bulbs & Glass Shade
10. INSTALLING THE LIGHT BULBS & GLASS SHADE 1. Install 2 x 9W LED bulbs (provided). (Fig. 2. Remove the decorative nut, glass cap and metal nut from the light kit. Place glass shade over the light kit stem, secure with the metal nut (rubber side on the top)glass cap and decorative nut. -
Page 11: Operating Your Fan
12. OPERATING YOUR FAN NOTE: Wait for fan to stop before changing the setting of the slide switch. Turn on the power and check the operation of your fan. The pull chain controls the fan speed as follows: 1 pull- High, 2 pulls-Medium, 3 pulls- Low, and 4 pulls-Off. -
Page 12: Troubleshooting
13. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off. Fan sounds 1. Make sure all motor housing screws are snug. noisy.
