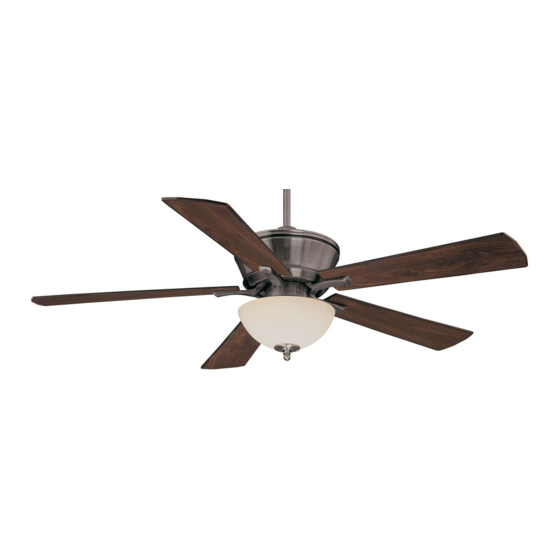

- Page 1 CEILING FAN OWNER'S MANUAL READ AND SAVE THESE INSTRUCTIONS MODEL: 52P-646-5RV-187 52P-646-5RV-323 FAN RATING AC 120V. 60Hz CUL LISTED MODEL : AC-552A...
-
Page 2: Tools And Materials Required
1. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items; a. Blade set (5) b. Hanger bracket assembly c. -
Page 3: Safety Rules
3. SAFETY RULES 1. To reduce the risk of electric shock, insure To avoid personal injury or damage to the electricity has been turned off at the circuit fan and other items, be cautious when breaker or fuse box before beginning. working around or cleaning the fan. -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing CUL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the Outlet box building structure. Use appropriate fasteners and building materials. -
Page 5: Hanging The Fan
5. HANGING THE FAN Hanger bracket REMEMBER to turn off the power. Follow the steps below to hang your fan properly: Ceiling canopy Step 1. Remove the decorative canopy bottom cover from the canopy by turning the cover counter clockwise. (Fig. 5) Canopy cover Step 2. -
Page 6: Installation Of Safety Support
6. INSTALLATION OF SAFETY SUPPORT An additional safety support is provided to Hanger bracket Safety cable prevent the fan from falling. Secure the safety cable to the ceiling joist with screw and washer, as illustrated in Figure 9. 7. MAKE THE ELECTRIC Figure 9 CONNECTIONS REMEMBER to disconnect the power. -
Page 7: Finishing The Installation
8. FINISHING THE INSTALLATION Step 1. Tuck connections neatly into ceiling outlet box. Outlet box Step 2. Slide the canopy up to hanger Hanger bracket bracket and place the key hole on the canopy over the screw on the hanger Screws bracket, turn canopy until it locks in place at the narrow section of the key holes. -
Page 8: Installing The Light Kit
10. INSTALLATING THE MOUNTING PLATE 1. Remove the 1 of 3 screws from the mounting ring and loosen the other 2 screws. (Do not remove) 2. Place the key holes on the mounting plate over the 2 screws previously loosened from the mounting ring, turn mounting plate until it locks in place at the narrow section of the key holes. -
Page 9: Installing The Light Bulbs & Glass Shade
12. INSTALLING THE LIGHT BULBS & GLASS SHADE NOTE: Before starting installation, discon- nect the power by turning off the circuit breaker or removing the fuse at fuse box. Turning power off using the fan switch is not sufficient to prevent electric shock. 1. -
Page 10: Operating Your Fan
14. OPERATING YOUR FAN NOTE: Wait for fan to stop before changing the setting of the slide switch. Turn on the power and check the operation of your fan. The pull chain controls the fan speed as follows: 1 pull- High, 2 pulls-Medium, 3 pulls- Low, and 4 pulls-Off. -
Page 11: Troubleshooting
15. TROUBLESHOOTING Problem Solution Fan will not start. 1.Check circuit fuses or breakers. 2. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off. Fan sounds 1. Make sure all motor housing screws are snug. noisy.
