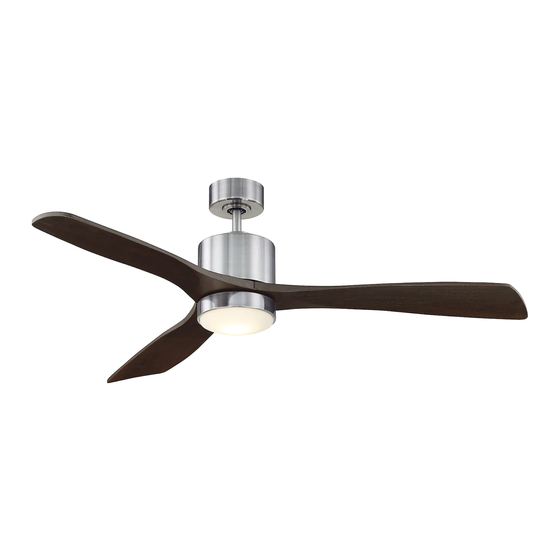

- Page 1 CEILING FAN OWNER'S MANUAL READ AND SAVE THESE INSTRUCTIONS MODELS: 52-190-3CN-187 52-190-3WA-13 FAN RATING AC 120V. 60Hz UL LISTED MODEL : AC-552...
-
Page 2: Tools And Materials Required
1. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items; a. Set of blades assembly (3) b. -
Page 3: Safety Rules
3. SAFETY RULES 1. To reduce the risk of electric shock, insure Avoid placing objects in the path of the electricity has been turned off at the circuit blades. breaker or fuse box before beginning. 9. To avoid personal injury or damage to the 2. -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing UL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the Outlet box building structure. Use appropriate fasteners and building materials. - Page 5 5. Hanging the Fan Hanger bracket REMEMBER to turn off the power. Follow the steps below to hang your fan properly: Ceiling canopy Step 1. Remove the decorative canopy bottom cover from the canopy by turning the cover counter clockwise. (Fig. 5) Canopy Step 2.
-
Page 6: Make The Electric Connections
6. MAKE THE ELECTRIC CONNECTIONS Code switch WARNING: To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. NOTE: This remote control unit is equipped with 16 code combinations to prevent possible interference from or to Figure 9 other remote units. -
Page 7: Finishing The Installation
Note: Fan must be installed at a maximum distance of 30 feet from the transmitting unit for proper signal transmission between the transmitting unit and the fan's receiving unit. 7. FINISHING THE Outlet box INSTALLATION Hanger Step 1. Tuck connections neatly into bracket ceiling outlet box. -
Page 8: Attaching The Fan Blades
8. ATTACHING THE FAN BLADES Caution: Remove 5 rubber packing mounts and discard before installation. Step 1 Attach the blade to the motor using the screws, lock washers and flat washers provided. Step 2 Tighten each screw. Make sure the blade is straight. -
Page 9: Installing The Led Light Kit
10. INSTALLING THE LED LIGHT KIT NOTE: Before starting installation, discon- nect the power by turning off the circuit breaker or removing the fuse at fuse box. Turning power off using the fan switch is not sufficient to prevent electric shock. Step 1. -
Page 10: Installing The Battery
12. INSTALLING THE BATTERY Install 9 volt battery (included), to prevent damage to transmitter, remove the battery if not used for long periods. (Fig. 13. OPERATING INSTRUC- TIONS Figure 17 Restore power to ceiling fan and test for proper operation. A. -
Page 11: Care Of Your Fan
The Reverse switch is located on the top of the motor housing. Slide the switch to the Left for warm weather operation. Slide the switch to the Right for cool weather operation. Speed settings for warm or cool weather depend on factors such as the room size. Ceiling height, number of fans and so on. -
Page 12: Troubleshooting
15. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off. 3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
