Assembly
Before beginning assembly, carefully read the
following information and instructions:
¥ Place all parts in a cleared area and remove the
packing materials from the spa shell. Do not dis-
pose of the packing materials until assembly is
completed and the spa is in operation.
¥ During assembly, make sure that all parts are ori-
ented as shown in the drawings.
¥ Read each assembly step before you begin.
¥ Tighten all parts as you assemble them, unless
instructed to do otherwise.
This unit is a cord-connected spa with pump,
heater and spa side controls.

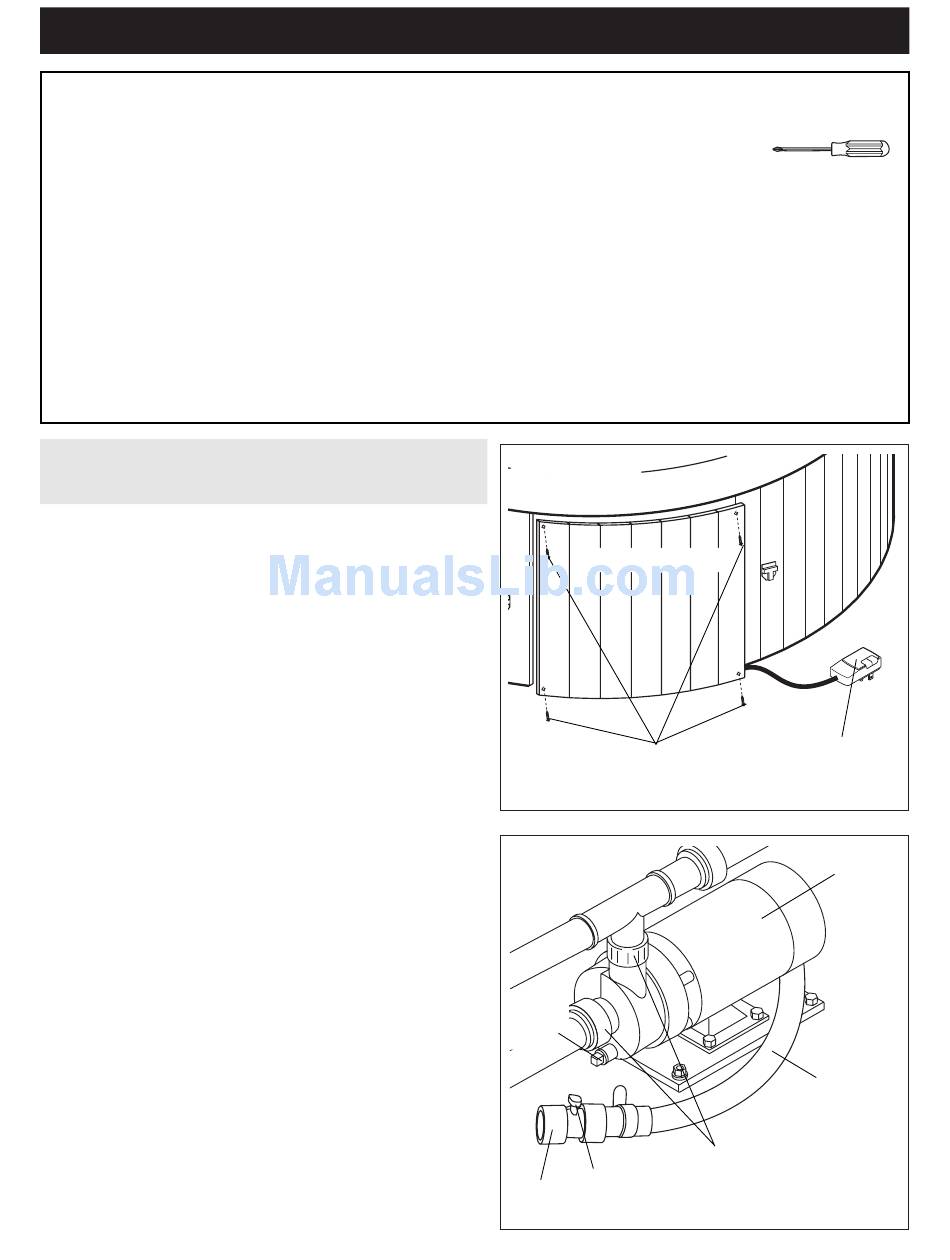

1. Before beginning assembly, make sure that you
have read and understand the information in the
box above and on the previous two pages.
Remove the four #6 x 1 1/4Ó Wood Screws (7) from
the Access Cover (2). Remove the Access Cover from
the spa unit by sliding it down and pulling the bottom
of the Cover away from the spa unit. Make sure you
donÕt damage the spa shell.
Remove the power cord with the GFCI from inside the
spa unit.
2. Close the valve knob on the drain hose.
Thread the cap onto the drain hose.
Thread the Drain Plug into the Pump Motor.
Tighten the pump fittings.
Re-attach the Access Cover (2) with the four
#6 x 1 1/4Ó Wood Screws (7) removed in step 1.
ASSEMBLY REQUIRES THE FOLLOWING
TOOLS (not included):
¥ One (1) phillips screwdriver
¥ You may also need some soap or water
A wire connector is provided on the pump
motor of this unit to connect a minimum No. 8
AWG (804 mm 2 ) solid copper conductor
between this unit and any metal equipment,
electrical enclosure made of metal, metal water
pipes or conduit within five feet of the unit.
1
Access Cover (2)
#6 x 1 1/4Ó Wood
Screws (7)
2
Drain
Plug
Valve
Cap
Knob
8
Power Cord
with (GFCI)
Pump
Motor
Drain
Hose
Pump
Fittings
