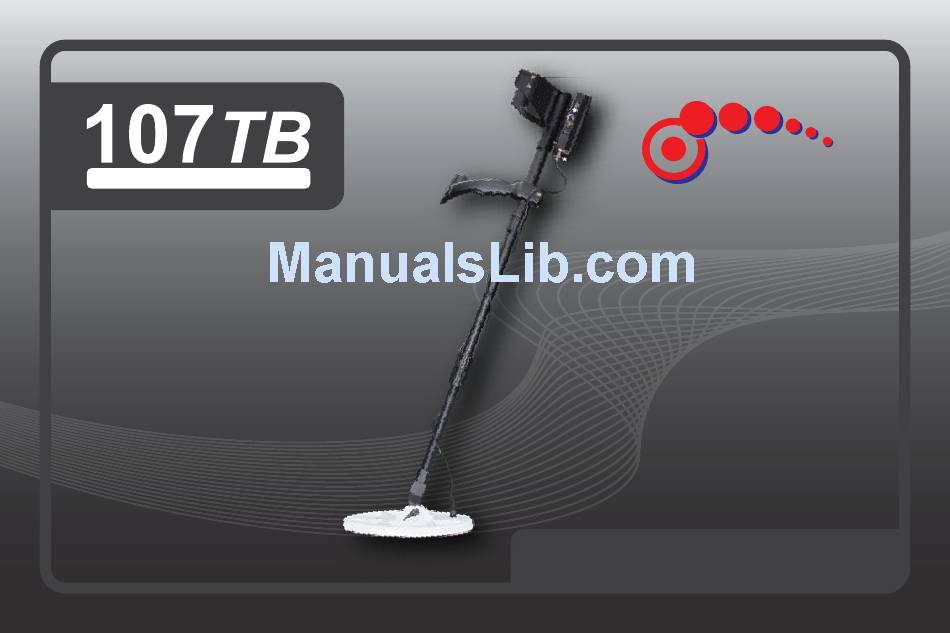

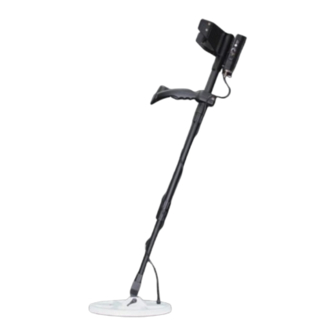

- Page 1 Nokta TECHNICAL & BALLISTIC SERIES E N G I N E E R I N G TECHNICAL MANUAL w w w . n o k t a e n g i n e e r i n g . c o m...
- Page 2 Nokta Engineering aims to remain a leading pioneer in its sector, winning the trust of its consumers and always being the preferred choice for metal detecting.
-
Page 3: Table Of Contents
CONTENTS WARNINGS ..............................ASSEMBLY ..............................CORRECT WAY OF HOLDING ....................CORRECT WAY OF SWEEPING ................... DEVICE INTRODUCTION ......................PRINCIPLES OF SEARCHING ................... SEARCHING and METAL DETECTING 11-12 ............ TECHNICAL SPECIFICATIONS .................. -
Page 4: Warnings
► Protect the device from external impact, especially during transportation. ► The device can only be opened and repaired by authorized service technicians. The warranty will be voided if the device is opened by you or an unauthorized person. NOKTA ENGINEERING... -
Page 5: Warnings
WARNINGS Do not use the device indoors. The device will constantly give target signals inside places like homes where there are many metals present. Use the device outdoors, in open elds. Do not let another detector or an electromagnetic device come in close proximity (10m (33ft.)) to the device. -
Page 6: Assembly
Then, tighten it using the wingnut. To connect the system box shaft, rst loosen the twist After inserting the shaft, x it by re-tightening the twist lock on the extension shaft. lock. NOKTA ENGINEERING... -
Page 7: Assembly
ASSEMBLY After adjusting the height of the device using the twist Plug the connector at the end of the cable into the coil lock on the extension shaft, wrap the cable around the input socket at the bottom of the system box. shaft. -
Page 8: Correct Way Of Holding
Adjust the height of the shaft so that you are standing in an be able to search without discomfort and fatigue. upright position, your arm is relaxed and the search coil is approximately 5cm (~2'') above the ground. NOKTA ENGINEERING... -
Page 9: Correct Way Of Sweeping
CORRECT WAY OF SWEEPING Wrong search coil angle. Wrong search coil angle. Correct search coil angle. Incorrect way of sweeping. Correct way of sweeping. It is important to keep the search coil parallel to The search coil must be parallel to the ground at all the ground in order to get accurate results. -
Page 10: Device Introduction
DEVICE INTRODUCTION Search Coil Input Socket Speaker Headphone Input Metal Indicator Sensitivity Setting ON / OFF - VOLUME Battery Life Check Button / Battery Life Indicator NOKTA ENGINEERING... -
Page 11: Principles Of Searching
PRINCIPLES OF SEARCHING It is important to pay attention to the following points before and during search in terms of device performance and getting accurate results: 1- The device operates on the principle of motion. This means that you must move the search coil over the target or the target over the search coil, in order for the device to see it. -
Page 12: Searching And Metal Detecting
Pinpointing For pinpointing the exact location of the target, move the search coil over the target with short and fast sweeps. Determine the spot where the maximum number of LEDs light up on the Metal Indicator. NOKTA ENGINEERING... -
Page 13: Searching And Metal Detecting
SEARCHING AND METAL DETECTING Ground Noise, Interference and Sensitivity Setting While searching, the device may produce false signals caused by electrical interference from the surrounding environment or ground noise. These signals are not stable and they di er from target signals. To determine whether the signal is a noise or a target signal, sweep the coil over the spot where the signal is received a few times in di erent directions and check whether you receive a signal each time. -
Page 14: Technical Specifications
Ground Balance: Automatic Search Coil: 24x32cm (12.5'') Double-D waterproof Batteries: 6x1.5V AA Alkaline Headphone Output: 1/4'' mono Length: 97 - 130cm (38'' - 51'') extendable Weight: 1.9kg (4lb) (including the search coil and the batteries) Warranty: 2 years NOKTA ENGINEERING... - Page 16 Emek Mah. Sivatyolu Cad. Sakiz Sok. No:4 Kat:1-2 Nokta 34785 Sancaktepe - Istanbul / TURKEY Phone:+90 216 415 56 86 Fax: +90 216 415 63 43 E N G I N E E R I N G E-mail: info@noktaengineering.com...
