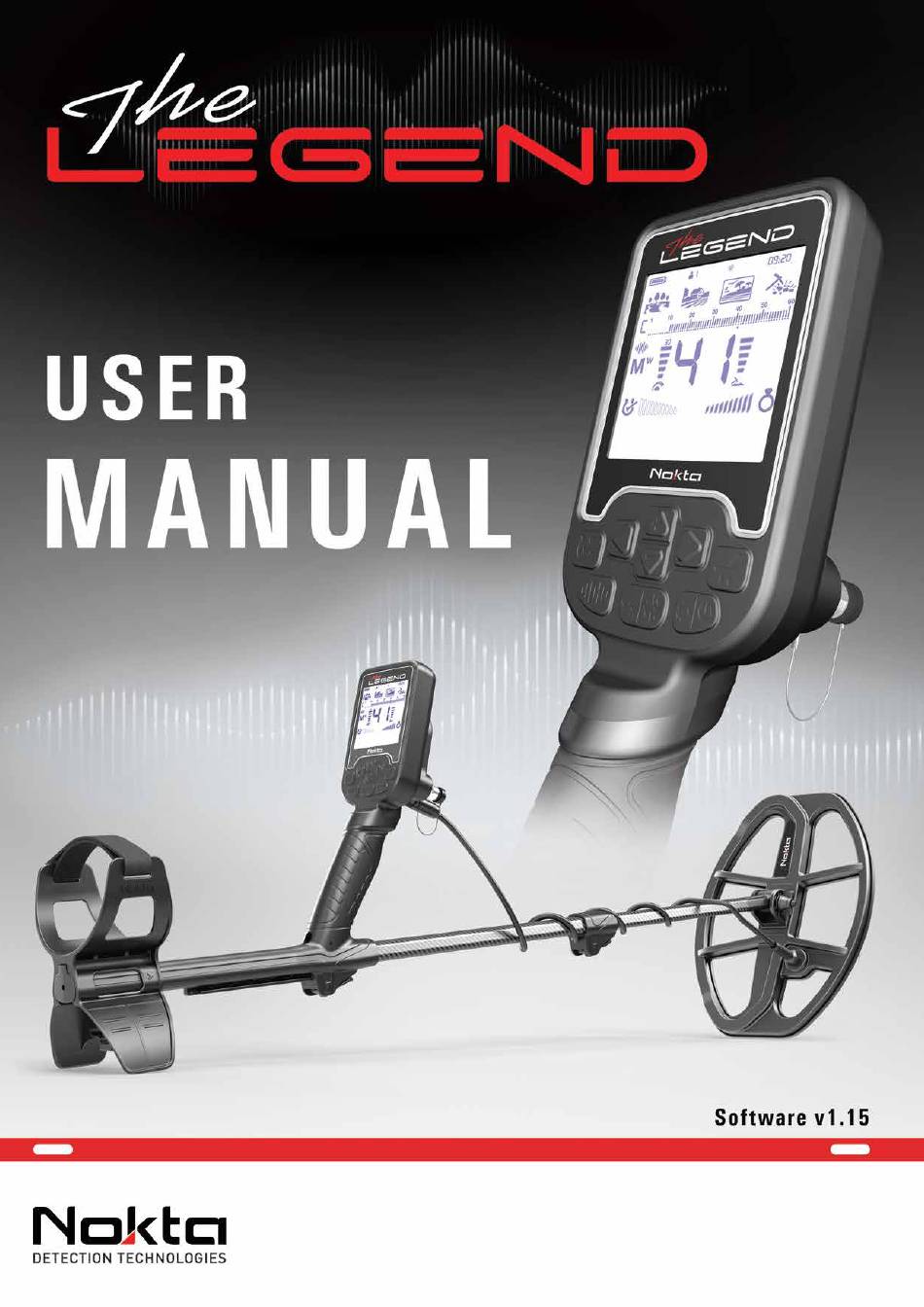

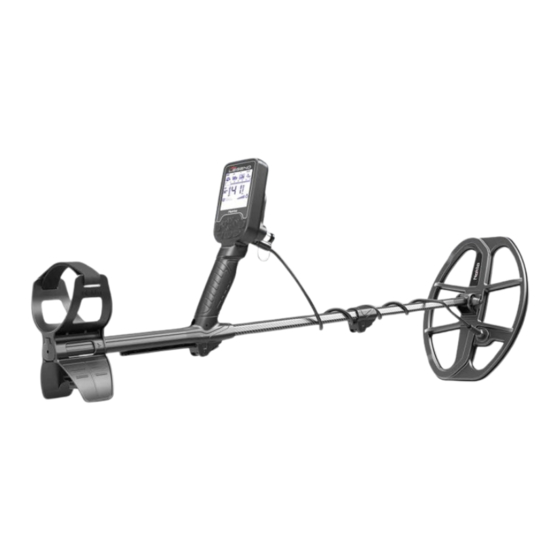

Nokta LEGEND User Manual
  1. Manuals
  2. Brands
  3. Nokta Manuals
  4. Metal Detector
  5. LEGEND
  6. User manual

Nokta LEGEND User Manual

Hide thumbs Also See for LEGEND:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LEGEND and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nokta LEGEND

Summary of Contents for Nokta LEGEND

  • Page 3: Table Of Contents

    QUICK GUIDE ......................................WARNINGS COMMON AND MODE-BASED SETTINGS ............ ► The LEGEND is a state-of-the-art electronic device. Do not SEARCH MODES assemble or operate the device before reading the user manual..................................SENSITIVITY ► Do not store the device and search coil under extremely low ......................................

  • Page 4: Assembly

    ASSEMBLY (1) After inserting the washers on the lower shaft, place the lower shaft in its location on the search coil. Secure by tightening the screw and nut. Do not overtighten. (2) To join the middle rod with the upper and lower rods, open the lever latches and engage the pieces together.

  • Page 5: Introduction To The Device

    8. Ground Balance Button In The LEGEND, you can ground balance the detector in 3 different ways using this button. For details, please read page 12. 9. Speaker 10.

  • Page 6: Display

    DISPLAY 1. Info Bar 8. Depth Indicator 2. Clock and Time Tracking 9. User Profile Save & Delete 3. Search Modes 10. FerroCheck™ Bar 4. Target ID Scale and Notched Out IDs 11. Pinpoint 5. Operating Frequency 12. Settings 6. Sensitivity Indicator 13.

  • Page 7: Battery Information

    WATERPROOF REPLACEABLE SPARE BATTERY charger to the wired headphones / charger input socket and the Included in The LEGEND Pro Pack only and sold separately as well, other end to the powerbank. Please note that you will not be able...

  • Page 8: Correct Use

    CORRECT USE Shaft height is wrong Shaft height is correct It is very important to adjust the shaft to your Adjust the height of the shaft so that you are height correctly to be able to search without standing in an upright position, your arm is discomfort and fatigue.

  • Page 9: Quick Guide

    QUICK GUIDE COMMON AND MODE-BASED SETTINGS 1. Assemble the device as per the instructions on page 1. Certain settings are common to all modes; changes in these settings will take effect in all modes. 2. Press and hold the Power & Settings Button for a second to turn on the device.

  • Page 10: Search Modes

    Field mode. You may get a different ID in each mode for targets that fall within this ID range. The LEGEND has 4 search modes designed for different terrains and targets. Park and Field modes offer 3 different Multi frequencies as Multi-1 (M1), Multi-2 (M2) and Multi-3 (M3).

  • Page 11: Sensitivity

    GOLDFIELD The sensitivity values corresponding to each level on the Depth This mode is optimized for use on mineralized Indicator are shown below: goldfields. 25-30 19-24 13-18 7-12 Different than the other modes, this mode features a threshold tone which is continuously heard in the background. The volume and the frequency of the audio alert emitted when a target is detected, varies proportionally to the strength of the target signal.

  • Page 12: Frequency

    Each search mode has been optimized with frequencies to offer the best performance. For example, Park and Field modes work The LEGEND offers Multi frequency, where a wide range in all single frequencies as well as Multi. On the other hand, the...

  • Page 13: Target Id

    01-60. the ''F'' discrimination pattern which stands for Ferrous Off. In the GoldField Mode, the default discrimination pattern is “G” (Ground The LEGEND's Target ID scale consists of 60 lines, each of which Off). represents 1 Target ID. In this pattern, each ID can be rejected or accepted by the user.
  • Page 14 Press once Press once Press The LEGEND will not generate an audio response for rejected targets. However, their IDs will be shown in the discrimination once menu. With the notch feature, you can accept (turn on) and reject (turn The cursor will appear where you last left it the next time you use off) multiple IDs.

  • Page 15: Ground Balance

    Allows you to manually modify the ground balance value. It is not preferred mostly because it takes time. However, it is the preferred The LEGEND is designed to work without ground balancing option in cases where a successful ground balance cannot be on most terrains.
  • Page 16 Ground Tracking Second Ground Balance Feature in Beast Mode The device tracks the changes in the ground during detection and Due to its configuration, Beast mode may cause the device to updates the ground balance automatically. Ground changes that give false signals to ground changes and mineralized/hot rocks. are not visible to the eye will affect the depth and discrimination This may cause discomfort to the user during detection.

  • Page 17: Pinpoint

    The FerroCheck™ is a unique feature of The LEGEND that you will not pinpoint mode is a non-motion mode. The device continues to give find on other detectors and it provides the user the a signal when the search coil is kept stationary over the target.

  • Page 18: Mineralization Indicator

    False Non-Ferrous Target MINERALIZATION INDICATOR When targets such as bottle caps -although they generate a non-ferrous Target ID- are checked by the FerroCheck™ feature, Ground Mineralization refers to the naturally occurring minerals they are identified as alloy which has ferrous (iron) content as in the ground that affect a metal detector’s performance.

  • Page 19: Settings

    ID. The Frequency Shift setting allows you to slightly shift the detector transmit frequency to eliminate unwanted noise. Frequency Shift can be done in 2 ways in The LEGEND: Manual and Automatic. Navigation Through Settings...

  • Page 20: Recovery Speed

    8. Default value 8, is the same as the previous versions of the LEGEND (v1.05, v1.07) with no Iron Filter setting. The LEGEND Recovery Speed setting can be adjusted between 1 and 10 with 1 being the slowest and 10 being the fastest.

  • Page 21: Stability In Beach Mode

    2.3 Stability in Beach Mode 2.4 Bottle Cap Rejection With this setting, you can minimize the ground noise Bottle caps are unwanted targets for detectorists and and false signals on the beach for a more comfortable they are mostly detected as non-ferrous targets by metal detecting experience.

  • Page 22: Deep Target Identification

    2.6 Deep Target Identification 2.7 Iron Rejection Feature in Beast Mode This feature allows non-ferrous deep targets, which are Beast mode, like the Gold Field mode, produces signals masked or detected as iron (ferrous), to be detected as for both non-ferrous and ferrous targets by changing non-ferrous.

  • Page 23: Audio Gain

    (+) and (–) buttons between 1-6. The default value is set to 3. Default IMPORTANT! Tone settings are not present in the Beast mode. value 3 is the same as the previous versions of the LEGEND (v1.05, Settings will be as shown below: v1.07) with no Audio Gain setting.
  • Page 24 For more information, please refer to Tone Frequency setting. 1-Tone Tone Break The Target ID scale is not divided into any zones, hence there is only 1 tone zone. The LEGEND generates the same tone volume and tone frequency for all targets. Zone-1 Zone-2 Zone-1...
  • Page 25 4. Press the plus (+) button to go into the Tone Volume setting. 4.2 Tone Volume 5. The Tone Volume of the selected zone will be displayed on screen. To the left of the ID scale, the selected zone will be displayed This setting allows you to adjust the volume level for each numerically.
  • Page 26 6. Using the right and left buttons, select the zone of which you 4.3 Tone Frequency want to change the Tone Frequency. 7. Once the zone is selected, you can change the Tone Frequency This setting allows you to adjust the Tone Frequency for using the plus (+) and minus (-) buttons.
  • Page 27 4. Press the plus (+) button to go into the setting. 4.4 Tone Break 5. The Tone Break point of the selected zone will be displayed on screen. To the left of the ID scale, the selected zone will be The Tone Break setting allows you to move the point that displayed numerically.
  • Page 28 The Threshold tone will blank to indicate detection of a rejected target. Threshold Tone Blanking Level Rejected Target In Goldfield mode When The LEGEND detects a rejected target the threshold tone continues in the background. Threshold Tone Blanking Level Rejected Target Default Threshold Levels...

  • Page 29: User Profile

    5. User Profile This setting is used to adjust the tone frequency of the The LEGEND offers 4 user profiles where you can save your background hum. It offers a very wide frequency range. settings and create 4 different user profiles.
  • Page 30 16 different sets of settings! Saving a User Profile The LEGEND tracks all changes made in the settings and even if you do not save them in a user profile, the device always starts with the last saved settings when you turn it off and on again.

  • Page 31: Backlight

    6. Backlight 7. Vibration This feature provides feedback to the user by producing a It enables you to adjust the display backlight level vibration effect when a target is detected. according to your personal preference. It can be used independently or together with the audio response. It ranges from 0 to 6 and A1 to A6 .

  • Page 32: Led Flashlight

    3. When the wireless connection is turned on, the Bluetooth® Headphones icon will start blinking in the info section at the top The LEGEND has a built in clock that is located in the right of the screen. upper corner of the screen.

  • Page 33: Time Tracking

    For land use only, you can also purchase our optional headphones 1 year, 2 months, 20 days and 5 hours. adapter should you want to use The LEGEND with your own wired 3. Press the Power & Settings Button once to go back to the main headphones.

  • Page 34: Technical Specifications

    Search Coil : The LEGEND WHP: LG30 30 cm x 23 cm (12" x 9") DD : The LEGEND Pro Pack: LG30 30 cm x 23 cm (12" x 9") DD & LG15 15 cm (6'') DD Display : Custom LCD...
