Summary of Contents for Roland CAMM-1 PNC-950

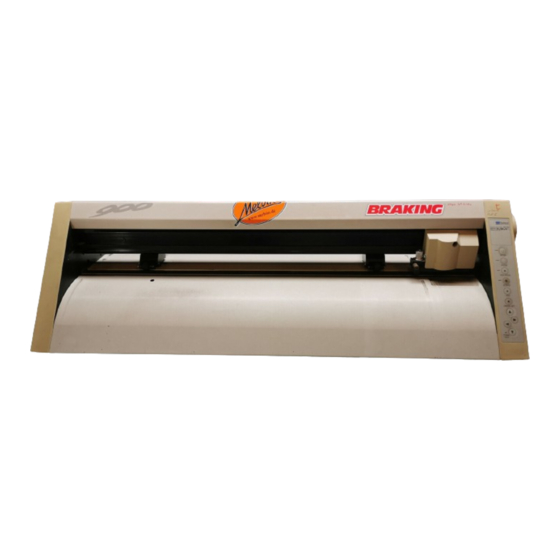

- Page 1 PNC-950 PNC-950 PNC-950 PNC-950 PNC-950 USER'S MANUAL ROLAND DG CORPORATION...
-
Page 2: For Canada
For the USA NOTICE FEDERAL COMMUNICATIONS COMMISSION Grounding Instructions RADIO FREQUENCY INTERFERENCE STATEMENT Do not modify the plug provided - if it will not fit the outlet, have the proper outlet installed by a qualified electrician. This equipment has been tested and found to comply with the Check with qualified electrician or service personnel if the limits for a Class B digital device, pursuant to Part 15 of the grounding instructions are not completely understood, or if in... -
Page 3: Typographic Conventions
YEARS OF MANUFAC- ROLAND DG CORPORATION ROLAND DG CORPORATION ROLAND DG CORPORATION ROLAND DG CORPORATION ROLAND DG CORPORATION TURE 1227 Ohkubo-cho, Hamamatsu-shi, Shizuoka-ken, JAPAN 432 1995 MODEL NAME : See the MODEL given on the rating plate. RELEVANT DIRECTIVE : EC MACHINERY DIRECTIVE (89/392/EEC) EC LOW VOLTAGE DIRECTIVE (73/23/EEC) Typographic Conventions This manual uses certain typographic symbols, outlined below. -
Page 4: To Ensure Safe Use
To Ensure Safe Use If you find some abnormality, immediately turn off the power switch and check the user's manual to find out what is wrong. WARNING CAUTION CAUTION Never disassemble or Handle the power cord When pulling the power modify this product. -
Page 5: About The Labels Affixed To The Unit
About the Labels Affixed to the Unit These labels are affixed to the body of this product. The following figure describes the location and content of these messages. Do not allow the hands near the platen while in operation. Rating plate... -
Page 6: To Ensure Correct Use
To Ensure Correct Use NOTICE NOTICE NOTICE This product is a precision instru- Do not install in an area subject to Do not connect to an AC outlet that ment and must be handled with care. dust or high humidity or with poor supplies other than the specified ventilation. -
Page 7: Table Of Contents
Thank you very much for purchasing the CAMM-1 PNC-950. Since we wish you many years of productive use of your PNC-950, we ask you to read this manual and make yourself familiar with the PNC-950’s operational procedures and requirements before running it. -
Page 8: Precautions In Use
1 PRECAUTIONS IN USE • Ensure that the power supply voltage in within +/-10% of the machine's rated voltage. • Always be careful whenever the unit is in operation, so as not to risk getting fingers or hair caught in its mechanisms. •... -
Page 9: Part Names And Functions
3 PART NAMES AND FUNCTIONS • Front View Tool Carriage The tool carriage is where the blade holder (or pen) is mounted. Movable Pinch Roller The tool carriage performs the (Left) cutting by moving the tool left/ This presses the media against right or up/down. -
Page 10: Operation Panel
PAUSE key to temporarily stop a cutting operation in progress thereby deletes the data that has been sent to the PNC-950 from the computer. This key must be pressed in order to cut. SETUP LED PAUSE Key This lights up when the SETUP key is pressed. -
Page 11: Basic Operation
• When Moving the PNC-950... Do not try to pick up or move the PNC-950 by grasping the top area of the unit -- be sure to use both hands to grip the PNC-950 securely on the left and right sides. -
Page 12: Dip Switch Settings
(for cutting smooth circles and arcs). When the PNC-950 is connected to the computer through the serial port, be sure that the communication parameters for SW-1 to SW-6 are set correctly, matching the computer port settings. -
Page 13: Installing The Blade
Adjusting the Cutter Blade The amount of cutter blade extension can be adjusted by rotating the cap. Turn the cap clockwise to retract the blade or counterclock- wise to expose it. (Each scale line corresponds to 0.1 mm (about 0.004"). One full turn moves the blade 0.5 mm (about 0.02").) Adjust blade holder before mounting on the tool carriage. -
Page 14: Loading The Sheet - Setup Key
If DIP switch SW-9 (loaded sheet type) has not been set, then turn OFF the power to the PNC-950 and set the DIP switch to match the specific type of sheet loaded. (Set SW-9 to ON when using a single sheet or to OFF when using rolled sheet.) After making the setting, turn the PNC-950 back ON. - Page 15 (2) Either cut the sheet to the required length, or set the sheet base included with the PNC-950 at the back of the unit, place a rolled sheet on the sheet base. It is important to pull out the amount of sheet required for the intended design.
- Page 16 - Ideally, the PNC-950 should be set up as shown in figure A or B below. If you are using a different setup configuration (like in figures C, D, and E), then it will not be possible to feed the sheet correctly.
-
Page 17: Removing The Sheet
(2) Pass the end of the sheet between the pinch rollers and the grit rollers so that it extends from the front of the unit. If you are using a rolled sheet, set the sheet base included with the PNC-950 at the back of the unit, place a rolled sheet on the sheet base, and pull out slack from the roll. -
Page 18: About The Cutting Area
, ORIGIN SET Keys The PNC-950 allows the origin point (0,0) to be set at any position in the cutting area. When loading a rolled sheet set DIP switch SW-9 to OFF. Once the sheet is loaded and the SETUP key has been pressed, the origin (0,0) is automatically set to a position near the left movable pinch roller on the left-hand side. -
Page 19: Cutting Test To Check Blade Force - , , , , And Test Keys
4-6 Cutting Test to Check Blade Force — , and TEST Keys Before carrying out actual cutting, you may wish to perform a "cutting test" to check whether the unit produces the cutout satisfactorily. This "cutting test" allows you to determine whether the settings you have for the blade force are appropriate. See below for a detailed explanation of blade force. -
Page 20: Downloading Cutting Data
950 are connected by. • Pausing Cutting Operations — PAUSE Key, PAUSE LED, and SETUP Key If you want to stop the PNC-950 momentarily while it is performing cutting, follow the procedure described below. Procedure (1) Press the PAUSE key. -
Page 21: Continuing Cutting
Continuing Cutting on the Same Sheet Refer to "4-5 Setting the Origin Point" on page 12 to set the origin for the unused area on the sheet. Then send cutting data from the computer to the PNC-950. • Cutting a Thick Sheet SW-8, one of the DIP switches located on the right side of the unit, is normally set to OFF (light). -
Page 22: When Cutting Is Completed
* A computer is not required in order to carry out the self-test. (1) Refer to "4-3 Installing the Blade" on page 7 and install a blade holder (or pen) in the PNC-950's tool carriage. (2) Set the pen force to the smallest possible value (the pen force slider should be at the furthest point to the left). If after the first test you feel that the sheet was not cutout clean enough, you can try gradually increasing the pen force until you have the optimum level. -
Page 23: Settings For Each Function
After holding down the SETUP key for about one second to make the SETUP LED go out, press the ROTATE key. The ROTATE LED is extinguished, and the origin returns to the point at bottom left. The ROTATE function is also canceled when the power to the PNC-950 is turned off. -
Page 24: Plotting On Paper Media - Pen Mode Key And Pen Mode Led
• Plotting on Paper Media — PEN MODE Key and PEN MODE LED The PNC-950 is also capable of plotting on paper media using plotter pens made by this company. You should use only thick water-based fiber-tipped pens. Since the design of the PNC-950 differs inherently from that of dedicated plotters, it does not accommodate functions such as high-speed plotting, automatic pen changes, pen dry protection, or the like. -
Page 25: About The Blade
6 ABOUT THE BLADE If the blade becomes dull When the blade starts to lose its sharpness, try gradually increasing the blade force (refer to page 13, "4-6 Cutting Test to Check Blade Force"). Increasing the blade force temporarily allows the blade to perform better. However, once the blade is dull, it is time to replace it. -
Page 26: What To Do If
• Are the settings for the driver software correct? If you are using driver software for output on the PNC-950, then make the settings for the correct driver in the com- puter. Select the PNC-950 as the output device. If the PNC-950 is not available as a selection, you may select either... -
Page 27: The Sheet Is Not Cut Properly
• Is the PEN MODE LED lit up? If the PEN MODE key has been pressed and the PEN MODE LED has lit up, it means that the PNC-950 has been set up for plotting on paper, which is not suitable for cutting. -
Page 28: List Of Camm-Gl Iii Instructions
8 LIST OF CAMM-GL III INSTRUCTIONS *1: -(2 -1) — +(2 *2: 0 — +(2 *3: -(2 -1)° — +(2 -1)° *4: 21 — 3A , 3C — 7E (16) (16) (16) (16) • mode1 Instruction Format Meaning of Parameter [Parameter Range (Default)] Explanation None Move to User Origin... -
Page 29: Instructions In Mode1 And Mode2
None Output Commanded Position None Output Error None Output Factor When the PNC-950 receives an OF instruction from the computer, "40,40 [TERM]" is output. None Output Hard-Clip Limits None Output Identification When the PNC-950 receives an OI instruction from the computer, "950 [TERM]"... -
Page 30: List Of Device Control Instructions
Device control instructions are used to determine the communication sequence between the PNC-950 and computer through RS-232C interface and update the computer the current PNC-950 state. Among them, some device control instructions set the output specifications of CAMM-GL III instructions. - Page 31 PNC-950 and send less data than the remaining buffer capacity. ESC .L [ESC].L None PNC-950 outputs the size of the I/O buffer to Output I/O buffer the computer when receiving this instruction. size It usuallyoutputs 1024 (bytes). Abort Instructions ESC .J...
-
Page 32: Character Sets
10 CHARACTER SETS Automatic backspace... -
Page 33: List Of Options
Fiber tip pen (0.6 mm) x 2 in 1 color XR-2P1C-WW ~ XR-2P8C-WW XR-2P1D-WW ~ XR-2P8D-WW Special stand for the PNC-950 PNS-95 Special stand for the PNC-950 -- 1 set Sheet base (for roll sheets) RSB-30 Sheet base (1 piece) -
Page 34: Specifications Of Pnc-950
12 SPECIFICATIONS OF PNC-950 P N C - 9 5 0 Mechanism Media-movement method Maximum cutting area Width: 584 mm (22-15/16") Length: 24,998 mm (984-1/8") Acceptable sheet widths 50 mm—610 mm (1-15/16"—24") Acceptable paper widths 50 mm—610 mm (1-15/16"—24") Acceptable paper types... -
Page 35: Interface Specifications
• Interface Specifications [Parallel] Standard In compliance with the specifications of Centronics Input signals STROBE (1 BIT), DATA (8 BIT) Output signals BUSY (1 BIT), ACK (1 BIT) Level of input/output signals TTL level Transmission method Asynchronous [ S e r i a l ] Standard RS-232C specifications Transmission method... - Page 36 C3070395BE V5-1...
