Monitoring the V7122 Gateway Trunks and B-channels

To monitor the status of the trunks and B-channels:
Open the Trunk & Channel Status screen by clicking the Home icon
Channel Status screen is displayed.

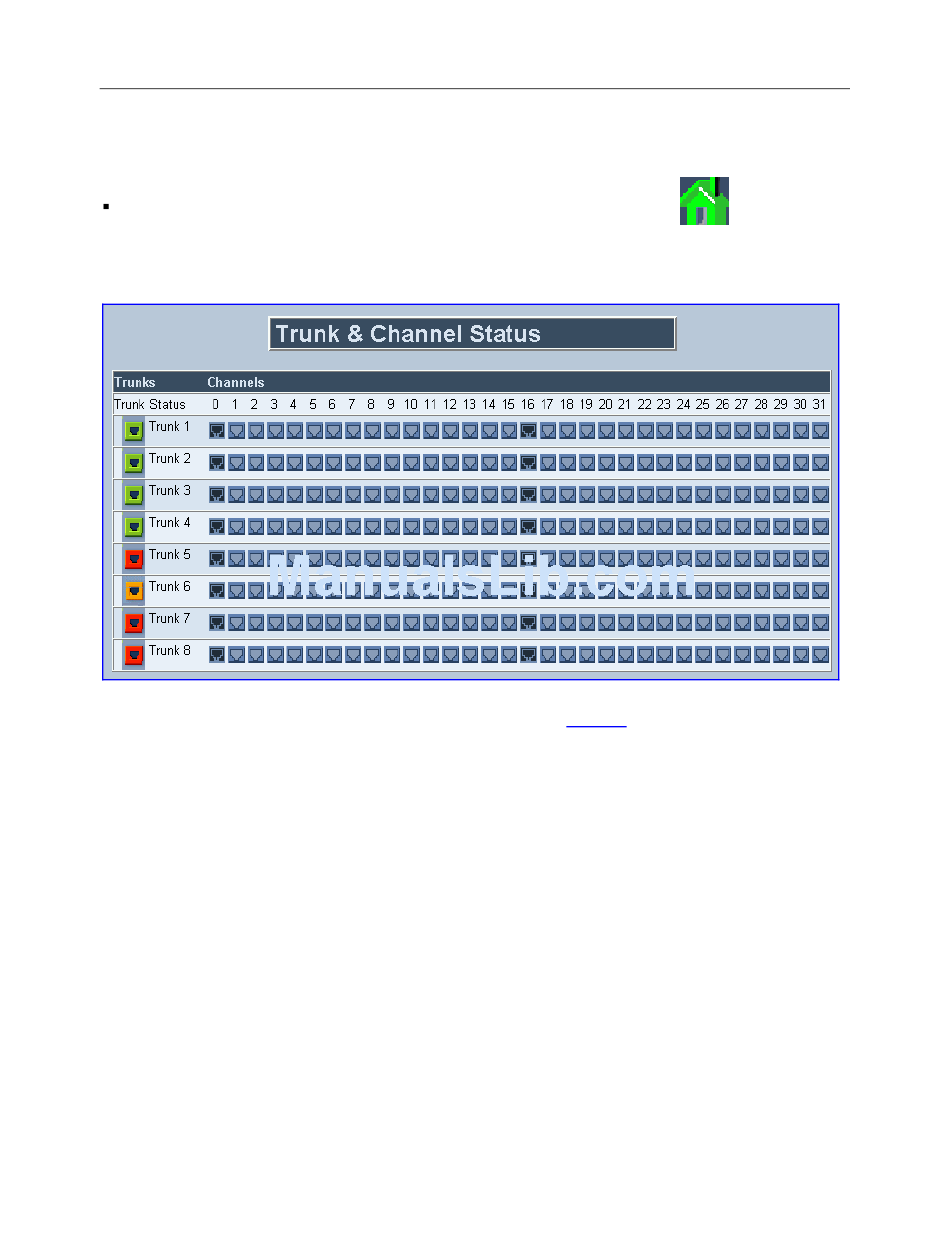

Trunk & Channel Status Screen
Figure 18
Note that the color coding of the Trunk Status is shown in
To monitor the details of a B-channel, follow these 2 steps:
In the Trunk & Channel Status screen, click the numbered icon of the specific B-channel
1
whose detailed status you want to view; the B-channel-specific Channel Status screen
appears.
Click the submenu links to view a specific B-channel's parameter settings.
2
