Mounting The V7122 Gateway; Mounting The V7122 Gateway On A Desktop; Installing The V7122 Gateway In A 19-Inch Rack - 3Com V7122 Installation Manual

Two brackets and four bracket-to-device screws for 19-inch rack installation option.
Four anti-slide bumpers for desktop installation.
This Installation Guide.

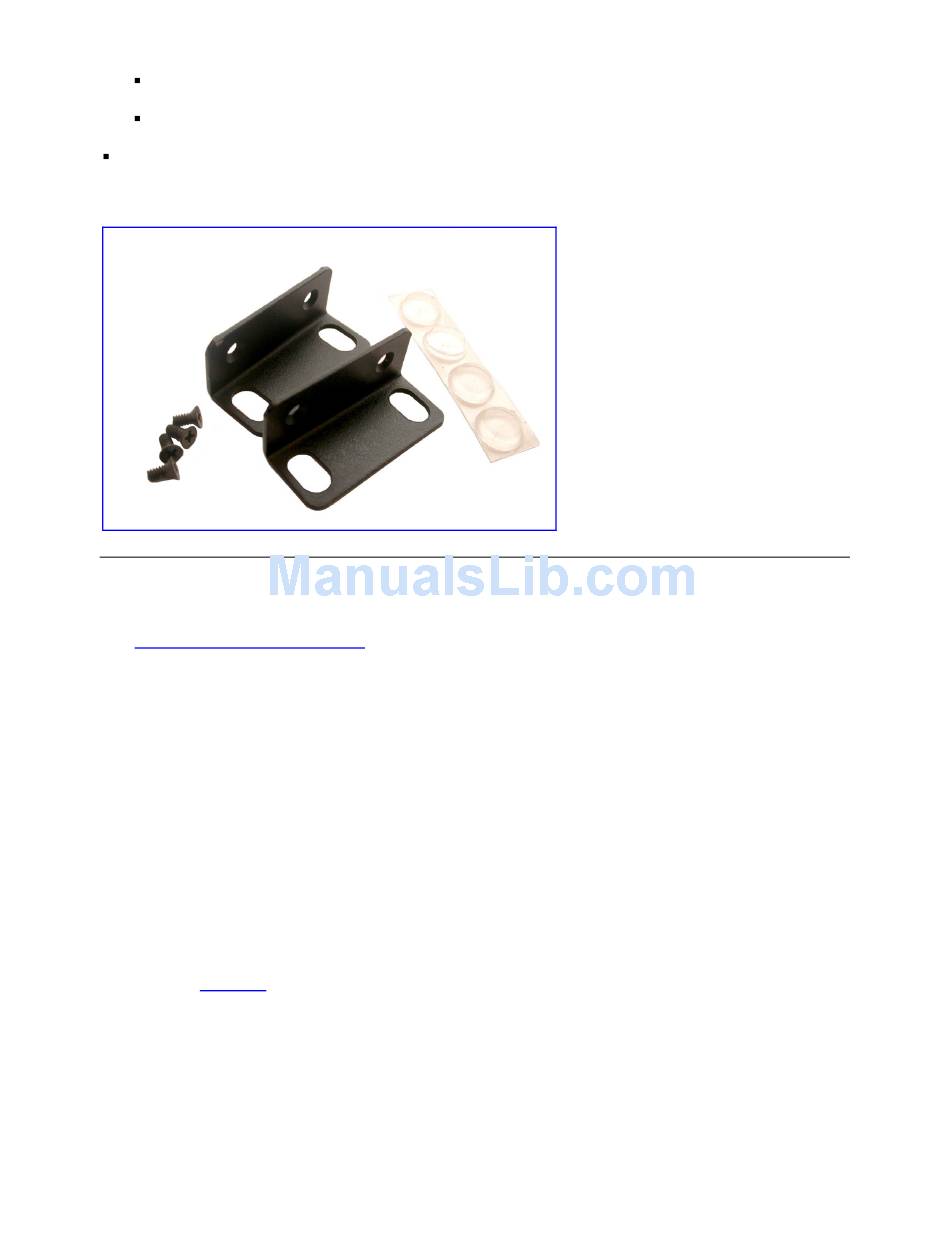

19-inch Rack & Desktop Accessories
Figure 2

Mounting the V7122 Gateway

The V7122 gateway can be mounted on a desktop, or installed in a standard 19-inch rack.
See Cabling the V7122 Gateway

Mounting the V7122 Gateway on a Desktop

No brackets are required. Optionally, attach the four (supplied) anti-slide bumpers to the
base of the V7122 gateway and place it on the desktop in the position you require.

Installing the V7122 Gateway in a 19-inch Rack

You can install the device in a standard 19-inch rack either by placing the device on a shelf
preinstalled in the rack (preferred method), or by attaching the device directly to the racks
frame using integral brackets.
Before rack mounting the chassis, attach the two brackets (supplied) to the front sides of the
device (see Figure 3).
V7122 Digital Gateway Installation Guide
for cabling the V7122 gateway.
13
