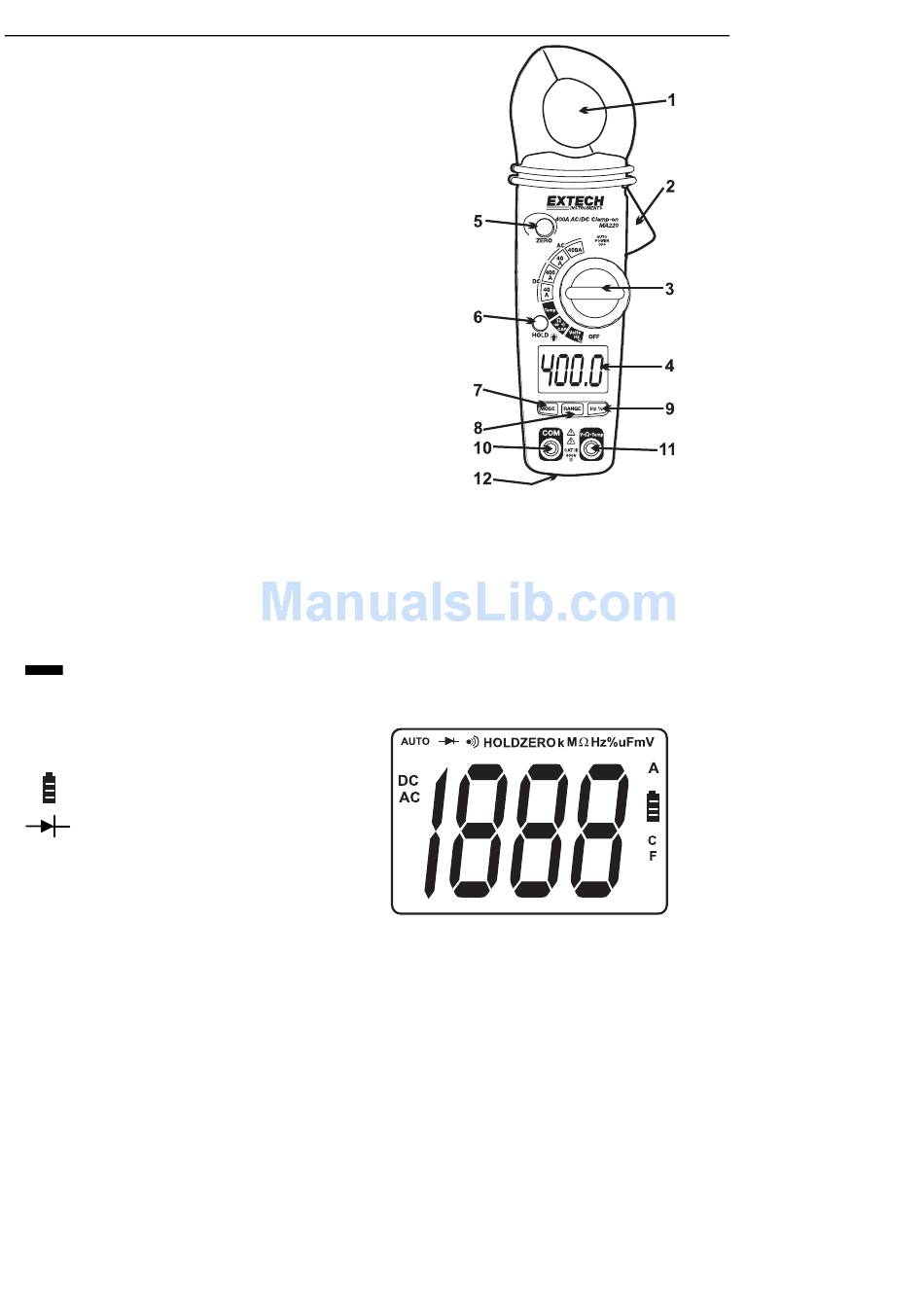

Meter Description

1. Conductor jaws
2. Jaw opening trigger
3. Function select switch
4. LCD Display
5. ZERO button
6. Data Hold and Backlight Button
7. Mode select button
8. Range select button
9. Hz/%/Duty Cycle button
10. COM input jack
11. V/Ω/Temp jack
12. Battery cover (rear)
AC AC (alternating current)
DC DC (direct currrent)
Minus sign
AUTO AutoRange mode
ZERO ZERO mode
Audible Continuity
•)))
HOLD Data Hold mode
Low Battery icon
Diode test mode
m milli
V Volts
A Amps
K kilo
M Mega
Ω Ohms
°F Degrees Fahrenheit
°C Degrees Centigrade
