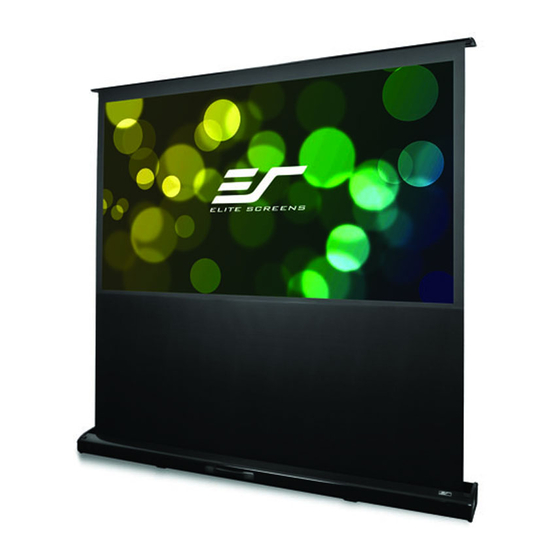

Electric floor rising projection screen

Advertisement

Kestrel Home Series

IMPORTANT SAFETY NOTES

1.
Please r ead t his m anual bef or e use and f ollo w t he pr ocedur e s specif ied :
a. Please retain this manual for future reference.
b. To avoid any damages to the screen, do not use any accessories or parts
not recommended by Elite Screens.
c. Handle the device carefully during transportation.
d. Do not set up screen on uneven surfaces.
e. To prevent electrical shock or fire; never over load the power cord, and
avoid contacting the motorized components with liquids or foreign objects.
2.
The tubular motor equipped in the Kestrel Home series features an overheat
protection sensor. If the screen is consecutively brought up and down between 3-4
minutes, the motor will automatically shut-off to prevent the motor from sustaining
damage through overheating. If the automatic shutoff is activated, please allow 30
minutes cool down before resuming operation.
3. The Kestrel Home Series is equipped with a strong tension cross-spring system.
Please do not attempt any unnecessary repairs. It is at your own risk to open the inside
cover or dismantle/work on the screen. Individual modifications to this product are
prohibited and will void the user's warranty.
4.
When using the screen, please
a. Avoid strong wind, rain, or electrical storms.
b. No direct sunshine (UV Radiation) or moisture.
c. Keep away from fire sources and high temperature devices.
d. Turn off t he power before moving this product.
Keep away from children
Rev100312-JA
Electric Floor Rising Projection Screen
USER'S GUIDE
www.elitescreens.com/kestrelhome
Keep hands clear from the closing panels
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kestrel Home Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Elite Screens Kestrel Home Series

  • Page 1 If the automatic shutoff is activated, please allow 30 minutes cool down before resuming operation. 3. The Kestrel Home Series is equipped with a strong tension cross-spring system. Please do not attempt any unnecessary repairs. It is at your own risk to open the inside cover or dismantle/work on the screen.
  • Page 2 NOTE:  This equipment has been tested and found to comply with the limit s for a Class B digital device pursuant to Part 15 of the FCC Guidelines.  The products are designed to provide reasonable protection against harmful interference in a residential/commercial installation and end user application and may radiate radio frequency energy.
  • Page 3 SCREEN OPERATION Setup: Remove the controls and wiring from the compartment on the left side of the Kestrel Home Floor Electric Screen as shown in the pictures below. Connect the screen to the power supply and switch the power bu tton on. Now it is ready for use.
  • Page 4 2. I R “Eye” Receiver: The IR “eye” receiver cable provides an extension of the IR sensor should the IR receiver window on the Kestrel’s screen is concealed. 3. 3 - w a y wall s w i t c h box: The 3-way wall switch box allows manual control to operate the screen’s UP/STOP/DOWN commands.
