How to replace a Kestrel Series circuit board
Rev111010-ESC
www.elitescreens.com

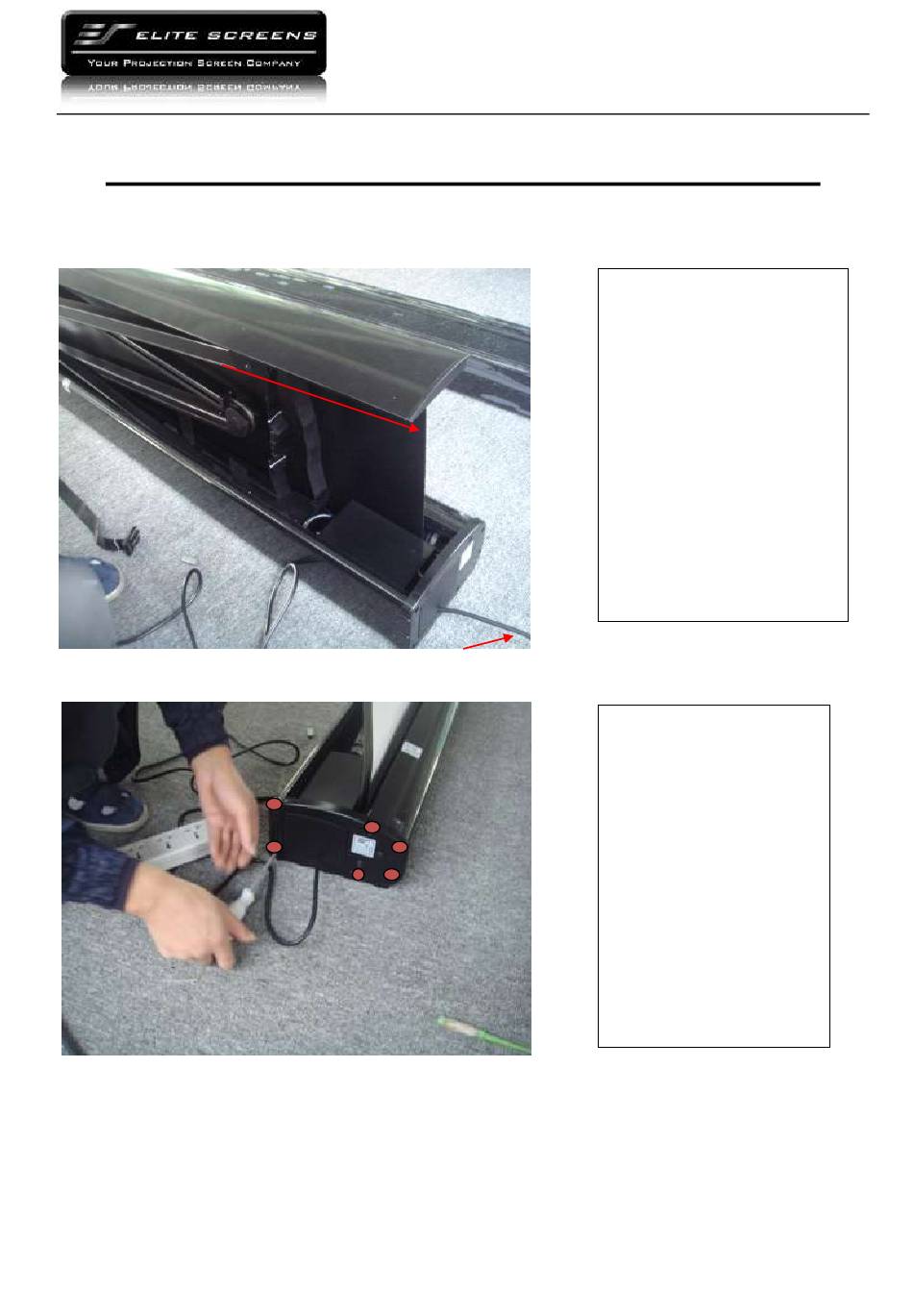

1. Raise the screen about 2 feet,
and then unplug the power cord.
VERY IMPORTANT: Use rope to
tie the screen from both ends
after raising it. When removing
the end cap, the screen will
spring open and can cause
serious
injury
and
permanently damage the screen.
2. REMOVE the 6 screws as
shown on the picture marked
in red.
can
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Elite Screens Kestrel Series
Summary of Contents for Elite Screens Kestrel Series
- Page 1 How to replace a Kestrel Series circuit board 1. Raise the screen about 2 feet, and then unplug the power cord. VERY IMPORTANT: Use rope to tie the screen from both ends after raising it. When removing the end cap, the screen will...
- Page 2 3. Carefully remove the end cap cover to avoid pulling out the motor. 4. After removing the end cap cover, you will notice a metal directly behind screen’s material. This metal box houses the circuit board. Loosen remove screws that hold the cover of this metal box.
- Page 3 6. For easier access of the circuit board housing, push the power cord underneath the screen so that it is out of the way. 7. To open the circuit board box cover, push in on the tab as shown in the picture and pull the box open with both hands simultaneously.
- Page 4 9. Put the circuit box cover back in to place. 10. Place the circuit box back in to place. 11. Use the included screw to guide the metal cover back in to place. Rev111010-ESC www.elitescreens.com...
- Page 5 12. Put metal box cover back in to place and tighten with the screw and nut. 13. For easier access, place a small platform (like a piece of Styrofoam) under the screen so that it is elevated about a few inches. Check to be sure that the limit switches are facing the right direction as shown in this picture and that...
- Page 6 15. Fully extend the power cord out of the casing before completely sealing the end cap back in to place. 16. Put the end cap back in to place and tighten the end cap with the provided screws as shown in the picture. 17.
- Page 7 18. If in case the end cap does not seal properly, check to be sure that the limit switch cap is fully inserted in to the roller. Rev111010-ESC www.elitescreens.com...
