Elite Screens KESTREL Series White Paper

PRODUCT WHITE PAPER
Section 1: Screen Design
1.1 What is it for?

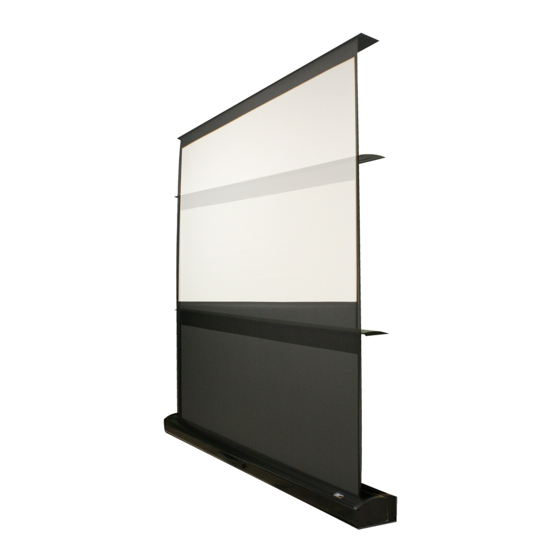

The Kestrel electric floor-rising screen is designed for environments where wall/ceiling
installations are impractical. It has a stylish black gloss finish and comes fully assembled.
1.2 How does it work?
It uses a cross-rising apparatus driven by a tubular motor with superior weight tolerance and
variable height settings. It uses a GREENGUARD certified fiberglass-backed matte white
(MaxWhite® FG) projection material with RF remote control package.

Section 2: Product Features

2.1 Characteristics
Screen Material
MaxWhite® Fiberglass backed material provides uniform flatness on a flat projected image
•
180° wide viewing angle
•
Active 3D, 4K Ultra HD, and HDR Ready
•
Not compatible with Ultra/Short-throw Projectors
•
Standard 4-side black masking borders
•
Available in the following diagonal sizes:
•
72", 84", 92" and 100" in 4:3 format
•
72", 84", 92" and 100" in 16:9 format
•
85", 92" and 96" in 2.35:1 format
•
Design and Control System
Rises and lowers by our motorized precision "scissor-backed" cross spring risers
•
Built-in Infrared and Radio Frequency receivers
•
Standard Radio Frequency (RF) remote control
•
Wireless 5-12 volt (model ZSP-TR02) projector trigger
•
Built-in 5-12 volt trigger port (RJ-45) enables Drop/Rise operation to synchronize with the
•
projector's power cycle
Optional Infrared (IR) remote control and Low-voltage detachable 3-way wall switch for in-line
•
control - sold separately
Optional in-wall switch - sold separately
•
Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India | Elite Screens China Ltd.
Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia
http://www.elitescreens.com
KESTREL SERIES
1
