- Page 1 Kestrel Stage Series Electric Floor Rising Projection Screen with Travel Case User’s Guide Rev080515 www.elitescreens.com...

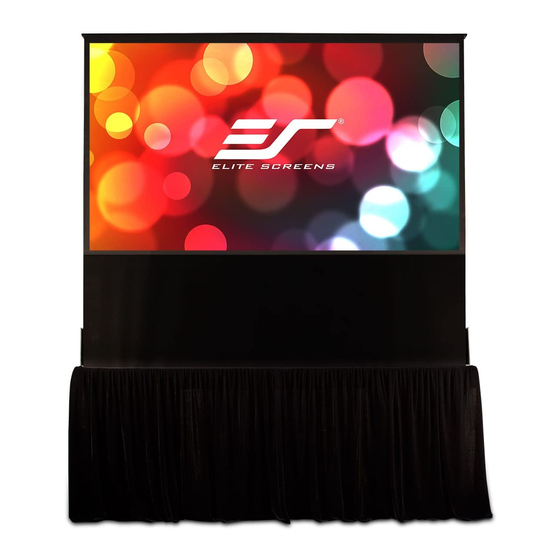

- Page 2 Product description The Kestrel Stage Series is a portable electric floor rising front projection screen that is ideal for event applications used in Churches, hotels, schools, or other like venues. It includes two travel cases (one for the screen and one split-two-sided storage cart). Complete the set up by attaching the complimentary drape kit to give your presentation the finishing touch.
- Page 3 2. Insert the shorter side of the double sided bolts (Item 4) into the bottom of the motorized screen’s carry case as shown in the figure below. There should be two bolts (item 4) inserted into each bottom side of the travel case of the motorized screen’s main case. Be careful to not over-tighten the bolt to avoid damaging the threading in the screen’s carry case.
- Page 4 5. Insert the ring bolt into the indicated hole on the back of the main travel case to help avoid damage to the cover hinges. 6. Connect the power cable and control box (item3) Connect together 7. Lock / unlock the wheel: Push latch down to lock Rev080515 www.elitescreens.com...
- Page 5 2. Once the screen has power, you’ll be able to control it using any of the 4 methods described below. 4 Ways to Control your Kestrel Stage Series 1) IR remote control (Item A) and IR “Eye” Receiver (Item E) : The IR remote control (fig.1) requires line-of-sight to the IR sensor.
- Page 6 The trigger feature will not work without an output cable from the projector, but it can be tested by connecting the Red (+) and Green (-) cable to a 9-volt battery. Fig.4 For local Elite Screens contact or Technical Support, please visit www.elitescreens.com Rev080515 www.elitescreens.com...
