Table of Contents Introduction ..........................1 Features ..........................1 Package Contents ......................1 System Requirements ......................2 Console Side ........................2 Computer Side ........................2 Installation ..........................3 PC BIOS Notice ........................3 Computer Connection .....................4 Operation ...........................4 Front Panel ...........................4 Auto Scan ..........................4 Scan Time ..........................5 Rack Mount Kit (Optional) ....................7 Specifications ..........................8 Troubleshooting ........................9 Technical Support ........................11... -
Page 4: Introduction

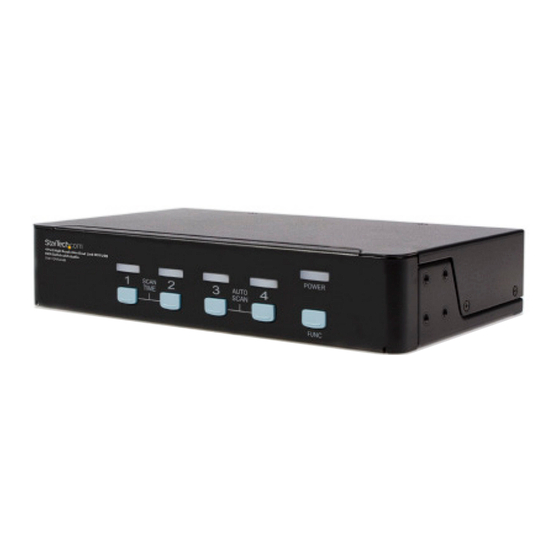

Introduction Thank you for purchasing a StarTech.com 4 Port Dual Link DVI USB KVM Switch. Offering convenient sharing of up to four directly connected computers as well as USB peripheral switching between computers, SV431DVIUAHR connects to a DVI capable display to create the ideal switching solution for a broad range of multimedia environments, including SOHO (Small Office Home Office), HTPC applications etc. -
Page 5: System Requirements
One USB A-B cable with Type-A and Type-B plug for USB devices Please Note: In place of using individual cables, StarTech.com offers a 6 ft. 4-in-1 USB, DVI, Audio, and Microphone KVM Switch Cable (USBDVI4N1A6) that can fulfill the functions of both cables in one convenient unit. -
Page 6: Installation
Installation PC BIOS Notice The following BIOS setup changes may be necessary for PC users. 1. In STANDARD CMOS, set HALT ON ERROR to ALL BUT KEYBOARD 2. In PNP AND PCI SETUP, set PNP OS INSTALLED to YES and set USB IRQ to ENABLED. Please Note: The SV431DVIUAHR provides USB keyboard and mouse switching from one computer to the other. -
Page 7: Computer Connection
Computer Connection Use a male-to-male cable to connect from a computer’s DVI port to SV431DVIUAHR’s DVI port of PC side, as shown below. Use a USB A-B Cable to connect from the SV431DVIUAHR’s USB port (B connector, square connector) to the USB port on the corresponding computer (A connector, flat connector), as shown below. -
Page 8: Scan Time
Scan Time Scan time sets the interval at which connected computers will be scanned. The Scan Time options are 3, 8, 15 and 30 seconds. Please Note: Scan Time is automatically set to 3 seconds (default) when the KVM switch loses power. - Page 9 To select the audio signal from any port of 4 connected computers, the user can press “FUNC” button in combination with the other push buttons. 1. Press and hold the “FUNC” button. Either all 4 green LEDs will illuminate or just one green LED.
-
Page 10: Rack Mount Kit (Optional)
Rack Mount Kit (Optional) The figure below shows how to attach optional mounting brackets and cable support (SV431RACK) to the SV431DVIUAHR for installation in a standard 19-inch rack cabinet. To the rack cabinet back post To the rack USB or monitor cables to cabinet back the switch post... -
Page 11: Specifications
Specifications Number of Ports Computer Connectors 1 x USB type B female 1 x 29-pin DVI female 2 x 3.5mm Audio female Console Connectors 4 x USB type A female 1 x 29-pin DVI female 2 x 3.5mm Audio female LEDs 4 x Port Selection/Link 1 x Power... -
Page 12: Troubleshooting
Troubleshooting Ensure that all cables are properly connected. Label the cable for each computer to avoid confusion when connected to the SV431DVIUAHR. Symptom Causes Solution The keyboard or mouse In Auto Scan, keyboard Press any front button to does not work and mouse are select a computer, then inoperable. - Page 13 Symptom Causes Solution Computer hangs Device initialization Wait at least 5 up while switching takes too much time. seconds before computers. computer switching to ensure proper USB communication. Turn off the device driver (not keyboard or mouse) before computer switching. Auto Scan does not All PCs are off or only Turn computers on.
-
Page 14: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 15 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
