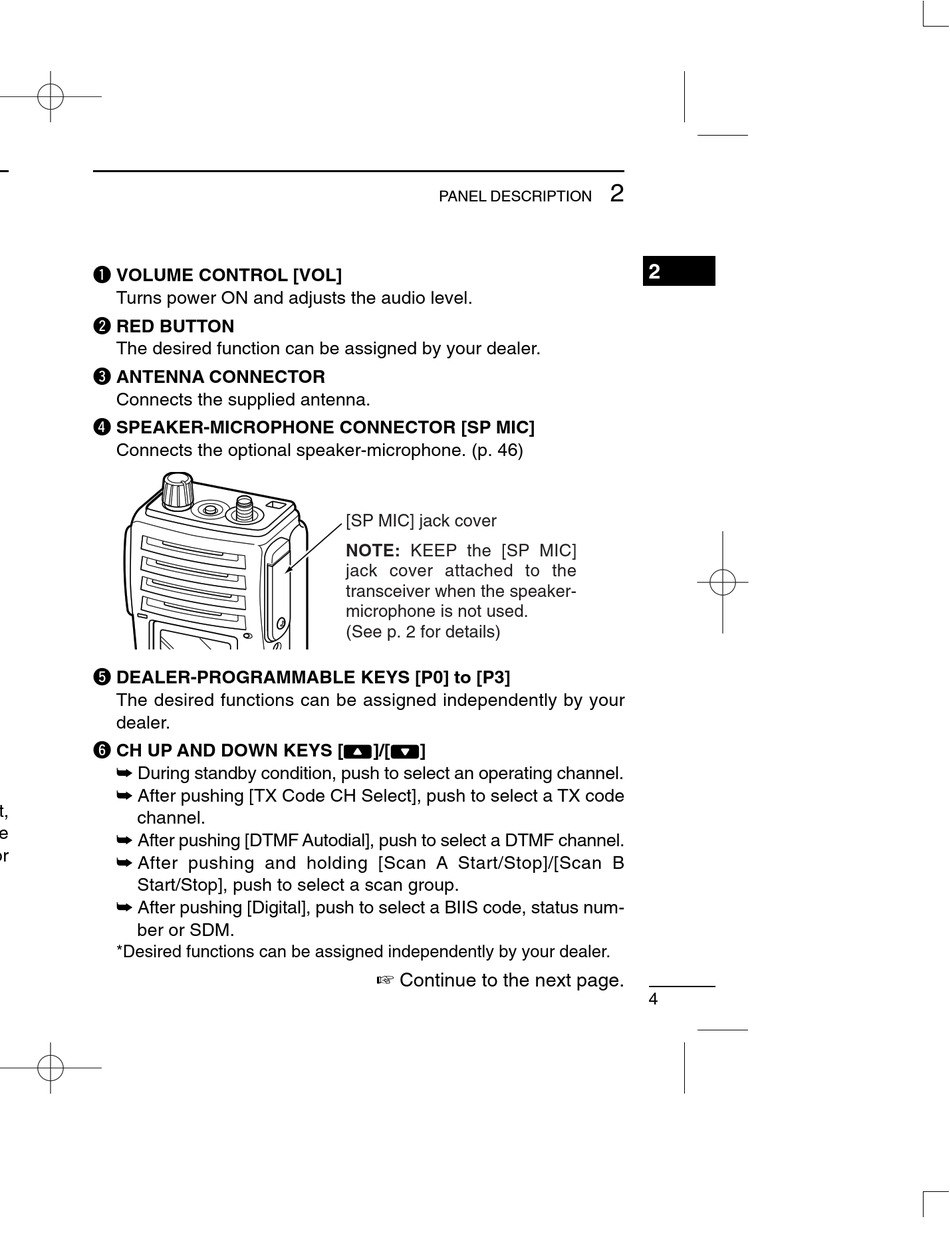

PANEL DESCRIPTION

I Front, top and side panels
w
q
i
u
y
NOTE: If the speaker netting (for dust proofing) becomes wet,
dry it with a hair drier (cool mode) etc. before operating the
transceiver. Otherwise the audio may be difficult to hear for
loss of the sound pressure.
3
e
r
Speaker
(See the following
NOTE.)
Microphone

Function display

(p. 6)
t
q VOLUME CONTROL [VOL]
Turns power ON and adjusts the audio level.
w RED BUTTON
The desired function can be assigned by your dealer.
e ANTENNA CONNECTOR
Connects the supplied antenna.
r SPEAKER-MICROPHONE CONNECTOR [SP MIC]
Connects the optional speaker-microphone. (p. 46)
t DEALER-PROGRAMMABLE KEYS [P0] to [P3]
The desired functions can be assigned independently by your
dealer.
y CH UP AND DOWN KEYS [
➥ During standby condition, push to select an operating channel.
➥ After pushing [TX Code CH Select], push to select a TX code
channel.
➥ After pushing [DTMF Autodial], push to select a DTMF channel.
➥ After pushing and holding [Scan A Start/Stop]/[Scan B
Start/Stop], push to select a scan group.
➥ After pushing [Digital], push to select a BIIS code, status num-
ber or SDM.
*Desired functions can be assigned independently by your dealer.
PANEL DESCRIPTION
[SP MIC] jack cover
NOTE: KEEP the [SP MIC]
jack cover attached to the
transceiver when the speaker-
microphone is not used.
(See p. 2 for details)
]/[ ]
Continue to the next page.
