ACCESSORIES

I Accessory attachments
D Flexible antenna
Connect the supplied flexible antenna
to the antenna connector.
CAUTION!
• NEVER HOLD by the antenna
when carrying the transceiver.
• Transmitting without an antenna
may damage the transceiver.
ï Battery pack
To attach the battery pack:
Slide the battery pack on the back of the transceiver in the direc-
tion of the arrow (q), then lock it with the battery release button.
• Slide the battery pack until the battery release button makes a 'click'
sound.
To release the battery pack:
Push the battery release button in the direction of the arrow (w) as
shown below. The battery pack is then released.
NEVER release or at-
tach the battery pack
when the transceiver
is wet or soiled. This
may result water or
dust getting into the
transceiver/battery
pack and may result
in the transceiver
being damaged.
1
Battery pack
q
w
Battery release button

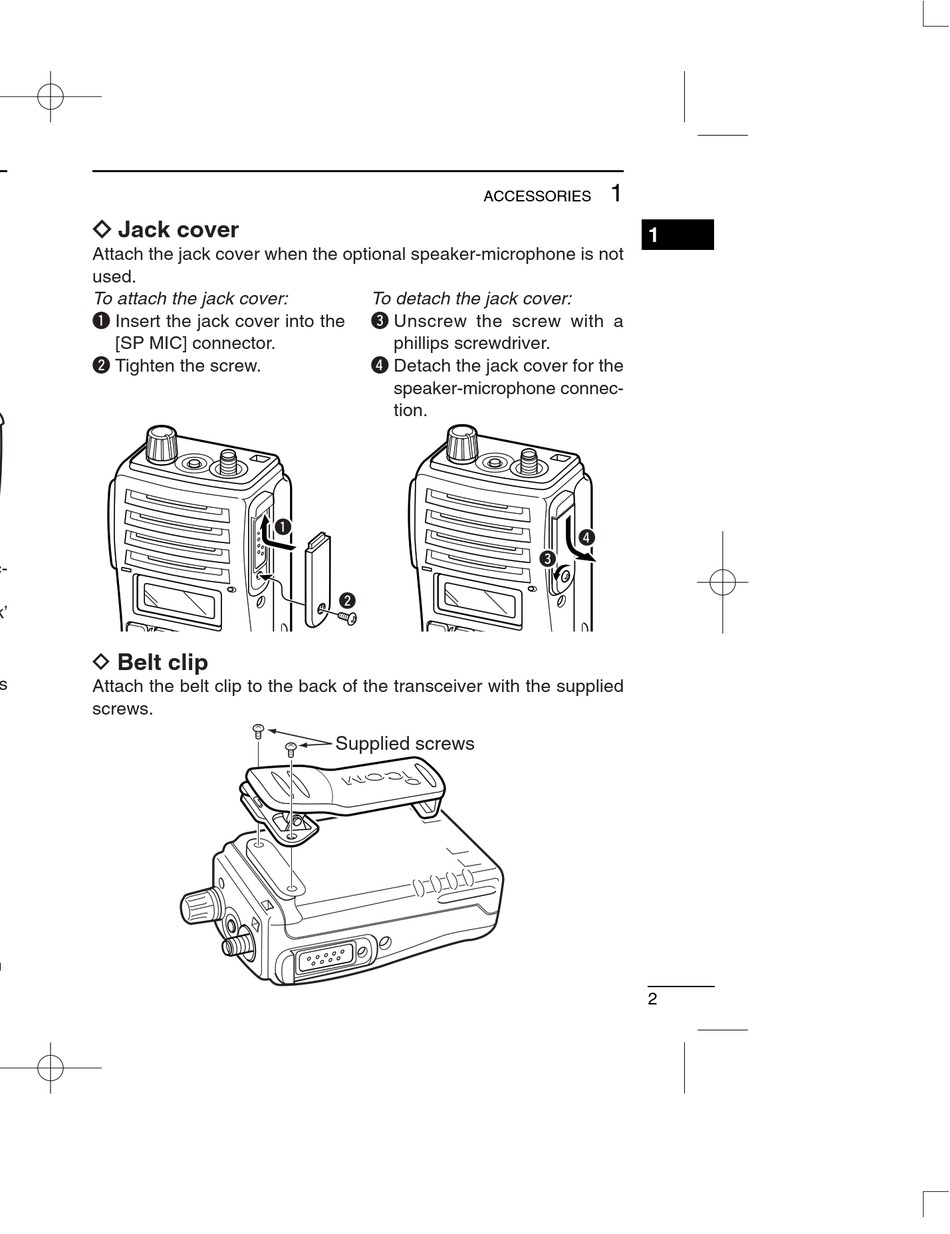

ï Jack cover
Attach the jack cover when the optional speaker-microphone is not
used.
To attach the jack cover:
q Insert the jack cover into the
[SP MIC] connector.
w Tighten the screw.
q
D Belt clip
Attach the belt clip to the back of the transceiver with the supplied
screws.
ACCESSORIES
To detach the jack cover:
e Unscrew the screw with a
phillips screwdriver.
r Detach the jack cover for the
speaker-microphone connec-
tion.
e
w
Supplied screws
1
1
r
2
