Summary of Contents for El-Björn A 700VTI

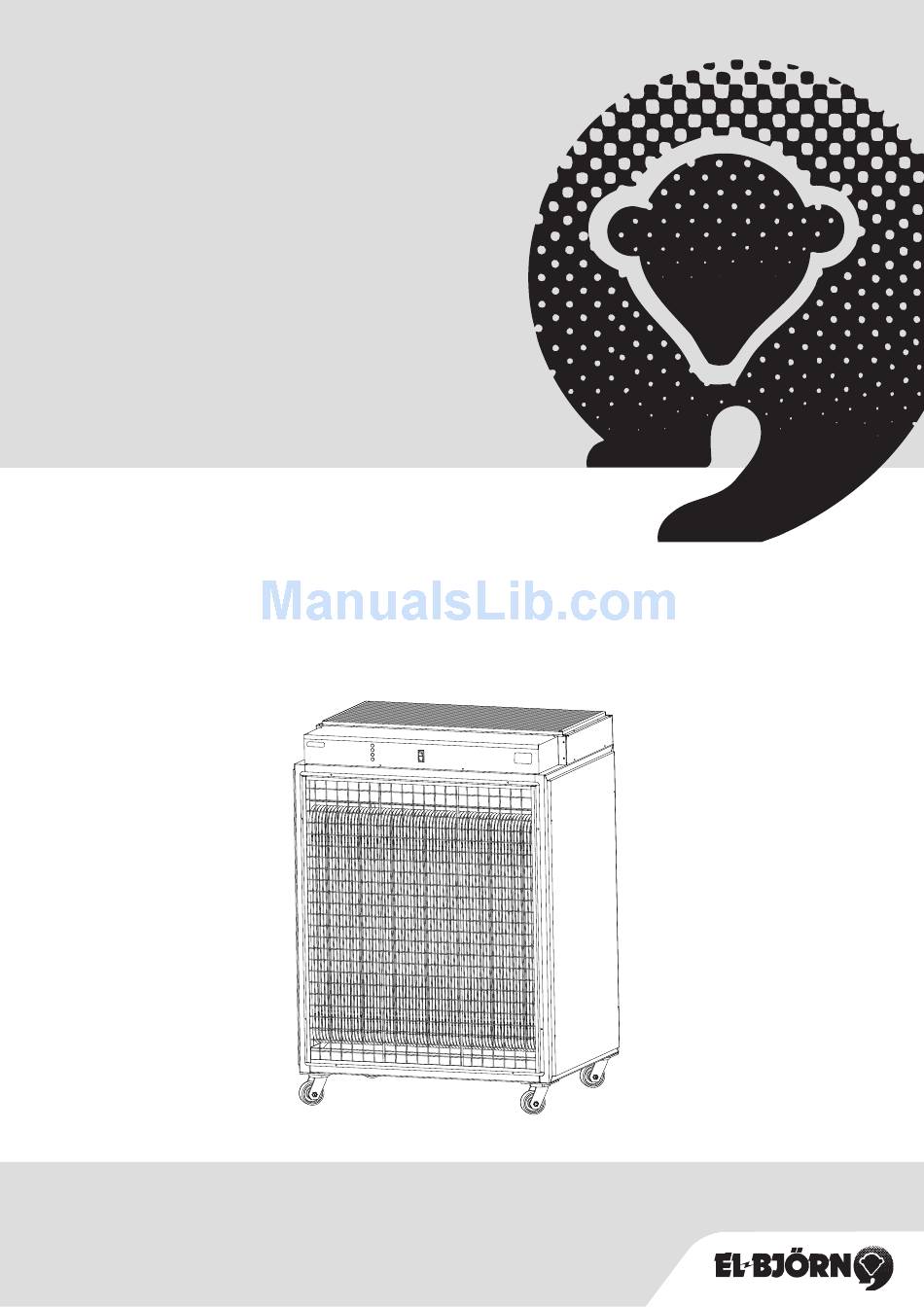

- Page 1 User manual Dehumidifier A 700VTI - 1 -...
-
Page 2: Ec Declaration
EC DECLARATION Please read through this instruction manual carefully and make sure you havefully understood its content before using the machine. - 2 -... -
Page 3: Table Of Contents
INTRODUCTION The A 700VTI is a dehumidifier intended for major The instruction book describes all the necessary safety industrial dehumidification, for example, for drying details and must be read and understood by the user, timber or other industrial drying processes. It can also before the dehumidifier is connected to an electricity be used to keep storage facilities dry. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Warning marks Warning and Important Note Read through this instruction book In the text of these user instructions, the following carefully and understand its contents boxes are in relevant places. before you use this dehumidifier. Warning! This dehumidifier can become WARNING! dangerous! Careless or incorrect usage These boxes give warning of potential... -
Page 5: Technical Data
TECHNICAL DATA Technical data of the dehumidifier Width: 1190 mm Height: 1530 mm Depth: 890 mm Weight: 300 kg Power supply: 3N~400V Fuse: 25 A, slow blow Rated power: 6800 W Power consumption, compressor: 6000 W Power consumption, fans (2 pcs): 800 W Working range, temp: 10-55°C... -
Page 6: Description
DESCRIPTION S1 F1 GP01 GT03 Operation warning lamp, green. Label ”Warning 400 V” High pressure warning lamp, red. Classification panel Low pressure warning lamp, red. Wheels Hot gas thermostat trip warning lamp, red. Water connection, R1” Start/stop switch. Vaporiser Control fuse (in the electrical box) GP01 Manual reset for pressure switch high pressure contact. - Page 7 DESCRIPTION Function Dry air M01, M02 The A 700VTI is a condensing dehumidifier and is constructed on the principle that humidity in the air condenses on cold surfaces. The cold surfaces are created on the vaporiser (AEV) by means of the compressor (M03) transferring heat from the vaporiser to the condenser (KD).
- Page 8 10 seconds apart. • Any external control is shut off. When the A 700VTI is being used at lower surrounding temperatures, K8 is set to a start delay Hot gas thermostat warning lamp (P4) of 300 seconds, see page 9 under Pressure Switch (GP01), Industrial Dehumidifier.
- Page 9 Industrial Dehumidifier Please note that the table only specifies guideline When using the A 700VTI at when the surrounding values and may differ between machines and where temperature, T , is lower than around 25°C, it is the machines are currently being used.
-
Page 10: Installation
INSTALLATION Set-up The dehumidifier can be set up on a flat and stable surface. After set-up, check the dehumidifier’s wheels so that it is stable. Water drainage The dehumidifier is provided with an outlet for connection. to a water drain. Connect the pipe (R1”) so that it feeds down to a floor drain or similar. -
Page 11: Installation
INSTALLATION Electrical supply WARNING! Electrical connection of the Connect the humidifier via a main switch to 3N~400 dehumidifier and its peripheral V and protective earth (PE). The mains shall be fused equipment must be carried out by with 25 A slow blow fuse. Connect to terminal (X1). a qualified electrician in accordance The phase-sequence relay (K4) is activated only if the with national installation regulations. -
Page 12: Dehumidification
DEHUMIDIFICATION Motor protection compressor trigger - WARNING! The dehumidifier's air intake and air P4 lights up/flashes outlet must never be covered during use. Protective covers and covering If the compressor stops, this means that the plates must never be removed during use. -
Page 13: Maintenance
MAINTENANCE WARNING! Before any maintenance work is carried out on the dehumidifier, the machine should be disconnected from its power supply. This is done either by removing the plug out of its power point or by means of shutting off the current with the help of a circuit breaker. -
Page 14: Spare Parts
SPARE PARTS When ordering spare parts, always quote: Pos shows where the spare part is in the diagram. • Type • Serial Number Page(s) shows on what page(s) the diagram in question can be found. This information can be found on the top row of the dehumidifier's classification panel (see page 3) Number shows how many units of the current spare part are to be found in the dehumidifier. -
Page 15: Appendices
- 15 -... - Page 16 - 16 -...
- Page 17 - 17 -...
- Page 18 - 18 -...
- Page 19 - 19 -...
- Page 20 El-Björn AB, Box 29, 334 21 Anderstorp Tel: 0371-588 100, Fax: 0371-181 34 info@elbjorn.se, www.elbjorn.se - 20 -...
