Web Server
Settings
*******
Change Password
*******
Change
Log off
Settings
Programmable Keys
Not programmed
12345
Save
86

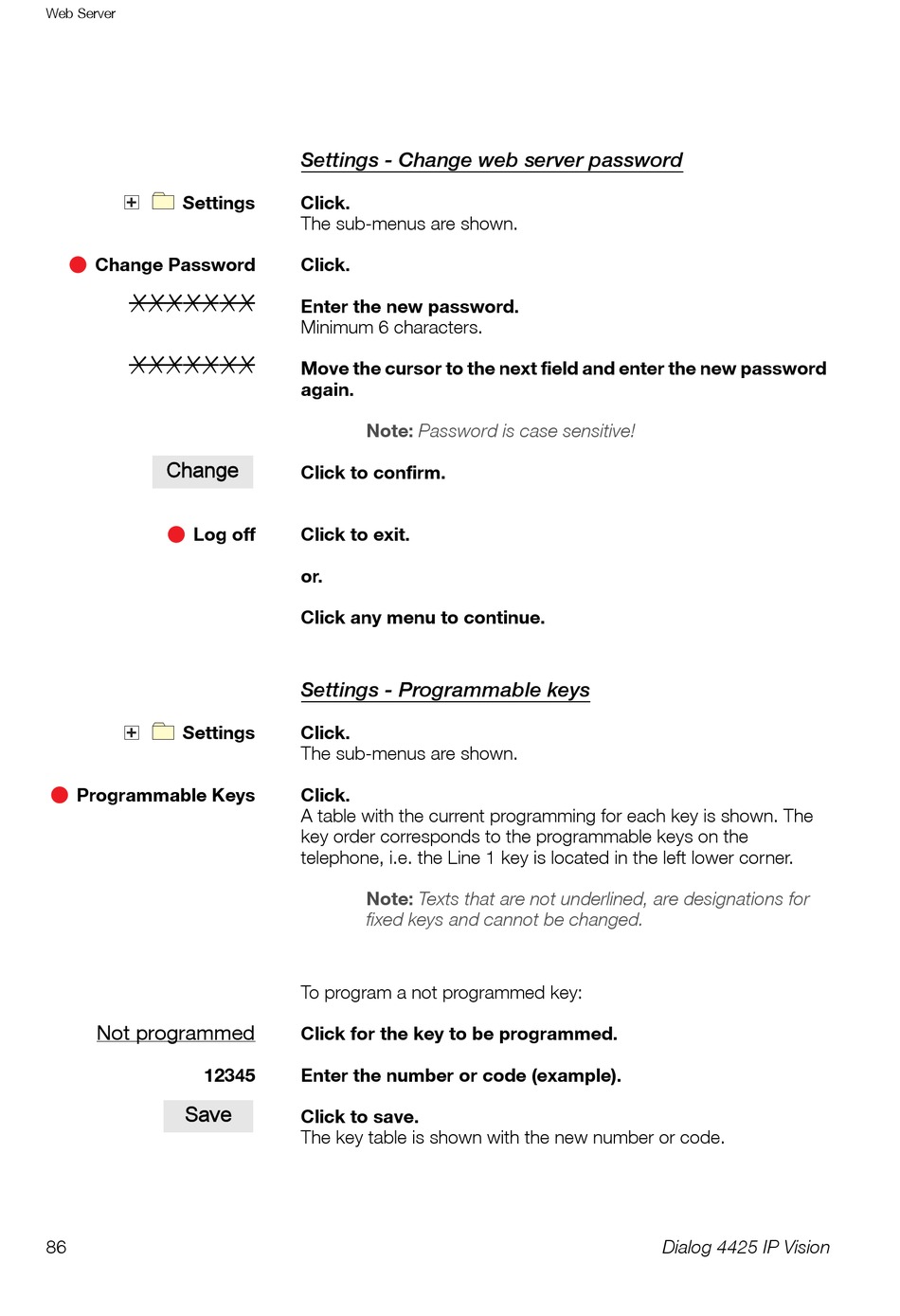

Settings - Change web server password
Click.
The sub-menus are shown.
Click.
Enter the new password.
Minimum 6 characters.
Move the cursor to the next field and enter the new password
again.
Note: Password is case sensitive!
Click to confirm.
Click to exit.
or.
Click any menu to continue.
Settings - Programmable keys
Click.
The sub-menus are shown.
Click.
A table with the current programming for each key is shown. The
key order corresponds to the programmable keys on the
telephone, i.e. the Line 1 key is located in the left lower corner.
Note: Texts that are not underlined, are designations for
fixed keys and cannot be changed.
To program a not programmed key:
Click for the key to be programmed.
Enter the number or code (example).
Click to save.
The key table is shown with the new number or code.
Dialog 4425 IP Vision
