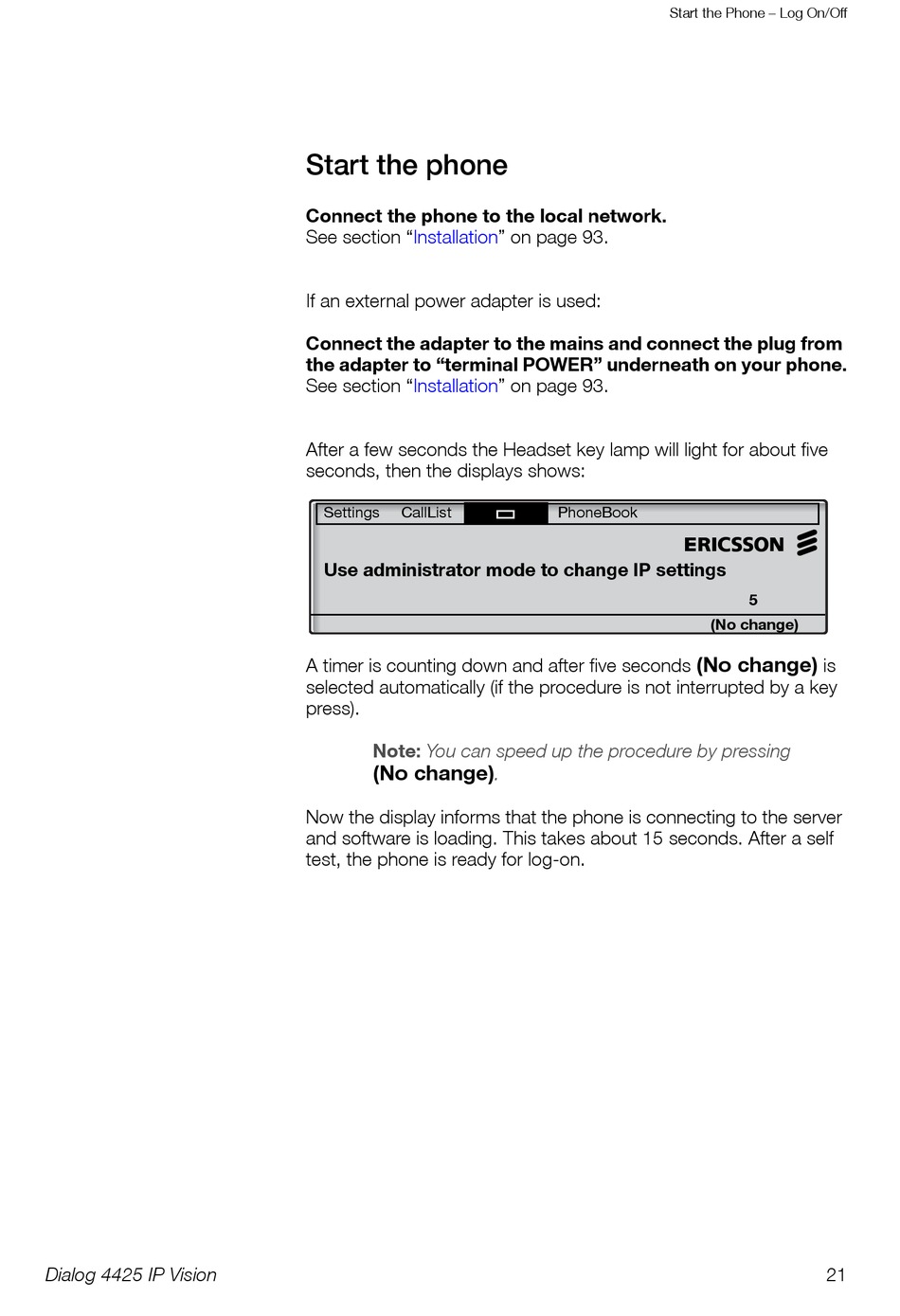

Start The Phone - Ericsson Dialog 4425 IP Vision User Manual

Dialog 4425 IP Vision

Start the phone

Connect the phone to the local network.
See section "Installation" on page 93.
If an external power adapter is used:
Connect the adapter to the mains and connect the plug from
the adapter to "terminal POWER" underneath on your phone.
See section "Installation" on page 93.
After a few seconds the Headset key lamp will light for about five
seconds, then the displays shows:
Settings CallList
Use administrator mode to change IP settings
A timer is counting down and after five seconds
selected automatically (if the procedure is not interrupted by a key
press).
Note: You can speed up the procedure by pressing
(No change)
Now the display informs that the phone is connecting to the server
and software is loading. This takes about 15 seconds. After a self
test, the phone is ready for log-on.
PhoneBook
.
Start the Phone – Log On/Off
?
5
(No change)
(No change)
is
21
