Summary of Contents for Code CR3

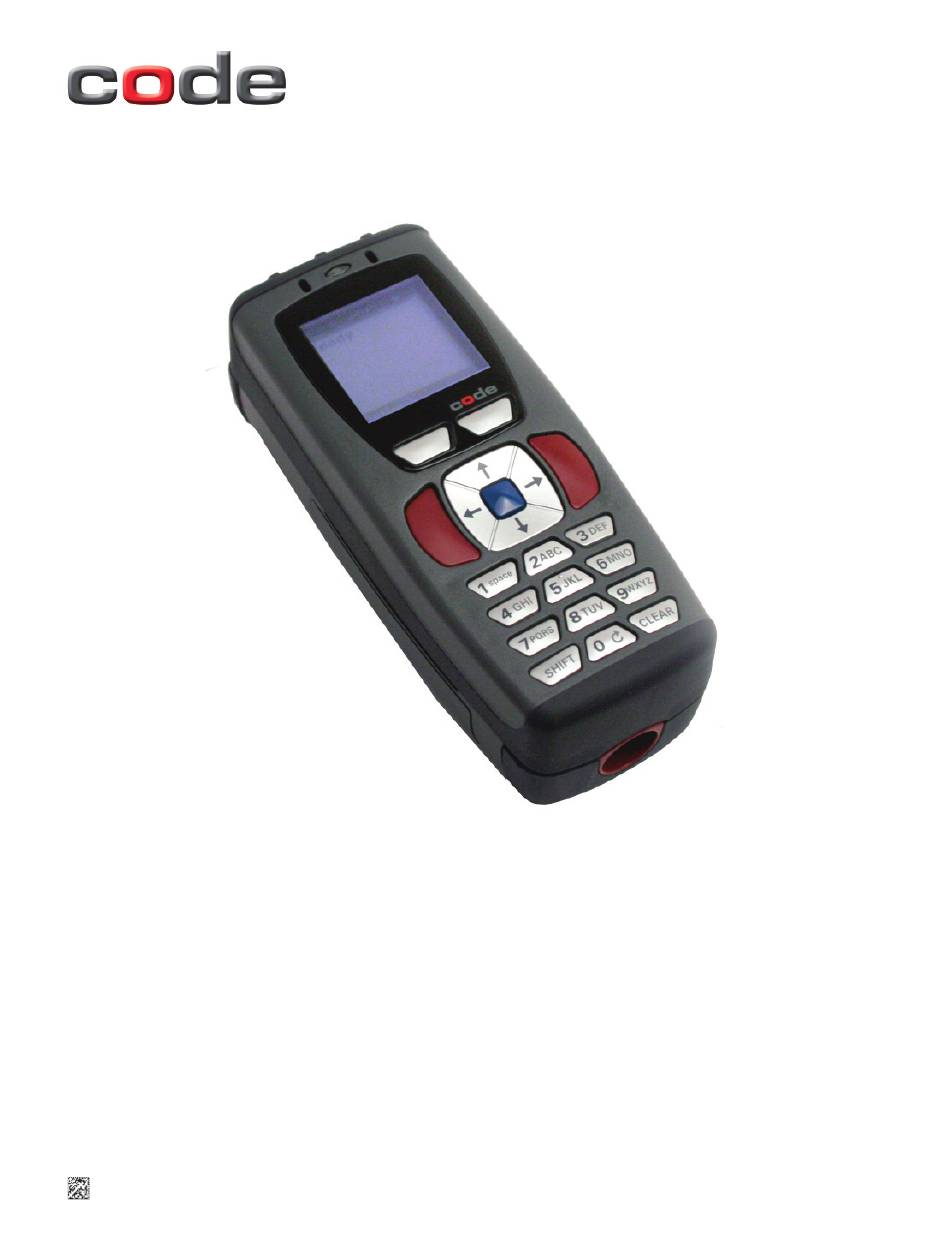

- Page 1 User Manual Code Reader 3.0 ™ Manual Version 12 Release Date: 12/15/08 This version of the manual released with fi rmware version 4058. C002332_12_CR3 User Manual Save Settings C002332_12_CR3_User Manual...
- Page 2 Statement of Agency Compliance The CR3 has been tested for compliance with FCC regulations and was found to be compliant with all applicable FCC Rules and Regulations. IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, this device must not be co-located or operate in conjunction with any other antenna or transmitter.
- Page 3 Code Corporation. Code Corporation does not warrant that it is accurate, complete or error free. Any use of the technical documentation is at the risk of the user. Code Corporation reserves the right to make changes in specifi...
-
Page 4: Table Of Contents
1.7 - Batch Operation ........................8 1.7.1 - Introduction ........................8 1.8 - Cabled Operation ......................... 10 1.8.2 - CR3 as a USB Keyboard ....................11 1.8.2.1 - Addional USB Communication Settings ............12 1.8.2.2 - Keyboard Support .................... 12 1.8.3 - PS/2 Cable Installation Guide ..................13 1.8.4 - RS-232 (Serial) Cable Installation Guide .............. - Page 5 2.11.2 - Continuous Scan - Trigger Delays ................37 2.11.3 - Continuous Scan - Duplicate Scan Delay ..............37 2.12 - Motion Detection Scan Settings ..................37 Chapter 3 - CR3 Programming: Symbology Settings ..............38 3.1 - Aztec Symbology ........................39 3.2 - Codabar Symbology ......................39 3.3 - Codablock F Symbology ......................
- Page 6 6.3 - Erase Prefi x and Suffi x Settings ................... 58 6.4 - Reader Text Commands....................... 58 Chapter 7 - CR3: Maintenance and Troubleshooting ..............59 7.1 - Reset Reader to Factory Defaults ..................60 7.2 - General Safety Information ....................60 7.3 - Warranty ..........................
-
Page 7: Chapter 1 - Getting Started
Chapter 1 - Getting Started C002332_12_CR3 User Manual Save Settings... -
Page 8: Introduction

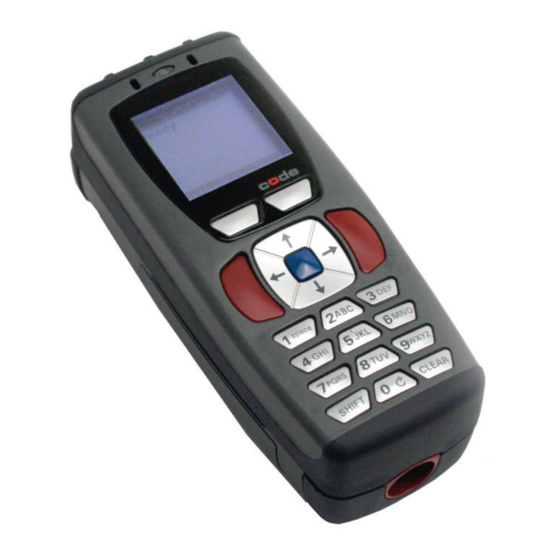

1.1 - Introduction CR3 is a revolutionary bar code and 2-dimensional code reader. Developed to be the fi rst universal reader, no other single device performs as many functions. With a cost of ownership far less than comparable systems, the CR3 incorporates a unique dual path optical system, a 1.3 million pixel CMOS sensor, and a 400 MHz processor. -
Page 9: Unpacking
Code at (801) 495-2200. The standard CR3 unit is shipped with a USB cable interface. The unit also features a battery blank which must be installed when using the reader (except when attached to the H2, BH1 or BH2 handle). -
Page 10: Reader Battery Installation
Attaching and Detaching the Lithium Ion Battery The CR3 has an option to include a 1950 mAH Lithium Ion battery. To install battery, make sure the battery is in the correct position (fi gure 1.1). Place the plastic tab of the battery into the reader (fi gure 1.2). Push the battery in and slide the locking mechanism down (fi... -
Page 11: Attaching Handles
1.4 - Attaching Handles H1 - Handle Place the CR3 in the cradle of the handle and slide the unit back (Figure 1.4). Be careful not to place fi ngerprints on the front glass when attaching handle. Once the 8-pin DIN connector of the handle begins to enter the opening in the back of the unit, fi rmly press the unit back until the unit is fl... -
Page 12: Keypad/Icon Overview
1.6 - Keypad/Icon Overview The chart below shows key/button functions. Description of Button Function Numeric Mode Upper Case Text Lower Case Text Symbol Mode Mode Mode Toggles between Toggles between Toggles between Toggles between numeric characters, numeric characters, numeric characters, numeric characters, upper case text, lower upper case text, lower... - Page 13 Bluetooth communication mode enabled Packet Mode Icons One way mode – no acknowledgement required Two way mode – packetized, bidirectional communication between a CR3 and an application (may also indicate download mode) Downloader mode Keyboard mode – can be used as either USB keyboard or PS/2 keyboard input mode Virtual COM Port One Way mode Secure mode –...
-
Page 14: Batch Operation
The RS-232 cable is attached to host with power supply and the reader is in RS-232 Batch-Cable Detect (Default) mode. The CR3’s dedicated batch memory is a minimum of 1MB. To determine the number of reads that may be stored, divide the average bytes of a scan into the total minimum memory. - Page 15 Data scanned will be sent, regardless of connection status. Data scanned in Cabled-No Power mode will be lost if the CR3 is not connected to the serial cable - it will not buffer the data, unless Send &...
-
Page 16: Cabled Operation
CR3 with a 8-pin DIN connector. Hand Held CR3 - To install a cable directly to the CR3, correctly line up the 8-pin DIN connector into the back end of the reader. The arrows on the connector should be facing down (Figure 1.10). When the reader and the cable connector are lined up, fi... -
Page 17: Cr3 As A Usb Keyboard
1.8.2 - CR3 as a USB Keyboard To connect the CR3 to your host computer via USB interface: 1. Attach the USB cable to CR3 (Figure 1.14). 2. There is no need to power off the computer (Figure 1.15) Connect the USB cable to a USB port on the computer (Figure 1.16). -
Page 18: Addional Usb Communication Settings
CR3 and an application through the USB port. USB Virtual COM 1 Way Mode - This mode allows a USB-cabled CR3 to function as a virtual COM port. To use the CR3 in this mode, download the driver at www.codecorp.com/downloads.html. -
Page 19: Ps/2 Cable Installation Guide
4. Now connect the male CR3 PS/2 connector into the keyboard port on the computer (Figure 1.18). 5. Power on the computer. The CR3 is powered by the PS/2 port and does not require a power supply. 6. Once properly connected, the CR3 will power on and beep. -
Page 20: Rs-232 (Serial) Cable Installation Guide
Mode: RS-232 One Way Mode Baud Rate: 57600 Stop Bits: 2 Data Bits: 8 Parity: None Warning: Code Corporation approved power adapter must be used. Reader failure due to use of incorrect power adapter will void warranties. C002332_12_CR3 User Manual Save Settings... -
Page 21: Additional Rs-232 (Serial) Communication Data Bit Settings
None (Default) 1.8.5 - Cabled Reader - Time Out Settings Scan one of the codes below to set the amount of time a cabled CR3 will be enumerated before entering sleep mode in order to more quickly charge the battery: Note: These settings will only work in versions 2098 and above. -
Page 22: Bluetooth Radio Operation
The easiest way to connect to a Bluetooth device is to visit the Code website and create a QuickConnect Code that is specifi c to your device (Figure 1.22). This code will link your CR3 directly to the desired Bluetooth device. To create a QuickConnect Code, you will need to know the Bluetooth address (often referred to as the BD_ADDR) of that device. - Page 23 Radio Range and Transferring Data The CR3 radio is a Class 1 device. If connected to another Class 1 device the reader has roughly a 100 meter (300 feet) line of sight operating range. If connecting to a Class 2 or Class 3 device, the operating range may drop to match the lower range.
-
Page 24: Bluetooth Radio Auto Connect
1.9.2 - Bluetooth Radio Auto Connect Auto Connect: After coming out of sleep mode or after powering up the CR3 tries to auto connect with the last Bluetooth radio with which it was connected if the steps (previous) were followed (see Section 1.7.1 - Connecting with a Quick Connect Code). -
Page 25: Bluetooth Radio Time Out Settings
If the reader is saved in the proper RF communication mode, enabling this setting will allow the reader to automatically save the last device to which it was connected, removing the need to scan the save setting after scanning the QuickConnect code. Enable Auto Save... -
Page 26: Confi Guration For Belkin Bluetooth Manager Software (Version 1.4.2.10)
1.9.7 - Confi guration for Belkin Bluetooth Manager Software (Version 1.4.2.10) In this version of the Belkin Bluetooth Manager software, you must disable the authentication feature to connect a CR3. Follow the steps below: Double click on the Bluetooth icon in the system tray. In the My Bluetooth Places Screen, select Advanced Confi... - Page 27 Your local service Bluetooth Serial Port profi le should now read “Not Required” Open the “Accessibility” Tab and verify that “All Devices” are allowed to connect (this is the default setting). You should now be able to connect your CR3. C002332_12_CR3 User Manual...
- Page 28 1.9.8 - Confi guration for Toshiba Bluetooth Stack Instructions (continued) Go to http://www.codecorp.com/bdaddr.php and create a QuickConnect code using the address from step 3. Use the CodeXML Router/ 2-way applications section if CodeXML Router will be installed. Else create a QuickConnect Code using the section for Serial Applications.
- Page 29 Com Port is opened. CodeXML Router must be installed or the serial application must be started before the QuickConnect Code is read. Scan the QuickConnect Code generated in step 3. If step 4 was not done, Windows will prompt for a Passkey. The default Passkey is “12345678”.
-
Page 30: Confi Guration For Microsoft Bluetooth Stack Instructions
1.9.9 - Confi guration for Microsoft Bluetooth Stack Instructions Right click on the Microsoft Bluetooth Stack system tray icon, select “Open Bluetooth Settings”. Go to the “Hardware” tab and select the “Generic Bluetooth Radio” and then click “Properties”. Next select the “Advanced”... - Page 31 Bluetooth COM Port. Note the COM port number. Install the Code XML Router Software to the Device on the Appropriate COM Port. Reboot the PC and then scan your QuickConnect code to connect. Please note that the Window Stack does not allow a device to connect until the Com Port is opened.
-
Page 32: Installing Codexml Router Bluetooth Edition For Windows
1.9.10 - Installing CodeXML Router Bluetooth Edition for Windows Insert the Code Router Bluetooth Edition for Windows CD into your PC’s CD drive. The CD will automatically begin the installation process. When you get to the screen pictured below, please enter the CD Serial # Key found on the card included in the CD case. -
Page 33: Cr3 Feedback Guide
This mode allows communi- crypted format from the CR3 CR3 to a host computer through a cation between a USB port to a host computer through Bluetooth connection. -
Page 34: Targeting And Reading Techniques
Note: The CR3 can read a symbol that is not centered; however the CR3 performs best when a code is centered. If two (2) bar codes are within the imager’s decode zone, the CR3 will decode the symbol closest to the center of the aiming dot. -
Page 35: Imager Field Of View And Resolution
1.12 - Imager Field of View and Resolution The CR3’s dual fi eld optical system may be modifi ed based on your scanning environment. The CR3’s megapixel imager may be set to the following three modes: The 1.3 Million Pixel imager is divided into near fi eld and far fi eld decode zones. In each zone the resolution is 1024 x 640 pixels (see Figure 1.25). -
Page 36: Decode Zone
1.13 - Decode Zone Figure 1.26 C002332_12_CR3 User Manual Save Settings... -
Page 37: Chapter 2 - Optimization And Trigger Programming
Chapter 2 - Optimization and Trigger Programming C002332_12_CR3 User Manual Save Settings... -
Page 38: Introduction
Far Field (FF): The farthest fi eld of the CR3’s two image fi elds. It has an optimal focal point of 9” (228.6 mm) away from the lens of the reader with a 4” wide fi eld of view at this point. -
Page 39: Global Trigger Optimization Matrix
2.2 - Global Trigger Optimization Matrix SXGA Both Fields Near Field Field 2.3 - Left Trigger Optimization Matrix SXGA Both Fields Near Field Field C002332_12_CR3 User Manual Save Settings... -
Page 40: Left Trigger Programming
2.4 - Left Trigger Programming Left Trigger Take Picture Note: If you program a trigger to another function, you will need to reset any performance code settings. 2.5 - Right Trigger Optimization Matrix SXGA Both Fields Near Field Field 2.6 - Right Trigger Programming Right Trigger Take Picture Note: If you program a trigger to another function, you will need to reset any performance code settings. -
Page 41: Handle Optimization Matrix
2.7 - Handle Optimization Matrix SXGA Both Fields Near Field Field 2.8 - Handle Trigger Programming Handle Trigger Take Picture Note: If you program a trigger to another function, you will need to reset any performance code settings. C002332_12_CR3 User Manual Save Settings... -
Page 42: Continuous Trigger Optimization Matrix
2.9 - Continuous Trigger Optimization Matrix Scanning codes in the matrix puts the reader into Continous scan. SXGA Both Fields Near Field Field 2.10 - Continuous Scan Off (Default) Note: This function is only recommended for cabled or short term use if battery is the only power supply. See sec- tion 2.11.1 for Sleep Time Out Settings. -
Page 43: Continuous Scan Settings
2.11 - Continuous Scan Settings 2.11.1 - Continuous Scan - Sleep Time Out Scan one of the codes below to set the amount of time a cabled CR3 will operate in continuous scan mode before entering sleep mode: Cabled - 2 hours... -
Page 44: Chapter 3 - Cr3 Programming: Symbology Settings
Chapter 3 - CR3 Programming: Symbology Settings C002332_12_CR3 User Manual Save Settings... -
Page 45: Aztec Symbology
Sample Codablock F Code Note: When Codablock F and Code 128 decoding are enabled, there is some danger of mistakenly decoding a damaged Codablock F symbol as a Code 128 symbol. Therefore, Code 128 decoding should be disabled when Codablock F decoding is enabled. -
Page 46: Code 39 Symbology
3.5 - Code 39 Symbology Scan the following codes to enable/disable Code 39 symbology settings: Code 39 On (Default) Code 39 Off Enable Checksum Disable Checksum (Default) Enable Checksum and Strip From Result Code 39 Extended Full ASCII On Code 39 Extended Full ASCII Off (Default) -
Page 47: Code 128 Symbology
Sample Code 128 Code Note: When Codablock F and Code 128 decoding are enabled, there is some danger of mistakenly decoding a damaged Codablock F symbol as a Code 128 symbol. Therefore, Code 128 decoding should be disabled when Codablock F decoding is enabled. -
Page 48: Gocode Symbology
Code. GoCode has many signifi cant advantages over all common linear barcodes and 2-D symbols. Please contact Code for more information on the benefi ts of utilizing a private symbology. -
Page 49: Matrix 2 Of 5 Symbology
3.17 - Optical Character Recognition (OCR) The Code Reader can read Optical Character Recognition (OCR) texts. The following codes can be used to en- able/disable this feature. Fonts supported include Passport, ISBN, Price, MICR13, and a user defi ned template:... -
Page 50: Pdf 417 Symbology
All postal code default settings are OFF. Scan the following codes to enable the appropriate Postal symbology: Note: If you wish to change which Postal code is activated, you MUST fi rst scan the disable all postal codes symbol and then scan your desired symbology. -
Page 51: Qr Code Symbology
3.21 - QR Code Symbology Scan the following codes to enable/disable QR Code symbology settings: QR Code On QR Code Off (Default) Enable Checksum Disable Checksum (Default) QR Code Inverse On Both Inverse and Standard On All QR On (includes Micro QR) -
Page 52: Telepen Symbology
3.24 - UPC/EAN/JAN Scan the following codes to enable/disable UPC/EAN/JAN symbology settings: UPC On (Default) UPC Off UPC Short Margin Enabled UPC Short Margin Disabled (Default) UPC Extension On UPC Extension Off Sample UPC A Code C002332_12_CR3 User Manual Save Settings... -
Page 53: Chapter 4 - Reader Feedback And Special Settings
Chapter 4 - Reader Feedback and Special Settings C002332_12_CR3 User Manual Save Settings... -
Page 54: Volume And Vibration Settings
4.2 - Code Readability Index The Readability Index provides a measurement of a specifi c symbol’s ease or diffi culty to be decoded by the CR3. The Readability Index is specifi c to the CR3, and should not be confused with a verifi cation quality measurement. -
Page 55: Laser Settings
4.3 - Laser Settings Scan the following codes to turn laser targeting on/off: On (Default) Scan one of the following codes to set the brightness of the CR3 laser. High (Default) Medium 4.4 - Reader Power Off Settings Scan the following codes to set the amount of time before a reader powers off:... -
Page 56: Reader Id And Firmware Version
XXX-XX+XX - Internal ID (not applicable) Xap/i3000300006040010002363A06D-SD+SQ Example: Note: Code will periodically release new fi rmware for CR3 readers. For information on latest fi rmware versions, call Code at (801) 495-2200. To upgrade fi rmware, please visit our website at http://www.codecorp.com/codesupport/html and follow instructions provided. -
Page 57: Lock-Out Link Mode
Lockout Link Mode code (see below). Set appropriate timeout settings, if applicable (see Section 1.6.5). To reassign a permanent connection to a different reader, scan the unlock link code. Using the ‘new’ reader’ follow the directions outlined in the previous paragraph. -
Page 58: Chapter 5 - Advanced Decode Performance
Chapter 5 - Advanced Decode Performance C002332_12_CR3 User Manual Save Settings... -
Page 59: Set Targeting Tolerances
Conversely, as the targeting tolerance gets larger there is less precision needed with the targeting laser. If there is more than one decodable code in the fi eld of the, the symbol closest to the targeting laser will be decoded. -
Page 60: Windowing
By reducing the vertical window value of the imager to 200 pixels, 1D codes are processed more quickly. Because only a horizontal strip of a 1D code is needed to be decoded, using a narrow strip of the imager is all that is needed. The area above and below the 200 pixels, which is always in the center of the imager, is ignored. -
Page 61: Mirror Decoding
Users may optimize the CR3 decode zone if their application only requires one bar code format. If the size and density of the bar codes to be scanned are consistent, please select the setting below that best describes your environment. -
Page 62: Chapter 6 - Adding A Prefi X Or Suffi X And Reader Text Commands
Chapter 6 - Adding a Prefi x or Suffi x and Reader Text Commands C002332_12_CR3 User Manual Save Settings... -
Page 63: Prefi X Settings
(Serial) (Serial) Note: If you require a special confi guration, please contact Code at (801) 495-2200 or email appeng@codecorp.com. 6.2 - Suffi x Settings If you scan the following codes, you may lose your current settings. Make sure to save settings on your reader before scanning the Suffi... -
Page 64: Erase Prefi X And Suffi X Settings
Erase Prefi x & Suffi x Data 6.4 - Reader Text Commands Enabling Reader Text Commands allows the CR3 to accept text commands via RS-232 or RF commmunication. Scan the following codes to enable/disable reader text commands: Reader Text Commands On Reader Text Commands Off - Default Note: Text commands can only be sent to the reader when it is active. -
Page 65: Chapter 7 - Cr3: Maintenance And Troubleshooting
Chapter 7 - CR3: Maintenance and Troubleshooting C002332_12_CR3 User Manual Save Settings... -
Page 66: Reset Reader To Factory Defaults
• Voiding of the maintenance contract. Lasers - The CR3 utilizes a laser FOR TARGETING PURPOSES ONLY. If the laser is activated, do not stare into the beam. See pg i for further information regarding laser warnings. Lithium Ion Battery - Warning: Charge the battery with Code cables ONLY. Do not open battery, dispose of in fi re, or short circuit - it may ignite, explode, leak, or get hot causing personal injury. -
Page 67: Warranty
Terms of Warranty Code Reader 3.0 readers carry a warranty of two years. Other products with serial numbers, such as but not limited to radios, CodeXML modems, battery chargers, stands and power supplies are warranted for three years from date of shipment. -
Page 68: Cr3 Accessories
The CR3 window should be clean to allow the best performance of the device. The window is the clear plastic piece inside the head of the reader. Do not touch the window. Your CR3 uses CMOS technology that is much like a digital camera.
