Summary of Contents for Code CR5200

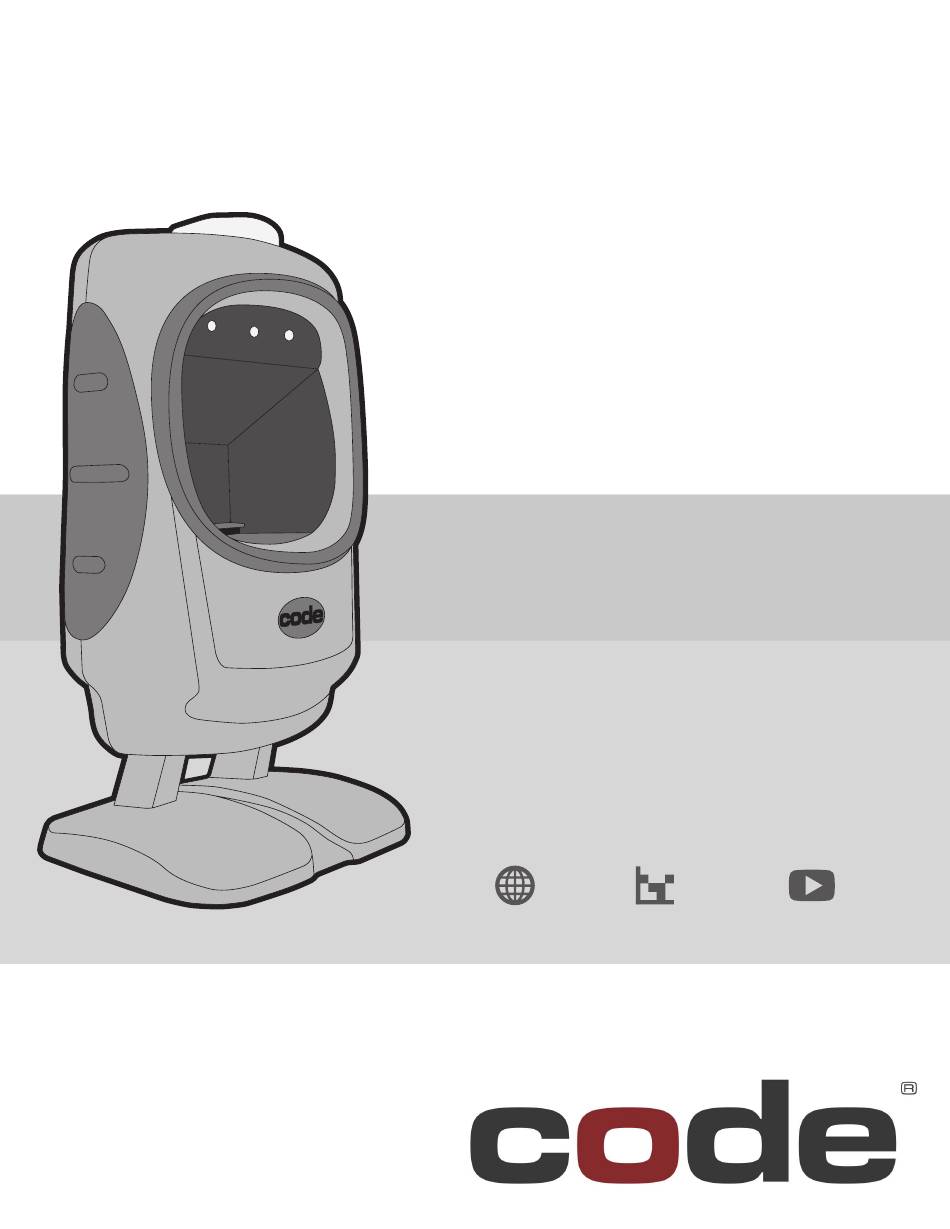

- Page 1 USER MANUAL NORTH AMERICA CR5200 MANUAL VERSION 01 RELEASE DATE: MARCH 2021 www.codecorp.com Configuration Guide YouTube.com/codecorporation...
- Page 2 The software described in this manual may only be used in accordance with the terms of its license agreement. No part of this publication may be reproduced in any form or by any means without written permission from Code Corporation. This includes electronic or mechanical means such as photocopying or recording in information storage and retrieval systems.
-
Page 3: Table Of Contents
13.0 - Overall Dimensions .................10 CR5200 14.0 - USB Cable Example with Pinouts ................10 15.0 - RS232 Cable Example with Pinouts ..............11 16.0 - Reader Pinouts ....................11 17.0 - CR5200 Maintenance ..................11 18.0 - Warranty ......................12 D041878 CR5200 User Manual... -
Page 4: Product List
Code Reader Kit - CR5200 (Cabled, Dark Gray, Presentation), 6-ft Straight RS232 Cable CR5210-200-C502 Code Reader Kit - CR5200 (Cabled, Dark Gray, Presentation), 6-ft Straight RS232 Cable, US Power Supply CR5210-200-C502-P1 Code Reader Kit - CR5200 (Cabled, Dark Gray, Presentation), 8-ft Coiled RS232 Cable,.US Power Supply... -
Page 5: Included Items
2.0 - Included Items (if Ordered) CR5200 USB 2.0 Cable (Model #: CR5210 or CR5215) 5VDC RS232 Cable Power Supply D041878 CR5200 User Manual... -
Page 6: Attaching And Detaching A Cable
3.0 - Attaching and Detaching a Cable 4.0 - RS232 and USB Set Up Plug In Wait 2 Seconds 2 Sec. LED will Flash Reader will Beep D041878 CR5200 User Manual... -
Page 7: Using A Cr5200 In Presentation Mode
6.0 - Using a CR5200 5.0 - Using a CR5200 in Presentation Mode in Handheld Mode 4 cm -15° 0° 15° 30° 45° JN R 7.0 - Typical Reading Ranges CR5200 Performance Presentation Mode Handheld Mode Test Barcode Min Inches (mm) -
Page 8: Reader Feedback
Code barcode readers can read a number of barcode turn symbologies on or off, scan the symbology barcodes symbologies that are not enabled by default. To turn located in the CR5200 Configuration Guide on the product page symbologies on or off, scan the symbology barcodes located at codecorp.com/files.php. -
Page 9: Reader Id & Firmware Version
12.0 - CR5200 Age Verifcation The CR5200 (Model# CR5215) is a stand-alone age verification solution that does not require a PC or manual management of data to alert a clerk of an underage patron. When reading an AAMVA-compliant barcoded Driver License, the CR5215 is enabled by default to alert users if a patron is under the age of 21. -
Page 10: Cr5200 Overall Dimensions
13.0 - CR5200 Overall Dimensions 3.55" 2.80" (90.30 mm) (71.23 mm) 5.95" (151.14 mm) 14.0 - USB Cable Example with Pinouts NOTES: CONNECTOR A NAME CONNECTOR B 1. Part to be ROHS and Reach compliant. 2. Maximum Voltage Tolerance = 5V +/- 10%. -
Page 11: Rs232 Cable Example With Pinouts
Cleaning the CR5200 Series Window The CR5200 window should be clean to allow the best performance of the device. The window is the clear plastic piece inside the head of the reader. Do not touch the window. Your CR5200 uses CMOS technology that is much like a digital camera. A dirty window may stop the CR5200 from reading barcodes. -
Page 12: Warranty
Code’s maximum liability related to its performance, or failure to perform, as described herein shall be limited to the amount paid by Customer for the Code product that is subject to the claim. In no event will either party be liable for any lost profits, lost savings, incidental damage, or other economic consequential damages.
