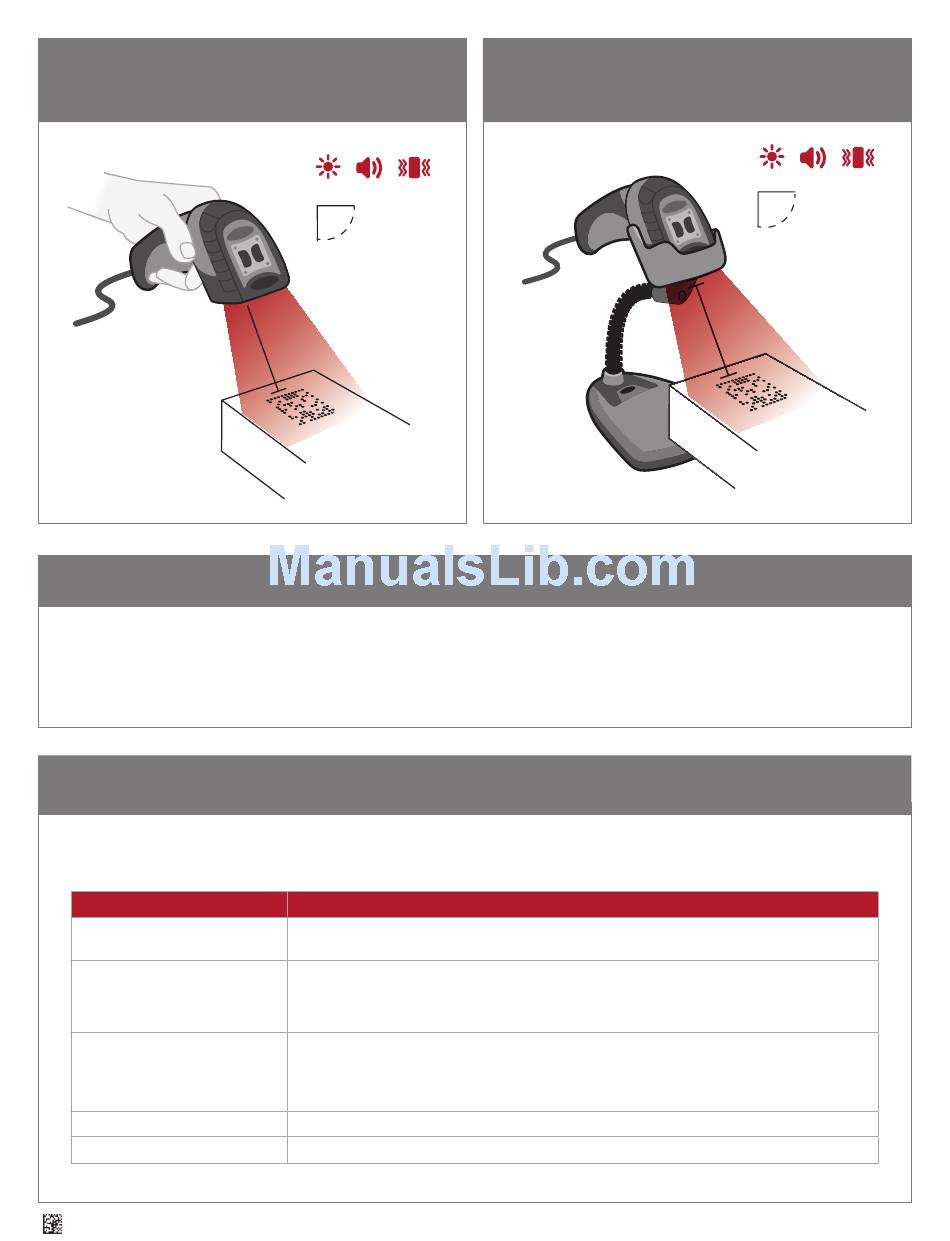

4.0 - Using a CR6000
Out of a Stand

6.0 - Optimizing DPM Reading

The CR6000 reader defaults to Auto Mode. The Reading Mode automatically adjusts to optimize performance on various DPM barcodes. If your
application involves only one type of DPM barcode, the CR6000 can be further enhanced by enabling the specific Reading Mode that works best
for your barcode. To optimize DPM reading, please refer to the CR6000 Configuration Guide located at www.codecorp.com/files.php.
7.0 - Reading Modes and Barcode Types
Barcode reading performance will vary depending on mark and surface type. Refer to the CR6000 Configuration Guide located. To change
Reading Modes, please refer to the CR6000 Configuration Guide located at www.codecorp.com/files.php.
Reading Mode
Auto (Default)
Dark Field
Diffuse Bright
Direct Bright
Curved Surface
D019548_02_CR6000_User_Manual
°
90
25 mm
Barcode Types
Reads dot peen and laser-etched marks by automatically adjusting the illumination for optimal
reading of a variety of DPM barcodes.
Options:
1. Reads dot peen marks at a 15-45 angle, or
2. Reads laser-etched marks at a 90 angle, or
3. Reads dot peen marks at a 15-45 angle, and laser-etched marks at a 90 angle.
Options:
1. Reads dot peen marks at a 90 angle, or
2. Reads laser-etched marks at a 90 angle, or
3. Reads both dot peen and laser-etched marks at a 90 angle.
Reads barcodes printed on paper.
Reads dot peen and laser-etched marks printed on curved surfaces at a 90 angle.
5.0 - Using a CR6000
In a Stand
°
°
°
°
°
°
90°
25 mm
°
°
