EIA-232 network connection

EIA-232
VLT
Tx (+) pin1
Rx (-) pin 2
GND pin 5

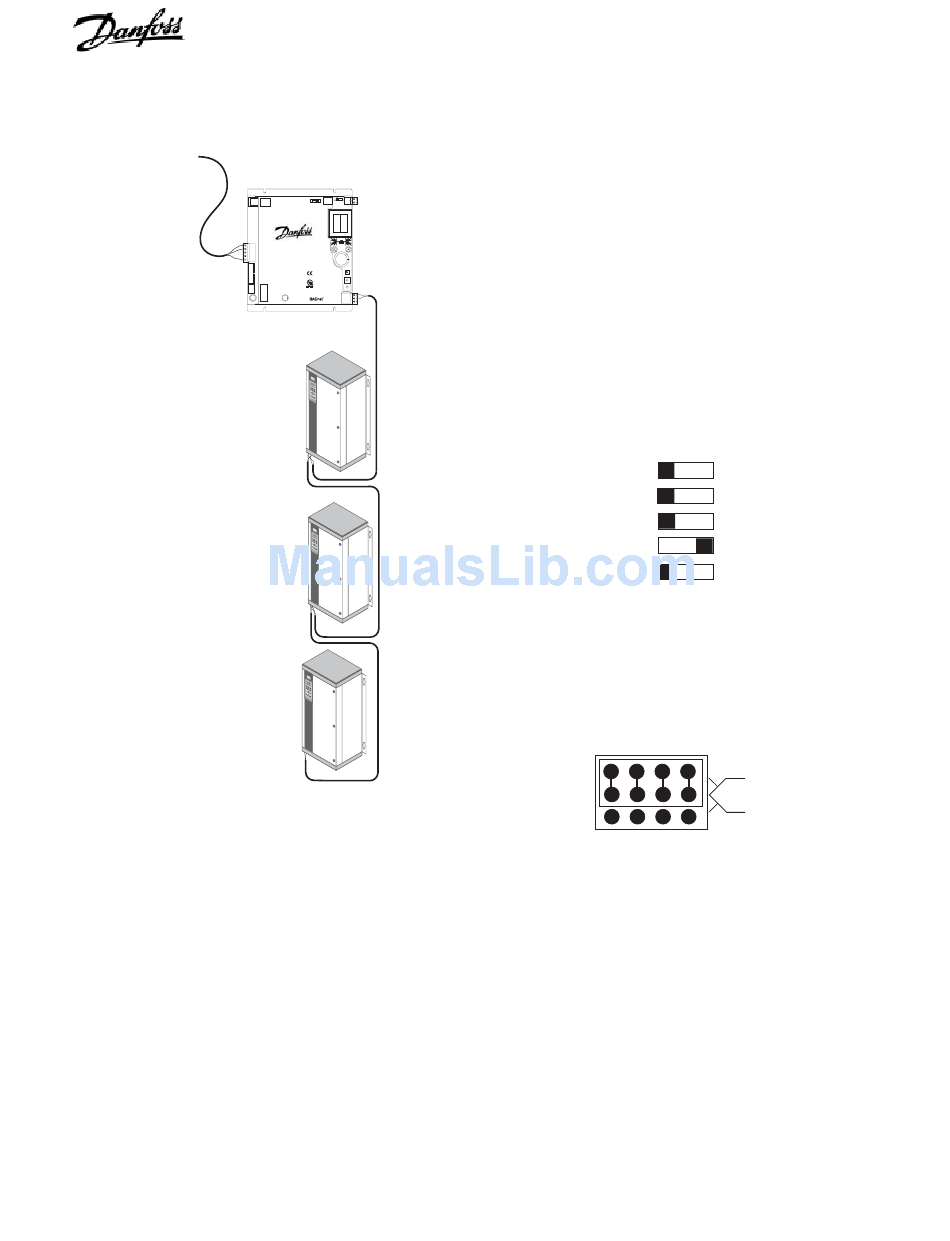

Figure 18. EIA-232 Network Connection
16
VLT is a registered Danfoss trademark
®
BACLink ™
EIA-485
Procedure
1. Switch BACLink portal power off.
2. Wire EIA-232 network input cable to BACLink port 2 (see
Figure 18). Tx (+) pin 1, Rx (-) pin 2, GND pin 5.
3. Set port 1 DIP switch to Other (see Figure 19).
4. Plug EIA-485/232 configuration jumper to EIA-232 position
as shown in Figure 20.
5. Wire to drives from BACLink port 2 from Net (+) to drive
terminal 68 and Net (-) to drive terminal 69.
Switch 1
Switch 2
IP Address
Port 1
Portal Address
Figure 19. BACLink DIP Switches
Figure 20. Configuration Jumper Settings
1 Off/ On
Off/ On
2
3 Defa ult/ Assig ned
ARC156/ Other
4
5 +0/ +100
EIA-232
EIA-485
