EIA-485 network connection

EIA-485
EIA-485
VLT
NOTE: EIA-485 (2-wire)
from Port 2 to drive input
terminals 68 (+) and 69 (-)

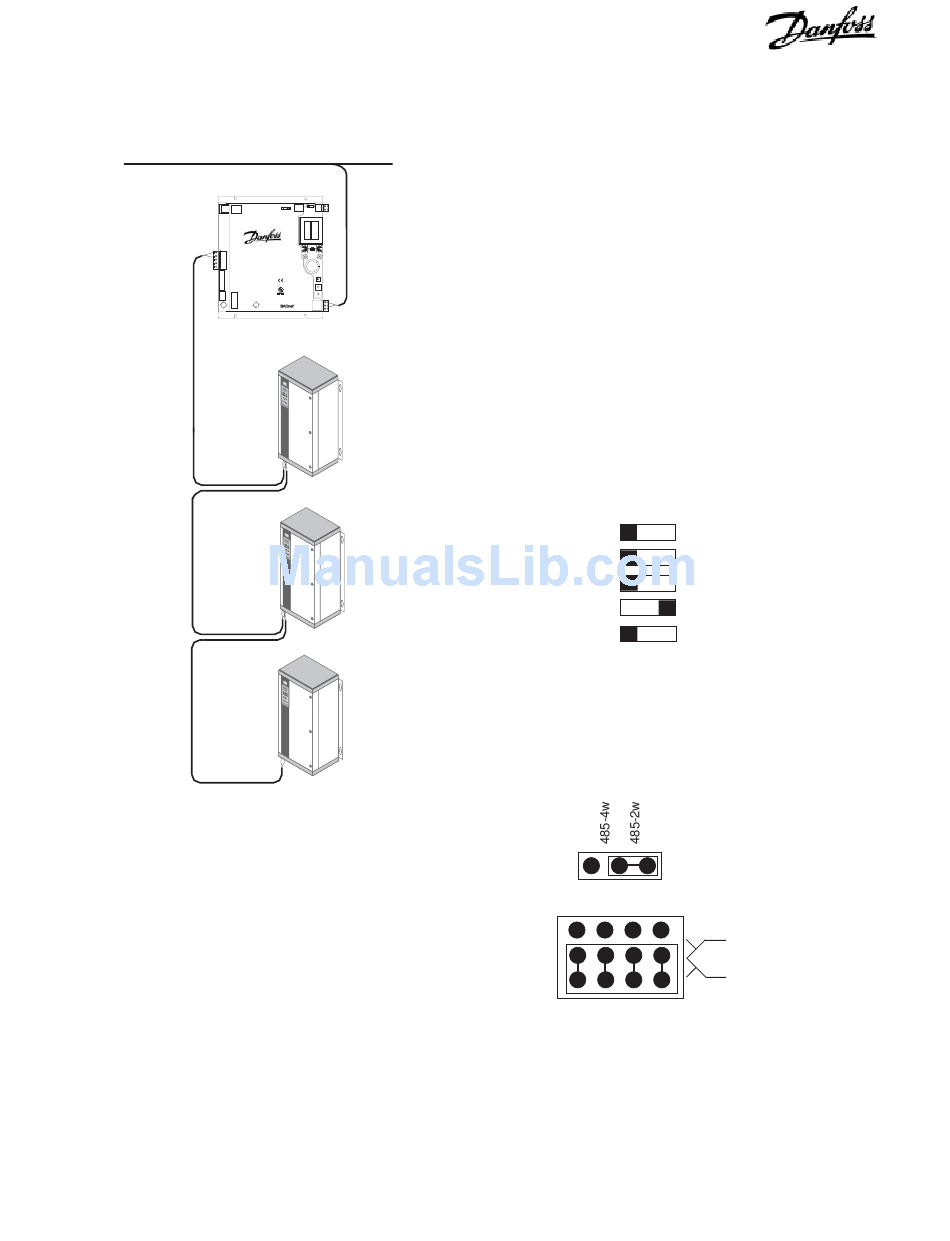

Figure 15. EIA-485 (2-wire) Network Connection
® BACLink
™
EIA-485
Procedure
1. Switch BACLink portal power off.
2. Wire EIA-485 network input cable to BACLink port 1 (see
Figure 15).
3. Set port 1 DIP switch to Other (see Figure 16).
4. Plug EIA-485/232 configuration jumper to EIA-485 position
as shown in Figure 17.
5. Plug EIA-485 configuration jumper to (2-wire) position as
shown in Figure 17.
7. Wire to drives from BACLink port 2 from Net (+) to drive
terminal 68 and Net (-) to drive terminal 69.
Switch 1
Switch 2
IP Address
Port 1
Portal Address
Figure 16. BACLink DIP Switches
Figure 17. Port 2 Configuration Jumper Settings
VLT is a registered Danfoss trademark
1 Off/ On
Off/ On
2
3 Defa ult/ Assig ned
ARC156/ Other
4
5 +0/ +100
EIA-232
EIA-485
15
