HearthStone Santa Fe Owner's Manual

HearthStone Santa Fe Owner's Manual

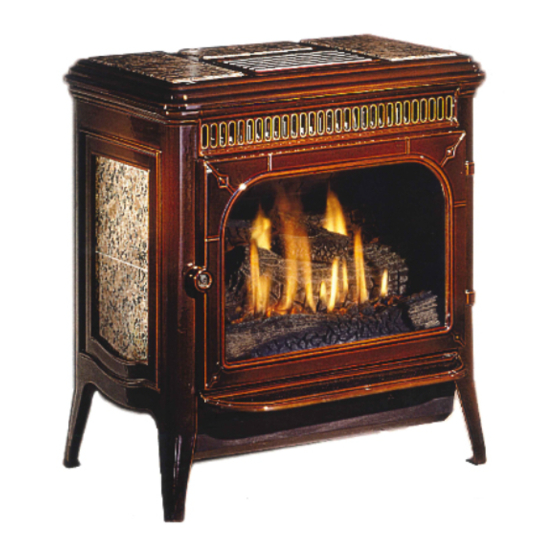

Gas-fired direct vent heater

Advertisement

Owner's Manual & Installation Guide
Santa Fe
for the
FIRED DIRECT VENT HEATER
WARNING: If the information in these instructions
is not followed exactly, a fire, or explosion may
result causing property damage, personal injury, or
loss of life.
• Do not store, or use gasoline, or other
flammable vapors and liquids near this, or
any other gas appliance!
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch electrical switches; do not use the
phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow your gas supplier's
instructions.
• If you cannot reach your gas supplier, call the
fire department.
A qualified installer, service agency, or gas
supplier must perform installation and service.
In the Commonwealth of Massachusetts, all
installation of gas lines and gas fitting shall only
be done by a licensed gas fitter or licensed
plumber.
317 Stafford Avenue,
Morrisville, Vermont 05661-8695
E-Mail: inquiry@hearthstonestoves.com
GAS
-
(8761)
READ THIS OWNER'S
MANUAL
Operate and maintain this gas heater according
to this instruction manual.
Read This Manual In Its Entirety
AVERTISSEMENT: Assurez-vous de bien suivre les
ins tructions donné dans cette notice pour réduire au
minimum le risque d'incendie ou pour éviter tout
dommage matéeriel, toute blessure ou la mort.
• Ne pas entresposer ni utiliser d'essence ni
d'autre vaperurs ou liquides inflammables dans
le voisinage de cet apprareil ou de tout autre
appareil!
QUE FAIRE SI VOUS SENTEZ UNE ODEUR
DE GAZ:
Ne pas tenter d'allumer d'appareil.
Ne touchez à aucun interrupteur. Ne pas vous
servir des téléphones se trouvant dans le
batiment où vous vous trouvez.
Appelez immédiatement votre fournisseur de
gaz depuis un voisin. Suivez les instructions
du fournisseur.
Si vous ne pouvez rejoindre le fournisseur de
gaz, appelez le service dos incendies.
L'installation et service doit être exécuté par un
qualifié installer, agence de service ou le
fournisseur de gaz.
6400-40437
Model # 8761
02-17-2005
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Santa Fe and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HearthStone Santa Fe

  • Page 1 Owner’s Manual & Installation Guide READ THIS OWNER’S MANUAL Santa Fe for the (8761) Operate and maintain this gas heater according FIRED DIRECT VENT HEATER to this instruction manual. Read This Manual In Its Entirety WARNING: If the information in these instructions...
  • Page 2: Service Record

    Phone: Date of Purchase: Installed by: Phone: Date of Installation: Gas Supplier: Phone: Read this Owner’s Manual before installing, or operating the SANTA FE heater. Retain this manual for future reference. SERVICE RECORD Date Who Performed Work Work Performed Notes:...
  • Page 3: Table Of Contents

    ........6 OMBUSTIBLES home depressurization. The combination of ......9 ENTING NFORMATION natural stones with cast iron give the Santa Fe a ........9 ONNECTION pleasing look, which can be maintained with PPROVED ENTING YSTEM minimum care.
  • Page 4: Information

    If material on or near the appliance. (Surveille you believe your Santa Fe is not performing les enfants. Garder les vêtements, les meubles, properly, immediately discontinue operation l’essence ou autres liquides à vapeur until the unit is inspected and approved for inflammables lin de l’appareil.) Clean the area...
  • Page 5: Aily Perations

    HearthStone Quality Home Heating Products, SANTA FE 1 Gas-Fired Direct Vent heater PPLIANCE IGHTING NSTRUCTIONS Turn the gas control knob clockwise to “OFF” position. If shutting the unit off for the non- 1. Set the on/off/T-stat switch or thermostat to heating season, this will improve the overall the off position.
  • Page 6: Nstaller Information

    NPACKING AND NSPECTION NEW YORK, NY 10018 Unpack and Inspect for Damage NATIONAL FIRE PROTECTION The Santa Fe is packaged by the manufacturer to ASSOCIATION, INC. withstand normal shipment without damage. BATTERY MARCH PARK However, damage can still occur during transit,...
  • Page 7: Tove Imensions Ombustibles

    SANTA FE 1 Gas-Fired Direct Vent heater Packing List EARTH EQUIREMENT LOOR ROTECTION The Santa Fe can be placed on a non- 1-Santa Fe Gas-fired Heater containing: 5-Decorative Ceramic Logs combustible surface, or wood floor. For 1-Pan Burner placement of the Santa Fe on carpeting, vinyl 1-Owner’s Manual and Warranty...
  • Page 8 14" MIN. 4" MIN. Figure 3 - Rear and side wall clearances The corner clearance for the Santa Fe is 2”, to be measured from the edge of the top castings to the adjacent wall. Figure 4 - Top clearances (not to scale)
  • Page 9 HearthStone Quality Home Heating Products, SANTA FE 1 Gas-Fired Direct Vent heater SPECIFICATIONS: ISTED IRECT EATER Model: 8761-Santa Fe 1 DV Testing Agency: Intertek Testing Services NA, Inc. (ITS) Tested to: ANSI Z21.88- 2002•CSA 2.33-M02 CAN/CGA 2.17 Fuel type Input rating (Btu/hr) 0-2000 ft...
  • Page 10: Enting Nformation

    Note: Vent terminals must not be recessed into walls, or siding ONNECTION 1. The Santa Fe 1 Direct Vent is approved for installation only with the vent connecting components listed on this page and Simpson Dura-Vent Direct Vent GS, AmeriVent Direct, or Secure Vent systems.
  • Page 12: Pproved Enting Ystem Omponents

    HearthStone Quality Home Heating Products, SANTA FE 1 Gas-Fired Direct Vent heater Note: The Standard Horizontal Vent Kit does turn clockwise until the two sections are fully not require a restrictor. locked. Install the 90º elbow in similar fashion. The vent/air intake termination clearances above...
  • Page 13 HearthStone Quality Home Heating Products, SANTA FE 1 Gas-Fired Direct Vent heater ENT RESTRICTOR To adjust your restrictor for maximum flame appearance, loosen the Phillips head screw and spin the locator, found on the rear left side of the stove. (Refer to figure 7) Figure 7 II.
  • Page 14 HearthStone Quality Home Heating Products, SANTA FE 1 Gas-Fired Direct Vent heater III. V ERTICAL ERMINATION ENTING ONFIGURATIONS -40' maximum system height (without offsets) Figure 8 The Authority Having Jurisdiction must be consulted before proceeding with these installation methods.
  • Page 15 HearthStone Quality Home Heating Products, SANTA FE 1 Gas-Fired Direct Vent heater Figure 9 Use a vinyl siding Stand off when installing IV. Horizontal Termination Venting against vinyl siding. Configurations -Horizontal sections require a 1/4" rise every 12" -A minimum of 24" rise is required (with or w/o of horizontal run.
  • Page 16 HearthStone Quality Home Heating Products, SANTA FE 1 Gas-Fired Direct Vent heater Approved DV Venting Configurations for Horizontal Termination Figure 10 Conditionally approved for purchased mobile Cet appareil peut être installé dans un maison home installation. This appliance may be préfabriquée (mobile) déjà...
  • Page 17: As Onnections

    SANTA FE 1 Gas-Fired Direct Vent heater Figure 11 ONNECTIONS The gas supply line connection is made to the Santa Fe’s gas control valve located under the unit on the left side using a 3/8" NPT fitting. Gas Supply Inlet...
  • Page 18: Eplacing The Lass

    SANTA FE 1 Gas-Fired Direct Vent heater HearthStone Quality Home Heating Products Inc the enamel when loosening the bolt. Pull EPLACING THE LASS To replace the front glass, shut the pilot light off. the door open by grabbing the top edge of Remove the front screw, using the 1/8”...
  • Page 19: Emoval Of Log Set

    IRST MOKE AND UMES ARNING When lit for the first time, the Santa Fe will emit some smoke and odors. This is normal “off- Spread evenly across the front portion of gassing” of the paints and oils used in the the Pan Burner, one layer high, the Charcoal manufacturing, and assembly of the unit.
  • Page 20: Nitial Djustments

    HearthStone Quality Home Heating Products Inc ILOT IGHT The Santa Fe has a piezoelectric spark igniter (the red or black push button located next to the gas control valve behind the valve access door), which ignites the pilot light by means of a spark at the pilot light assembly.
  • Page 21: As Onversions

    Take care to thoroughly vacuum the ports (slots) on the top of the pan burner. ONVERSIONS All Santa Fe stoves are set up for use with With the decorative ceramic logs out of the Natural Gas when built. However, these units...
  • Page 22 SANTA FE 1 Gas-Fired Direct Vent heater HearthStone Quality Home Heating Products Inc Wiring Diagram - Santa Fe Wiring Color KEY: 50 60 70 80 90 Hearthstone 50 70 90 moment de l’entretien des commandes, étiquetez IRING NSTRUCTIONS Caution: Label all wires prior to disconnection tous les fils avant le débranchement.
  • Page 23: Arts Ists

    ! Do not substitute Materials. ARNING For replacement parts, or for information about parts or service, contact your authorized HearthStone retailer. For the name of the authorized retailer nearest to you, call (802) 888-5232, visit our website at www.hearthstonestoves.com, or e-mail us at inquiry@hearthstonestoves.com.
  • Page 24 115 VOLTS, LESS THAN 2.0A 4” / 100 mm EDGE OF SIDE TO: SIDEWALL Several Optional kits are available through HearthStone or your local HearthStone dealer. A blower assembly may be used (kit # 93-57010) , two different remote controls (kit #90-56912 & kit #90-56914) are optional as well.
  • Page 25: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Symptom Possible Cause Corrective Action 1. Pilot will not A. Insufficient gas pressure, A. Using the piezo sparker, try to light the light. air in the pilot line, or dirty or pilot. If it will not light, check the inlet gas kinked gas line.
  • Page 26 Symptom Possible Cause Corrective Action 3. Pilot burning, no A. Thermostat switch or A. Check thermostat/wiring for proper gas to main burner, wires defective. connections. Place jumper wire across valve knob in the terminals at thermostat. If burner comes on, "ON"...
  • Page 27 Symptom Possible Cause Corrective Action 8. Floating flames, A. Potentially dangerous A. Check the appliance input rate and reduce lazy ill-defined, incomplete combustion due if necessary. The air intake/exhaust flow quiet flames, which to incorrect air to fuel ratio system may be too restrictive or blocked (the roll around, (lack of combustion air or rate at which the exhaust leaves [draft]...
  • Page 28: Limited Warranties

    Original Purchaser (referred to as the “Stove” for simplicity) against any of the occurrences listed in this document that result from defects in material or workmanship. All obligations of HearthStone under this document commence on the date the Original Purchaser purchases the Stove (the “Purchase Date”).
  • Page 29 9. A defect in any part of the Stove if the Original Purchaser fails to comply with HearthStone’s or a Dealer’s request to ship the part or the Stove to HearthStone or a Dealer, as the case may be.
  • Page 30: Warranty Registration

    Purchaser to either return the defective part, or the entire Stove (if needed), with shipping prepaid, to HearthStone, or a Dealer, or allow a Dealer to make a service call at the place where the Stove is located. In the event the Original Purchaser refuses to allow a Dealer to make a service call, HearthStone, or a Dealer, as the case may be, will request that the Original Owner return the defective part, or the entire Stove (if needed), with shipping prepaid, to HearthStone or a Dealer.
