H H 1 1 / / 3 3 W W H H I I T T E E / / B B L L U U E E n n o o f f u u n n c c t t i i o o n n . .

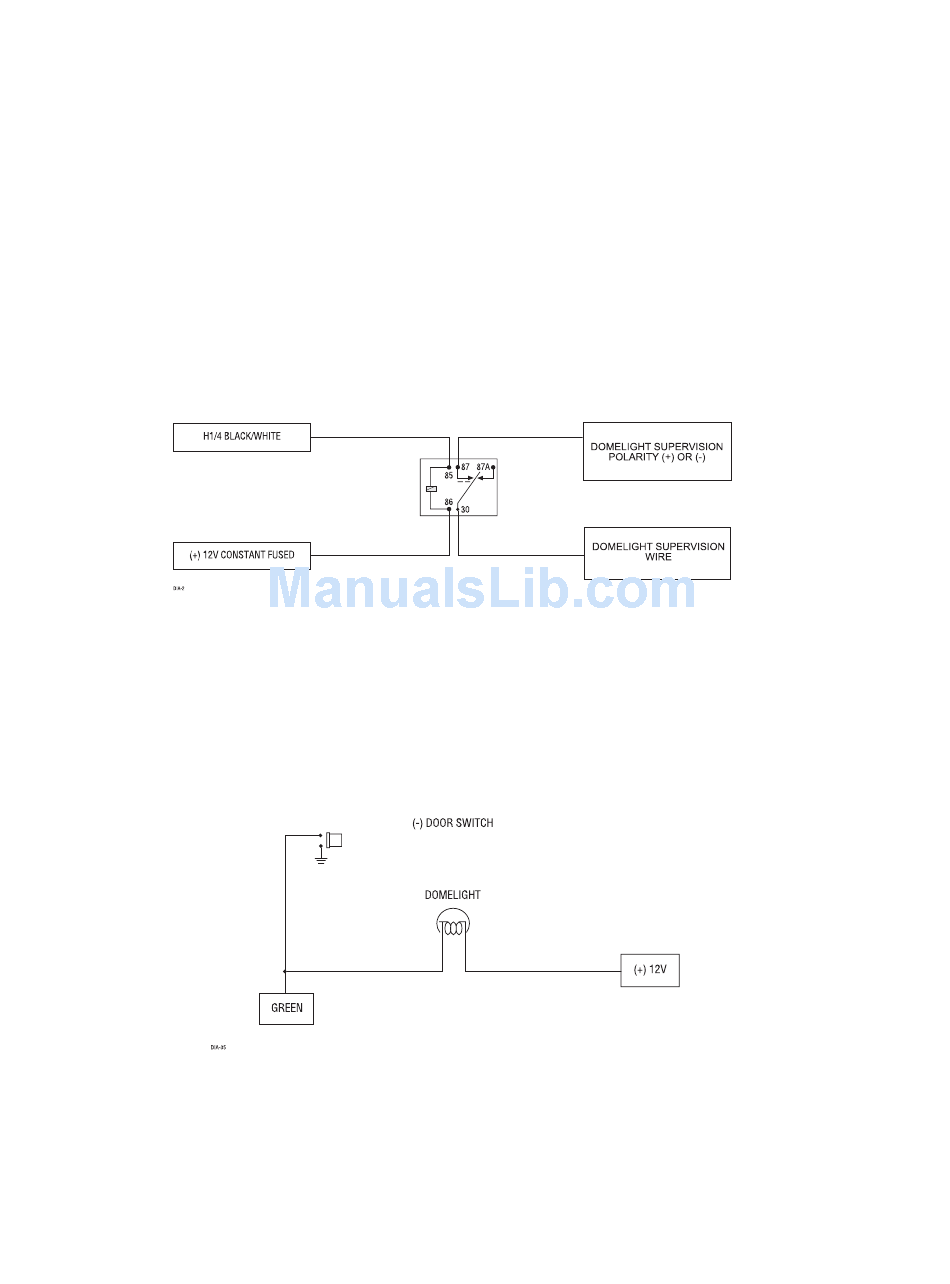

H H 1 1 / / 4 4 B B L L A A C C K K / / W W H H I I T T E E ( ( - - ) ) 2 2 0 0 0 0 m m A A d d o o m m e e l l i i g g h h t t - - s s u u p p e e r r v v i i s s i i o o n n o o u u t t p p u u t t : : Connect this wire to
the optional domelight supervision relay.
I I M M P P O O R R T T A A N N T T ! ! This output is only intended to drive a relay. It cannot be connected
directly to the domelight circuit, as the output cannot support the current draw of one
or more bulbs.
H H 1 1 / / 5 5 G G R R E E E E N N ( ( - - ) ) d d o o o o r r t t r r i i g g g g e e r r i i n n p p u u t t : Most vehicles use negative door trigger circuits.
Connect the green wire to a wire which shows ground when any door is opened. In
vehicles with factory delays on the domelight circuit, there is usually a wire that is
unaffected by the delay circuitry.
12
