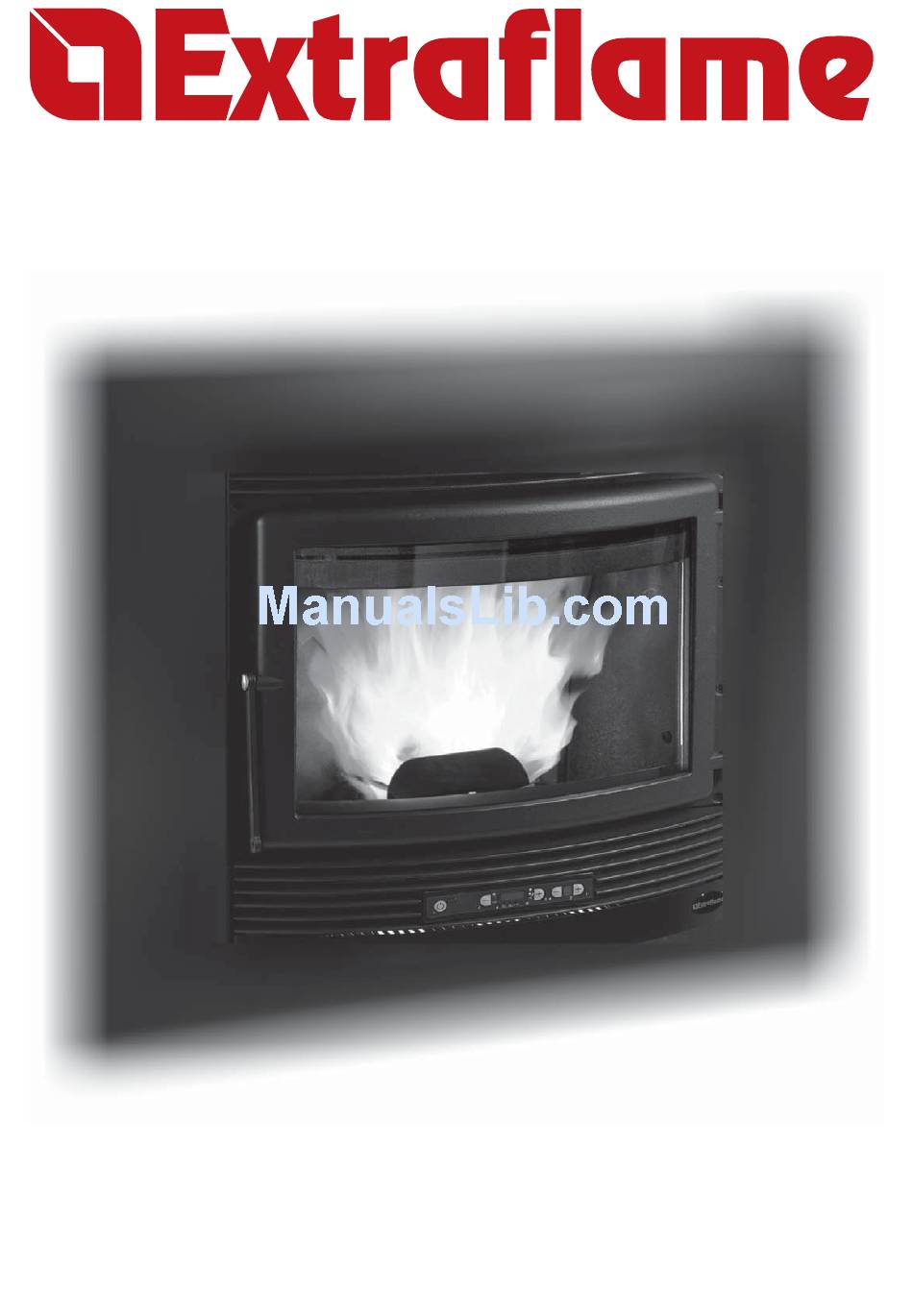

Stufe a Pellet

User Manual

COMFORT IDRO
Read the instructions carefully before installation, use and maintenance.
The instruction book is an integral part of the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COMFORT IDRO and is the answer not in the manual?

Questions and answers

Related Manuals for Extraflame COMFORT IDRO

Summary of Contents for Extraflame COMFORT IDRO

  • Page 1: User Manual

    Stufe a Pellet User Manual COMFORT IDRO Read the instructions carefully before installation, use and maintenance. The instruction book is an integral part of the product.
  • Page 3 Congratulations! You are now the owner of an Extrafl ame stove! The Extrafl ame pellet stove is an ideal heating solution. It utilises the most advanced technology and is manufactured to the highest standards with a contemporary design, allowing you to enjoy the ambience and warmth of a natural fl ame in complete safety.

  • Page 5: Table Of Contents

    CONNECTION TO EXTERNAL AIR INTAKES ......................... 24 INSULATION, TRIMS, FACINGS, AND SAFETY PRECAUTIONS ................24 NATIONAL, REGIONAL, PROVINCIAL AND MUNICIPAL LAWS ................24 Chapter 6 COMFORT IDRO INSTALLATION ......................25 POSITIONING ..................................25 ASSEMBLY ....................................26 ASSEMBLY ON EXISTING BASE ..........................26...
  • Page 6 INSTALLATION OF THE HYDRAULIC PART ........................28 NO COVERING PRESENT .............................. 28 ALREADY EXISTING COVERING ..........................28 AIR CIRCULATION PIPES ..............................31 Chapter 7 PRODUCT FUNCTIONALITY ........................35 CONTROL BOARD ................................. 35 CURRENT TIME ADJUSTMENT ............................35 FUNCTIONING CYCLE ................................. 35 BASIC INSTRUCTIONS ..............................

  • Page 7: Capitolo

    Capitolo 1 WARNINGS AND SAFETY DEVICES The stoves produced by our establishment are built with manufacturer. attention to the individual components in a way to protect Do not pull, disconnect, twist electric cables leaving the both the user and the installer from any accidents. It is stove, even if disconnected from the electric power supply therefore recommended that after any intervention on the mains.

  • Page 8: Technical Features

    Chapter 2 TECHNICAL FEATURES Features U.M. Value Weight Height Width Depth Flue exhaust pipe diameter Air intake pipe diameter Max. global heat output 14.0 Max. useful heat output 12.6 - useful output power to the air - useful output power to the water Min.
  • Page 9 Chapter 2 Comfort Idro with optional front pellet feed kit 1177 716,5 42,5 fi gure 2.1 TECHNICAL FEATURES...
  • Page 10 Chapter 2 Comfort Idro with optional support and lateral pellet loading kit 44,5 fi gure 2.2 TECHNICAL FEATURES...

  • Page 11: Chapter 3 What Is The Pellet

    Chapter 3 WHAT IS THE PELLET? Pellets are realised by subjecting wood shavings i.e. the rejects of pure wood (without paint), sawmill, carpenter products and products from other activities connected to working and transforming wood, to very high pressures. This type of fuel is absolutely ecological as no glues are used to hold it together. In fact, the compactness of the pellets is guaranteed through time by a natural substance that is found in wood: lignite.

  • Page 12: Optional Support Kit With Lateral Pellet Feeding

    Chapter 3 OPTIONAL SUPPORT KIT WITH LATERAL PELLET FEEDING If installation has been performed using this optional kit, the insert can be extracted or, more comfortably, use the appropriate lateral chute whenever a relevant opening has been made in the covering of the appliance.
  • Page 13 Chapter 3 Take the supplied fi re irons, attach them to the slots in the drawer and pull to maximum extension. CAST IRON Take the supplied Allen wrench, insert it into the GRID relevant seat and turn in an anti-clockwise direction until fully home.

  • Page 14: Standard Supply

    Chapter 3 During normal functioning the fl ue must always be as illustrated in the fi gure i.e. with the drawer completely closed. the front pellet loading drawer must only be open for the loading time in order to prevent product over-heating.

  • Page 15: Chapter 4 Safety Devices

    Chapter 4 SAFETY DEVICES FLUE EXHAUST BREAKAGE If the suction device stops, the circuit board immediately blocks the pellet supply. PELLET FEED MOTOR BREAKAGE If the motor reducer stops, the stove continues to function until the minimum cooling level is reached. NO IGNITION If a fl ame is not developed during the ignition phase, the appliance automatically attempts ignition again, this time without pellet feeding.

  • Page 16: Installation And Safety Devices

    Chapter 4 INSTALLATION AND SAFETY DEVICES The installation, relative plant connections, commissioning and inspection of correct functioning must be carried out perfectly, in total compliance with Standards in force, both national and regional, as well as these instructions. For Italy, installation must be carried out by authorised professional staff (law dated 5 March 1990 n°46). Extrafl ame S.p.A.
  • Page 17 Chapter 4 Domestic type heating appliances with automatic feed must have a fuel block thermostat or a cooling circuit prepared by the manufacturer of the appliance, activated by a thermal safety valve such as to guarantee that the limit temperature set by the Standard is not exceeded. Connection between the power supply unit and the valve must be free from interceptions.

  • Page 18: Assembly And Installation Instructions

    Chapter 5 Chapter 5 ASSEMBLY AND INSTALLATION INSTRUCTIONS The installation must comply with: UNI 10683 (2005) heat generators fed with wood and other solid fuels: installation. The chimneys must comply with: UNI 9731 (1990) chimneys: classifi cation according to thermal resistance. EN 13384-1 (2006) calculation method of the thermal and fl uid-dynamic features of the chimney.

  • Page 19: Installation

    Chapter 5 EXHAUST VENTING SYSTEM A system for fume exhaust venting that is independent from the appliance, composed of a pipe or channel, chimney or single fl ue, and chimney cap. FORCED DRAUGHT Air circulation by means of a fan driven by an electric motor. NATURAL DRAUGHT Draught resulting in a chimney/fl ue due to the diff erence in the volume mass existing between the (hot) fumes and the surrounding atmospheric air, without any mechanical suction aid installed inside or on top...

  • Page 20: Connection To The Exhaust Venting System

    Chapter 5 CONNECTION TO THE EXHAUST VENTING SYSTEM EXHAUST CHANNEL OR PIPE For the assembly of the exhaust channels it is imperative to use non-fl ammable materials that are resistant to combustion products and any condensates. It is forbidden to use fl exible metal pipes and asbestos cement for connecting the stove to the fl ue, also for pre- existing exhaust channels.

  • Page 21: Chimney Or Single Flue

    Chapter 5 the fl ue connection. It is forbidden to run other air feed channels or piping for utilities inside the exhaust channels, even if they are oversized. It is also forbidden to fi t manual draught adjustment devices on the forced draught appliance.
  • Page 22 Chapter 5 Windproof chimney cap < 3 m 3 - 5 % Flue Inspection Inspection fi gure 5.5 fi gure 5.6 < 3 m External insulated duct 45° Inspection 45° Inspection fi gure 5.7 fi gure 5.8 ASSEMBLY AND INSTALLATION INSTRUCTIONS...

  • Page 23: Connection To The Flue And Combustion Product Exhaust Venting

    Chapter 5 CONNECTION TO THE FLUE AND COMBUSTION PRODUCT EXHAUST VENTING The fl ue must receive exhaust from a single heat generator. Direct discharge towards enclosed areas, even when roofl ess, is forbidden. Direct discharge of combustion products must take place on the roof and the exhaust duct must have the features set forth in the section “Chimney or single fl ue”.

  • Page 24: Connection To External Air Intakes

    Chapter 5 CHIMNEYS, DISTANCES AND POSITIONING Distance between the Minimum height of the chimney Roof pitch crown and the chimney (measured from the outlet) β A (m) H (m) < 1,85 0,50 m beyond the crown 15° > 1,85 1,00 m from the roof <...

  • Page 25: Comfort Idro Installation

    Chapter 6 COMFORT IDRO INSTALLATION The Comfort Idro model is supplied with an iron Adaptation sliding base that allows to install it in a pre-existing Frame fl ue. This sliding base allows the easy extraction of the insert both for pellet feeding inside the feed-box and for any maintenance or cleaning at the end of the season.

  • Page 26: Assembly

    1: the display should switch on. The lower grill of the insert must lie at least 1 cm above the fi re surface in covering marble. fi gure 6.6 COMFORT IDRO INSTALLATION...

  • Page 27: Assembly With Support And Feed Kit

    Mount the hopper support for the pellet and insert The lower grill of the insert must lie it into the relevant coupling. at least 1 cm above the fi re surface in covering marble. COMFORT IDRO INSTALLATION...

  • Page 28: Installation Of The Hydraulic Part

    If the insert is installed inside an existing covering it is possible to proceed in 2 diff erent ways: Create a lateral opening on the left side of the covering in a way to access the fl exible pipes at the height of the collars. fi gure 6.12 fi gure 6.11 COMFORT IDRO INSTALLATION...
  • Page 29 6.18. Left side fi gure 6.16 fi gure 6.18 fi gure 6.17 Remove the fl exible pipe guide bracket by removing the 2 screws that fi x it Screws Bracket Bracket fi gure 6.19 fi gure 6.20 COMFORT IDRO INSTALLATION...
  • Page 30 (fi rst fi x the block using the metric screw and then connect the ring nuts paying attention to the gaskets) Re-mount the fl exible pipe guide bracket, the left side with the relative blocking rod and the upper cover. COMFORT IDRO INSTALLATION...

  • Page 31: Air Circulation Pipes

    6.25 fi gure 6.26 The lateral frames must be fi xed using the 2 supplied burnished 4.2 x 9.5 self-threading screws per side. The 2 sides are already perforated for fi xing the frames themselves. COMFORT IDRO INSTALLATION...
  • Page 32 Chapter 6 fi gure 6.27 fi gure 6.28 COMFORT IDRO INSTALLATION...
  • Page 33 From the clearance measurements of the stove given in the technical features, it is necessary to consider at least 50 mm of air in the upper part and on the 2 sides. The fl ue outlet pipe must always maintain a minimum distance of 50 mm from infl ammable parts. COMFORT IDRO INSTALLATION...
  • Page 34 Regarding the air intake box, it is possible to apply the intake pipe above the base (see fi gure above) or below (see fi gure below) depending on requirements. These operations must be carried out by an authorised technician. COMFORT IDRO INSTALLATION...

  • Page 35: Product Functionality

    Chapter 7 PRODUCT FUNCTIONALITY CONTROL BOARD REMOTE CONTROL SENSOR fi gure 7.1 ON/OFF BUTTON By pressing button 1 it is possible to switch the stove on and off automatically. AIR TEMPERATURE SETTING Buttons 2 and 3 are used to adjust the room temperature inside the house. FUNCTIONING POWER The heat power can be adjusted using buttons 4 and 5 Display D1 to view the various messages.

  • Page 36: Basic Instructions

    Chapter 7 BASIC INSTRUCTIONS The stove you have purchased uses pellet fuel. This type of material is obtained from natural waste from the machining of wood. By means of a special process that does not require the use of any binding agent and additive, the waste is compressed in industrial machinery under high pressure and they become solid wooden pellets.

  • Page 37: Normal Functioning

    Chapter 7 ATTENTION!!! DO NOT USE ANY INFLAMMABLE LIQUIDS FOR IGNITION DO NOT ALLOW THE BAG OF PELLETS TO COME INTO CONTACT WITH THE BOILING HOT STOVE DURING THE FILLING PHASE IN THE CASE OF CONTINUOUS NO IGNITION, CONTACT AN AUTHORISED TECHNICIAN NORMAL FUNCTIONING When ignition has taken place, the user can adjust the heating power using buttons 4 and 5.

  • Page 38: Remote Control

    Chapter 8 REMOTE CONTROL The heat setting, the room temperature, and automatic start/stop of the stove can be remote controlled. S = Luminous warning light that indicates which keys have been pressed. Correspondence of display keys with remote control keys 1 = p3+p5 2 = p2 3 = p3...

  • Page 39: Chapter 9 Room Thermostat

    Chapter 9 ROOM THERMOSTAT DIGITAL THERMOSTAT (AS PER STANDARD) The appliance can check the room temperature using a digital thermostat and show it on the display. When the insert is started and has entered normal functioning mode, display D1 will show a number (e.g. 21°C);...
  • Page 40 Chapter 9 At this point the external thermostat will control stove functioning in the following way: Closed contact thermostat the stove switches on and works at the set power, showing “T ON” on display D1. Open contact thermostat the stove switches off or stays off showing “STBY” on display D1. This function can be suspended temporarily by pressing key 1: If from “...

  • Page 41: User Parameters

    Chapter 10 USER PARAMETERS USER PARAMETERS WATER TEMPERATURE ADJUSTMENT Display D1 Display D2 Function 70°C Water Temperature Adjustment WEEKLY PROGRAMMER Display D1 Display D2 Function Activation/deactivation of the weekly programmer 00:00 Time 1st switch-on 00:00 Time 1st switch-off off 1 Ignition/switch-off consents for various days Installer parameter 00:00...
  • Page 42 Chapter 10 First of all the current day and time must be set using the “current day and time adjustment” sequence to give a reference to the function itself. To switch programming on press 3, hold it down and press 5 and then release both keys together. Move using key 5 until a fl ashing “0”...
  • Page 43 Chapter 10 Example: Initial value Function key 2 Final value Function key 3 MONDAY OFF 1 OFF 1 to ON 1 and vice versa OFF 1(time deactivated) Go to next day TUESDAY OFF 2 OFF 2 to ON 2 and vice versa OFF 2(time deactivated) Go to next day WEDNESDAY OFF 3 OFF 3 to ON 3 and vice versa OFF 3(time deactivated) Go to next day...

  • Page 44: Day-Night Temperature Function

    Chapter 10 Parameter 8 (D2=8 (fl ashing); D1=E.g. “OFF”) Set at “off ” using buttons 2 or 3, which is found before the time “00:00”, in a way to disable the switch-on of the 3rd time period. To confi rm and continue programming, press button 5. Press button 4 to go back to the previous parameter.
  • Page 45 Chapter 10 Parameter d (D2=D; D1=E.g. “25°C”) Using buttons 2 and 3 it allows to adjust the day time maximum temperature. To confi rm and continue programming, press button 5. Parameter E (D2=E; D1=E.g. “20°C”) Using buttons 2 and 3 it allows to adjust the night time maximum temperature. To confi rm and continue programming, press button 1.

  • Page 46: Pellet Feed Adjustment

    Chapter 10 PELLET FEED ADJUSTMENT If the stove has functioning problems owing to the quantity of pellets, adjust pellet feeding directly from the control board. The problems correlated tot he amount of fuel can be divided into 2 categories: LACK OF FUEL: the stove can never develop a suitable fl ame, tending to remain very low even at high powers.

  • Page 47: Chapter 11 Cleaning

    Chapter 11 CLEANING Maintenance operations guarantee correct functioning of the product through time. Failure to comply with these operations can jeopardise the safety of the product. CLEANING THE BRAZIER The brazier must be cleaned every day. remove brazier from relevant compartment and free the holes using the appropriate fi re irons supplied (see fi gure 59) remove the ash from the brazier using a suction...

  • Page 48: Cleaning The Heat Exchanger (Monthly)

    Chapter 11 CLEANING THE HEAT EXCHANGER LOCKBOLT (MONTHLY) The heat exchangers chamber must be cleaned every month as the soot deposited on the rear of the cast iron hearth wall blocks the regular fl ow of fumes. To access the heat exchangers, remove the central piece from the hearth wall, following the operations described below: Remove the brazier from its location...

  • Page 49: Door, Ash Drawer And Brazier Gaskets

    Chapter 11 DOOR, ASH DRAWER AND BRAZIER GASKETS The gaskets guarantee the tightness of the stove and its consequent good functioning. These must be checked regularly: if they should be worn or damages they must be replaced immediately. These operations must be carried out by an authorised technician. For correct functioning, the stove must undergo routine maintenance by an authorised technician, at least once a year.

  • Page 50: Chapter 12 Product Display Tables

    Chapter 12 PRODUCT DISPLAY TABLES SIGNALS Signals Reason Solution Display When the stove switches off (normal or caused by A new ignition is attempter when the stove has an alarm) it is necessary to wait until it cools down ATTE just been switched off (normal switch-off or completely, therefore clean the brazier.
  • Page 51 Chapter 12 ALARMS Signals Reason Solution Display It is on in the presence of one of the alarms described below and is accompanied by the relative signal in display D1, which Indicates the presence of an alarm identifi es the cause. To reset the alarm, just hold key 1 down for 3 seconds when the stove is completely cold.
  • Page 52 Chapter 12 LUMINOUS INDICATORS Signals Reason Solution Display It is on when the weekly programmer is active. It indicates weekly programmer For all settings relative to the following function see the functioning “Weekly programmer” function. It is on/off when the room temperature is below/above the It indicates the Room thermostat set threshold.

  • Page 53: Warrant

    Chapter 13 WARRANTY EXTRAFLAME S.p.A. is the owner of the rights described by Legislative Decree no. 24 of 2 February 2002, and the following warranty does not alter such rights. This warranty off ered by Extrafl ame S.p.A., based in Montecchio Precalcino (VI), Italy, in Via dell’Artigianato, 10, covers all the parts of the stoves supplied by Extrafl ame S.p.A., and includes repair or replacement, free...
  • Page 54 SERVICE UNDER WARRANTY The service request must be forwarded to the vendor. RESPONSIBILITY EXTRAFLAME S.p.A. shall not be liable for any direct or indirect damage caused by or depending on the product. COMPETENT COURT For any controversy, the competent court shall be the court of Vicenza, Italy.
  • Page 55 Notas...
  • Page 56 Questo manuale, pertanto, non può essere considerato come un contratto nei confronti di terzi. Questo documento è a vostra disposizione all’indirizzo www.extraflame.it/support 004275330 - ING Manuale utente Comfort Idro REV 005 08/10/09...
