240V Interconnectable Main Operated Alarm
Thank you for purchasing Quell 240V hard-wired photoelectric
smoke alarm. Please read through our guide in full.
Chubb Fire & Security Pty Limited recommends for maximum
protection that both ionisation and photo-electric (optical) smoke
alarms be installed. Ionisation sensing alarms may detect
invisible fire particles (associated with fast flaming fires) sooner
than photoelectric alarms. Photoelectric sensing alarms may
detect visible fire particles (associated with slow smouldering
fires) sooner than ionisation alarms. Home fires develop in
different ways and are often unpredictable.
Electrical rating 240V AC,
50Hz 80mA max per alarm
(maximum 80mA for originating unit
with 24 Devices interconnected).
Chubb Fire & Security Pty Limited
149-155 Milton Street, Ashfield NSW 2131, Australia
THE OWNER'S MANUAL SHOULD BE LEFT IN A SAFE PLACE
Installerʼs Manual
www.quell.com.au
FOR THE PROPERTY OWNER.
Smoke alarm
For models: Q1300
P/N:130413, 132819
1385-7210-02
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Quell Q1300
Summary of Contents for Quell Q1300
-
Page 1: Smoke Alarm

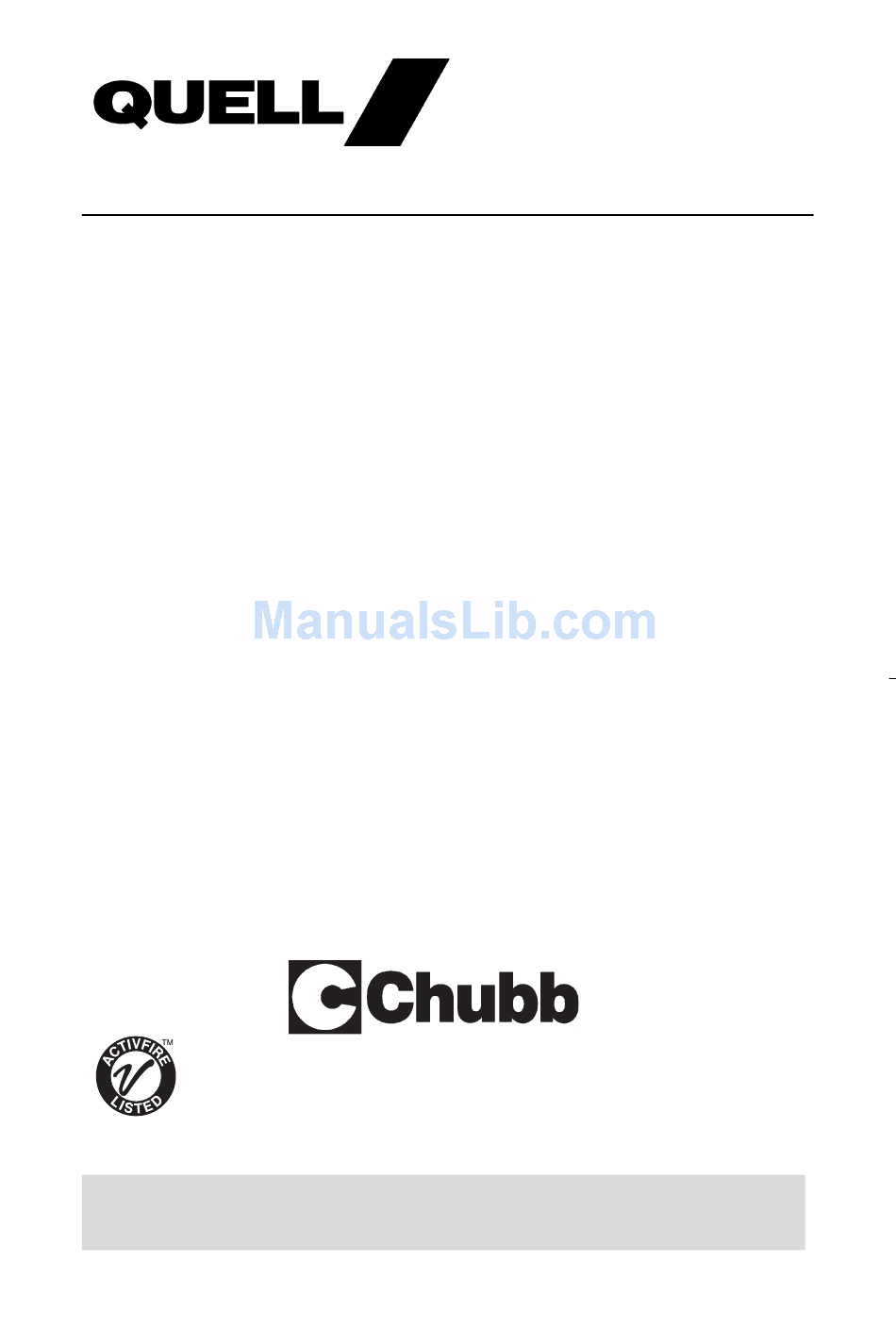

Installerʼs Manual 240V Interconnectable Main Operated Alarm For models: Q1300 Thank you for purchasing Quell 240V hard-wired photoelectric smoke alarm. Please read through our guide in full. Chubb Fire & Security Pty Limited recommends for maximum protection that both ionisation and photo-electric (optical) smoke alarms be installed. -
Page 2: Table Of Contents
Contents Section 1. Installation Instructions ..........1 Section 2. Recommended Locations ..........2 Section 3. Locations to be Avoided..........4 Section 4. Installing Alarm.............6 Section 5. Interconnecting.............7 Section 6. Initial Testing and Checking of Alarm......7 Section 7. L.E.D. Status..............8 Section 8. Maintenance..............8 Section 9. Battery Replacement............8 Section10. -
Page 3: Installation Instructions
1. Installation Instructions This alarm is designed for installation by a qualified (licensed) electrician, in accordance with current Building Code of Australia (BCA) Regulations and to any other local or building codes that may apply. • Read these instructions thoroughly before proceeding. Peopleʼs lives depend on it. -
Page 4: Recommended Locations
2.Recommended Locations • Install the first alarm in the immediate area of the bedrooms. Install additional alarms to monitor the exit path as the bedrooms are usually farthest from the exit. If more than one sleeping area exists, install additional alarms in each sleeping area (Image 1A). -
Page 5: Smoke Alarms
BEDROOM KITCHEN BEDROOM BEDROOM BEDROOM HALL BEDROOM LIVING ROOM BEDROOM LIVING KITCHEN ROOM Smoke Alarms for Minimum Protection Smoke Alarms for Additional Protection BASEMENT Ionization Type Smoke Alarms with “Hush” Control or Photoelectric Type SINGLE FLOOR PLAN MULTIPLE FLOOR PLAN IMAGE 1B IMAGE 1A •... -
Page 6: Locations To Be Avoided
3. Locations to be Avoided 3A • Do not install within 0.9 m (3 ft) of the following: The door to a kitchen, or a bathroom that contains a tub or shower, forced air supply ducts used for heating or cooling, ceiling or whole house ventilating fans, or other high air-flow areas. - Page 7 IMAGE 2A 30 cm (12 in) MINIMUM CEILING DO NOT INSTALL BEST PLACEMENT ACCEPTABLE PLACEMENT SIDE WALL 500mm NOT IN THIS AREA 1000mm DEAD AIR ANYWHERE IN THIS AREA DO NOT INSTALL PEAK CEILING 500mm IMAGE 2B NOT IN THIS AREA 1000mm ANYWHERE IN THIS DEAD AIR...
-
Page 8: Installing Alarm
4. Installing Alarm • These are mains powered alarms, so isolate the mains supply before commencing installation. This alarm is designed for installation by a qualified (licensed) electrician, in accordance with current Building Code of Australia (BCA) Regulations and to any other local or building codes that may apply. -
Page 9: Interconnecting
3 core & earth cabling, for interconnect line. If installing using old cabling (different colors), take great care . • A maximum of 24 Quell devices may be interconnected in a multiple station arrangement. • Crossing line and neutral connections or line and interconnect connections will fatally damage all interconnected alarms invalidating the guarantee. -
Page 10: Status
7. L.E.D. Status • Green L.E.D. is lit when AC power is present. • Red L.E.D. blinks to indicate normal operation of alarm function (if model with battery back up, also indicates healthy battery). In alarm state (i.e. triggered), L.E.D. will flash rapidly. When interconnected, only triggering alarm will have this state. -
Page 11: Battery Changing
• The use of other batteries may have a detrimental effect on operation of the smoke alarm or may cause the battery to explode resulting in injury or fire. • Do not use rechargeable batteries. • f a chirping noise is present after this, wait for 10 minutes to elapse . NOTE: TEST ALARM USING TEST BUTTON AFTER BATTERIES ARE REPLACED. -
Page 12: Section10. Repair/Servicing
10. Repair/Servicing • If the alarm is not functioning, first check the troubleshooting section. If this does not rectify the problem: • Consult your installer, wholesale distributor or landlord for advice if property is rented. • There are no user serviceable parts, except for models with loose batteries. - Page 13 Although smoke alarms can help save lives by providing an early warning of a fire, they do not prevent property damage. Home owners and renters should have adequate insurance to protect their property. If after reviewing this manual you feel that your smoke alarm is defective in any way, do not tamper with the unit.
-
Page 14: Section12. Troubleshooting
Check via Test Button. Interconnected See part 1b above – consult a qualified electrician alarms do not sound or your Landlord to remedy as soon as possible. when test button is pressed and held. Consult our website for additional information and help www.quell.com.au... -
Page 15: Section13. Warranty & Contact Details
13. Warranty & Contact Details TEN YEAR LIMITED WARRANTY Warranty Chubb warrants to the original consumer purchaser that each new smoke alarm will be free from defects in materials and workmanship under normal use for a period of 10 years from the date of purchase. - Page 16 ABN 47 000 067 541 A UTC Climate, Controls & Security Company 149-155 Milton Street, Ashfield NSW 2131 Australia Telephone: 1800 654 435 Website: www.quell.com.au Chubb New Zealand Limited A UTC Climate, Controls & Security Company 3 Fisher Crescent, Mt Wellington, Auckland, New Zealand Telephone: 09 270 7288 Website: www.quell.co.nz...
