Quell Q4000DCS-WCB User Manual

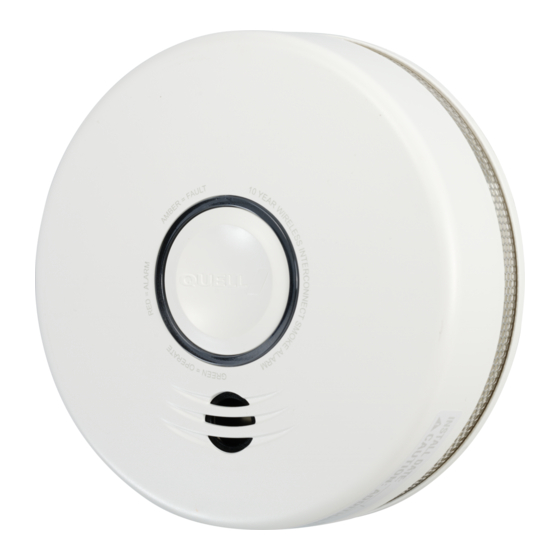

Intelligent wireless smoke alarm
Hide thumbs Also See for Q4000DCS-WCB:
Table of Contents

Advertisement

Quick Links

IntellIgent WIreless
smoke Alarm User guide
Photoelectric Smoke Alarm with Voice
and Wireless Interconnect – Battery Operated
Model Q4000DCS-WCB
Model Q4000DCS-WCL
Model Q4000DCS-WBB
Model Q4000DCS-WBL
Model Q4000LDCS-WCH (Safety Light)
Model Q4000LDCS-WBH (Safety Light)
WIreless Interconnect:
You do NOT need a home wi-fi system to use
these units. Multiple wireless units create their
own independent wireless alarm network.
Quell alarms connect to each other wirelessly
via communication on the 915-928 MHz band.
PhotoelectrIc smoKe AlArm
10-yeAr seAled
lIthIUm bAttery
WIreless Interconnect
VoIce AlArm
P/N: 137071, 137073, 137077,
137072, 137074, 137078
P/N:0316-7201-02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q4000DCS-WCB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Quell Q4000DCS-WCB

Summary of Contents for Quell Q4000DCS-WCB

  • Page 1 You do NOT need a home wi-fi system to use these units. Multiple wireless units create their own independent wireless alarm network. Quell alarms connect to each other wirelessly via communication on the 915-928 MHz band. PhotoelectrIc smoKe AlArm 10-yeAr seAled...
  • Page 2 Please thoroughly read this user guide and save the document for future reference and to pass on to any subsequent owner. Quell® is a registered trademark of Kidde Australia Pty Ltd. Copyright © 2022 Kidde Australia Pty Ltd. All rights reserved.

  • Page 3: Table Of Contents

    Contents 1. Product features ......4 2. Product Specifications ..... . . 4 3.

  • Page 4: Product Features

    Radio Frequency 925MHz Sensor Photoelectric Wireless Interconnecting up to any combination of 23 QUELL wireless smoke alarms models. Compatible Smoke Alarms models are Q2300W and Q4000 Series Wireless Range At least 100m line of sight. Distance vary depending on obstructions.

  • Page 5: Recommended Locations For Smoke Alarms

    3. Recommended Locations for Smoke Alarms refer to your local state and federal laws or contact your local fire brigade to determine the minimum installation requirements (Figure 3.1 A and Figure 3.1 b ). recommended locations • In every room where someone sleeps with the door closed. The closed door may prevent an alarm located outside from waking the sleeper.
  • Page 6 DINING KITCHEN BEDROOM BEDROOM ROOM LIVING BEDROOM HALL BEDROOM ROOM BEDROOM LIVING Smoke Alarms for Minimum Protection KITCHEN ROOM Smoke Alarms for Additional Protection Not within 3m of cooking appliances BASEMENT MULTIPLE FLOOR PLAN SINGLE FLOOR PLAN FIGURE 3.1 A FIGURE 3.1 B HALL BEDROOM...
  • Page 7 300 mm CEILING MINIMUM 500mm NOT IN THIS AREA 1000mm DEAD AIR ANYWHERE IN THIS AREA DO NOT INSTALL BEST PLACEMENT DO NOT INSTALL ACCEPTABLE PLACEMENT CEILING APEX SIDE WALL FIGURE 3.2 A 500mm NOT IN THIS AREA 1000mm ANYWHERE IN THIS DEAD AIR AREA Smoke alarm should...

  • Page 8: Locations To Avoid

    4. Locations To Avoid • Smoke alarms should not be installed within 0.9m(3 ft) • of the door to a bathroom containing a tub or shower • forced air supply ducts used for heating or cooling • ceiling or whole house ventilating fans •...

  • Page 9: Installation

    915-928 MHz band. • A maximum of 24 Quell Safety devices may be interconnected. The interconnect system should not exceed the following individual limits: 12 smoke alarms and/or 18 alarms total (smoke, CO, Smoke/ CO Combination, heat, etc.) and/or 6 remote signaling devices and / or relay modules.

  • Page 10: Installation / Mounting Instructions

    6. Installation / Mounting Instructions cAUtIon: thIs UnIt Is seAled (InclUdIng the bAttery). the coVer Is not remoVAble! Once the steps to setup the wireless alarm network have been completed(See section 7), please proceed to the following installation steps. 1. To obtain aesthetic alignment of the alarm with the hallway or wall, the “A” line on the mounting bracket should be parallel with the hallway when ceiling mounting or horizontal when wall mounting.

  • Page 11: Activation And Wireless Alarm Network

    7. Activation and Wireless alarm network 7.1 Setting Up a Wireless Alarm Network Creating an interconnected wireless alarm network is a simple process, with ACTIVATION intelligent “self-enrollment” features, and user-friendly voice prompts. TOOL A. remoVe All deVIces From theIr PAcKAgIng b.

  • Page 12: Adding Another Device To An Existing Wireless Alarm Network

    F. WIreless setUP comPlete! If all devices flash green and “Sonar” ping has stopped, the devices are now connected. Congratulations! ImPortAnt: If for some reason, you forget which unit is the host, follow these simple steps to re-confirm the host and the Peer units.

  • Page 13: Resetting A Device's Wireless Settings

    d. relAX And WAIt “Success, now Wait until the new device has connected to the network. Once connected, connected!” the new device will speak, “Success now connected!” • Once connected, the light ring will glow green. e. FInIsh AddIng neW deVIce - comPlete WIreless netWorK setUP Figure 7.2-D Press and hold the button on the INSTALLED device for 5 SECONDS until you...

  • Page 14: Operation And Testing

    8. Operation and Testing operation The alarm is operating once it is activated and testing is complete. When products of combustion (smoke) are sensed, the unit sounds a loud alarm with voice messages. See Sections 9 and 10 for alarm signal descriptions. testing Test your alarm weekly by pressing and releasing the test button quickly.

  • Page 15: Troubleshooting Guide

    Voice “Temporarily Silenced.” (after button push during network error) If you require further information please contact Product Support at 1800 654 435 or write us at: Kidde Australia Pty Ltd, Quell Warranty Returns, 10 Ferntree Palce, Notting Hill, Vic, 3168...
  • Page 16 Network Error Troubleshooting Tips If you have a unit (or units) in network error and you would like to silence them, you can push and release the Test/Hush button once on each unit in network error to silence them for 24 hours at a time. NOTE: when you do this, the red LED will flash out an error code (number of flashes) when the Test/Hush button is push/released once.
  • Page 17 4. Once you have located the Host of the wireless network, take the host down and swap it with the unit that was deemed to be in the center of the house (found in steps 1 and 2). 5. Go to each unit that is in network error and press/hold the button on that unit for 4-5 seconds until you hear 2 beeps. a.

  • Page 18: Other Alarm Visual And Audible Indicators

    10. Other Alarm Visual and Audible Indicators Operational Mode Visual Indications Audible Indications Action/Note: normal (standby) Green LED flashe approx every 60 sec. test (button press • 4 patterns of Red/Amber/Green. • Button press sound Perform Test/Hush button when no alarm press once a week to verify •...

  • Page 19: Recognizing Nuisance Alarms

    11. Recognizing Nuisance Alarms smoke nuisance hUsh : If you know why the alarm is sounding, and you can verify that it is not a life threatening situation, you can push the button on the initiating unit (green LED flashing every second) to silence the alarm for 8-10 minutes. If the smoke is not too dense, that unit, and all interconnected units will silence.

  • Page 20: Battery

    12. Battery note: This alarm is powered by a non-replaceable, sealed lithium battery system. No battery installation or replacement is necessary for the life of the alarm. ImPortAnt: Constant exposure to high or low humidity or temperatures may reduce battery life. WArnIng: no serVIceAble PArts InclUded.

  • Page 21: Cleaning Your Alarm

    14. Cleaning Your Alarm your Alarm should be cleaned at least once a year You can clean the interior of your alarm (sensing chamber) by using compressed air or a vacuum cleaner hose and blowing or vacuuming through the openings around the perimeter of the alarm. The outside of the alarm can be wiped with a damp cloth.

  • Page 22: What To Do When The Alarm Sounds

    16. What To Do When The Alarm Sounds • ALeave immediately by your escape plan. Every second counts, so don’t waste time getting dressed or picking up valuables. • While leaving, don’t open any inside door without first feeling its surface. If hot, or if you see smoke seeping through cracks, don’t open that door! Instead, use your alternate exit.

  • Page 23: Warranty & Contact Details

    Quell warrants to the original consumer purchaser that each new smoke alarm will be free from defects in materials and workmanship under normal use for a period of 10 years from the date of purchase. To the extent permitted by law, Quell agrees to repair or replace (at our discretion) any defective product on presentation of the proof of purchase.

  • Page 24: Service

    During the specified warranty period Kidde Australia Ltd will repair or replace, at its discretion any defective Quell alarms that are returned in a postage paid package to the following address: Kidde Australia Pty Ltd, Quell Warranty Returns, 10 Ferntree Palce, Notting Hill, Vic, 3168 Please include your name, address and phone number along with a brief description of what is wrong with the unit.
