Note:

This feature needs to be programmed "On" to function correctly (see

System Feature Menu #1, feature #8).

GRAY/BLACK

(-) DIESEL WAIT TO START INPUT

H2/7

Connect this wire to the wire in the vehicle that sends the signal to turn on the

WAIT-TO-START bulb in the dashboard. In most diesels the wire is negative

(ground turns on the bulb) and the GRAY/BLACK wire can be directly connected

to the wire in the vehicle. If the vehicle uses a positive wire (12V to turn on the

bulb) a relay must be used to change the polarity.

The system has a programmable onboard timer (See Feature menu #3, feature

#9) so it is not mandatory to connect to the wait-to-start wire in the vehicle.

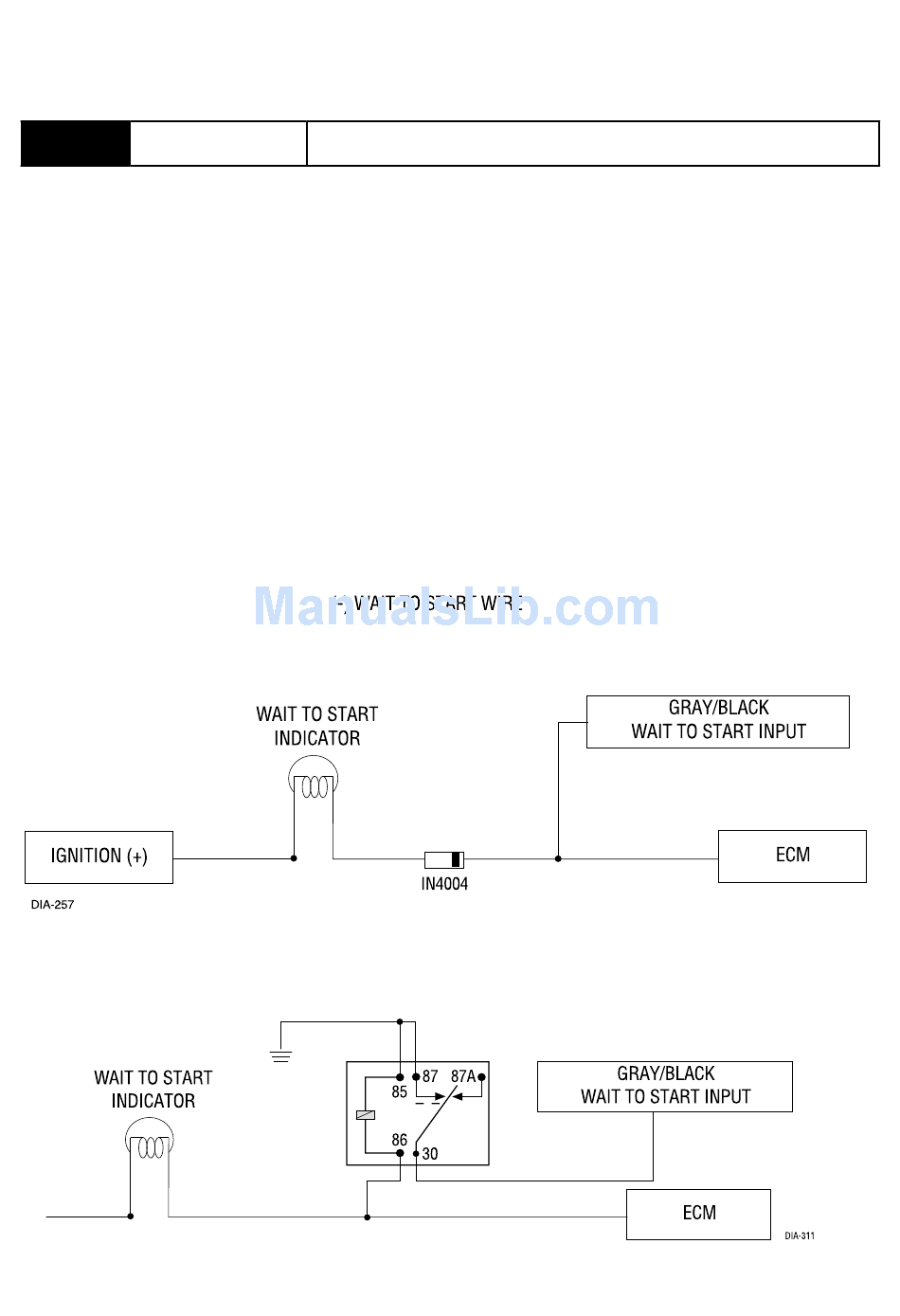

Note: A 1-amp diode must be installed in line on the factory wire between the

wait-to-start indicator and the ECM. (See the following diagram for details).

(+)WAIT-TO-START WIRE
