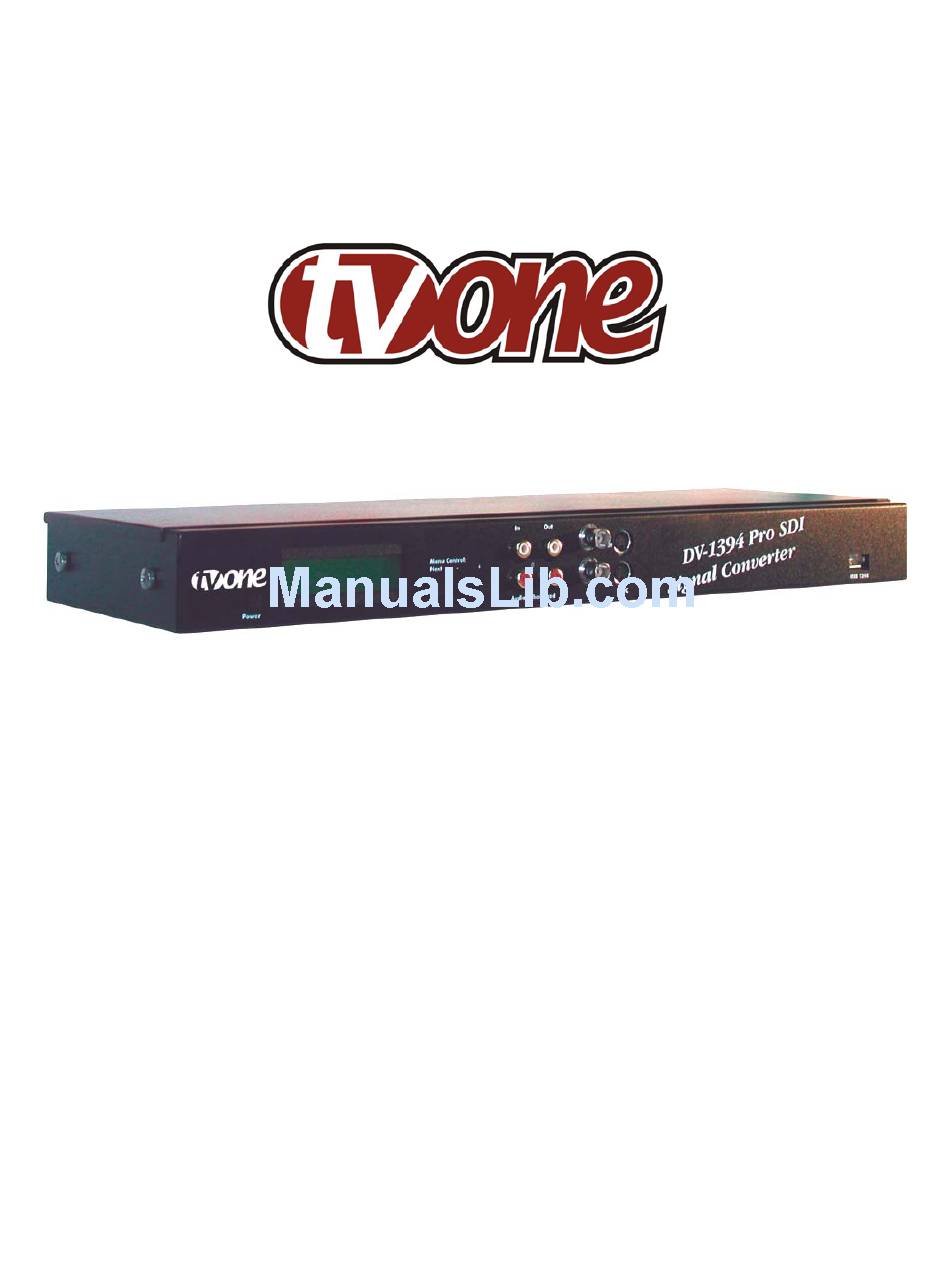

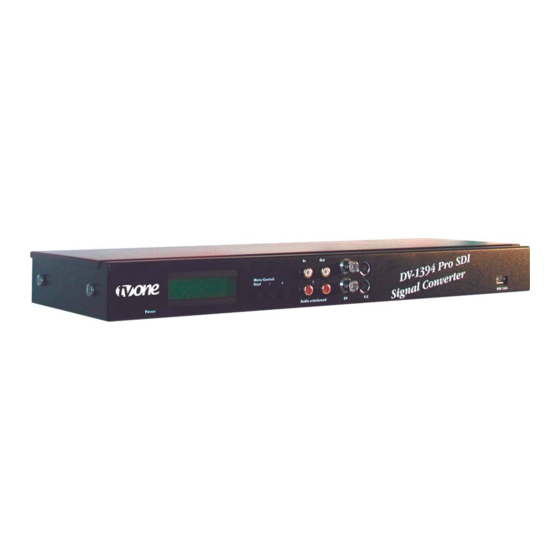

  • Page 1 Instruction Manual DV-1394 Pro-SDI Analog Converter...

  • Page 3: Table Of Contents

    Table Of Contents Introduction 2.0 & Multi-Language Safety and IPR Information Specifications Package Contents Connecting the Hardware Operating The Unit Troubleshooting Limited Warranty 10.0 Regulatory Compliance 11.0 Contact Information...

  • Page 4: Introduction

    Switchers and Distribution Amplifiers. Liability Statement Every effort has been made to ensure that this product is free of errors. TV ONE cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising from its use. It is the responsibility of the user of the hardware to check that it is suitable for his/her requirements and that it is installed correctly.
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS To insure the best from this product, please read this manual carefully. Keep it in a safe place for future reference. To reduce the risk of electric shock, do not remove the cover from the unit. No user serviceable parts inside. Refer servicing to qualified personnel. POWER AND CONNECTIONS This unit is not disconnected from the AC power source as long as it is connected to the wall outlet.
  • Page 6 INTELLECTUAL PROPERTY Some IC chips in this product include confidential and/or trade secret property. Therefore you may not copy, modify, adapt, translate, distribute, reverse engineer, reverse assemble, or decompile the contents thereof.
  • Page 7 IMPORTANT: CONSIGNES DE SECURITE Afin de tirer le meilleur de ce produit, merci de lire attentivement ce manuel. Gardez-le dans un endroit sûr pour pouvoir le consulter à nouveau. Afin de réduire le risque de choc électrique, ne retirez pas l’unité de sa protection. Aucune pièce réparable par l’utilisateur à...
  • Page 8 AERATION Les rainures et les ouvertures sur les cotés de l’unité servent à l’aérer. Pour permettre une utilisation sûre, évitez d’obstruer ces ouvertures et assurez-vous que l’unité est installée dans un endroit bien aéré. PROPRIETE INTELLECTUELLE Certaines puces IC dans ce produit contiennent des éléments propriétaires confidentiels et/ou des secrets commerciaux.
  • Page 9 INSTRUCCIONES IMPORTANTES DE SEGURIDAD Para sacar el mejor provecho de este producto, léase este manual con detenimiento. Guárdelo en un lugar seguro para poder hacerle referencia en el futuro. Para reducir el riesgo de calambre, no quite la cubierta del aparato. No hay piezas utilizables dentro.
  • Page 10 VENTILACIÓN El aparato viene provisto de ranuras y agujeros en los lados para la ventilación. Para asegurar una operación eficaz, se debe evitar la obstrucción de estos agujeros y también asegurar que el aparato se instale en una zona con adecuada ventilación. PROPIEDAD INTELECTUAL Algunos chips con circuito integrado de este producto incluyen propiedad confidencial y/o propiedad de secreto comercial.
  • Page 11 WICHTIGE SICHERHEITSVORSCHRIFTEN Lesen Sie diese Bedienungsanleitung bitte sorgfältig, um Ihr Produkt optimal nützen zu können, und bewahren Sie sie zum späteren Nachschlagen an einem sicheren Ort auf. Entfernen Sie bitte keinesfalls die Abdeckung, um der Gefahr eines Stromschlags vorzubeugen. Im Inneren des Geräts befinden sich keine Teile, die vom Benutzer gewartet werden können.
  • Page 12 BELÜFTUNG Seitliche Schlitze und Öffnungen sorgen für die Belüftung des Geräts. Um die ordnungsgemäße Belüftung zu gewährleisten, dürfen diese Öffnungen nicht verdeckt werden. Sorgen Sie außerdem dafür, dass das Gerät an einem gut belüfteten Ort aufgestellt wird. GEWERBLICHES EIGENTUM Einige integrierte Schaltkreise in diesem Produkt enthalten vertrauliche Informationen und/oder Betriebsgeheimnisse.
  • Page 13 BELANGRIJKE VEILIGHEIDSINSTRUCTIES Lees deze handleiding zorgvuldig door om het beste uit uw product te halen. Bewaar het op een veilige plek voor raadpleging in de toekomst. Haal nooit het omhulsel van de eenheid af, dit om de kans op een elektrische schok te verminderen.
  • Page 14 VENTILATIE De sleuven en openingen aan de zijkant van de eenheid zijn voor ventilatie. Zorg er voor dat de eenheid op een goed geventileerde plek geïnstalleerd wordt zodat deze betrouwbaar werkt. INTELLECTUEEL EIGENDOM Sommige IC chips in dit product bevatten vertrouwelijke informatie en/of fabrieksgeheimen.

  • Page 15: Specifications

    SPECIFICATIONS Video Inputs/Outputs Composite Video 1x via BNC Connector S-Video (Y/C) 1x via 4-Pin Mini-DIN Connector YUV Component 1x via 3 BNC Connectors SDI (270Mbits/Sec) 1x SMPTE 259M/CCIR656-III via BNC Connector Genlock (Looping) 1x Composite Video via 2 BNC Connectors Television Standards NTSC, PAL-B,G Audio Inputs/Outputs...

  • Page 16: Package Contents

    Note: Please retain the original packing material should the need ever arise to return the unit. If you find any items are missing, contact your reseller or TV One immediately. Have the Model Number, Serial Number and Invoice available for reference when you...

  • Page 17: Connecting The Hardware

    Connector Connectors Unbalanced S-Video (Y/C) Power Mode Stereo Audio In/Output: 5 Control Output: RCA Pin Mini DIN Connectors Connectors DV-1394 Pro-SDI Front Panel Connections DV/DVCAM In/Output: 6 Analog Balanced Power Pin IEEE Component I/O Stereo Audio Connector 1394 Connector Ext.

  • Page 18: Operating The Unit

    Before you turn the DV-1394 Pro-SDI on, connect and power up any Hardware or Computers you intend to use with the device. This is done so that the DV-1394 Pro-SDI will be able to identify the signals present on its input and output connectors.
  • Page 19 Mode: Encode/Decode If the Encode Mode is selected you can use the following Menus as well: Video Input: CVBS, Y/C, YUV, SDI Audio Input: unbalanced, balanced, AES/EBU Audio Samplerate: 32 Khz 12 bit, 48 Khz-16 Bit Analog Audio Out: Level Adjustment between 0-63 dB Connecting the DV 1394 Pro SDI to a Windows PC If your PC is equipped with a OHCI compatible IEEE 1394 Interface (Firewire board) you’ll be able to connect the DV Interface of the DV 1394 Pro SDI with your PC.
  • Page 20 NTSC – PAL Version The DV-1394 Pro SDI is available in a PAL and NTSC Version. This PAL/NTSC difference in the DV-1394 pro SDI is only relevant if you work with a PC System. If you just transcode Video signals from a Betacam (or other VTR) to a DV VTR or vice versa it does not matter which version you are using.
  • Page 21 RS 232 Interface: The RS 232 Interface is designed to control the functions of the DV-1394 Pro SDI via a Windows PC and also to update the Firmware. The detailed description of the command structure is included later in this manual RS 422 Interface: The DV-1394 Pro SDI has a RS 422 Interface that allows to control a Betacam protocol conform VTR by the NLE software and the Firewire Interface, so you don’t need a extra...
  • Page 22 The Commands are tested to work with the following edit suits on a PC: - Adobe Premiere 6.5 - Avid Xpress DV 3.5.4 - Canopus Storm edit - Canopus Edius The batch digitizing does not function with Ulead software however simple control commands are possible.
  • Page 23 COMO Control Software COMO Corporation provides a Windows based Control Software for the DV-1394 Pro SDI with an integrated Firmware Update Function. The User Interface in build in Tabs. The first Tab is for the selection and adjustment the Video Inputs, Video Level etc. To adjust a Video Level, hold the Mouse Button on the Slider and move it.
  • Page 24 The third Tab shows the DV Format settings. Please note that the DVC Pro only works in the decoding Mode: e.g. Deck to SDI. The fourth Tab shows the Misc. Settings. This is where you would select a COM Port for communication between PC and DV-1394 Pro SDI.
  • Page 25 The fifth Tab shows Upgrade Section of the Control Software. If you are unsure of your current firmware version status versus the latest available version, contact your dealer or TV One.
  • Page 26 RS232 Command set It’s possible to control the DV1394Pro SDI via RS232. The Baud rate is fixed at 56700 Baud, 8 bit 1 stop bit, no parity. You’ll need a one-to-one cable with a female connector for the PC side and a male connector for the DV1394Pro SDI side. The pinout of the cable is as follows: Pin 2 –...
  • Page 27 2. command group byte: command group 3. command byte: command code 4. data bytes: value / return value 6. checksum: command group byte + command byte + data bytes The checksum is simply added the bytes. Overflow or carry bits are ignored, since it is only an eight bit value.
  • Page 28 7.8.2 Command groups The following command groups are available. Group Name Info 0x01 Video Video In and out settings 0x02 Audio Audio In and out settings 0x03 DV Format DV Format settings 0x05 MISC miscellaneous settings 7.8.3 Video The command group value for the Video group is 0x01. Command code Info Range return value @...
  • Page 29 If no return value is given, it returns the value written.
  • Page 30 7.8.4 Audio The command group value for Audio is 0x02. Command Info Range return value @ default value 0x82 0x01 Audio input: 0..2 0..2 unbalanced, 0:unbalanced, balanced, 1:balanced, AES/EBU 2:AES/EBU 0x02 analog Audio 0..63 0..63 out level/dB 0x08 Samplerate 0..1, 0..1 0:32kHz/12bit, 1:48kHz/16bit...

  • Page 31: Troubleshooting

    1:on TROUBLESHOOTING The DV-1394 Pro-SDI is normally trouble free. Most reported problems turn out to be incorrect or poor quality cables, incorrect mode settings for the desired signal, attempting to use both the front and rear Firewire connection at the same time (only one may be used at a time) or inadequate AC power to the AC Adapter.

  • Page 32: Limited Warranty

    Should this product, in TV One’s opinion, prove defective within this warranty period, TV One, at its option, will repair or replace this product without charge. Any defective parts replaced become the property of TV One. This warranty does not apply...

  • Page 33: Contact Information

    11.0 CONTACT INFORMATION Should you have questions or require assistance with this product in areas not covered by this manual, please contact TV One at the appropriate location shown below: TV One USA TV One Europe 1350 Jamike Drive Continental Approach...
  • Page 34 Notes...
  • Page 35 Notes...
  • Page 36 Tel +44 (0)1843 873311 Fax 859-282-8225 Fax +44 (0)1843 873312 sales@tvone.com sales.europe@tvone.com www.tvone.com www.tvone.co.uk TV One Latin America TV One Mercosur 2790 NW 79 Ave Honduras 5849, 2 Floor, Office C Miami, FL 33122 (C1414BNI) Capital Federal Buenos Aires, Argentina...
