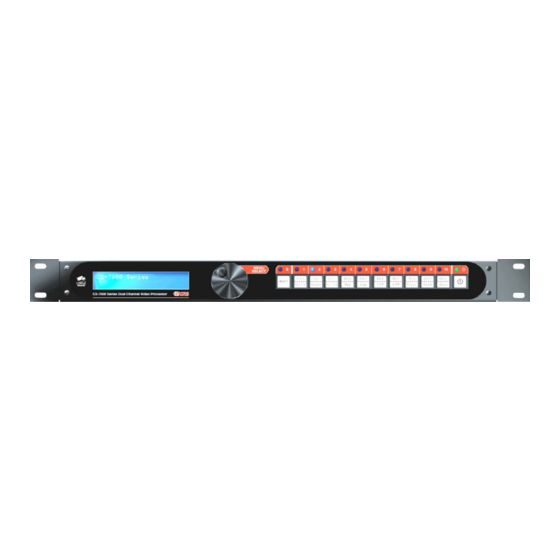

TV One C2-7100 Operation Manual

C2-7000 series dual channel video processor
Hide thumbs Also See for C2-7100:
Table of Contents

Advertisement

Quick Links

C2-7000 S
O
M
ERIES
PERATION
ANUAL
C2-7000 Series
Dual Channel
Video Processor
Operation Manual
Version 2.7
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C2-7100 and is the answer not in the manual?

Questions and answers

Related Manuals for TV One C2-7100

Summary of Contents for TV One C2-7100

  • Page 1 C2-7000 S ERIES PERATION ANUAL C2-7000 Series Dual Channel Video Processor Operation Manual Version 2.7...
  • Page 2 C2-7000 S ERIES PERATION ANUAL C2-7000 Series Dual Channel Video Processor Operation Manual Version 2.2...

  • Page 3: Table Of Contents

    C2-7000 S ERIES PERATION ANUAL Table of Contents DISCLAIMER..................... 1 Regulatory Agency Acceptance................1 FCC Statement....................2 IMPORTANT SAFETY INSTRUCTIONS ........... 3 CAPABILITY, TERMS OF REFERENCE AND OVERVIEW SUMMARY 13 Device Capabilities .................... 13 Terms of Reference ................... 14 Device Overview....................15 Models available....................16 Input Sources ....................17 Outputs......................
  • Page 4 C2-7000 S ERIES PERATION ANUAL 8.1.1 Switching an Input ..................... 36 Operating the Unit as two Independent processors..........36 8.2.1 Selecting Inputs to the Windows ................36 Operating the Unit in Picture In Picture Mode (Dual PIP) ........37 8.3.1 Selecting Inputs for the Individual Windows............37 MENU TOPOGRAPHY AND ADJUSTMENT METHODOLOGY .....
  • Page 5 C2-7000 S ERIES PERATION ANUAL 10.1 Connection ......................77 10.2 Communications protocol .................. 77 11.0 RS232 / IP CONTROL SPECIFICATION ..........79 11.1 Communication protocol basics................. 79 11.2 Packet format ....................80 11.3 Function list .......................82 11.4 Examples......................89 11.5 Reading and writing macros ................90 11.5.1 Reading a previously stored Macro..............90 11.5.2 Writing to a macro....................91 11.5.3 Run and Restore macros...................
  • Page 6 C2-7000 S ERIES PERATION ANUAL 14.3.2 Communications menu ..................115 14.3.3 Tools menu......................116 14.3.4 Resolution menu....................116 14.4 Scripting tool....................116 14.5 Image Loader ....................117 14.5.1 Loading Still Images / Testcards..............118 14.5.2 Loading Logos....................119 14.5.3 Maximum Image size – how large can my Logo / Still Image / Testcard be?..120 14.6 Resolution Editor .....................120 15.0...
  • Page 7 C2-7000 S ERIES PERATION ANUAL 19.5 Input/Output Range ..................131 19.6 Input RGB Sync....................132 19.7 Output RGB Sync ....................132 19.8 SDI/HD-SDI Embedded Audio & Ancillary Data (C2-7200/7210/7260 only) ..132 19.9 SDI/HD-SDI Embedded Audio (C2-7310 only)..........132 19.10 AES3-id inputs & outputs (C2-7310 only)............132 19.11 Audio Switching (Optional A2-2000) ..............132 19.12 Control Methods ....................132 19.13 Mechanical ......................133...

  • Page 8: Disclaimer

    All trademarks and copyrights are acknowledged. E&OE. Regulatory Agency Acceptance European ‘CE’ Mark Statement C2-7100, C2-7110, C2-7200, C2-7210, C2-7260: Emissions: BS EN 50081-1 (Generic Emission Standard for Residential, Commercial and Light Industrial) Immunity: BS EN 50082-1 (Generic Immunity Standard for Residential,...

  • Page 9: Fcc Statement

    Caution: This equipment is intended for use in the manner prescribed in the Instruction Manual. Any user changes or modifications not expressly approved by TV One Multimedia Solutions could void the user’s authority to operate the equipment. Connecting this equipment to external devices requires no specially shielded cabling for FCC compliance.

  • Page 10: Important Safety Instructions

    2.0 IMPORTANT SAFETY INSTRUCTIONS To insure the best from this product, please read this manual carefully. Keep it in a safe place for future reference. To reduce the risk of electric shock, do not remove the cover from the unit. No user serviceable parts inside.
  • Page 11 2.5 Ventilation Slots and openings in the sides of the unit are provided for ventilation. To ensure reliable operation, avoid obstruction of these openings and ensure the unit is installed in a well-ventilated area. 2.6 Intellectual property Some IC chips in this product include confidential and/or trade secret property.
  • Page 12 2.0 IMPORTANT: CONSIGNES DE SECURITE Afin de tirer le meilleur de ce produit, merci de lire attentivement ce manuel. Gardez-le dans un endroit sûr pour pouvoir le consulter à nouveau. Afin de réduire le risque de choc électrique, ne retirez pas l’unité de sa protection.
  • Page 13 2.3 Entretien général Ne forcez pas les boutons ou connexions externes. Lorsque vous déplacez l’unité, déconnectez d’abord les connexions de ports en série puis le câble d’alimentation et enfin les câbles de connexion avec d’autres appareils. N’essayez pas de nettoyer l’unité avec des dissolvants chimiques ou des produits nettoyants en aérosol, car cela peut endommager l’unité.
  • Page 14 2.0 INSTRUCCIONES IMPORTANTES DE SEGURIDAD Para sacar el mejor provecho de este producto, léase este manual con detenimiento. Guárdelo en un lugar seguro para poder hacerle referencia en el futuro. Para reducir el riesgo de calambre, no quite la cubierta del aparato. No hay piezas utilizables dentro.
  • Page 15 2.3 Cuidado general No forzar interruptores o conexiones externas. Al mover el aparato, desconecte las conexiones del puerto en serie primero, luego el cable de electricidad y finalmente los cables interconectados a otros aparatos. No intente limpiar el aparato con disolventes químicos o productos de limpieza aerosol, ya que podrían dañar el aparato.
  • Page 16 2.0 WICHTIGE SICHERHEITSVORSCHRIFTEN Lesen Sie diese Bedienungsanleitung bitte sorgfältig, um Ihr Produkt optimal nützen zu können, und bewahren Sie sie zum späteren Nachschlagen an einem sicheren Ort auf. Entfernen Sie bitte keinesfalls die Abdeckung, um der Gefahr eines Stromschlags vorzubeugen. Im Inneren des Geräts befinden sich keine Teile, die vom Benutzer gewartet werden können.
  • Page 17 2.3 Allgemeine pflege Wenden Sie bei der Handhabung von Schaltern und Anschlüssen keine Gewalt an. Beim Umstellen des Geräts entfernen Sie zuerst die seriellen Anschlüsse, dann das Stromkabel und zum Schluss die Verbindungskabel zu anderen Geräten. Versuchen Sie keinesfalls, das Gerät mit chemischen Lösungsmitteln oder Sprayreinigern zu reinigen, da dies das Gerät beschädigen könnte.
  • Page 18 2.0 BELANGRIJKE VEILIGHEIDSINSTRUCTIES Lees deze handleiding zorgvuldig door om het beste uit uw product te halen. Bewaar het op een veilige plek voor raadpleging in de toekomst. Haal nooit het omhulsel van de eenheid af, dit om de kans op een elektrische schok te verminderen.
  • Page 19 2.3 Algemeen onderhoud Forceer schakelaars of externe aansluitingen nooit. Bij verplaatsing van de eenheid, de seriële poortaansluitingen eerst loskoppelen, dan de voedingskabel en als laatste de snoeren naar andere apparaten. Probeer de eenheid nooit met chemische oplosmiddelen of schoonmaakmiddelen in een spuitbus schoon te maken, omdat dit de eenheid kan beschadigen.

  • Page 20: Capability, Terms Of Reference And Overview Summary

    3.0 CAPABILITY, TERMS OF REFERENCE AND OVERVIEW SUMMARY Device Capabilities The C2-7000 series of Dual Channel Video Processors uses the proprietary CORIO®2 Engine to control its capabilities. The CORIO®2 series units are the second generation of the successful CORIO® products. The CORIO®2 features are powerful tools for any application requiring high quality video signal conversion or image manipulation.

  • Page 21: Terms Of Reference

    Dual PIP Mode - Any video input can be squeezed and placed into either of two windows of any size and positioned anywhere on the screen, even overlapping each other with user defined layer priority control. The windows can be placed over any other video input as the background. The images in the windows can then be seamlessly switched or zoomed.

  • Page 22: Device Overview

    layers can be positioned as desired in the ‘stack’ so that the user can create any relationship he or she desires.  Modes: There are three modes of operation: Switcher, Independent and Dual Picture in Picture (Dual PIP). In Switcher mode, inputs and manipulations are shown on one output immediately and transferred to the second output when a ‘Take’...

  • Page 23: Models Available

    SDI inputs / output or not, or using a 10-way programmable button panel or 48-key non-programmable front panel. The following pictures detail the differences between the units: C2-7100 & C2-7110 front and rear panels: C2-7200 & C2-7210 front and rear panels: C2-7260 front and rear panels:...

  • Page 24: Input Sources

    In summary, the following table details the main differences: Model Inputs Outputs Keys C2-7100 3xDVI-I 3xCV 3xYC 2xDVI-I 2xCV 2xYC C2-7110 3xDVI-I 3xCV 3xYC 2xDVI-I 2xCV 2xYC C2-7200 3xDVI-I 3xCV 3xYC 2xSDI 2xDVI-I 2xCV 2xYC 2xSDI C2-7210 3xDVI-I 3xCV 3xYC 2xSDI...

  • Page 25: Layers

    Within the nomenclature that follows, the Windows will be associated with one or both of the two Outputs as explained in the section detailing Modes of Operation. Windows are an integral part of the C2-7000 series and play a central part in understanding how to operate the device.

  • Page 26: Modes

    shown below could be created which would mean that the Window “A” layer would have primacy over all the others: Color Background Z (Lock Source) The degree of transparency of any of the layers can be changed so that the layer(s) beneath are visible, semi-visible or invisible.

  • Page 27: Independent Mode

    button when in the Switcher mode and pressing it causes the image present on Output 2 to also appear on Output 1. Special control logic within the C2- 7000 series allows the movement of the image from Output 2 to Output 1 to be either instantaneous or the new Output 1 image can gradually replace the previous image on Output 1 via a cross fade or a wipe.
  • Page 28 therefore will be locked to the single Lock Source even though there are two Outputs available. From a practical standpoint, this means that there is only one lock source available and both outputs will contain the same lock source imagery. The Keyers can adjust the components of each Window independently so as to make a portion of the underlying Window pierce the overlaying Window and the logos can be used as desired in the Output imagery.

  • Page 29: Unpacking And Installation

    1 Rack-mount Kit, 2 Ears and 8 Screws If any items are missing or defective, contact your supplier. If you are unable to resolve the problem with your supplier, contact TV One via the web at http://www.tvone.com/support for prompt replacement.

  • Page 30: Functional Check

    If you did not receive the correct cable, DO NOT attempt to modify the incorrect cable. Instead, immediately contact your dealer or contact TV One at the sales office nearest to your geographic location and request the proper cable.

  • Page 31: Factory Reset

    Power is never totally removed from the unit when it’s plugged into an active AC outlet. Pressing the button at the extreme right on the front panel only places the unit in a powered down mode. This button is a standby switch, not a true off and on switch.
  • Page 32 connector formerly used by the monitor cable) to the input labeled “DVI- I/RGB1” on the rear panel of the Processor. Next, take the cable from the PC monitor and connect it to the C2-7000 series’ DVI-I/RGB1 output. Then connect the AC Power Cable to a working AC outlet, turn on the PC, monitor and then the C2-7000 series.

  • Page 33: Controls And Connections

    6.0 CONTROLS AND CONNECTIONS The C2-7000 series comes with one of two types of front panel: CORIO® STD – 10 button programmable. CORIO® EXP – 48 button non-programmable. 10-button programmable panel Front panel buttons 1 through 10, plus the Shift button, govern what inputs are applied to the C2-7000 series’...
  • Page 34 Button C2-7100 C2-7200 Number default default RGB1 RGB1 RGB2 RGB2 RGB3 SDI1 SDI2 All buttons except the Shift button and Power Button can be reassigned; however, buttons “1” and “2” should not be changed since such a change will make operation of the unit via the Rotary Encoder Control more difficult.

  • Page 35: 48-Button Non-Programmable Panel

    48-button non-programmable panel All 48-key front panels have the same button arrangement on the left and right sides of the front panel, with the main input selection buttons differing between units as shown below: C2-7110: C2-7210 & C2-7310: C2-7260:...
  • Page 36 With these front panels, you can directly select the inputs to route to the two outputs of the C2-7000 series unit. Depending on the Mode you’re in (Switcher, Independent and Dual PIP), the input selection button will have different effects: Mode PROGRAM 1/A button PREVIEW 2/B button...

  • Page 37: Inputs And Outputs

    These buttons are the same on all 48-key front panels: In order to facilitate ease of use, the first two characters of every menu indicate the current Output and Window that is being adjusted; i.e. 1A = Output 1, Window A. In order to quickly change between the Window and Output under adjustment, buttons 1 &...
  • Page 38 System Advanced menus [Off] The above menu item must be ‘On’ to activate certain menu items. These typically control the more advanced items in the menus.

  • Page 39: Audio Inputs And Outputs

    AUDIO INPUTS AND OUTPUTS C2-7000 series units with AES3 digital audio have extra connections at the rear to bring the audio in and feed the mixed & routed channels back out again. Connection summary The connectors on the rear provide the following connections: Connector: AES3-id I/O 1 AES3-id I/O 2 Inputs:...

  • Page 40: Audio Outputs In Different Modes

    Audio outputs in different modes The following table defines the usage of the outputs in each of the unit’s modes: Mode AES3-id I/O 1 AES3-id I/O 2 (and SDI1 output) (and SDI2 output) Switcher ‘Program’ audio output – ‘Preview’ audio output – audio audio follows the video during follows the Preview video a transition*...
  • Page 41 terminal blocks A3-7342 Break-out and conversion of 4xIN & 4xOUT to analog audio on XLR connectors Note: in all cases, a DARS input is also available on a BNC connector. Since there are 2 AES3-id I/O connectors on the rear of the C2-7310 unit, you can mix and match up to 2 of the above A2-7300 series units.

  • Page 42: Changing The Operating Mode

    RGB), however the quality of the signal will not be as good as the signal present at the respective DVI-I / RGB outputs.) CORIO2 C2-7100 TV One The LCD screen will display the model number when you initially apply power to the unit or perform a reset, you should make note of this number in case you require technical assistance.

  • Page 43: Switching An Input

    Factory Default condition. At this time, perform the Factory Reset as explained in section 5.2 above. After the system resets, the initial screen will be as follows: CORIO2 C2-7100 TV One Move to the next menu item and change it until it appears as follows:...

  • Page 44: Operating The Unit In Picture In Picture Mode (Dual Pip)

    As before, the frame of reference will be the Factory Default condition. At this time, perform the Factory Reset as explained in section 5.2 above. After the system resets, the initial screen will once again be as follows: CORIO2 C2-7100 TV One Change the Mode to Dual PIP as shown below:...
  • Page 45 Select Window A for adjustment so that the top line of the LCD display shows 1A. When you have Window A available for change, press the input button for the signal source you desire to place in Window A. This selected window can now be adjusted with the SIZE (48 key panel) or Shrink -/+ buttons (10 key panel).

  • Page 46: Menu Topography And Adjustment Methodology

    9.0 MENU TOPOGRAPHY AND ADJUSTMENT METHODOLOGY From here on, we’ll be looking at the high-level menu structure employed in the C2-7000 series and, more importantly, the individual menu items that allow you to take advantage of the power of the unit. You’ll be using the Front Panel controls and the Integrated LCD Display to control the C2-7000 series.

  • Page 47: The High Level Menu Structure

    Window label indicated on the front panel LCD display. There are two screens that appear before the Group Menus are accessed. The first is the Banner display indicating the model of the unit: CORIO2 C2-7100 TV One Rotating the Rotary encoder clockwise (or clicking the multi-directional switch to the right) moves to the following screen: www.tvone.com...

  • Page 48: Advanced Menus

    Advanced menus Note that the ‘Advanced menus’ menu item must be ‘On’ to activate certain menu items. Group Names and Descriptions Menu Group Name Group Description Device mode Allows selection of switcher, independent and pip mode Adjust outputs Controls output parameters Adjust windows Controls characteristics of the pip windows Adjust keyers...
  • Page 49 The output resolution of the Output is defined by the setting for Output Resolution and there will be no background source visible. Genlock The output video will be “Genlocked” to the selected lock source. The output signal will be synchronous to the input sync and adjustable but there will still be no lock source visible.
  • Page 50 remain in place until changed or it may be overridden by the lock mode and source. The top line of the display will show the current output resolution selected. Some units will have a limited number of output resolutions depending on their function (e.g.
  • Page 51 since they are not encrypted. Adjust outputs Output type [RGBHV] Adjust outputs Anlog= [RGBHV] Dig= RGBHV This menu may appear as either of the above – depending on whether the analog and digital outputs are controlled separately. This menu item allows you to select the type of signal output your unit will provide.

  • Page 52: Items Associated With The Adjust Windows Group

    Adjust outputs Back Y/U/V [ 16] [128] [128] Sets the value of the fixed background color, which is present when PIP is used with no Lock source background displayed. This menu item is only available for units with overlay, keying and fading abilities. Items Associated with the Adjust windows group This menu group allows adjustment to be made to window specific parameters such as the window source, its position, size and zoom level.
  • Page 53 Changing this option, sets the amount of picture magnification you wish to use for the window Source. You are provided with the options to zoom the image from 100% to 1000% (10x zoom). Adjust windows H/V zoom pan % [ 50] [ 50] Once an image has been ‘zoomed’, this control allows the image to be positioned within the window so that any portion can be seen, not just the middle.
  • Page 54 feature is ‘Off’ by default, so that the full image size of 100% is used. Shrink level will need to be turned On before any change to this value has an effect. Adjust windows H/V position % [100] [ 50] This menu option determines the position of the shrunken image on the monitor screen.

  • Page 55: Extended Scaling Controls

    Med. Enough for most situations such as thin line drawings High Highest amount of flicker reduction. Will cause loss of vertical detail in some images. Adjust windows Image smoothing [Auto] Image smoothing reduces the jagged-edges sometimes seen within an output image by softening it.

  • Page 56: Aspect Adjust' = 'Advanced

    In ‘Pixel’ mode, the user has direct access to pixel and line-accurate scaling functions. This lets the user specify the exact co-ordinates and size of the source image (within the video source), and the position and size of where this is placed in the output video signal. The table below summarises the different menu items in the different modes –...

  • Page 57: Aspect Adjust' = 'Pixel

    9.6.3 ‘Aspect adjust’ = ‘Pixel’ Adjust windows [ 300] , 150 750, 400 Adjust windows [ 50] , 250, 300 These menu items work together to specify the exact co-ordinates and size of the source image (within the video source) and the position and size of where this is placed in the output video signal –...
  • Page 58 background image can show through. The following settings allow you to vary the colour(s) that are keyed out. Adjust keyers Swap fore/backgrnd [Off] This menu item is only present on single-channel scalers – dual-channel scalers have the layer priority set within the ‘Adjust Windows’ menu. This menu item allows you to swap the foreground and background images when Lock mode is set to Lock &...

  • Page 59: Edge Blend Items Within The Adjust Keyers Group

    conversion) may not sample a 50% brightness as being exactly 50% i.e. sometimes 49% and sometimes 51%. Increasing the softness value will broaden the range of keyed colors so that the keying of images varies depending on how close a color is to the keyed-out range. Adjust keyers Y Key invert [Off]...

  • Page 60: Items Associated With The Adjust Logos Group

    This controls the blend width and height respectively. Left and Right blend sizes are adjusted together by the first number, and Top and Bottom blend sizes are adjusted together by the second number. Adjust keyers E.blnd gam. [1.00] x [1.00] This controls the gamma for the blend width and height respectively.

  • Page 61: Items Associated With The Adjust Borders Group

    Adjust logos Logo number A fixed number of Logos can be stored in non-volatile memory for later recall. Use this setting to select the Logo to be displayed and adjusted. Adjust logos H/V position % [10] [10] This parameter controls the position of the logo within the window as a percentage of the total size of the screen –...

  • Page 62: Items Associated With The Adjust Sources Group

    Adjust borders Brdr size H/V This adjustment allows the height and width of the border to be changed it can be up to 255 pixels thick. Adjust borders Brdr offset H/V This allows the border to be offset from the window. A typical application is the creation of a drop shadow effect.

  • Page 63: Menu Items Common To All Inputs

    Source: RGB1 Source to adj [RGB1] This menu item selects the input connection for which you want to make adjustments to. As in the image above, changes will only be made to the source connected to RGB1. Once the selection has been made, all changes made using the following operating parameters will only apply to the selected input.
  • Page 64 Source: RGB1 BR size adj. 0] [ 0] This menu item allows manual positioning of the Bottom and Right portion of the image. These settings are often used to correct the position of a PC signal on an input, or to eliminate any undesired noise at the top or bottom of a PAL or NTSC video source.
  • Page 65 Remove Removes the window, thus showing any background (e.g. a Lock source). This is useful for MIX & PIP scenarios on units with overlay abilities. If you have a very unstable input, such as a video tape player with a poor (jumping) output signal, you may wish to turn the setting to ‘Show’.

  • Page 66: Dvi Source Menu Items

    number of fields – but ignoring areas where motion has occurred. If motion blurring is seen, it is recommended to turn this setting off. 9.11.2 DVI Source Menu Items Source: DVI1 HDCP [Inactive] [Off] HDCP is supported on certain units only - and only on the DVI input connector.
  • Page 67 The 8 EDID blocks are as follows: EDID Usage User-definable – see ‘EDID capture’ Default EDID data for your unit The attached DVI monitor’s EDID data If you change this value, you’ll need to store your settings and then re-boot the CORIO2 unit at least once to ensure that the DVI source sees that the EDID data has changed.

  • Page 68: Rgb Source Menu Items

    9.11.3 RGB Source Menu Items Source: RGB1 Autoset status [Inactive] Once the Autoset sense setting has been made, this menu item is accessed and activated. The Autoset sense utility will then correct the pixel phase and then position the Top Left portion of the image and the Bottom Right portion of the image.

  • Page 69: Cv & Yc Source Menu Items

    9.11.4 CV & YC Source Menu Items Of the above Source Menu items, the Autoset sense and Autoset status functions, RGB type and Pixel phase are specific to RGB signals only. The rest of the Source menu items function with RGB, CV or YC type signals. In addition, there are four additional Menu items that are only used with CV or YC type signals and these are explained below: Source: YC1...

  • Page 70: Items Associated With The Adjust Audio Group + Other Digital Audio Adjustments

    Used to select the image from memory to use as a source for the SIS / TC source currently selected. The Windows Control Panel can be used to upload user-defined images. 9.12 Items Associated with the Adjust audio group + other digital audio adjustments This section only relates to units that support built-in digital audio processing.
  • Page 71 The AES3 outputs are active at all times. If the output is an SDI standard (e.g. NTSC or 720p), then your unit will also embed the audio data into those outputs as well. High quality sample-rate conversion is used to allow mixing of multiple non-synchronous audio sources without noticeable degradation of the audio quality.

  • Page 72: Extra Item In Adjust Outputs

    In Independent mode, the above diagram would change slightly, to show a second set of 8 outputs (1A and 2B). Both sets of outputs have access to the full number of audio inputs. In Dual PIP mode, the above diagram accurately represents the processing that is performed.

  • Page 73: Extra Item In Adjust Sources

    In Dual PIP mode, A, B and Z are all definable (if Lock&Mix is active) – thus 3 audio sources will be mixed together. The mixing is done via addition, so volume levels should be borne in mind. This single volume / mute selection controls all 8 audio channels being processed for this window.

  • Page 74: Items Associated With The Adjust Transitions Group

    Adjust audio Delay adjust 0] ms This controls the audio delay that will be present for this audio source. This is a global control that controls the audio delay wherever this audio source is used – even if by multiple windows. Note that the unit automatically calculates the delay for the video source processing, and accounts for this in the audio delay.

  • Page 75: Items Associated With The Adjust Buttons Group

    Down/Up (Bottom to Top). ‘Wipe’ also supports: Diagonal and Diamond effect. Adjust transitions Wipe size [100] Wipe Size sets the ‘granularity’ of the ‘Wipe’ effect and so is only shown when ‘Wipe’ is the transition type. The smaller the number, the more elements there are to the wipe.

  • Page 76: Items Associated With The Adjust Ethernet Group

    Adjust buttons CC-300 btn [ 1] This menu lets you change the assignment of each button on an attached CC- 300 unit. If you have multiple CORIO2 units attached to a CC-300, then it is advisable to set them all so that their buttons act in the same way for all units 9.15 Items associated with the Adjust ethernet group (Please note that not all units have this sub-menu.)

  • Page 77: Items Associated With The Adjust Resolutions Group

    Enter your network’s gateway IP address into this menu item. Again, if in doubt ask your Network Administrator. In general, the gateway only needs setting if the unit is being controlled from a different network (e.g. via the internet). Adjust ethernet IP port [10001] Enter the IP port number you wish the unit to communicate on.
  • Page 78 1. Any changes made to this database take effect instantly and are also stored immediately in non-volatile memory. 2. Since this database is used for both input and output image processing, altering a resolution that is used for both (e.g. 1024x768 input and 1024x768 output) may give undesired effects.
  • Page 79 800 x 600 60 Hz Lines/f [ 628] = 60.317 Hz This menu controls the total number of lines of video present in the image which includes the vertical Sync pulse, the blanking period and the active video. Changing this option affects the final vertical sync frequency. 800 x 600 60 Hz H/V active [ 800] x 600...

  • Page 80: Items Associated With The System Group

    Like the H/V Start adjustment, you must use an oscilloscope when making these adjustments so that you know exactly how many milliseconds or microseconds of pulse width you have created. The numbers shown are relative numbers and not an actual time measurement. 800 x 600 60 Hz Sync polarity [+H+V]...
  • Page 81 Normally, the user will examine the added features of each new software release and determine if an update is worth doing in their particular operation. The greater period of time between the current date, and the date shown for the currently installed software, the greater the likelihood that there are useful changes and improvements present in the new release.
  • Page 82 System RS232 baud rate [57600] This menu item allows the adjustment of the serial baud rate used for RS-232 communications. The rate can be adjusted to 9600, 19200, 28800, 33600, 38800, 57600 and 115200. (This adjustment is provided for those instances where you wish to use the RS-232 control system for your own purposes.) The default baud rate is 57600.
  • Page 83 System Firmware updates Indicates the total number of times the firmware has been changed over the life of the unit. It is quite possible for this to be more than 1, as a unit undergoes numerous tests during production. System Hours in Use This is another informational display for usage audit purposes.

  • Page 84: Rs232 Port

    10.0 RS232 PORT 10.1 Connection Your unit is fitted with a standard ‘D9’ plug or socket allowing it to be controlled from a computer or other type of terminal or console with a similar interface. Most computers fitted with an RS232 port, known as a ‘COM’ port, will have a ‘D9’...

  • Page 86: Rs232 / Ip Control Specification

    11.0 RS232 / IP CONTROL SPECIFICATION PLEASE NOTE: Not all units support RS232 and/or IP (Ethernet) communications – check to see if this feature is present on your unit. This section outlines how to control a unit via an RS232 or Ethernet link (if fitted to your unit), using ASCII-based commands.

  • Page 87: Packet Format

    The ACK flag will be returned as 0 if the command is invalid for some reason – for example a bad FUNCTION, WINDOW, OUTPUT or PAYLOAD value. An ACK=0 message will be otherwise identical to the one you sent, so you know exactly which message has the error.
  • Page 88 Bit 6 = ACK bit. Should be set to 0 for messages to the unit. ACK=1 returned means message was okay. ACK=0 returned means an error was present in the message. Bit 5 = 0 Reserved for future use. Bit 4 = 0 Reserved for future use. Bit 3 = 0 Reserved for future use.

  • Page 89: Function List

    ASCII-hex byte that is the (check) sum of all previous bytes (excluding the SOP 'F' character). E.g. The command F0400410082000001C8 has the checksum of 04+00+41+00+82+00+00+01=C8, so the complete command to send is F0400410082000001C8. A short-cut for debugging allows the checksum to be replaced by 2 question marks, so in the previous example you could send F0400410082000001?? Instead.
  • Page 90 Preset store Set to 1 to store – automatically resets to 0. Preset erase Set to 1 to erase – automatically resets to 0. Adjust outputs Output enable 0=Blanked, 1=Active Lock source (connector) 0x10 to 0x1F = RGB1 to RGB16 0x30 to 0x3F = CV1 to CV16 0x40 to 0x4F = YC1 to YC16 0x50 to 0x5F = SDI1 to SDI16...
  • Page 91 2 = 14:9 Letterbox centre 3 = 14:9 Letterbox top 4 = 16:9 Letterbox centre 5 = 16:9 Letterbox top 6 = >16:9 Letterbox centre 7 = 14:9 Full format 8 = 16:9 Full format Take 0->1 = Perform a Preview -> Program transition Audio amp.
  • Page 92 In (top-left H) In (top-left V) In (H size) In (V size) Out (top-left H) Out (top-left V) Out (H size) Out (V size) Aspect change 0..2 = Normal, Letterbox, Pillarbox Aspect adjust 0..1 = Simple, Advanced Flicker reduction 0..3 = Off, Low, Med, High Image smoothing 0..2 = Off, Med, High Image flip...
  • Page 93 E.blnd gamma V 1..150 1=0.01, 150=1.50 E.blnd comp cent 0..99 E.blnd comp side 0..99 Logos (on certain models only) Logo enable 0..1 = Off, On Logo number 0..9 Logo selection H/V out shift (H) 0..100 % H/V out shift (V) 0..100 % Max fade level 0..100%...
  • Page 94 On source loss 10..5F 0A3 0=Show, 1=Freeze, 2=Blue, 3=Black, (was Deglitch) 4=Remove Source stable (read only) 0=Unstable, 1=Stable Input pixel phase 10..5F 091 0..31 RGB input type 10..1F 0C1 0 = Auto 1 = D-RGB 2 = D-YUV 3 = A-RGB 4 = A-YUV RGB contr.
  • Page 95 2 = Up -> Down 3 = Down -> Up 4 = Diagonal 5 = Diamond Wipe Size 10..2000 Audio Control (S2-106AD Only) Sample frequency 0..4 = Bypass, 32, 44.1, 48, 96kHz Audio delay 0..999 = delay in ms (restricted depending on Sample frequency) Adjust resolutions Note: You MUST set the 'Image to adjust' value to the correct value first, and only...

  • Page 96: Examples

    Board temp. (deg.C) Read only Air temp. (deg.C) Read only Regulators temp.(deg.C) Read only PLD temp. (deg.C) Read only Fan speed (rpm) Read only Led brightness 0..100 LCD backlight 0..1 = Off, On RS232 Baud rate 0..6 = 9600, 19200, 28800, 33600, 38400, 57600, 115200 TAC number 0 Read only...

  • Page 97: Reading And Writing Macros

    00012C F7 CR 00012C 37 CR Set 1A Shrink to 50 000032 FE CR 000032 3E CR Set 1A Shrink H Posn to 0 000000 1F CR 000000 5F CR Set 1A Shrink V Posn to 100 000064 84 CR 000064 C4 CR 11.5 Reading and writing macros...

  • Page 98: Writing To A Macro

    macro BA CR 000086 ?80 CR Read the Data for the first item in the preset / Payload is the data for the function – 100% macro B9 CR 000064 5D CR Read the Function for the second item in the Payload is the Function stored –...
  • Page 99 Run macro 1 000000 37 CR 000000 77 CR Run macro 2 000000 38 CR 000000 78 CR Run macro 3 000000 39 CR 000000 79 CR Run macro 7 000000 39 3E 000000 7E CR...

  • Page 100: Common Operations

    12.0 COMMON OPERATIONS This section provides step by step instructions for some common operations for the C2-7000 series. 12.1 Operation of the Keyer The C2-7000 series has a very powerful Luminance and Chroma keyer and can key on Window “A”, Window “B” and Window “Z” independently. The listing that follows breaks the Keyer operation down to a series of steps that are defined by Operational Mode.
  • Page 101  The Key Min/Max may need to be readjusted after making the softness adjustment.  Touch up any of the previous settings to get a clean key.  At this point, only the key color should be transparent.  Adjust Max Fade Level to change the transparency of the overlay. ...
  • Page 102  Decrease V Key Min until reappears, then increase until it disappears again.  If the edges appear rough, increase the V Key softness.  The Key Min/Max may need to be readjusted after making the softness adjustment.  Touch up any of the previous settings to get a clean key. ...
  • Page 103 Dual PIP Mode Method (One or Two Key Channels, Locked) Change mode:  Change Mode to Switcher Setup the lock source  Enter Adjust Outputs menu.  Select Output 1.  Set Lock to Lock & Mix.  Set the lock source to be a valid Input source Set Output Type to desired setting Setup first key source: ...
  • Page 104  The Key Min/Max may need to be readjusted after making the softness adjustment.  Touch up any of the previous settings to get a clean key.  At this point, only the key color should be transparent.  Adjust Max Fade Level to change the transparency of the overlay. ...

  • Page 105: Creating A Macro

    12.2 Creating a Macro On the 10-key front panel units, you can store up to 5 macros and associate them with 5 different buttons of your choosing. It is also a good idea to assign another button to the Restore function. This restore function allows the unit to be returned to it previously saved state, thus allowing you to toggle between a preset condition and this saved state.

  • Page 106: Standards Conversion - Ntsc To Pal

     Press and hold the macro button (using SHIFT if needed) until the unit gives a short beep and the display says Info: Added to Macro. This has now added the Shrink position for window 1A to the macro  The macro is now complete. Pressing your RESTORE button will return the unit to the last saved state.

  • Page 107: Edge-Blending Setup

    This guide is intended to summarise how to setup such projectors when used with a suitable number of TV One’s CORIO®2 scaling engines. The C2-7000 series are dual processors and therefore require only a single unit to perform...

  • Page 108: Edge-Blending Requirements

    S-curves for left and right projectors, with edges blended. S-curves, when properly overlapping, will add together to result in full brightness. 13.2 Edge-blending requirements To obtain the best edge-blending results, you will need: 1. A perfectly flat projection screen. This is vital, or it will not be possible to perfectly align your two projected images with each other.

  • Page 109: Basic Setup Of The Two Projectors

    13.3 Basic setup of the two projectors Basic video projector setup showing overlap. The above diagram shows how the two projects should be placed to create a wider than normal image. The amount by which they overlap is very important, as this will also relate to the zooming values to be used for each of the CORIO®2 scaling engines.

  • Page 110: Initial Setup

    For use with dual-channel scalers such as the C2-7000 series, connect your video source (e.g. a DVD player or computer) to an input on the C2-7000 unit. It is not necessary to feed two signals – the C2-7000 unit can use the same signal for both outputs.

  • Page 111: Edge-Blending Activation

    around 10% to 20% overlap are usually around 180%. In other words, not quite 2x zooming (since that would give no overlap at all). Figure ‘a’ shows the original image and ‘b’ shows the two zoomed images. Note that the two images are at different ‘Pan’ positions – i.e. they are zoomed into different areas of the image –...

  • Page 112: Edge-Blending Guide Lines

    There is a formula for calculating the edge blend size (E) from the zoom value (Z) and horizontal pixel width of the output (H): E = 2 * H * (1 – Z/200) [pixels] For example, with zoom (Z) at 190%, output resolution of 1024x768 (H=1024), we can calculate E as: E = 2 * 1024 * (1 –...

  • Page 113: Alignment Of Projectors

    blending. (G marks the green lines, R marks the red, Y marks the yellow, for those reading in black and white.) Outputs 1 and 2 with guide lines shown. G R R G Outputs 1A and 2B partly overlapping. Outputs 1A and 2B perfectly overlapping – the red and green lines turn to yellow when aligned together.
  • Page 114 Too far apart – you need around 15% overlap, such that the red and green lines overlap. Offset – make sure your projectors are perfectly G R R G aligned both horizontally and vertically. Key-stoning – ensure your projectors have the same keystone values, to...

  • Page 115: Gamma Correction

    Perfect alignment – your red and green vertical lines should overlap to produce yellow ones. 13.10 Gamma correction By now you should have two perfectly aligned projectors, but possibly with a brighter than normal overlap. This is most probably because a projector’s luminance is not perfectly linear and therefore will need to have what’s called ‘gamma correction’...

  • Page 116: Aspect Ratio Adjustment

    when you’re trying to output black, there will be a ‘hot area’ where the two projectors are now overlapping, of twice the projector’s ‘black level’ output. The solution is to adjust the ‘Eb comp cent’ value (the first in the ‘Eb comp cent/side’...

  • Page 117: Other Setup Approaches

    1. Either use a 2 output from the unit with Output 1, or a distribution amplifier to generate a 2 identical signal. Feed this into RGB1 on the unit handling Output 2. 2. Go to ‘Adjust outputs’ for Output 2 3.
  • Page 118 E.blnd H 640x480 800x600 1024x768 1280x720 1280x1024 1600x1200 1920x1080i...

  • Page 119: Windows Control Panel

    14.0 WINDOWS CONTROL PANEL A powerful utility is available for the C2 product range and can be downloaded from our support web site or found on the Product CD (where supplied). To install the application click on the setup file and follow the on screen instructions.

  • Page 120: Connecting To A Unit

    In the Ethernet section be sure to set the IP address to the same as the address you have set on the unit (units Ethernet menu). The port number used should also reflect the port number on the unit. If there are multiple units on the network then this port number should be the same for all units, only the IP address must be unique.
  • Page 121 Figure 4 Detecting a unit Once the application detects and connects to a unit you will be asked if you wish to “synchronize with the unit”, this will read all the settings from the connected unit and update the application. Figure 5 Synchronize application Once synchronized any changes made on the unit or on the application will be reflected on the unit and the application.

  • Page 122: Application Menu's

    14.3 Application menu’s 14.3.1 File menu Figure 6 File menu Across the top of the application are the toolbar menu options. The first menu item is File within this menu you can Save and Load previous setups into the application, these setups contain all the settings of the unit. Following a Load the application will ask if you would like to synchronize the unit, if you do not synchronize then the unit and the application will show different values.

  • Page 123: Tools Menu

    The Program Resolutions menu will program the resolutions into the unit as defined on the resolutions Tab. The Program Settings menu will program all adjustments into the unit 14.3.3 Tools menu Figure 8 Tools menu The tools menu provides access to the scripting tool, image loader and show settings.

  • Page 124: Image Loader

    Figure 10 Scripting button screen Up to 24 buttons/functions can be defined, and each of these buttons/functions can perform multiple actions. Figure 11 Script editor In order to edit or create a script select Script->Edit from the menu, this will then present the script editor as shown above.

  • Page 125: Loading Still Images / Testcards

    14.5.1 Loading Still Images / Testcards Figure 12 Image loader To program a Still Image / Testcard into the unit select the ‘Testcards’ tab from the image programmer screen and then press Load Image. You can select JPEG, BMP and GIF images. The image will be loaded and shown on the screen.

  • Page 126: Loading Logos

    14.5.2 Loading Logos Figure 13 Logo Loader To program a logo into the unit select the ‘Logos’ tab from the image programmer screen and then press Load Image. You can select JPEG, BMP and GIF images. The image will be loaded and shown on the screen.

  • Page 127: Maximum Image Size - How Large Can My Logo / Still Image / Testcard Be

    14.5.3 Maximum Image size – how large can my Logo / Still Image / Testcard be? The image size for a Logo or Still Image / Testcard is limited by the amount of memory available in the unit; this is approximately 128kbytes of compressed image for a Still Image / Testcard and approximately 32kbytes for a Logo.
  • Page 128 There are 2 ways to create a resolution using this tool. The easiest, shown on the New resolution tab at the side, allows you to create a new resolution using the minimum information of Horizontal and Vertical size and the desired refresh rate.
  • Page 129 Figure 16 Add resolution to table Once your new resolution is added, you can program the resolution into the Scaler using the Communications menu and then selecting Program into unit and then selecting Program Resolutions. The application will proceed to program all the resolutions on the list into the scaler. Note that this will overwrite any resolutions currently in the scaler.
  • Page 130 Figure 17 Resolution editor - advanced timings In order to modify an existing resolution simply click on the resolution table at the bottom of the screen and it parameters will be editable within the Timings tab. Once the edits are complete click on Update to modify the settings for the selected resolution or Create New to keep the selected resolution and create a new resolution with modified parameters.

  • Page 131: Troubleshooting And Technical Support

    15.0 TROUBLESHOOTING AND TECHNICAL SUPPORT If problems are experienced, please read through the symptom topics below in order to resolve the problem. After doing so, if you still need to, contact Technical Support at http://www.tvone.com/support. Please have the following details of the problem handy: Whether the problem happens only at specific times or has only just started occurring (and what other things have changed at the same time).

  • Page 132: There Is Excessive Flicker On The Output

    15.4 There is excessive flicker on the Output. Try using a different Flicker reduction mode. Turning the contrast down and the brightness up on the output device can have a large effect on flicker. Or try adjusting the brightness and contrast of the source input by selecting the Input adjust menu.

  • Page 133: The Rgb Input Is Selected But The Image Is Rolling Or Pink

    15.11 The RGB input is selected but the image is rolling or pink. Check the Adjust sources menu and confirm that the input type and sync method is set correctly. (Having YUV input selected, instead of RGBHV often causes this problem). 15.12 The video signal from my DVD player does not appear to work.

  • Page 134: Return Procedure

    16.2 To return a unit for repair First contact TV One using the http://www.tvone.com/support website. Support personnel will determine whether a return to the factory is the appropriate solution. If that’s the case, a Return Authorization Number will be issued.
  • Page 135 Please clearly state the return number on the outside packaging and on any accompanying documentation. This will greatly speed up processing. IMPORTANT: DO NOT return a unit for warranty repair without first obtaining a Return Authorization Number. No action will be taken on a unit returned in warranty for repair without a Return Authorization Number.

  • Page 136: Warranty Policy

    The liability of TV One with respect to any defective products will be limited to the repair or replacement of such products. In no event shall TV One be...

  • Page 137: Connector Pinouts

    18.0 CONNECTOR PINOUTS 18.1 DVI-I connector PIN# SIGNAL PIN# SIGNAL T.M.D.S DATA 2- HOT PLUG DETECT T.M.D.S DATA 2+ T.M.D.S DATA 0- T.M.D.S DATA 2/4 SHIELD T.M.D.S DATA 0+ Not used T.M.D.S DATA 0/5 SHIELD Not used Not used DDC CLOCK Not used DDC DATA T.M.D.S CLOCK SHIELD...

  • Page 138: Specification

    19.0 SPECIFICATION 19.1 Video Inputs Composite Video 3 x via BNC Connector S-Video (Y/C) 3 x via 4-PIN Mini-DIN Connector DVI-I 3 x via DVI-I Connector (DVI-I = DVI-D / RGB / YUV) C2-7200/7210/7310: SDI or HD-SDI 2 x via BNC Connector C2-7260: only 2 of the 8 SD/HD-SDI inputs can be used simultaneously.

  • Page 139: Input Rgb Sync

    HD-SDI jitter (100kHz) approx. 0.176 +/- 0.02 UI 19.6 Input RGB Sync Type RGBHV, RGBS, RGsB Level / Termination TTL, 10K. Polarity Positive or Negative Maximum Level 5Vp-p 19.7 Output RGB Sync Type RGBHV, RBGS Level / Termination 5Vp-p, 56. Polarity Positive or Negative 19.8 SDI/HD-SDI Embedded Audio &...

  • Page 140: Mechanical

    19.13 Mechanical Desktop Case (HWD) 1.725” x 17” x 7.92” (44x431.8x201.2mm) With Rack Ears (HWD) 1.725” x 19” x 7.92” (44x482.6x201.2mm) Weight (Net) 7lbs 1oz (3.2kg) 19.14 Environmental Operating Temperature 0° to +45° C (+32° to +113° F) Operating Humidity 10% to 85%, Non-condensing Storage Temperature -10°...

  • Page 141: Contact Information

    20.0 CONTACT INFORMATION Should you have and questions or require assistance with this product in areas not covered by this manual, please contact TV One at the appropriate location shown below: TV One USA TV One Europe 2791 Circleport Drive...

This manual is also suitable for:

C2-7110C2-7210C2-7260C2-7310C2-7200

Table of Contents
