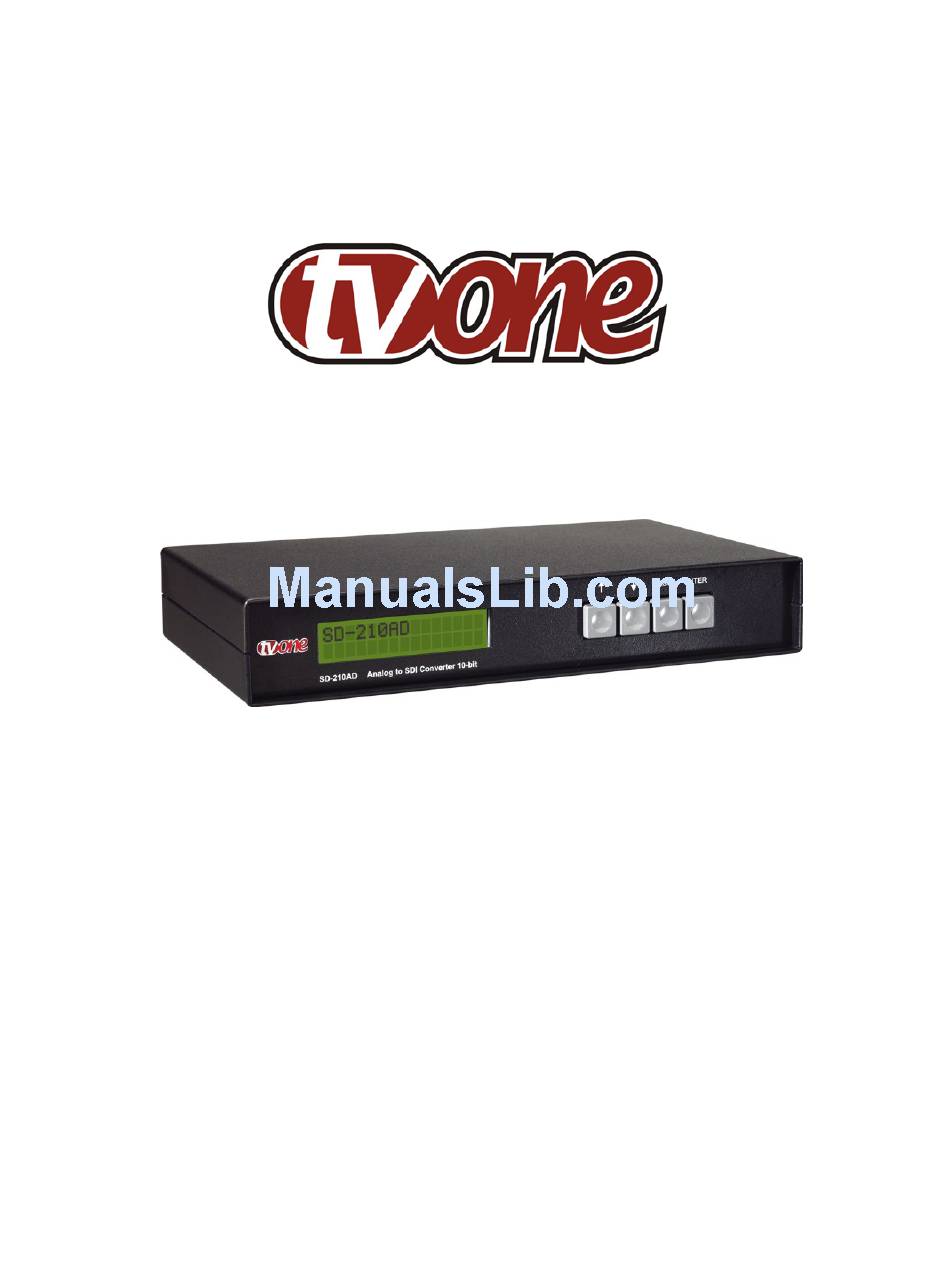

- Page 1 Instruction Manual SD-210AD Analog to SDI Converter...
-
Page 3: Table Of Contents
Table Of Contents Introduction Specifications Checking Package Contents Connecting the Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance... -
Page 4: Introduction
Distribution Amplifiers. Liability Statement Every effort has been made to ensure that this product is free of errors. TV One cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising from its use. It is the responsibility of the user of the hardware to check that it is suitable for his/her requirements and that it is installed correctly. -
Page 5: Specifications
Note: Please retain the original packing material should the need ever arise to return the unit. If you find any items are missing, contact your reseller or TV One immediately. Have the Model Number, Serial Number and Invoice available for... -
Page 6: Connecting The Hardware
Connect the analog video source(s) to the corresponding BNC connectors and then the output(s) to their BNC connectors. Note: Both SD-210AD outputs are active. They can be used simultaneously or just one of the outputs can be used according to the user’s needs. -
Page 7: Operating The Unit

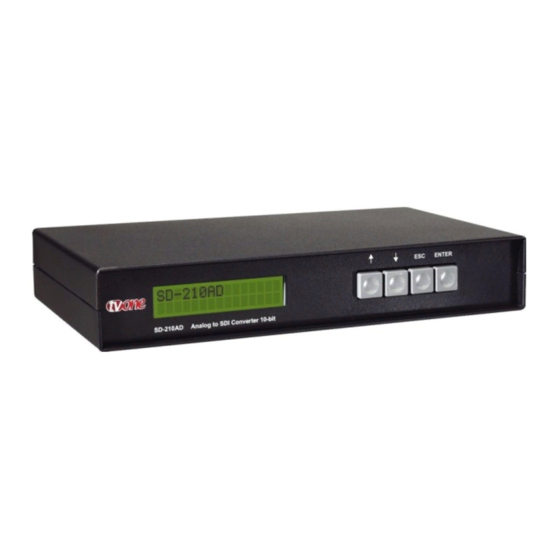

SD-210AD LCD shows TVOne SD-210AD on the first line and Input Signal Status on the second line: INPUT ABSENT or INPUT Std, where ‘Std’ is the signal type present at the selected input, if there is video present. - Page 8 Main Menu Depressing the arrow buttons (▲ or ▼), when status is being displayed, allows navigation through the Main Menu. The options are: Luma Level Chroma Level Set Up Level Sharpness Adj. Input Standard Input Filter Input Format Adv. Settings Press Enter to select the desired option or press ESC to go back to the Status display.
- Page 9 In the case of NTSC, set up level is referenced to the standard 7.5 IRE pedestal. 5.2.4 Sharpness Adjustment The SD-210AD has a digital luminance sharpness response control that allows the user to enhance or attenuate the high frequency components of the luminance.
- Page 10 5.2.6 Input Filter The SD-210AD allows the user to choose which kind filter topology is to be used for luma/chroma separation. When selecting this option, if the input format chosen is Composite, the first line of the LCD shows Select Filter and the second line on the display shows the current option.
- Page 11 The arrow buttons, ▲ and ▼, allow selection of one of the following options: Composite YUV SMPTE/EBU YUV BETACAM The Enter and ESC buttons behave the same way as the functionality described in 5.2.5 and 5.2.6. 5.2.8 Advance Settings This menu gives the experienced user the possibility of adjusting parameters to compensate for unexpected anomalies.
- Page 12 frequency available. Quantity of options depends on the input standard selected (section 5.2.5). When entering the menu current filter number appears and with the arrow buttons, ▲ and ▼, you can go down until Filter 1 and up to the maximum. Note: A preview of the filter action is shown when scrolling through the menu.
- Page 13 5.2.8.4.4 V (R-Y) Offset As in the case of U, this option allows offsetting the V or (R-Y) zero point through the Y axis. Operation and considerations are similar. 5.2.8.4.5 Normalize By pressing Enter over this option, color correction function is reset, i.e., all the above values are set to zero.
-
Page 14: Troubleshooting
After trying the above suggestions should the problem still persist, contact your dealer for additional suggestions before contacting TV One. Should the dealer’s technical personnel be unable to assist you, contact TV One via our support website: http://tvone.crmdesk.com. Create a technical support request on the... -
Page 15: Limited Warranty
TV One assumes no liability to distributors, resellers or end-users or any third parties for any loss of use, revenue or profit. - Page 16 Tel +44 (0)1843 873311 Fax 859-282-8225 Fax +44 (0)1843 873312 sales@tvone.com sales.europe@tvone.com www.tvone.com www.tvone.co.uk TV One Latin America TV One Mercosur 2790 NW 79 Ave Honduras 5849, 2 Floor, Office C Miami, FL 33122 (C1414BNI) Capital Federal Buenos Aires, Argentina...
