As a result, the AOM connected to USB port 2 will switch from providing audio
output/zones 5-8 to providing audio output/zones 1-4, the next time the server is
rebooted.
Mounting the MAX-AOM
Note: Static electricity can damage electronic circuitry. Before mounting the AOM(s),
discharge any accumulated static electricity from your body and screwdriver by
touching a grounded metal object.
The MAX-AOM includes hardware for mounting the unit in a standard 19" equipment
rack. A single AOM takes up one-half of the width of a single rack unit, so you can
mount two AOMs side by side in a single RU by using the (optional) AOM-EX
Expansion Kit (FG 2178-56). Refer to the next page for details.
Using the AOM-EX Expansion Kit
The optional AOM-EX Expansion Kit (FG 2178-56) includes a MAX-AOM, a Side
Mounting Bracket, Short Rack-Mounting Bracket, and mounting hardware (FIG. 2).
Use the Expansion Kit to mount a second AOM next to the first one, in a single rack
space.
Two screws secure the bracket to front and back of AOM #2
Use screws to secure the Side Mounting Bracket to AOM #1
Tabs fit into slots on the
side panel of the AOM #2
Use screws to secure the Side Mounting Bracket to AOM #1
Three screws secure the
Short Rack-Mount Bracket
to the side of AOM #2
FIG. 2
MAX-AOM-EX brackets
The Side Mounting Bracket uses a set of six screws to connect to bracket to the side
panel of AOM #1. The bracket features tabs to ensure proper positioning and
alignment of the two AOMs, and four screws (two on the front and two on the rear) to
secure the AOM #1/side bracket assembly to AOM #2.
The Short Rack-Mounting Bracket uses three screws to attach to the AOM #2
enclosure, and two screws to secure the left side of the MAX-AOM-EX assembly to
the equipment rack.

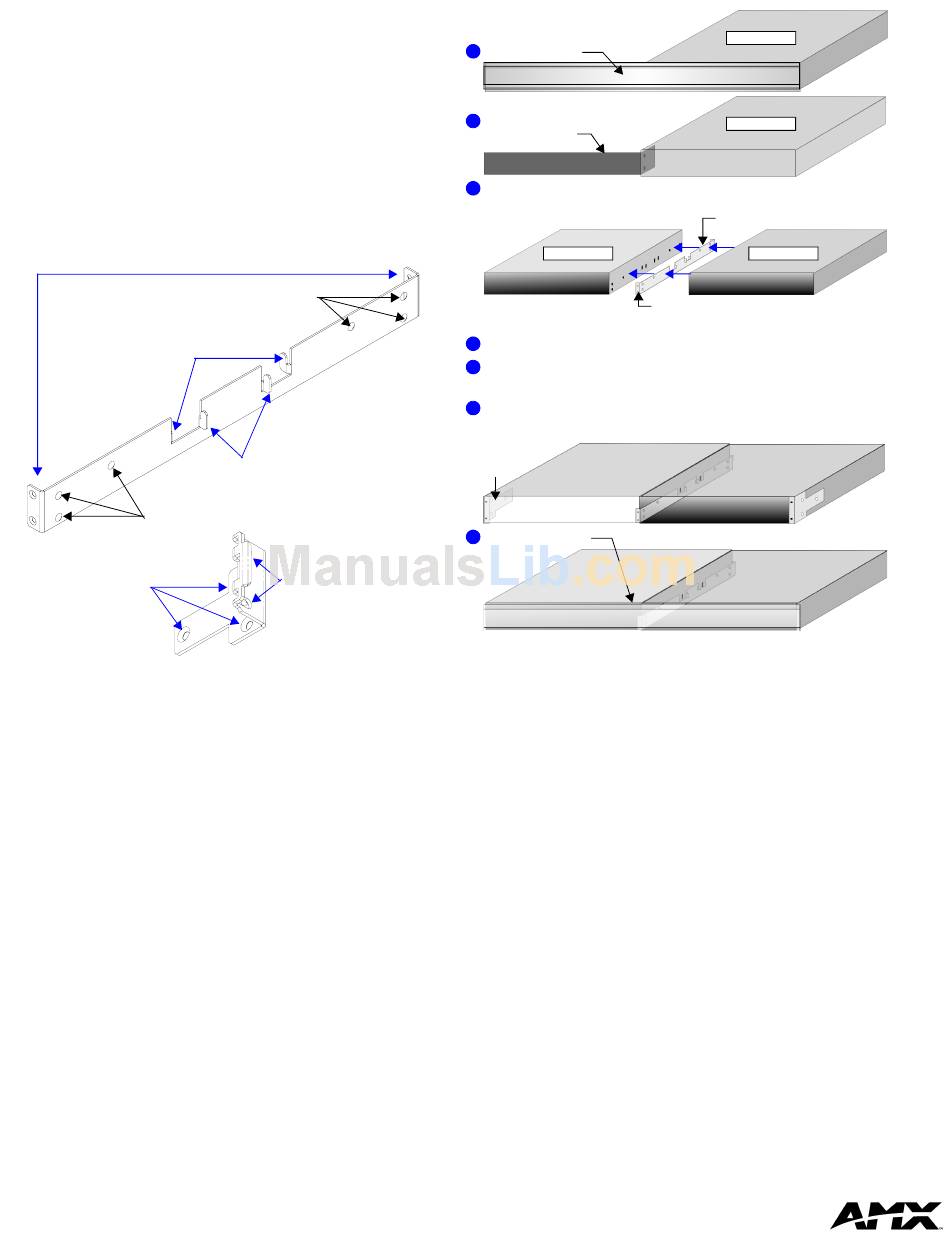

FIG. 3 describes using the MAX-AOM-EX kit:
