AMX MAX-AVM Operation/Reference Manual

Audio-only (usb) module, audio/video module
Hide thumbs Also See for MAX-AVM:
Table of Contents

Advertisement

Quick Links

See also: Reference Manual

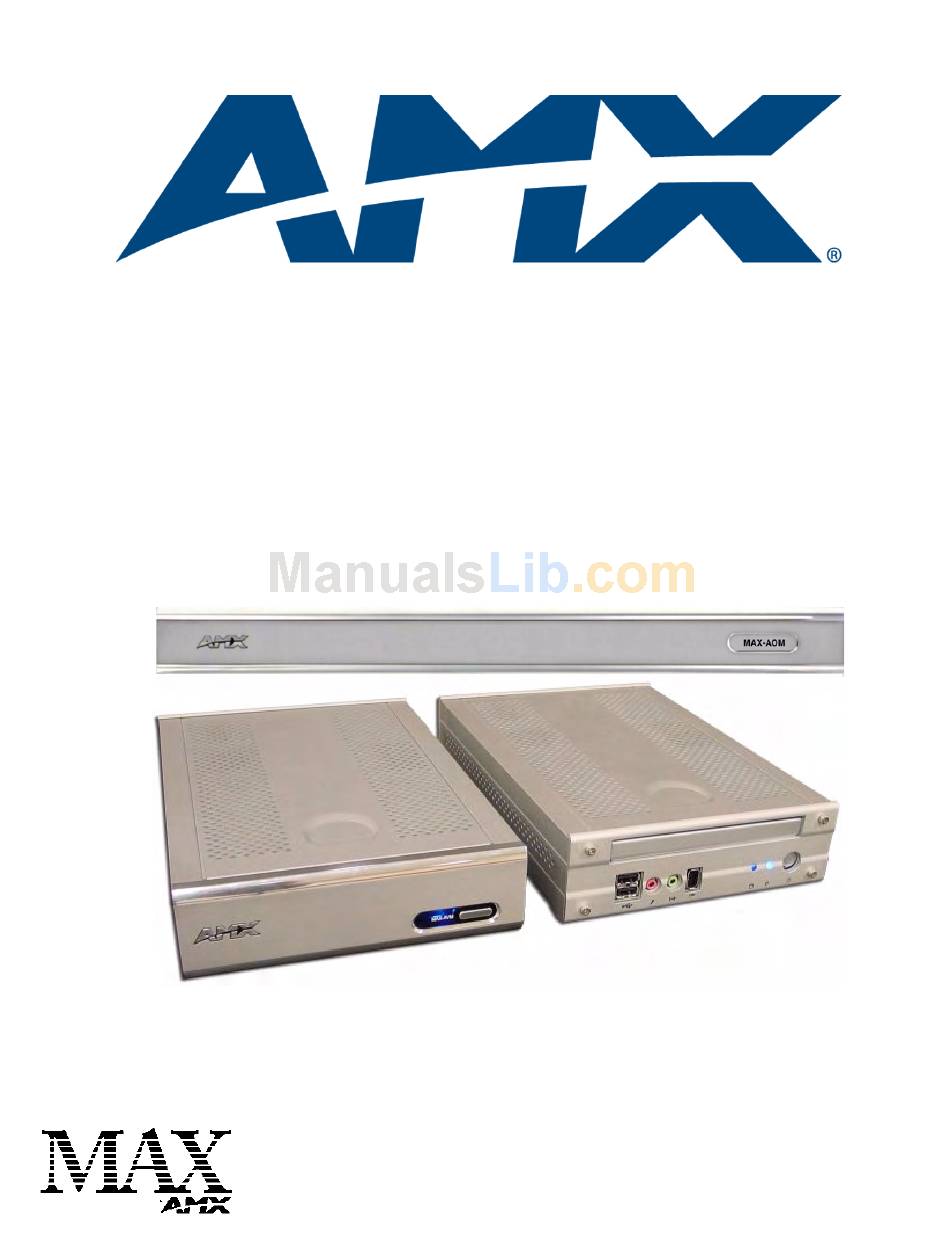

Operation/Reference Guide
MAX Modules
MAX-AOM Audio-Only (USB) Module
MAX-AVM Audio/Video Module
D o c u m e n t I D : 0 6 5 - 0 0 4 - 2 9 6 3
L a s t R e v i s e d : 6 / 1 1 / 2 0 0 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAX-AVM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AMX MAX-AVM

Summary of Contents for AMX MAX-AVM

  • Page 1 MAX Modules MAX-AOM Audio-Only (USB) Module MAX-AVM Audio/Video Module D o c u m e n t I D : 0 6 5 - 0 0 4 - 2 9 6 3 L a s t R e v i s e d : 6 / 1 1 / 2 0 0 6...
  • Page 2 RMA number. AMX is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages. AMX is not liable for any claim made by a third party or by an AMX Dealer for a third party.

  • Page 3: Table Of Contents

    Product Specifications... 12 Installing the MAX-AVM ... 12 Connecting the MAX-AVM to an MMS Server and Display Device ... 13 Installing the MAX-AVM Serial Number In the MMS Server... 13 Using a PC Mouse and Keyboard to Control the MAX-AVM... 14 Troubleshooting ...
  • Page 4 Table of Contents WinMAX Software ... 22 MAX AOM and AVM Modules...

  • Page 5: Max Modules - Overview

    Each user of the Products may only use the Products in connection with materials legally owned or licensed by such user and only to the extent such ownership or license rights permit such use. This document describes the MAX-AOM (Audio-Only USB), and MAX-AVM (Audio/Video) and Modules (FIG. 1). FIG. 1 MAX Modules Refer to the MAX Servers Instruction Manual (available online at www.amx.com), as...
  • Page 6 MAX Modules - Overview MAX AOM and AVM Modules...

  • Page 7: Max-Aom Audio-Only (Usb) Module

    MAX-AOM Audio-Only (USB) Module Overview The MAX-AOM Audio-Only Module (FIG. 2) is a streaming audio playback USB module that distributes up to four stereo outputs (both digital and analog). The AOM is available either as a single unit (FG 2178-55), or as two units using the optional AOM-EX Expansion Kit (FG 2178-56) that mount side-by-side within a single rack unit.

  • Page 8: Installing The Max-Aom

    MAX-AOM Audio-Only (USB) Module MAX-AOM (FG 2178-55) Specifications (Cont.) Audio Output: (Cont.) Rear Panel Connectors: Dimensions (HWD) Weight: Included Accessories: Optional Accessories Certification: Installing the MAX-AOM Adding the MAX-AOM to the MMS Server In order for AOM(s) to be recognized by the MMS server, they must each be added to the system, via the Add Output Module options in the MAX Admin Menu.

  • Page 9: Connecting The Max-Aom To The Mms Server

    If you are adding only one AOM module to the server, then you’ll specify up to four server output/zones (one for each of the four possible audio outputs on the AOM). If you are adding two AOMs (MMS-04S, -12S and -900 servers only), you’ll specify up to eight outputs (four per AOM), as indicated in the following table.

  • Page 10: Additional Information On Usb Ports 1 And

    MAX-AOM Audio-Only (USB) Module Additional Information on USB Ports 1 and 2 (on the MMS-04S, MMS-12S and MMS-900 Servers) If you are using both USB connectors on the MMS server, be sure to note which audio zones are associated with the AOM connected to each USB port: The USB 1 port is for audio outputs 1 through 4.
  • Page 11 Two screws secure the bracket to front and back of AOM #2 Use screws to secure the Side Mounting Bracket to AOM #1 Tabs fit into slots on the side panel of the AOM #2 FIG. 3 Side Mounting Bracket The Short Rack-Mounting Bracket (FIG.
  • Page 12 MAX-AOM Audio-Only (USB) Module 3. Position the SIde Mounting Bracket to AOM #1, using the tabs to ensure proper positioning, Use six of the supplied screws to secure the Side Mounting Bracket to AOM #1 (FIG. 7). AOM #2 (front) FIG.

  • Page 13: Max-Avm Audio-Video Module

    MAX-AVM Audio-Video Module Overview The MAX-AVM Audio Video Module (FIG. 10) is a streaming DVD playback module that works in conjunction with the MAX MMS MultiMedia Servers. The AVM provides A/V output in two formats: VGA and S-Video, and features both analog stereo and coax digital audio outputs.

  • Page 14: Installing The Max-Avm

    MAX-AVM FIG. 11 Example installation using multiple MAX-AVMs The procedure for installing the MAX-AVM is outlined below, and the steps are described in the following sections: 1. Connect the AVM to an MMS server and a display device. 2. Install the AVM Setup Serial Number (indicated on a decal on the bottom panel of the AVM) in the MMS server.

  • Page 15: Connecting The Max-Avm To An Mms Server And Display Device

    Connecting the MAX-AVM to an MMS Server and Display Device Power up the MMS server before applying power to the MAX-AVM. 1. Connect audio outputs using one of the two output options: a. Use the supplied audio adapter (mini-stereo to RCA) for analog audio output.

  • Page 16: Troubleshooting

    MAX-AVM Audio-Video Module 4. Turn on the power switch and allow up to one minute for the AVM to boot up. Once the AVM is finished booting up, the Start page is displayed, giving you the option to play Movies or Music. Use the mouse to navigate and make selections.

  • Page 17: Max-Avm User-Interface

    WinMAX to access all of functionality of the MMS server. Start Screen Upon powering up the MAX-AVM module, the Start screen (FIG. 13) is displayed, presenting three initial navigation options: MUSIC, MOVIES and PLAYLISTS. Use these options to select the type of media that you want to access (music, movies, or custom playlists which may contain music, movies or both).

  • Page 18: Music Pages

    MAX-AVM User-Interface MUSIC Pages Use the MUSIC pages (GENRE, ARTIST, SEARCH and BROWSE) to select and play individual tracks or entire CDs. Each of these navigation options are described below: MUSIC - GENRE Select GENRE to view a list of music genres, then select an item from the list to view the CDs and/or tracks included in that genre (listed by artist name and CD title), and begin playback of the selected genre.

  • Page 19: Music - Search

    FIG. 17 MUSIC - BROWSE page MAX AOM and AVM Modules MAX-AVM User-Interface MUSIC - SEARCH page 1. Enter a search string to search for music by artist, title or genre. 2. Select a CD from the search results list to initiate playback (or select an individual track to play).

  • Page 20: Music Selections

    MAX-AVM User-Interface Music Selections Double-click on any list item to either drill-down to the next level of navigation, or to make a selection for playback. For example, on the MUSIC - GENRES page, double-click on a genre to access the list of artists included in that genre.

  • Page 21: Movies Pages

    Note that you only have to enter the first few characters to begin receiving results. FIG. 20 MOVIES - SEARCH page MAX AOM and AVM Modules MAX-AVM User-Interface MOVIES - GENRE page 1. Select a genre from the list to view a list of CDs included in that genre.

  • Page 22: Movies - Browse

    MAX-AVM User-Interface MOVIES - BROWSE Select BROWSE to browse the movie collection by cover art. When you select Browse, you must first select a genre to browse. FIG. 21 MUSIC - BROWSE page Movie Selections and Transport Controls Selecting and playing back movies works basically the same as it does for music: double-click to either drill-down to the next level of navigation, or to make a selection for playback.

  • Page 23: Movie Playback Page

    DVD title, current chapter Stop/Exit Next Chapter Prev Chapter Play/Pause MAX-AVM User-Interface Press the ESC key to toggle the DVD transport controls. Use the up and down arrows to move the transport control bar to either the top or bottom of...

  • Page 24: Playlists Page

    FIG. 24 PLAYLISTS page WinMAX Software Refer to the WinMAX MMS Control Software Instruction Manual (available online at www.amx.com) for detailed information and instructions on using WinMAX, including: • Adding/removing music and movies from the MMS server • Creating Custom Music CDs • Parental Control •...
  • Page 25 MAX-AVM User-Interface MAX AOM and AVM Modules...
  • Page 26 It’s Your World - Take Control™ 3000 RESEARCH DRIVE, RICHARDSON, TX 75082 USA • 800.222.0193 • 469.624.8000 • 469-624-7153 fax • 800.932.6993 technical support • www.amx.com...
