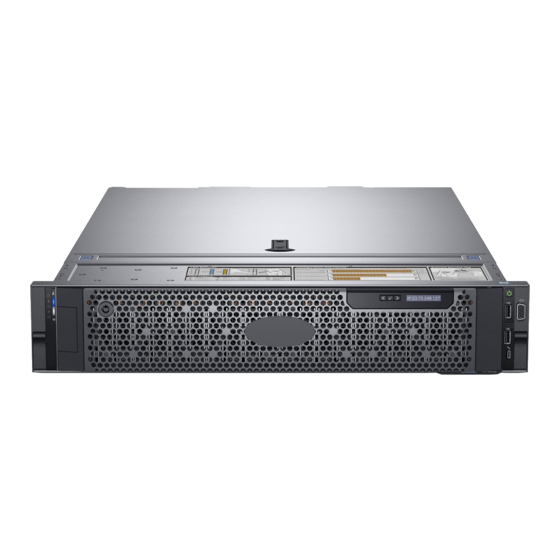

Intelligent fusion server
Hide thumbs Also See for DS-IX2001-A3U/X:
Table of Contents

Advertisement

Quick Links

Intelligent Fusion Server
Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-IX2001-A3U/X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION DS-IX2001-A3U/X

Summary of Contents for HIKVISION DS-IX2001-A3U/X

  • Page 1 Intelligent Fusion Server Installation Guide...
  • Page 2 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 3 Intelligent Fusion Server Installation Guide YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS.
  • Page 4 Intelligent Fusion Server Installation Guide Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 5 Intelligent Fusion Server Installation Guide Preface Applicable Models This manual is applicable to DS-IX2001-A3U/X and DS-IX2003-A3U/X. Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury.

  • Page 6: Table Of Contents

    Intelligent Fusion Server Installation Guide Contents Chapter 1 Activation and Login ....................1 1.1 Network Connection ......................1 1.2 Tools Preparation ........................1 1.3 PC Requirements ........................1 1.4 Activation ..........................1 1.4.1 Activate via SADP Software ................... 1 1.4.2 Activate via Web Browser ..................... 2 1.5 Login ............................
  • Page 7 Intelligent Fusion Server Installation Guide A.2.1 Default Information ....................21 A.2.2 View BMC IP Address ....................21 A.2.3 Modify BMC IP Address ....................22 A.3 Enable Remote Controller ....................22 A.4 Open Mirror File ........................23 A.5 Install OS ..........................23 A.6 Modify Node IP ........................

  • Page 8: Chapter 1 Activation And Login

    Intelligent Fusion Server Installation Guide Chapter 1 Activation and Login 1.1 Network Connection Please refer to Network Interface for network connection requirements. 1.2 Tools Preparation • SADP Software. • Xshell. • Java Environment (JER 1.8 or above version). 1.3 PC Requirements You can get access to the server with Web browser.

  • Page 9: Activate Via Web Browser

    Intelligent Fusion Server Installation Guide 2. Select the desired device, set your password in Activate Device and click Activate. Figure 1-1 Activate via SADP Software Note • We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 10: Login

    Intelligent Fusion Server Installation Guide Figure 1-2 Activation Interface Note The password of root user will be changed when the activation password is set. As a result, the password of root user will be the same as that of admin user. 3.
  • Page 11 Intelligent Fusion Server Installation Guide Figure 1-3 Login Interface 2. Enter User Name (admin) and Password. 3. Click Login. Figure 1-4 Home Page Note • If the server is inaccessible, go to Internet Options → Advancement , check Enable TLS1.1 and Enable TLS1.2.

  • Page 12: Chapter 2 Configuration Wizard

    Intelligent Fusion Server Installation Guide Chapter 2 Configuration Wizard 2.1 Modify Device IP Skip this part if you have modified IP address via SADP software. Refer to Modify Node IP to modify device IP by logging in operating system. Note Please restart the device after modifying the IP address of your device.
  • Page 13 Intelligent Fusion Server Installation Guide Figure 2-2 Login Interface Note Hereafter this interface will be referred as 5119 Interface. 4. Go to Device → Storage Volume , select storage volume, and click Format Storage Volume. Figure 2-3 Select Storage Volume 5.

  • Page 14: Create Micro Video Cloud Cluster

    Intelligent Fusion Server Installation Guide Note • It takes a while to complete formatting, please wait. • If there are multiple storage volumes need to be formatted, please repeat the same steps as shown above. 2.2.2 Create Micro Video Cloud Cluster Note The nodes that create micro video cloud cluster should be the same with that of creating analysis cluster.

  • Page 15: Set Storage Parameter

    Intelligent Fusion Server Installation Guide Note Hereinafter this interface will be referred as 5120 Interface. 4. Click Cluster Deployment. Figure 2-8 Click Cluster Deployment Note 1 or 2 nodes can create a standalone micro video cloud and 3 to 8 nodes can create a cluster micro video cloud.

  • Page 16: Add Storage Node To Domain

    Intelligent Fusion Server Installation Guide Figure 2-9 Set Storage Parameters Note You can check node memory by inputting free -g in node operating system 6. After setting parameters, click Set CVS Parameters to complete. 2.2.4 Add Storage Node to Domain Steps 1.

  • Page 17: Create Static Pool

    Intelligent Fusion Server Installation Guide Figure 2-13 Add CVS 2.2.5 Create Static Pool Static pool is used to storage human face picture of list library. Before You Start Storage Volume has been formatted. Note The specific parameter values filled in the relevant interfaces below are for reference only. You need to enter relevant parameter values according to actual condition.

  • Page 18: Create Video Pool

    Intelligent Fusion Server Installation Guide Max. Locking up Attempts Enter 10. Figure 2-14 Create Static Pool Note The static resource pool ID is required when adding smart storage unit. 2.2.6 Create Video Pool Video pool is used to storage video files that are manually uploaded. Steps 1.

  • Page 19: Create Dynamic Pool

    Intelligent Fusion Server Installation Guide Resource Pool Capacity Enter 100. Note It is recommended to set the value as 100, but you can also set it according to actual needs. Max. Locking up Attempts Enter 10. Figure 2-15 Create Video Pool Note The static resource pool ID is required when adding smart storage unit.

  • Page 20: Add Micro Video Cloud

    Intelligent Fusion Server Installation Guide Resource Pool Name Enter dynamic-pool. Resource Pool Type Select Picture. Accelerate Picture Select Accelerate. Storage Mode Select Dispersed. Overwrite Mode Select Capacity. Resource Pool Capacity Enter remaining capacity. Note It is recommended to set the value as the remaining capacity , but you can also set it according to actual needs.
  • Page 21 Intelligent Fusion Server Installation Guide 2. Go to System Management → System Configuration → Cloud Storage , and click Add. Figure 2-17 Set Cloud Storage 3. Set parameters of Smart Storage Unit. Parameter Name Description Name Enter the name as you like. Here we take CVM as an example. Smart Storage Unit IP Enter the virtual IP of cluster micro video cloud (for standalone micro video cloud, enter node IP).

  • Page 22: Create Cluster

    Intelligent Fusion Server Installation Guide Figure 2-18 Add Smart Storage Unit 4. After setting parameters, click OK. 2.3 Create Cluster Note The nodes that create micro video cloud cluster should be same with that of creating analysis cluster. Otherwise, exception may occur. 2.3.1 Add Nodes Before You Start The node is online and on the same subnet with the server.

  • Page 23: Create Stand-Alone Cluster

    Intelligent Fusion Server Installation Guide Figure 2-19 Add Notes 3. Enter Name, Nodes IP, User Name and Password. 4. Click OK. Figure 2-20 Configure Nodes Information Note If there are multiple nodes to be added, please follow the steps above to finish. 2.3.2 Create Stand-alone Cluster Single node can create standalone cluster.
  • Page 24 Intelligent Fusion Server Installation Guide Figure 2-21 Click Create Cluster 2. Select the desired node, and click Next. Figure 2-22 Select Nodes 3. Click zookeeper, kafka, MongoDB, appServer respectively and check the desired nodes.
  • Page 25 Intelligent Fusion Server Installation Guide Figure 2-23 Deploying Service 4. Click Start Deploying. 5. Click OFF after deploying is completed. Figure 2-24 Click OFF 6. Clik Resource Configuration to allocate resources for face picture analysis and face video analysis. Face Picture Analysis Path Intelligent analysis of face attributes in pictures.

  • Page 26: Create Master And Backup Cluster

    Intelligent Fusion Server Installation Guide Note If no resource is allocated, the server cannot process the analysis task. Figure 2-25 Allocate Resource 2.3.3 Create Master and Backup Cluster Two or more nodes can create a master and backup cluster. Data can only be analyzed after the cluster is created.
  • Page 27 Intelligent Fusion Server Installation Guide Intelligent analysis of target (human body or vehicle) attributes in pictures. Structured Video Analysis Channel Intelligent analysis of target (human body or vehicle) attributes in videos. Note If no resource is allocated, the server cannot process the analysis task. Figure 2-26 Allocate Resource...

  • Page 28: Appendix A. Install Operating System

    Intelligent Fusion Server Installation Guide Appendix A. Install Operating System A.1 Network Interface Figure A-1 Network Port A.2 BMC Configuration A.2.1 Default Information In order to protect your device, it is recommended to modify BMC default information according to actual needs. Table A-1 BMC Default Information Parameters Default Value...

  • Page 29: Modify Bmc Ip Address

    Intelligent Fusion Server Installation Guide Figure A-2 View BMC IP Address The BMC IP address will be displayed during the process. A.2.3 Modify BMC IP Address Modify BMC IP address via BMC Web interface. Steps 1. Modify the IP address of PC to make sure it is in the same subnet as the original BMC IP address. 2.

  • Page 30: Open Mirror File

    Intelligent Fusion Server Installation Guide 2. Click Launch KVM HTML5 Viewer. 3. Download and open the file named viewer.jnlp. 1) Click Next. 2) Click OK to enable remote controller. A.4 Open Mirror File Here we take installing OS by using mirror file as an example. Before You Start The mirror file has been obtained and saved.
  • Page 31 Intelligent Fusion Server Installation Guide Steps 1. Go to Power → Power Cycle Server to restart the server. Figure A-5 Restart Server 2. The device launches via the mirror file and complete the installation. Figure A-6 OS Installation Completed Note Press Enter if the interface stays as below for a long time.

  • Page 32: Modify Node Ip

    Intelligent Fusion Server Installation Guide Note Press Shift to switch your typewriting method if the current typing is disabled. 3. The login interface will be displayed after OS installed. Note Table A-2 Operating System Default Information Parameter Value User Name root Password hikdc@2019...
  • Page 33 Intelligent Fusion Server Installation Guide Figure A-10 Check Configuration File 4. Enter vim ifcfg-bond0, and press Enter. 5. Press I to enter editing mode. You need to set network parameters according to actual demands. IPADDR IP address. NETMASK Subnet mask. GATEWAY Gateway.
  • Page 34 Intelligent Fusion Server Installation Guide Figure A-13 Check Network Parameters 9. Enter reboot and press Enter to restart the server.

  • Page 35: Appendix B. Install And Uninstall Lightsystem Software

    Intelligent Fusion Server Installation Guide Appendix B. Install and Uninstall LIGHTSYSTEM Software B.1 Install LIGHTSYSTEM Software LIGHTSYSTEM software is installed during the process of OS installation. Log in the Web interface of intelligent fusion server via its IP address. Hereinafter the manual installation of LIGHTSYSTEM software is introduced.
  • Page 36 Intelligent Fusion Server Installation Guide Figure B-3 Run Uninstall File Note If the software is disable to function, enter chmod +x DC_LIGHTSYSTEM*** to authorize the software. 3. Enter ./DC_DC_LIGHTSYSTEM_CN_STD_T4_V1.1.0_*** uninstall and then press Enter. Figure B-4 Uninstall Software Note • It takes a while to complete the installation, please wait. •...

  • Page 37: Appendix C. Install And Uninstall Micro Video Cloud

    Intelligent Fusion Server Installation Guide Appendix C. Install and Uninstall Micro Video Cloud C.1 Install Micro Video Cloud Micro video cloud is installed during the process of OS installation. Log in the Web interface of intelligent fusion server via its IP address. Hereinafter the manual installation of micro video cloud is introduced.
  • Page 38 Intelligent Fusion Server Installation Guide Note Here we take Xshell tool login node (IP: 192.168.0.1) as an example. Steps 1. Open Xshell tool, enter ssh 192.168.0.1 2343 and press Enter Figure C-4 Set up ssh Connection 2. Enter root as user name, and enter your password. 3.
  • Page 39 UD17661B...
