APPENDIX: EXAMPLE CONFIGURATIONS

Large Heterogeneous StorNext configuration

Apple
OSX
XSAN Client
HBA HBA
Celerity Celerity
FC-81EN, FC-81EN,
FC-82EN, FC-82EN,
or FC-84EN or FC-84EN
Driver: .3.1b12 Driver: .3.1b12
Controller A
IBM
DS5300
Controller B
SATA Drives
Up 480 SATA drives maximum
(with EXP5060)

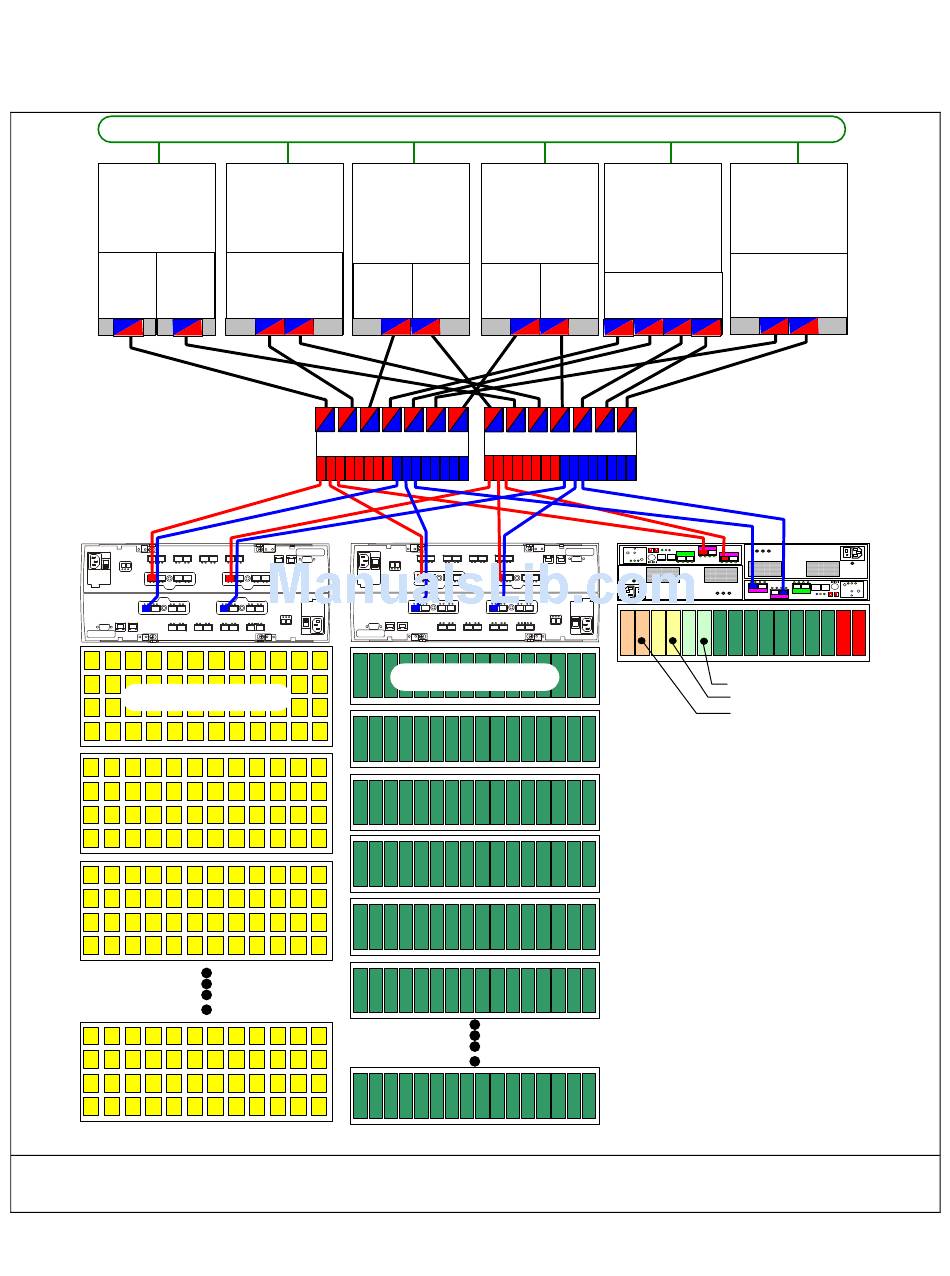

Example 1.Drawing depicts large and expandable SAN with heterogeneous client connectivity. Multiple DS5300 connected to
meshed SAN fabric with a minimum of two Fibre Channel switches. For DS5100/DS5300 configurations, a minimum of two
switches is recommended. Drawing shows multiple DS5300 for Data storage and a separate DS5020 for Meta Data.
