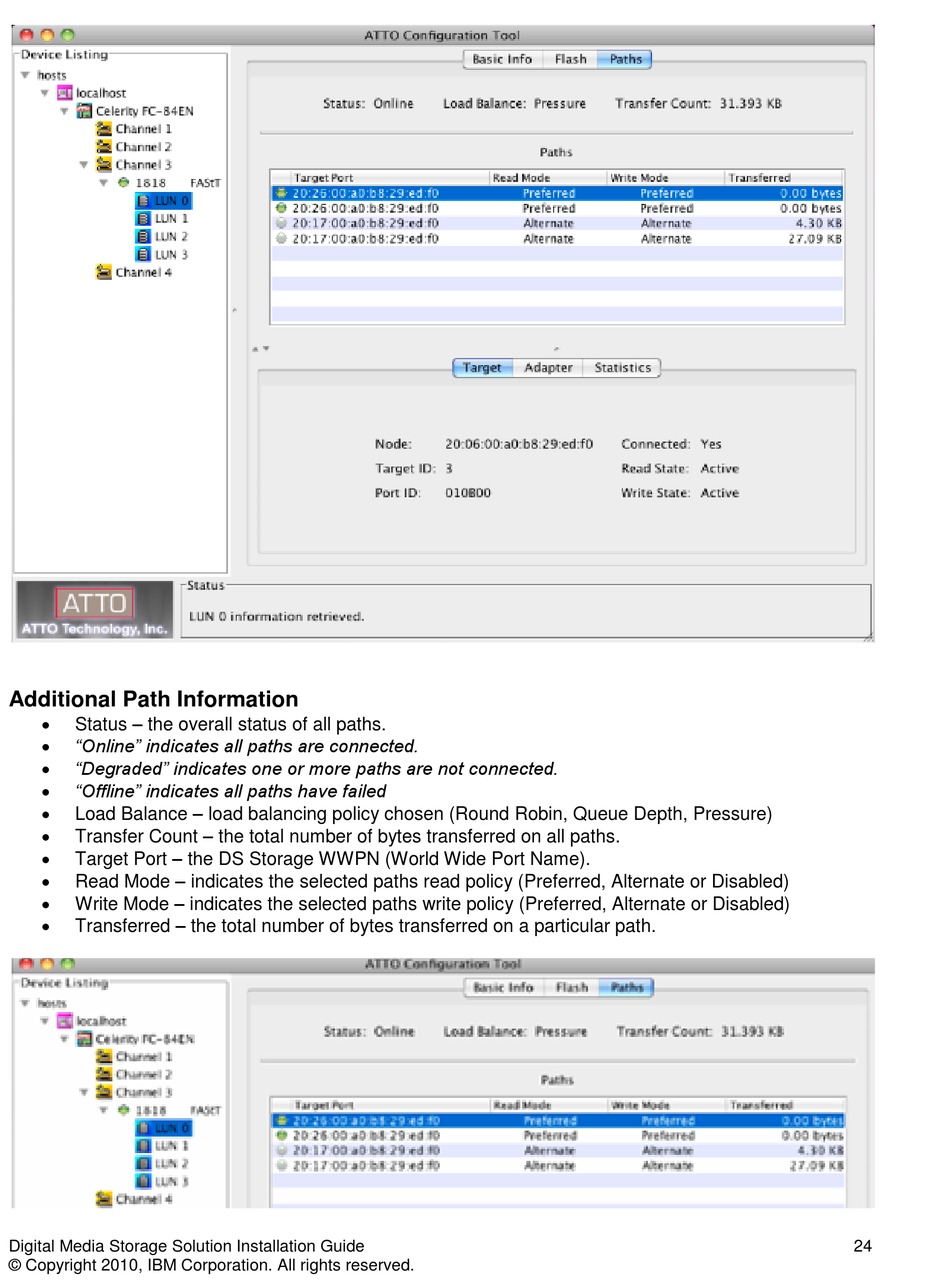

Additional Path Information


Status – the overall status of all paths.

"Online" indicates all paths are connected.

"Degraded" indicates one or more paths are not connected.

"Offline" indicates all paths have failed

Load Balance – load balancing policy chosen (Round Robin, Queue Depth, Pressure)

Transfer Count – the total number of bytes transferred on all paths.

Target Port – the DS Storage WWPN (World Wide Port Name).

Read Mode – indicates the selected paths read policy (Preferred, Alternate or Disabled)

Write Mode – indicates the selected paths write policy (Preferred, Alternate or Disabled)

Transferred – the total number of bytes transferred on a particular path.
