Product Information
Applications

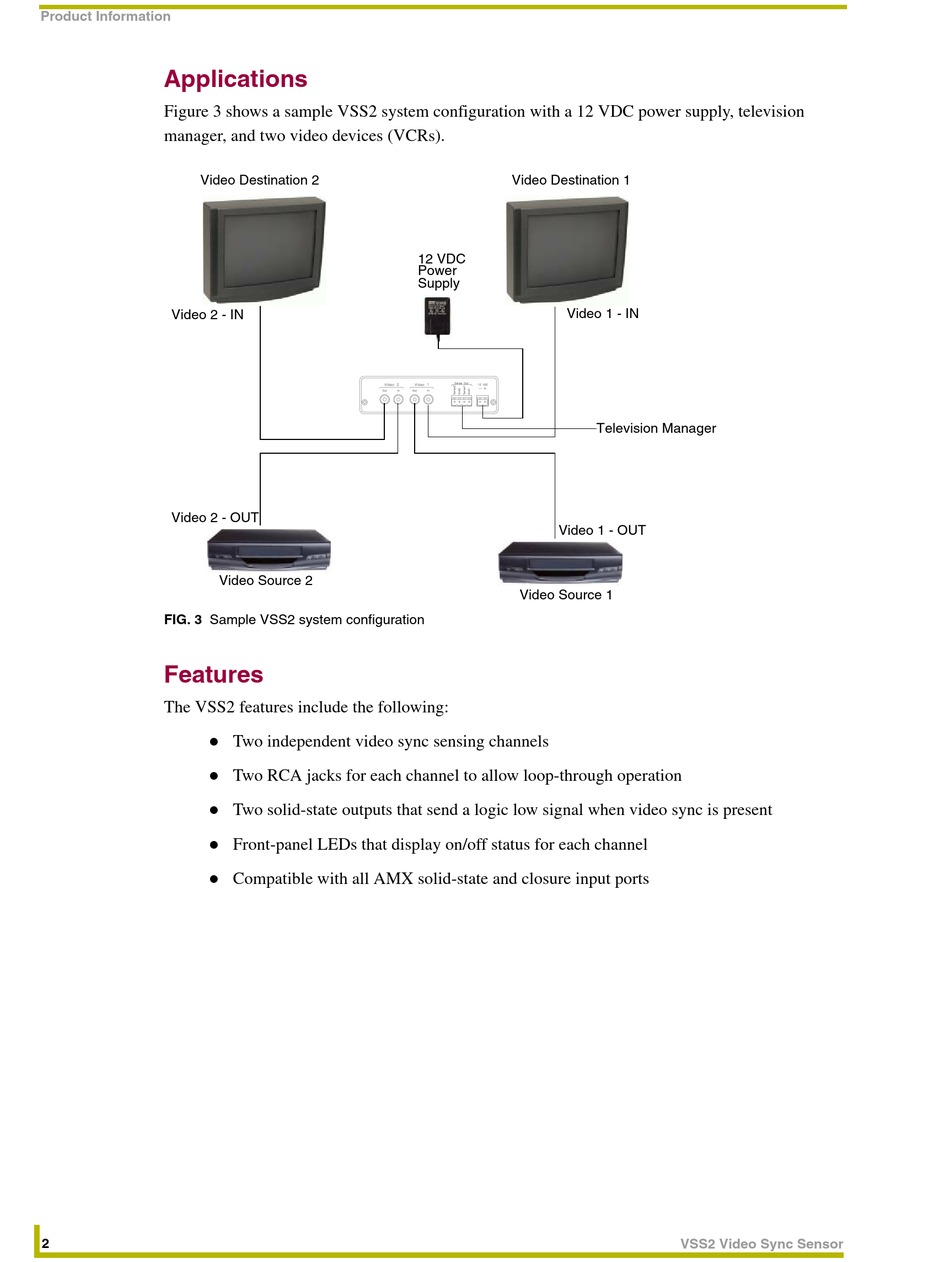

Figure 3 shows a sample VSS2 system configuration with a 12 VDC power supply, television
manager, and two video devices (VCRs).
Video Destination 2
Video 2 - IN
Video 2 - OUT
FIG. 3 Sample VSS2 system configuration
Features
The VSS2 features include the following:
!
!
!
!
!
2
Video Source 2
Two independent video sync sensing channels
Two RCA jacks for each channel to allow loop-through operation
Two solid-state outputs that send a logic low signal when video sync is present
Front-panel LEDs that display on/off status for each channel
Compatible with all AMX solid-state and closure input ports
Video Destination 1
12 VDC
Power
Supply
Video 1 - IN
Video 1 - OUT
Video Source 1
Television Manager
VSS2 Video Sync Sensor
